MSP676 Replacement Parts

Cross-reference and compare 4 replacement listings for OEM / aftermarket part number MSP676. Use the product cards below to review price, availability, and fitment before ordering.

4 Matching Products

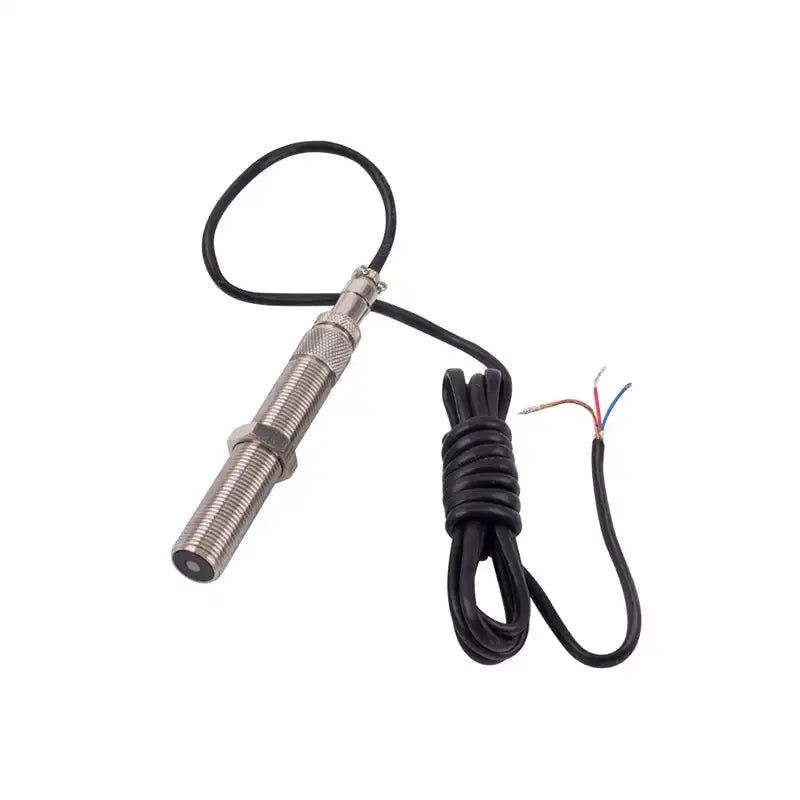

Magnetic Pick Up MSP676 Rotate Speed Sensor Generator Parts1.theMagnetic Pick Up MSP676 Rotate Speed Sensor Generator Parts$76.08Magnetic Rotate Speed Sensor MSP675 Pick Up Sender Ring Gear Teeth UNF-2APickupMagnetic Rotate Speed Sensor MSP675 Pick Up Sender Ring Gear Teeth UNF-2A$66.10MSP678 Magnetic Rotate Speed Sensor Pick Up Sender Ring Gear Teeth 5/8-18 UNF-2APickupMSP678 Magnetic Rotate Speed Sensor Pick Up Sender Ring Gear Teeth 5/8-18 UNF-2A$76.95Magnetic Pickup 213272 MPU Speed SensorControl ModulesMagnetic Pickup 213272 MPU Speed Sensor$111.32

Part Numbers and Cross References

MSP676UNF-2A4.WithMSP675MSP678213272

Applications and Fitment Summary

  • Part Number
  • 1.The magnetic speed sensor is mounted in the ring gear case or flywheel bell housing of the engine. 2.The threaded hole for the speed sensor should be perpendicular to the centerline of the crankshaft and centered over the ring gear teeth. 3.A spot face should be present to provide a flat surface on which to anchor the locknut. 4.With the engine stopped, screw the speed senor in until it touches a gear tooth, then back it out 3/4 of a turn and secure it with the locknut. 5.Any ferrous gear may be used as long as the frequency and amplitude of the resulting signal meet the speed control unit specifications. 6.The wire leads should be twisted for their entire length from the magnetic speed sensor to the control unit. 7.The leads may need shielding if they are longer than 10 ft. (3m), or if external interference is present. 8.Do not connect either of the speed sensor leads to anything but the speed control unit used. The shield should not be connected at the speed sensor end.
  • Rotary Speed Sensor Hot Parts
  • Pickup Length: 3.125" Thread Length :2.75" Lead Length: 7.00" Thread Size: 5/8-18 UNF-2A Drill Size: 37/64
  • Pickup Length: 5.00" Thread Length: 4.75" Lead Length: 6.125" Thread Size: 5/8-18 UNF-2A Drill Size: 37/64

Frequently Asked Questions

What parts replace OEM number MSP676?

This page lists 4 replacement listings indexed under MSP676. Compare cross references, applications, and pricing before ordering.

How do I confirm fitment for MSP676?

Match the stamped part number first, then verify machine model, engine code, serial number, mounting points, and photos of your old part before checkout.

Can I request a quote if MSP676 is not an exact match?

Yes. Use the fitment inquiry form with your machine plate, engine model, and photos. Support can review alternatives or cross references.

Confirm fitment

Send machine details before ordering high-risk parts.
