OEM / REF: SND0264SKU: pilotpart271249

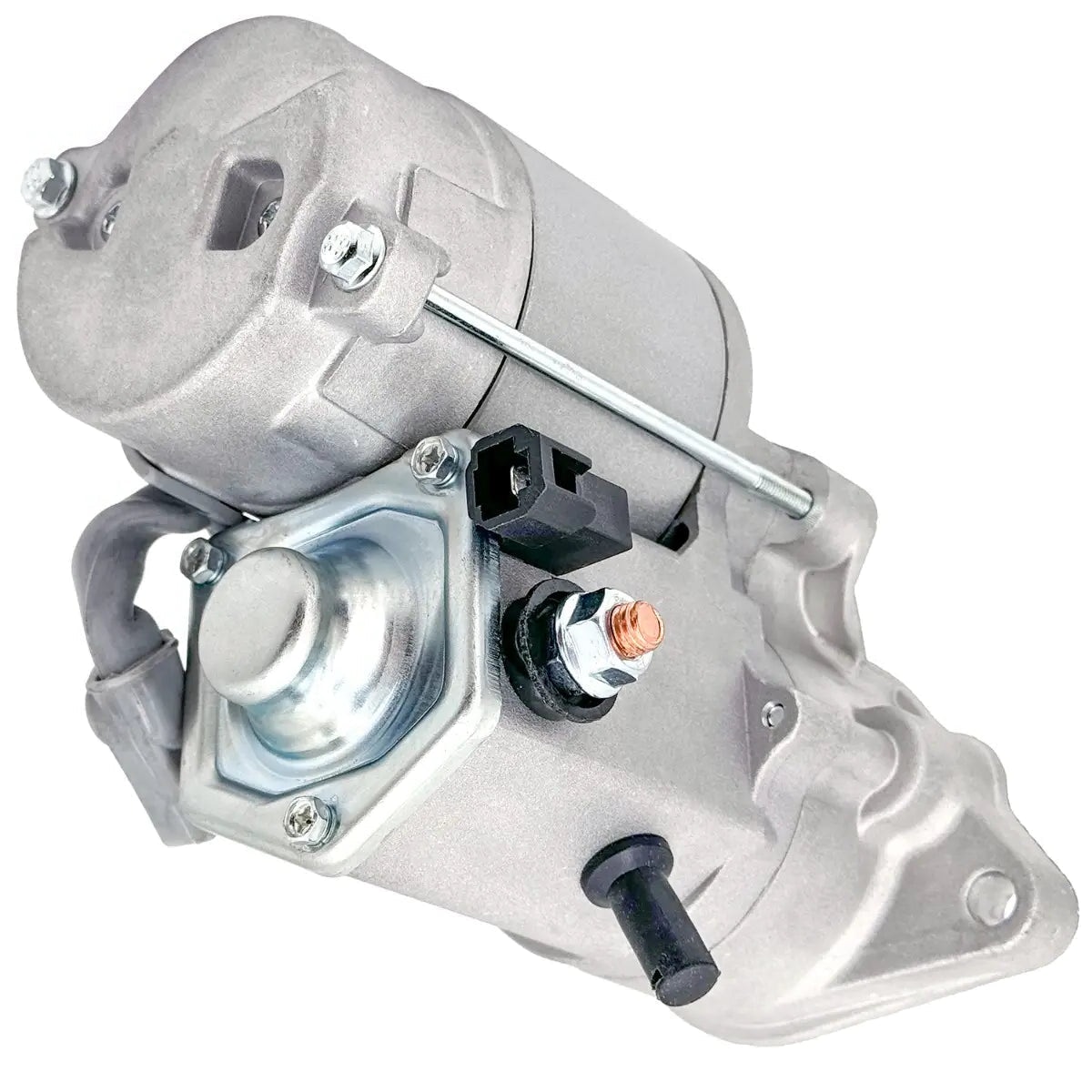

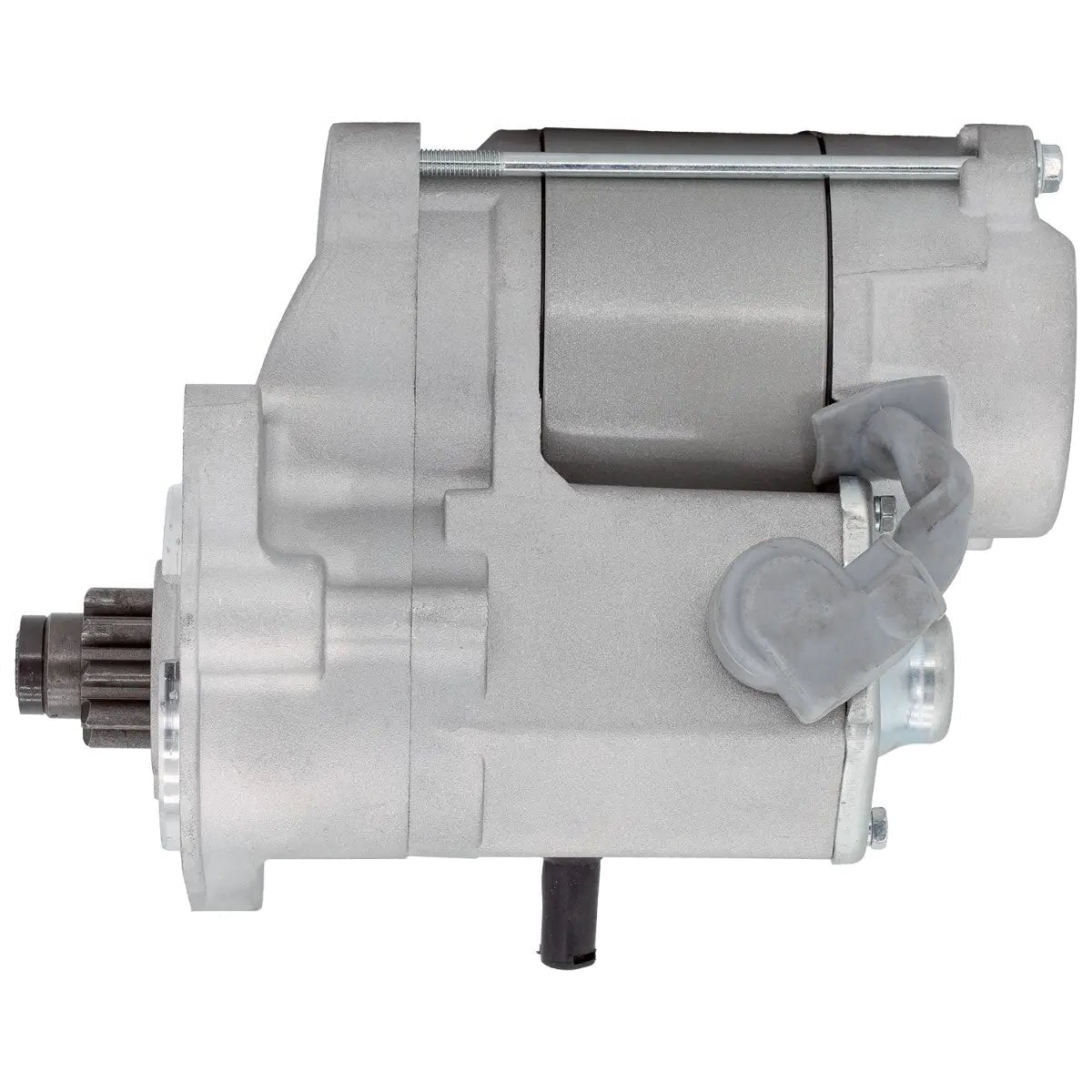

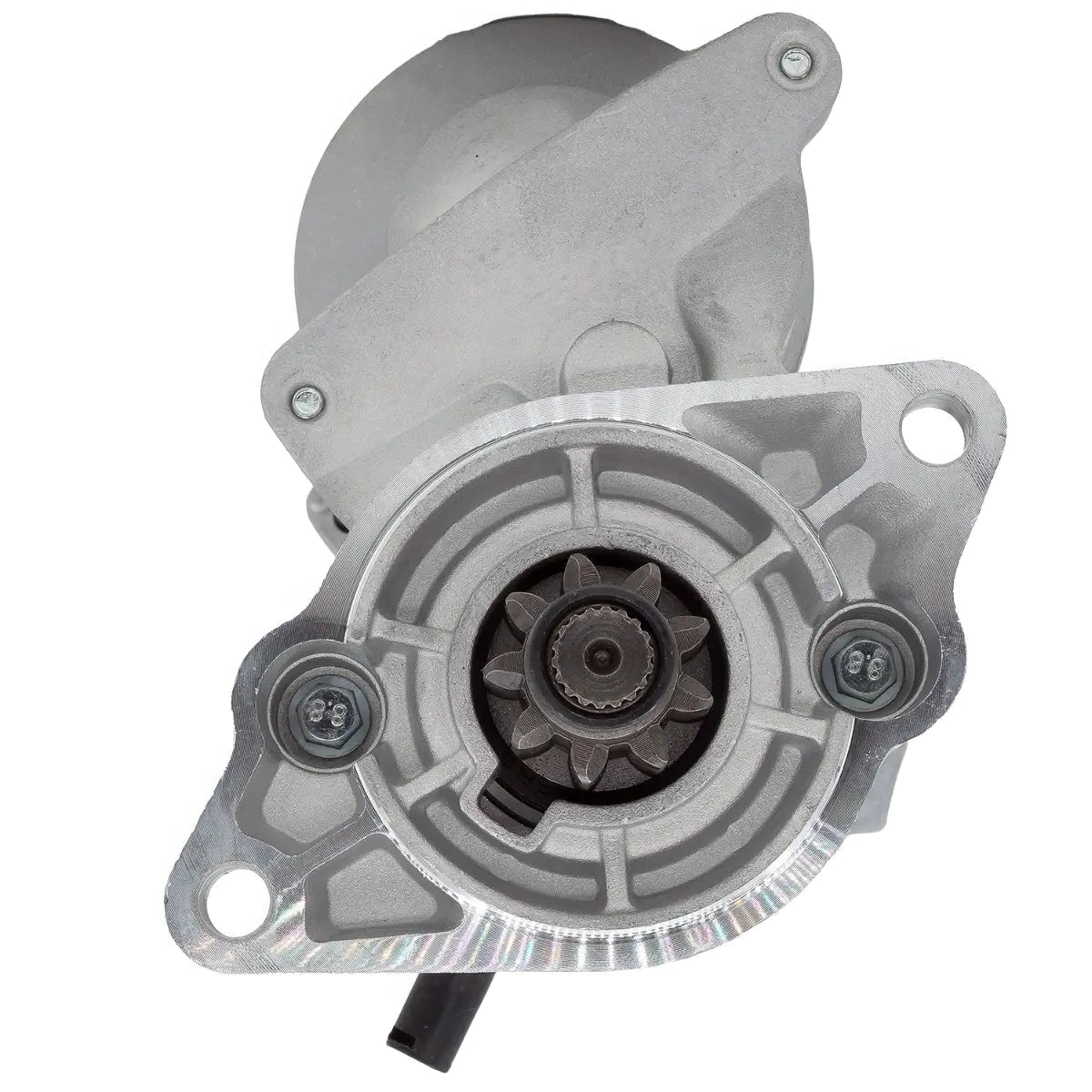

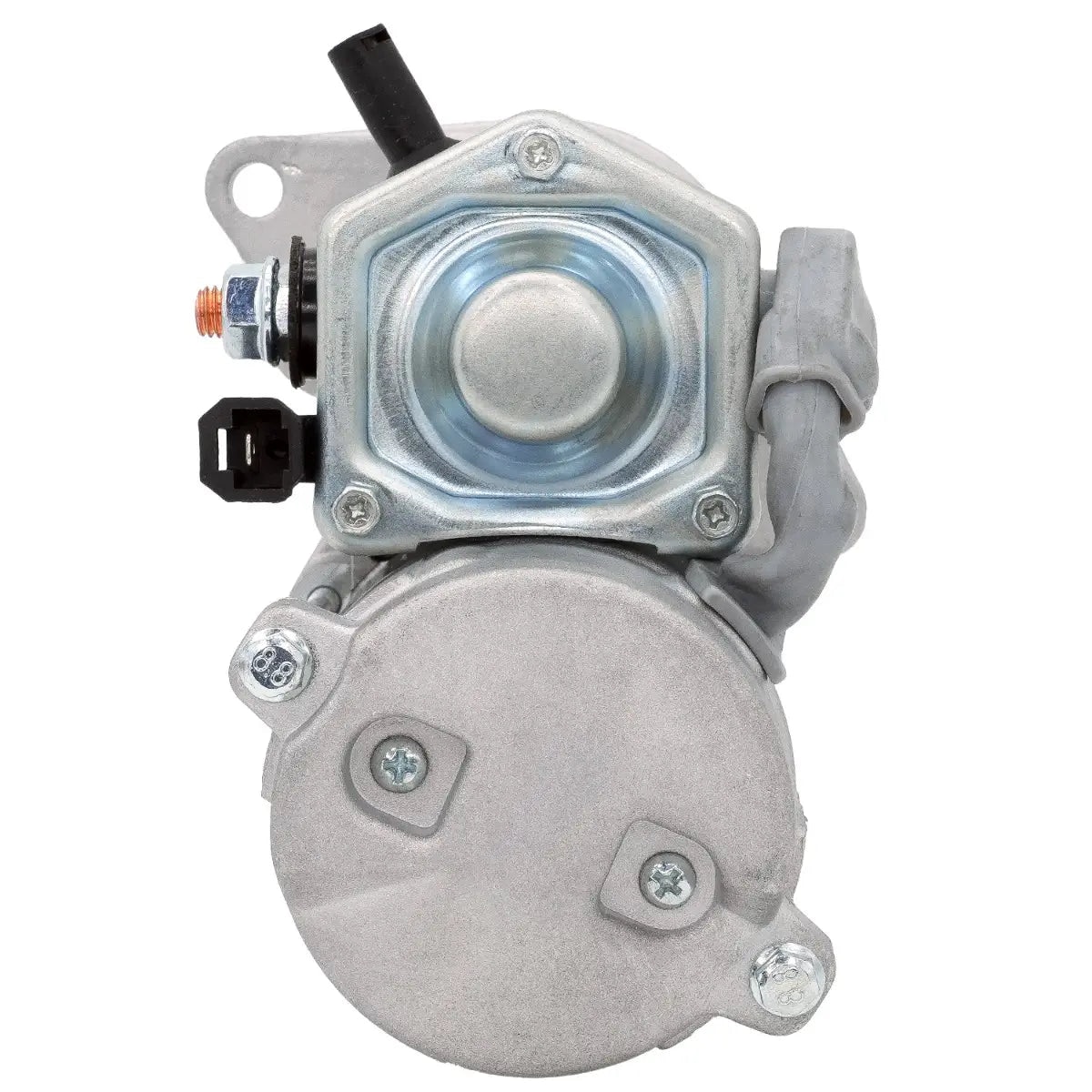

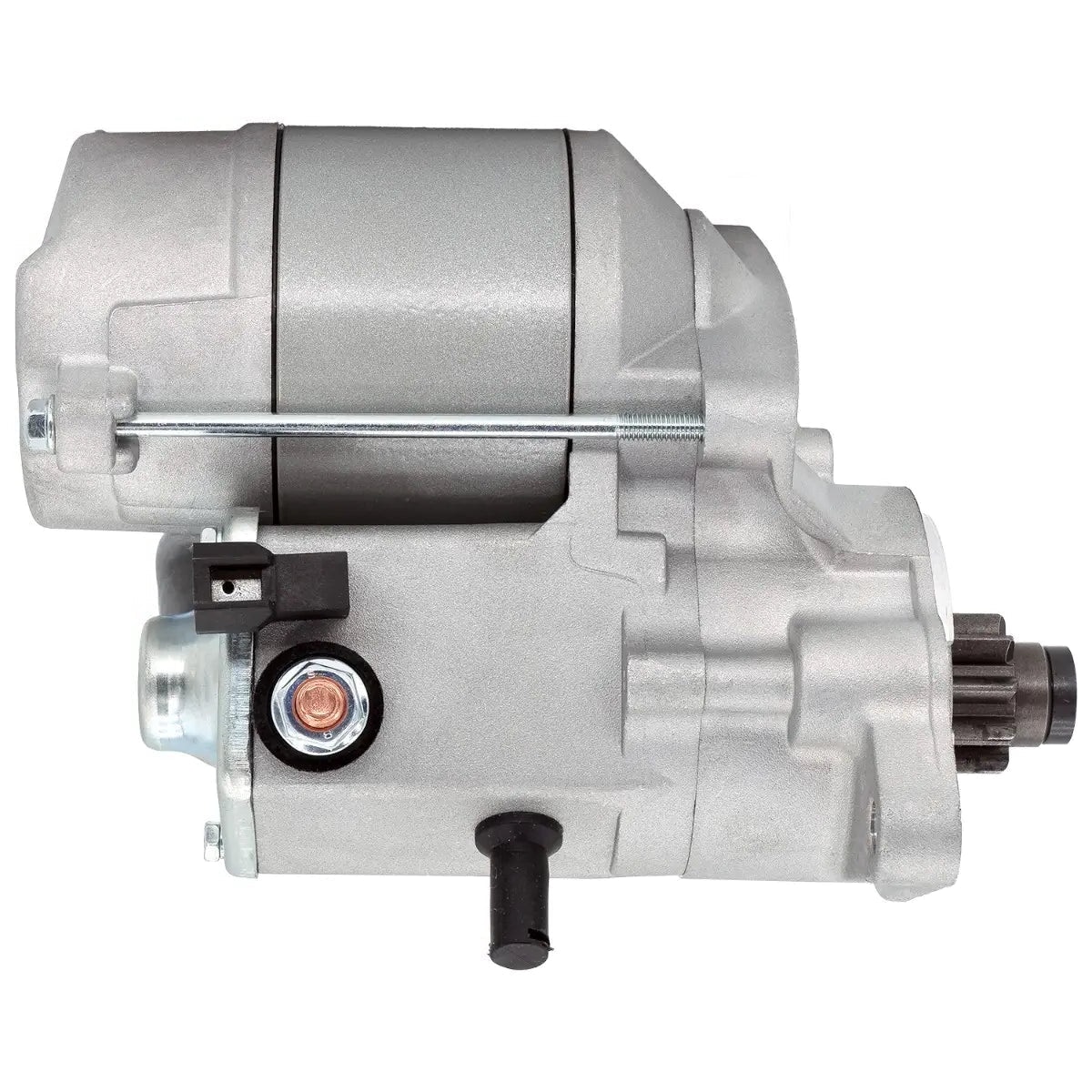

Starter Motor 19269-63013 19269-63011 128000-0050 19269-63010 19269 63013 For Kubota Engine D902 Tractor BX24 BX25 BX2350D BX2230D is a Starter Motor replacement part indexed for Carrier Maxima · CT4-91-TV 1.5L Diesel and Carrier Optima · CT4-91-TV 1.5L Diesel, with 3 application records on file. Match OEM part numb...
This Starter Motor is indexed for Carrier Maxima · CT4-91-TV 1.5L Diesel; Carrier Optima · CT4-91-TV 1.5L Diesel; Case IH 1818; Case IH 1825. Compare reference number SND0264 against the label on your existing Kubota component before ordering.
Additional cross references on file: 410-52020, ND9722809-097, ND9722809-099. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.
| Voltage | 12V |
|---|---|
| Power | 1.4KW |
| Teeth | 9T |
| Design | OSGR |
| Rotation | CW |
| Part Number (ARROWHEAD) | SND0264, 410-52020 |
| Part Number (ARROWHEAD (OEM)) | ND9722809-097, ND9722809-099 |
| Part Number (ARROWHEAD (OEM) (OLD)) | ND9722809-366, SND0345 |
| Part Number (ANDRE NIERMANN) | 014901, 019269 |
| Part Number (ATLANTIC QUALITY PARTS) | 1700-0118 |
| Part Number (BARSANCO) | 610-17098 |
| Part Number (BOMAG) | 5740325 |
| Part Number (CARGO) | 110447, 111021 |
| Part Number (CARRIER TRANSICOLD) | 25-15370-00, 25-15520-00, 945634 |
| Part Number (DENSO) | 128000-0050, 228000-0970, 228000-0971, 228000-0990, 228000-0991, 228000-3660 |
| Part Number (DENSO REMAN) | 9722809-097, 9722809-099 |
| Part Number (DIXIE) | S-8524 |
| Part Number (DIXIE NEW) | 246-14119 |
| Part Number (EMS) | 17098N |
| Part Number (INTL HARVESTER) | 1959380C1 |
| Part Number (J & N) | 410-52020 |
| Part Number (J & N (OLD)) | 410-52020R |
| Part Number (KUBOTA) | 16695-63011, 16695-63012, 16695-63013, 19090-17861, 19269-63010, 19269-63011, 19269-63012, 19269-63013 |
| Part Number (LESTER) | 17098 |
| Part Number (LUCAS ELECTRICAL EUROPE) | LRS01251, LRS01629 |
| Part Number (MINNPAR) | 57-1310, 57-1725, 57-3230 |
| Part Number (PIC) | 190-432, 190-560, 190-560A, 190-560B |
| Part Number (WILSON) | 91-29-5193, 91-29-5619 |
| Part Number (WILSON HD) | 91-29-5193 |
| Part Number (WILSON SMALL ENGINE) | 71-29-17098 |
| Part Number (WOOD AUTO) | STR8090 |
| Part Number | ARROWHEAD: SND0264, 410-52020 ARROWHEAD (OEM): ND9722809-097, ND9722809-099 ARROWHEAD (OEM) (OLD): ND9722809-366, SND0345 ANDRE NIERMANN: 014901, 019269 ATLANTIC QUALITY PARTS: 1700-0118 BARSANCO: 610-17098 BOMAG: 5740325 CARGO: 110447, 111021 CARRIER TRANSICOLD: 25-15370-00, 25-15520-00, 945634 DENSO: 128000-0050, 228000-0970, 228000-0971, 228000-0990, 228000-0991, 228000-3660 DENSO REMAN: 9722809-097, 9722809-099 DIXIE: S-8524 DIXIE NEW: 246-14119 EMS: 17098N INTL HARVESTER: 1959380C1 J & N: 410-52020 J & N (OLD): 410-52020R KUBOTA: 16695-63011, 16695-63012, 16695-63013, 19090-17861, 19269-63010, 19269-63011, 19269-63012, 19269-63013 LESTER: 17098 LUCAS ELECTRICAL EUROPE: LRS01251, LRS01629 MINNPAR: 57-1310, 57-1725, 57-3230 PIC: 190-432, 190-560, 190-560A, 190-560B WILSON: 91-29-5193, 91-29-5619 WILSON HD: 91-29-5193 WILSON SMALL ENGINE: 71-29-17098 WOOD AUTO: STR8090 |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
