OEM / REF: M113621SKU: pilotpart719221
Air Filter AF-981-S P822686 & P535396 For Walker Mower MC MD MS MT with Diesel Engine is a Air Filter replacement part indexed for Walker MC · Diesel and Walker MD · Diesel, with 3 application records on file. Match OEM part number M113621 and confirm fitment for Walker Seals, Filters & Maintenance Parts before orde...
This Air Filter is indexed for Walker MC · Diesel; Walker MD · Diesel; Walker MS · Diesel; Walker MT · Diesel. Compare reference number M113621 against the label on your existing Walker component before ordering.
Additional cross references on file: MIU10783, 6673752, 820263. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.

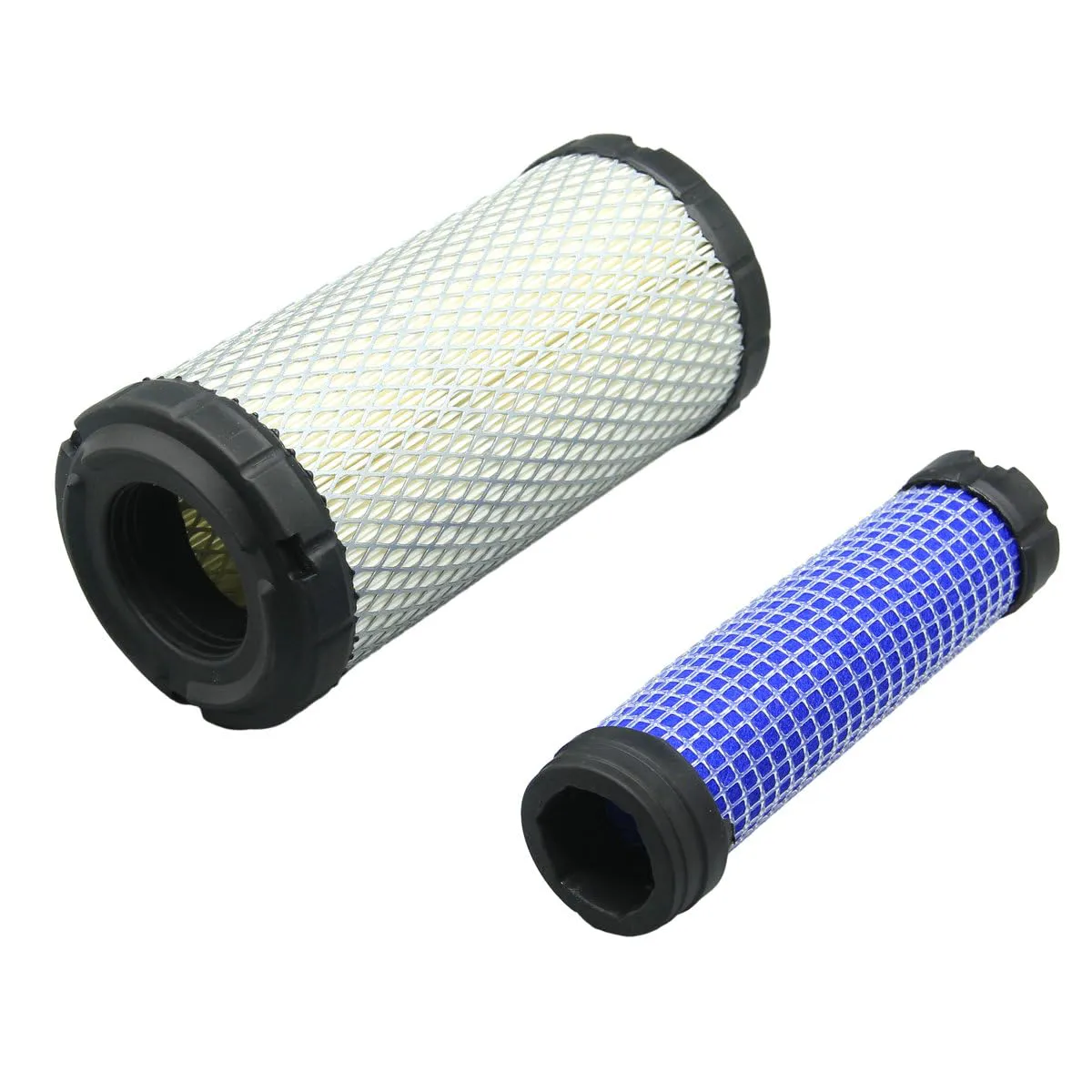

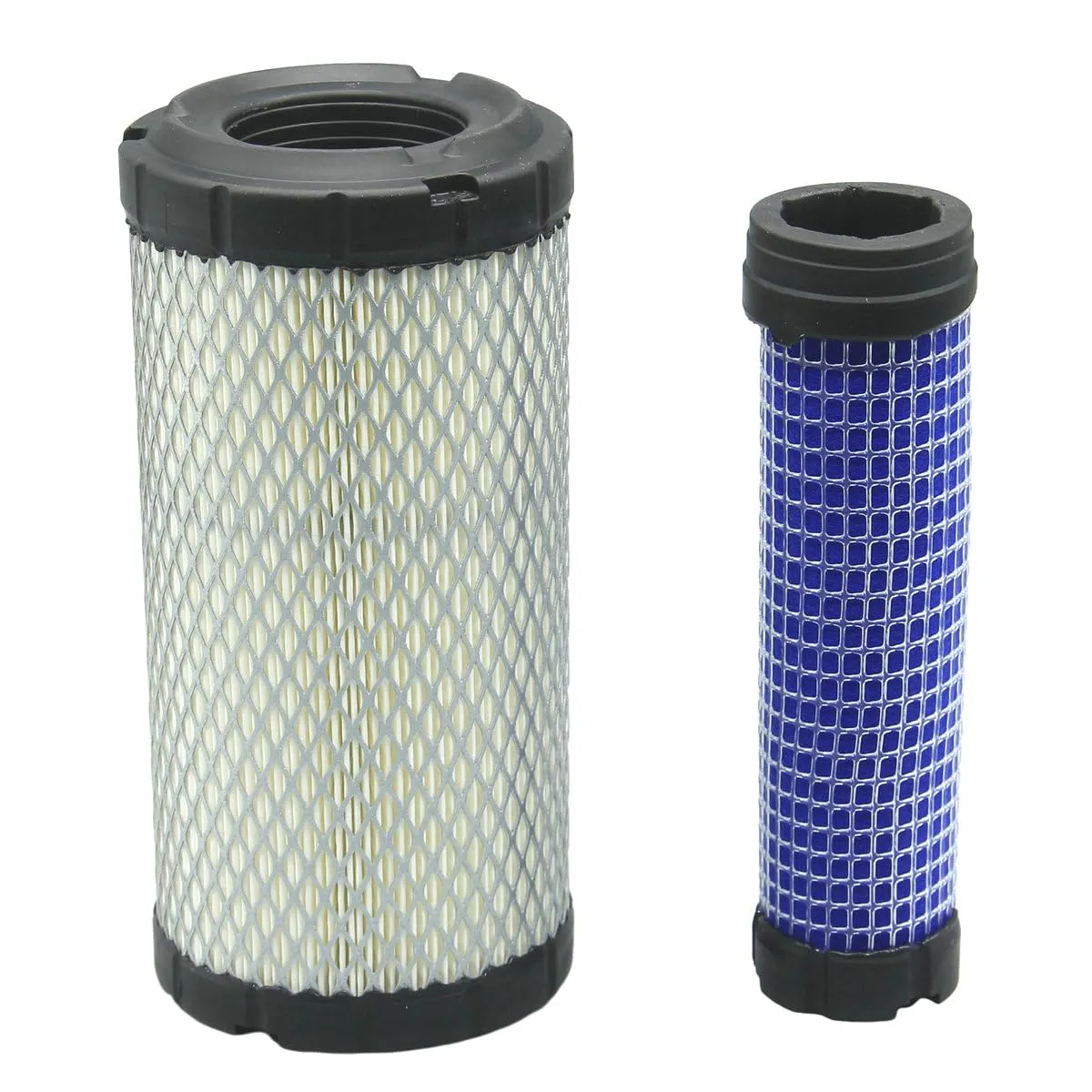

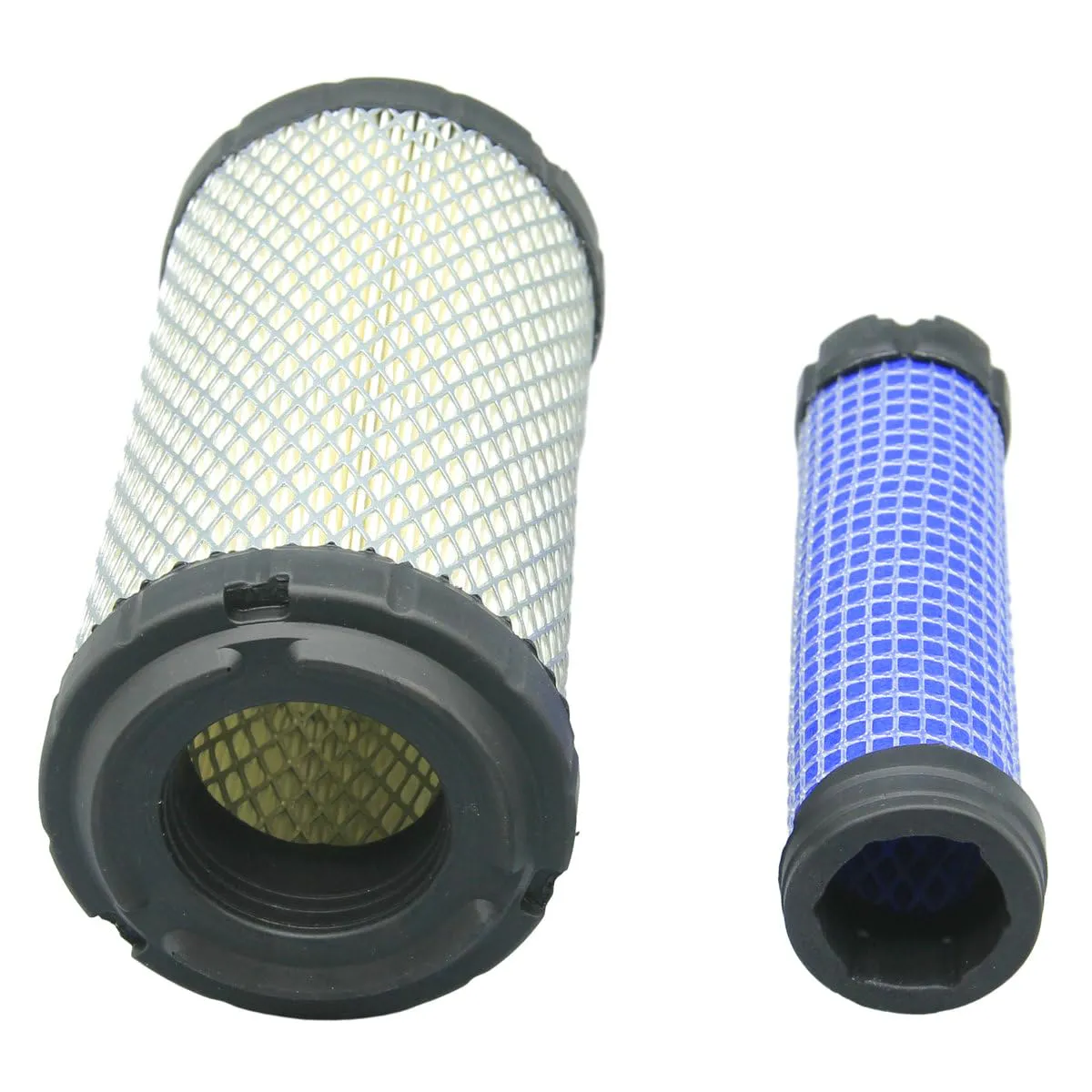

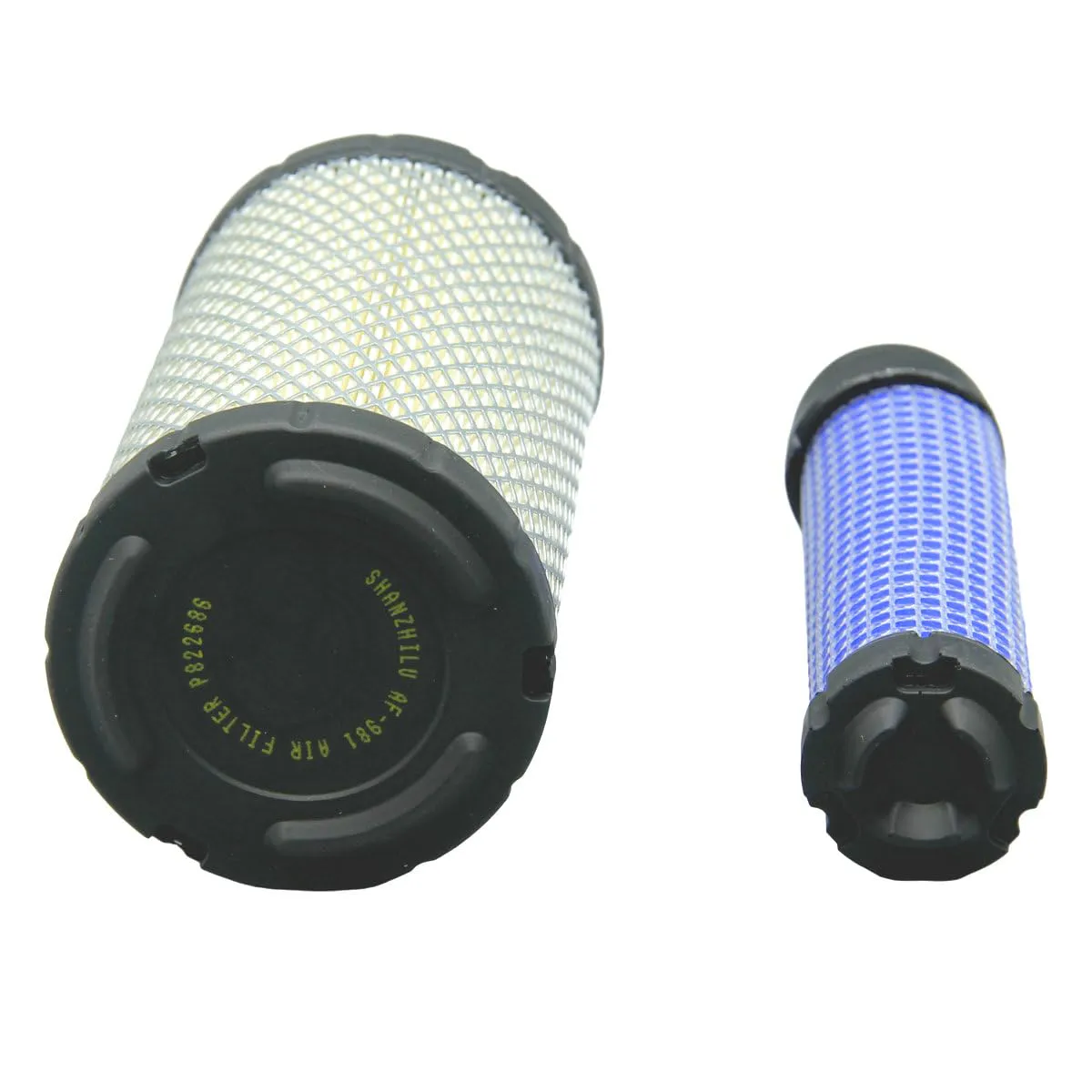

| Package Includes | 1 X Inner Filter; 1 X Outer Filter |
|---|---|

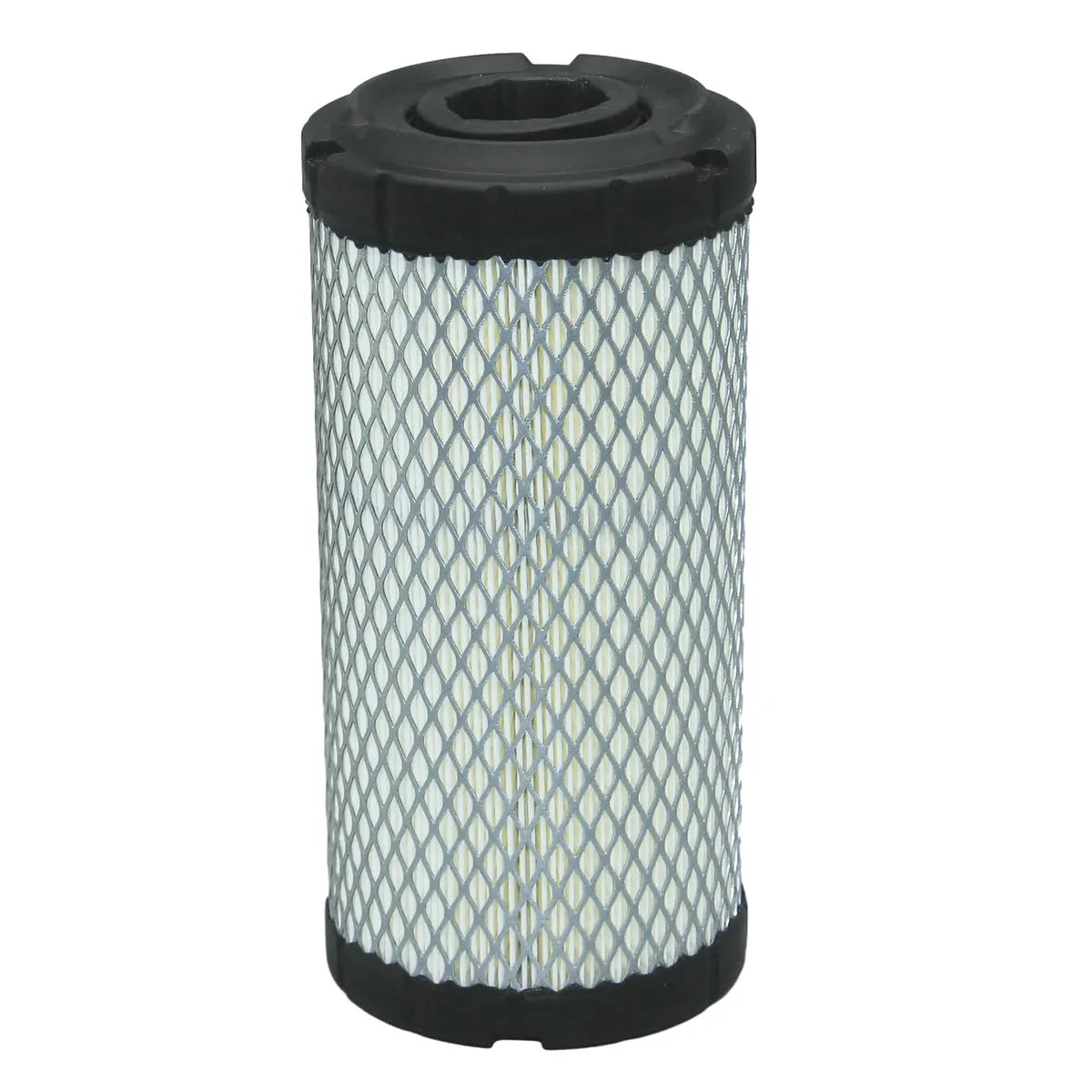

| Outer Air Filter | Outer Diameter 3.54 inch (89.8 mm)<br>Inner Diameter 1.77 inch (44.9 mm)<br>Length 7.05 inch (179 mm) |
| Inner Air Filter | Outer Diameter 1.82 inch (46.2 mm)<br>Inner Diameter 1.22 inch (31.1 mm)<br>Length 6.59 inch (167.3 mm) |
| Part Number (John Deere) | M113621, MIU10783 |
| Part Number (Bobcat) | 6673752 |
| Part Number (Briggs & Stratton) | 820263 |
| Part Number (Kawasaki) | 11013-1290, 11013-7029, 11013-7048, 110131290, 110137029, 110137048 |
| Part Number (Kohler) | 25 083 02, 25 083 02-S, 2508302 |
| Part Number (Kubota) | 1G659-11222, 6A10082630, 6A10082632, K1211-82320, K2581-82311, K121182320, K258182311 |
| Part Number (Toro) | 108-3811, 93-2195 |
| Part Number (Yanmar) | 119655-12560 |
| Part Number (Fleetguard) | AF25550, AF25538 |
| Part Number (Donaldson) | P822686 |
| Part Number (Wix) | 546449, NAPA 6449 |
| Part Number (Baldwin) | PA4632, AF2555000 |
| Part Number (Other) | AF-981-S, 1403071, 7081106, 8973035133, LAHF5123, KX0164, TB016, MD7542, 4667070, 9433330, 90120400, RS3715, 378734, 94449, 102558201, 46449, 1083811 |
| Part Number | Outer Air Filter John Deere: M113621, MIU10783 Bobcat: 6673752 Briggs & Stratton: 820263 Kawasaki: 11013-1290, 11013-7029, 11013-7048, 110131290, 110137029, 110137048 Kohler: 25 083 02, 25 083 02-S, 2508302 Kubota: 1G659-11222, 6A10082630, 6A10082632, K1211-82320, K2581-82311, K121182320, K258182311 Toro: 108-3811, 93-2195 Yanmar: 119655-12560 Fleetguard: AF25550, AF25538 Donaldson: P822686 Wix: 546449, NAPA 6449 Baldwin: PA4632, AF2555000 Other: AF-981-S, 1403071, 7081106, 8973035133, LAHF5123, KX0164, TB016, MD7542, 4667070, 9433330, 90120400, RS3715, 378734, 94449, 102558201, 46449, 1083811 Inner Air Filter John Deere: M123378, M807331, P535396 Bobcat: 6673753 Kohler: 25 083 03, 25 083 03-S, 2508303 Kubota: K7561-82360 Toro: 98-2982 Fleetguard: AF25967 Other: KX0164, TB016, MD7542S, S52S, RS3930, 93845 |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
