Control Modules Description

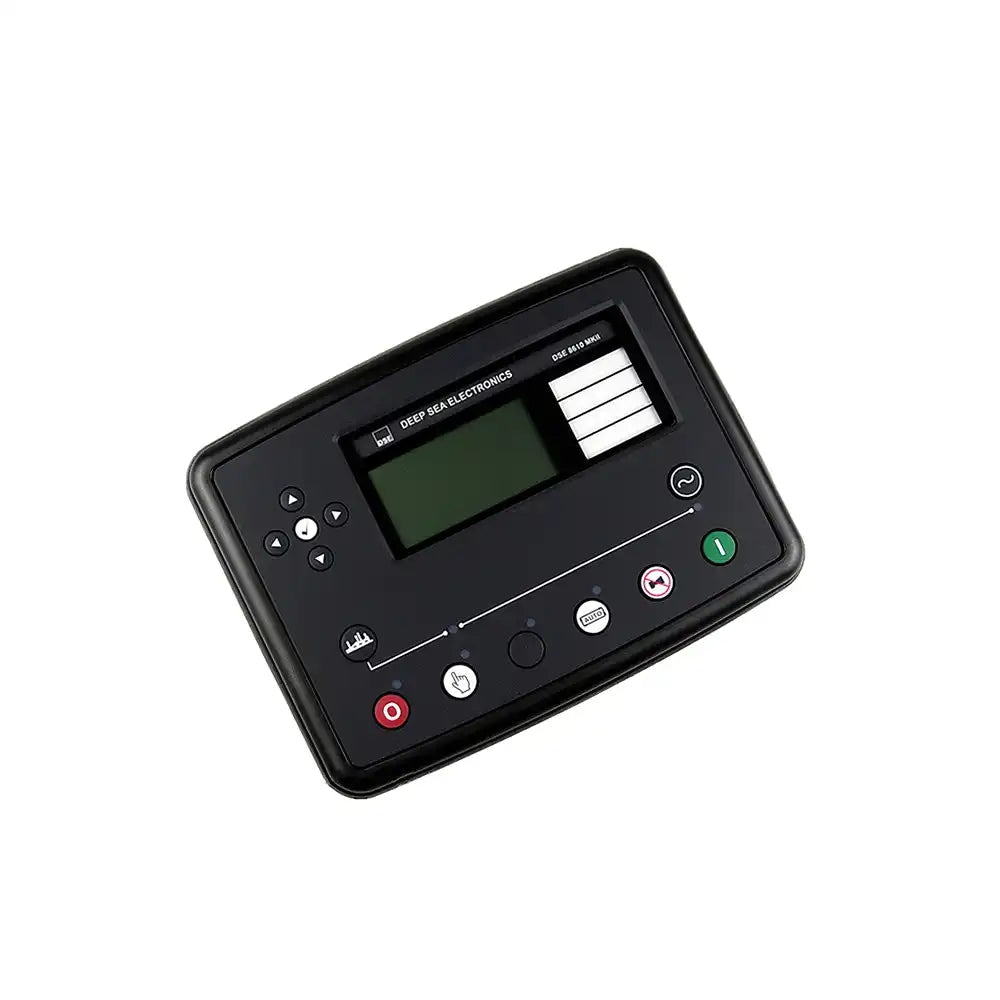

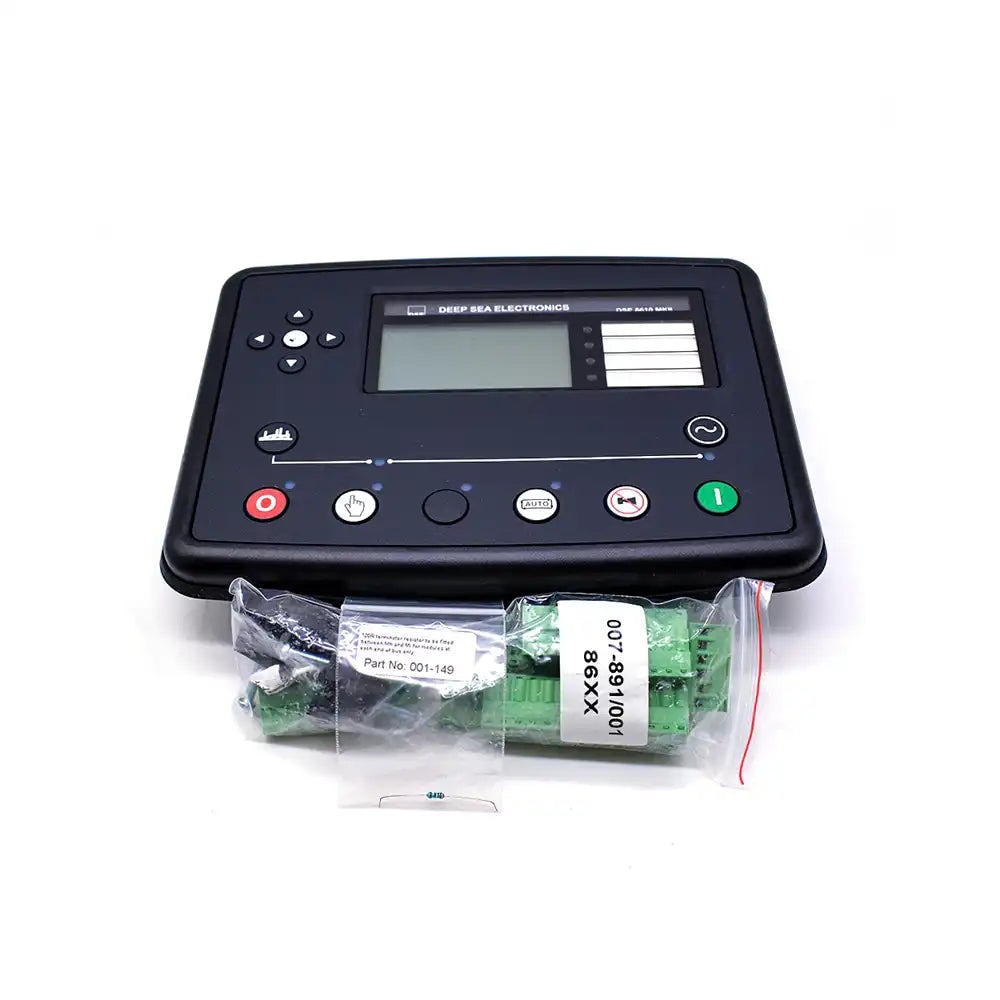

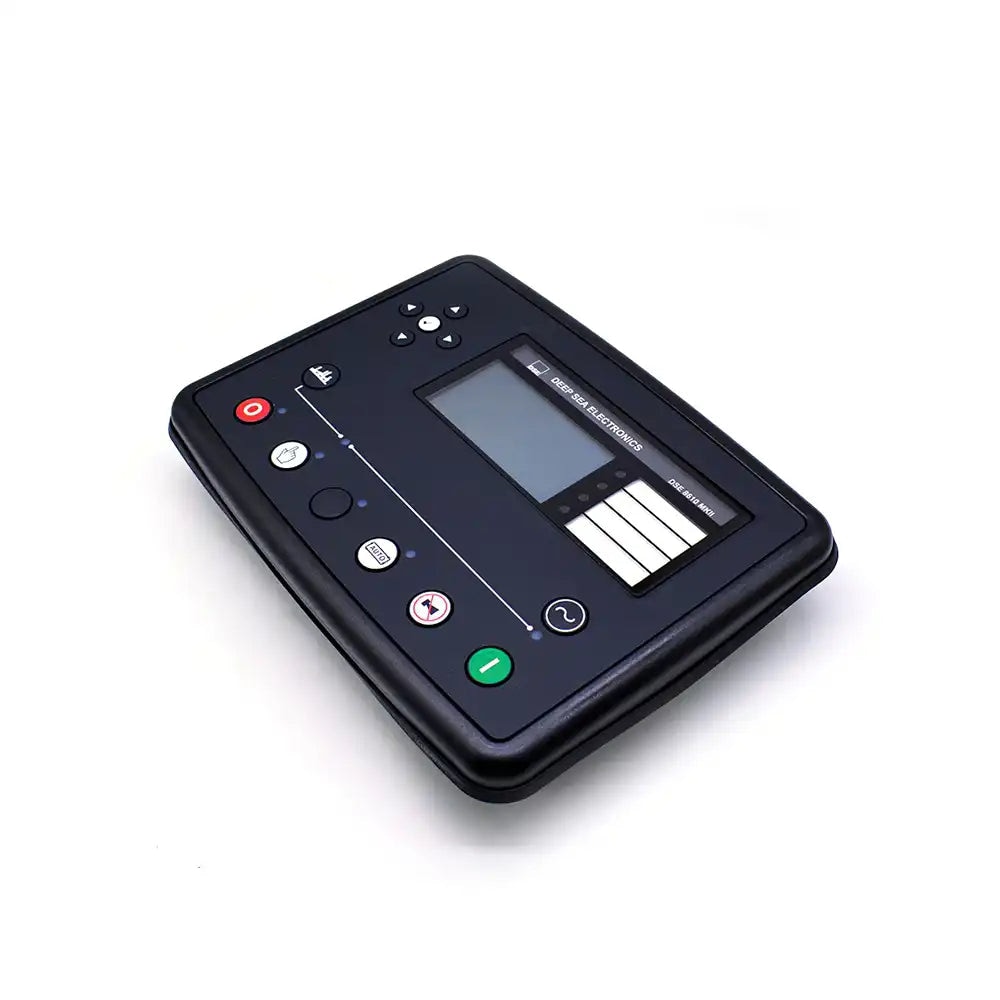

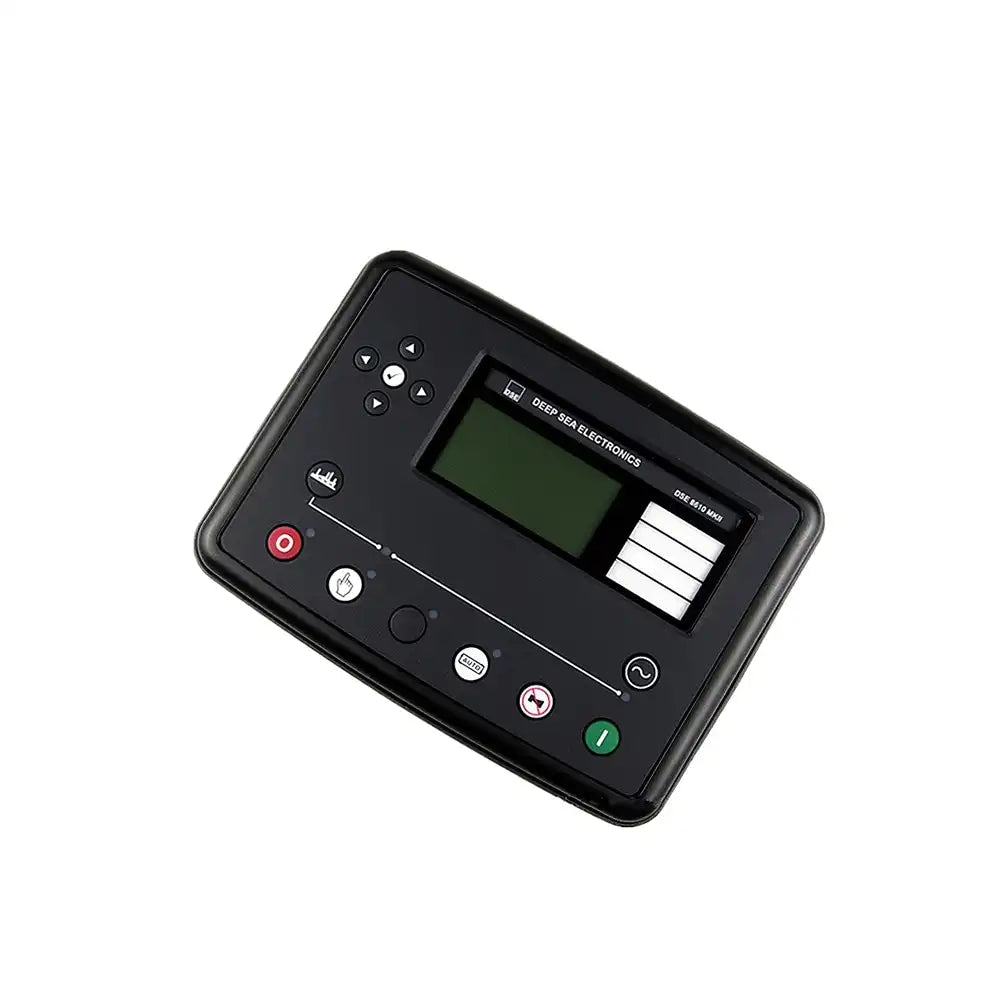

This Control Modules is indexed for Part Number; PRODUCT VARIANTS 8610-02 – 8610 MKII Synchronising & Load Sharing Control Module (Ct, Rtc) DC SUPPLY Details: 1. KEY LOAD SHARE FEATURES: Peak lopping Sequential set start Manual voltage/frequency adjustment R.O.C.O.F. and vector shift Generator load demand Automatic hours run balancing Mains (Utility) de-coupling Mains (Utility) de-coupling test mode Dead bus sensing Bus failure detection Direct governor and AVR control Volts and frequency matching kW and kV Ar load sharing 2. KEY FEATURES Comprehensive loadshare capabilities Configurable inputs (11) Configurable outputs (8) Voltage measurement Built-in governor and AVR control kW overload alarms Comprehensive electrical protection Magnetic pick-up Electronic engine capability RS232 & RS485 remote communications Modbus RTU PLC Functionality 3. Multi event exercise timer Back-lit LCD 4-line text display Multiple display languages Automatic start/Manual start Audible alarm Fixed and flexible LED indicators Event log (250) Engine protection Fault condition notification to a designated PC Front panel mounting Protected front panel programming PC configuration Configurable alarms and timers Configurable start and stop timers SMS alert messaging Remote monitoring Compatible with DSE8700 Series 4. KEY BENEFITS RS232 & RS485 can be used at the same time DSENet connection for system expansion PLC functionality Auto voltage sensing Five step dummy load support Five step load shedding support High number of inputs and outputs Worldwide language support Configuration Suite PC software Direct USB connection to PC Ethernet monitoring USB host Data logging & trending. Note: Send your engine nameplate to [email protected].; Deep Sea. Compare reference number DSE8610 against the label on your existing Product component before ordering.

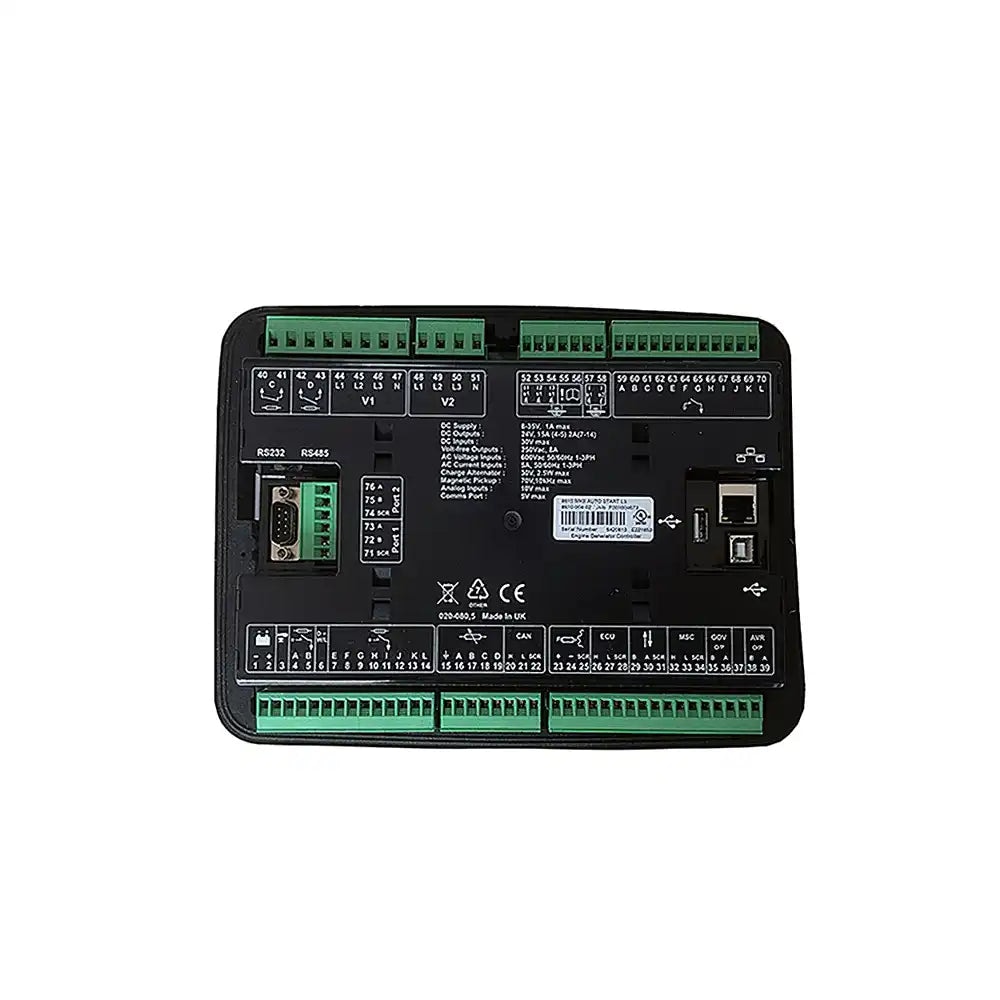

Before checkout, compare OEM part number DSE8610, connector layout, mounting position, and machine serial number. For high-value or fitment-sensitive parts, submit the fitment form below so support can verify the match.
