OEM / REF: D8200014SKU: pilotpart402093

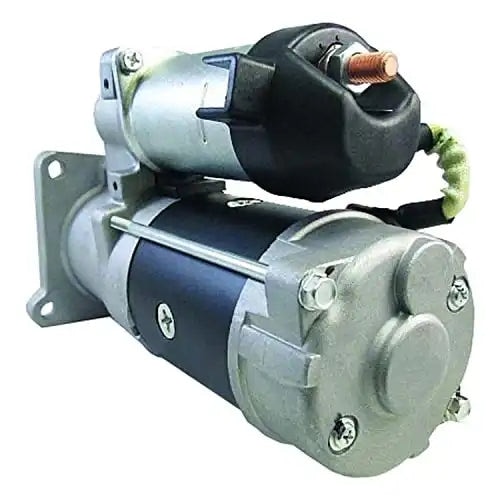

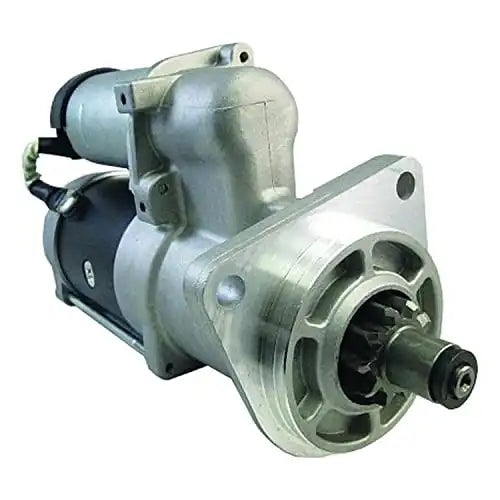

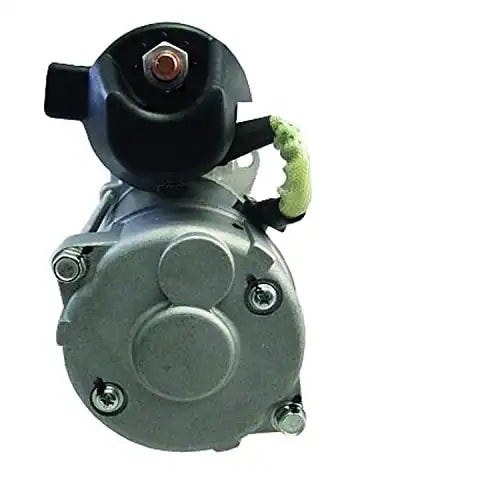

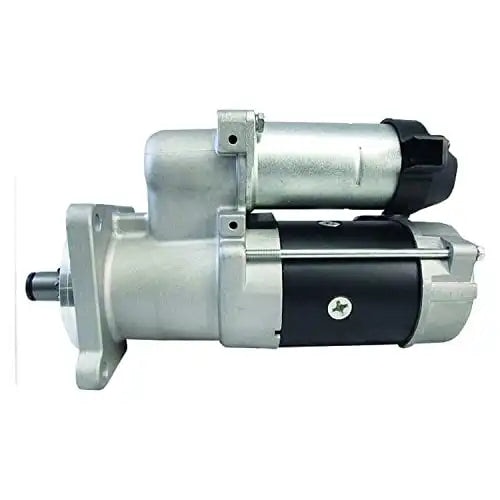

CASE Starter Motor D8200014 is listed under Engine Spare Parts > Starter Motor with catalog data including SPECIFICATIONS: 3.3kW/12 Volt, CW, 10-Tooth Pinion; UNIT TYPE: 29MT Series PLGR; SERIES: 29MT. Verify fitment for CASE Engine Spare Parts using the OEM number, mounting points, and photos of your existing part.
This Starter Motor is indexed for Case 430 · Cummins 3.9L · 2005-2005. Compare reference number D8200014 against the label on your existing CASE component before ordering.
Additional cross references on file: 41012435. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.
| SPECIFICATIONS | 3.3kW/12 Volt, CW, 10-Tooth Pinion |
|---|---|
| UNIT TYPE | 29MT Series PLGR |
| SERIES | 29MT |
| DESIGN | PLGR |
| VOLTAGE | 12 |
| KW | 3.3 |
| ROTATION | CW |
| NUMBER OF TEETH | 10 |
| FEATURE 1 | 100% Top-rated |
| Part Number | D8200014, 41012435, 41012435 |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
