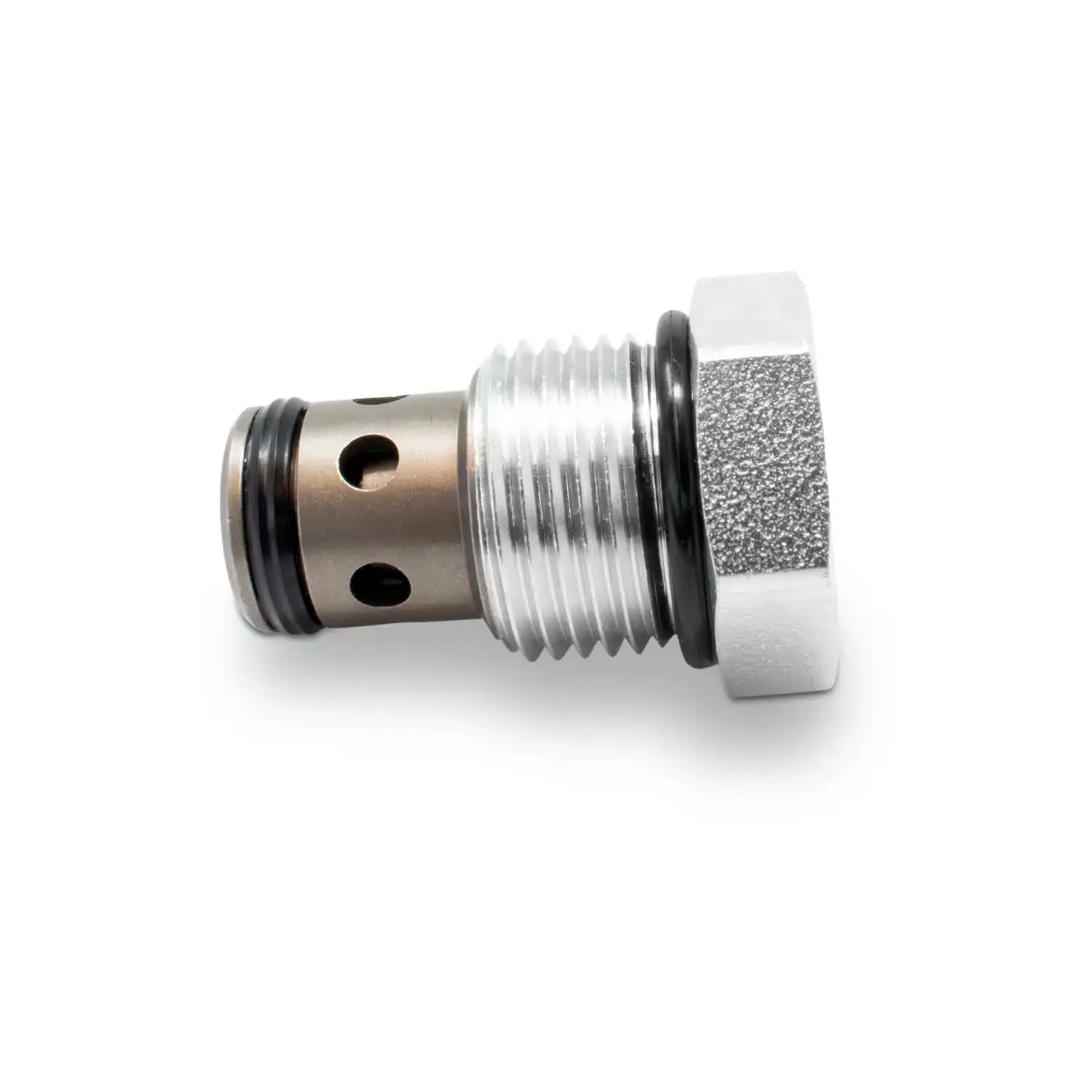

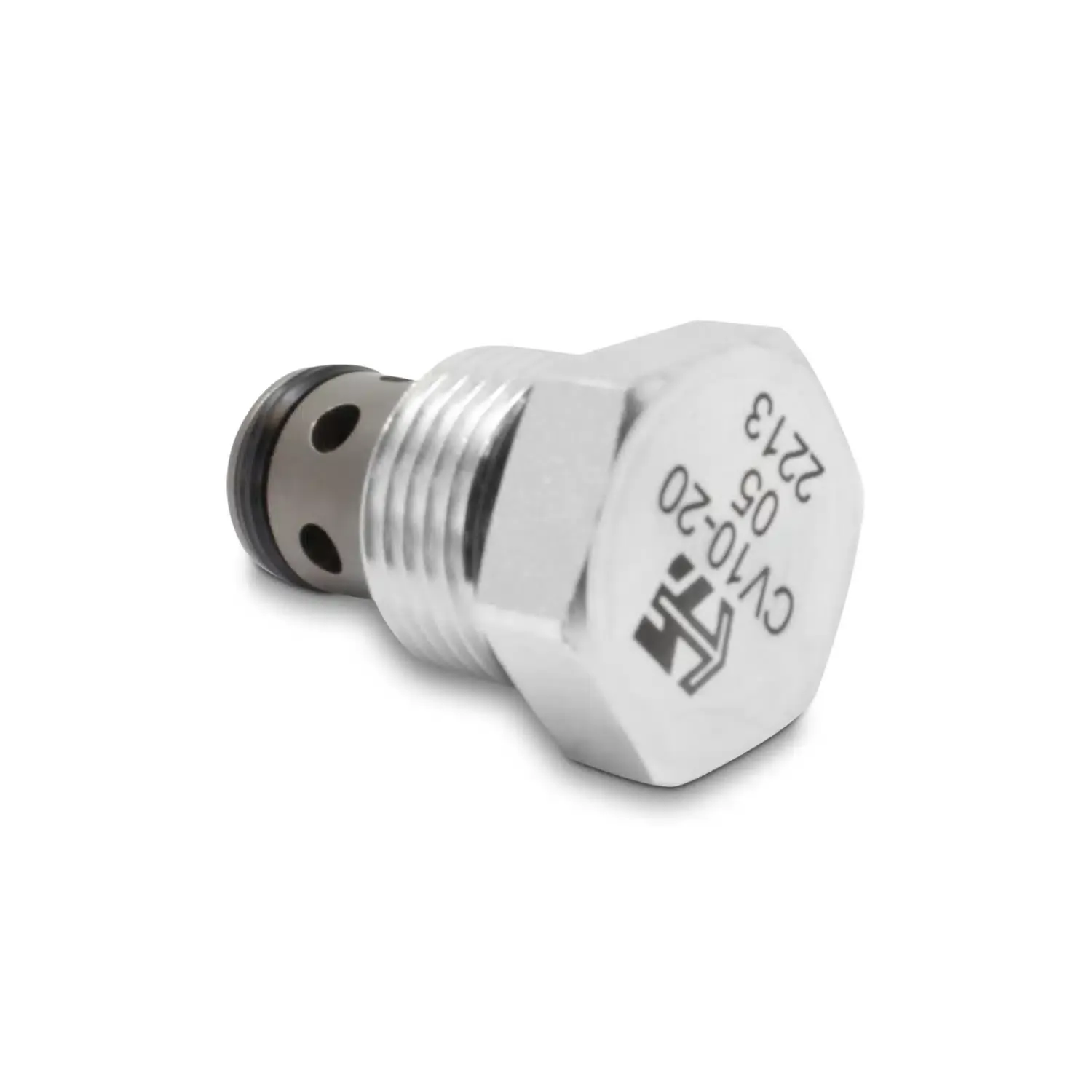

Main & Relief Valve Description
This Main & Relief Valve is indexed for Hydraforce s: Pressure Rating:240 bar (3500 psi) Proof Pressure:350 bar (5075 psi) Flow Rating:75.8 lpm (20 gpm) Maximum Internal Leakage:2 drops/min Note: At 240 bar (3500 psi) Operating Fluid Temperature: -40 to 100 °C (-40 to 212 °F) Note: With buna N seals -26 to 204 °C (-15 to 400 °F) Note: With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) Note: With polyurethane seals -40 to 149 °C (-40 to 300 °F) Note: With HNBR seals Storage Temperature:-40 to 70 °C (-40 to 160 °F) Ambient Temperature:-40 to 90 °C (-40 to 194 °F) Corrosion Protection:Gcv10-20 - 960 hour salt spray per ASTM b117 Fluids:Mineral based or synthetic hydraulic fluid with lubricating properties Fluid Viscosity Range:7.4 to 420 cSt Maximum Operating Contamination Level:20/18/14 per ISO 4406 Installation Specifications: Cavity:VC10-2,10-size-2-way Cavities Cartridge Installation Torque:32.6 to 35.4 N-m (24 to 26 ft-lb) Maximum Allowable Torque:67.8 N-m (50 ft-lb) Orientation Restriction:None. Compare reference number CV10-20-0-N-40 against the label on your existing Hydraforce component before ordering.
Before checkout, compare OEM part number CV10-20-0-N-40, connector layout, mounting position, and machine serial number. For high-value or fitment-sensitive parts, submit the fitment form below so support can verify the match.
