OEM / REF: CA5327322SKU: pilotpart123122

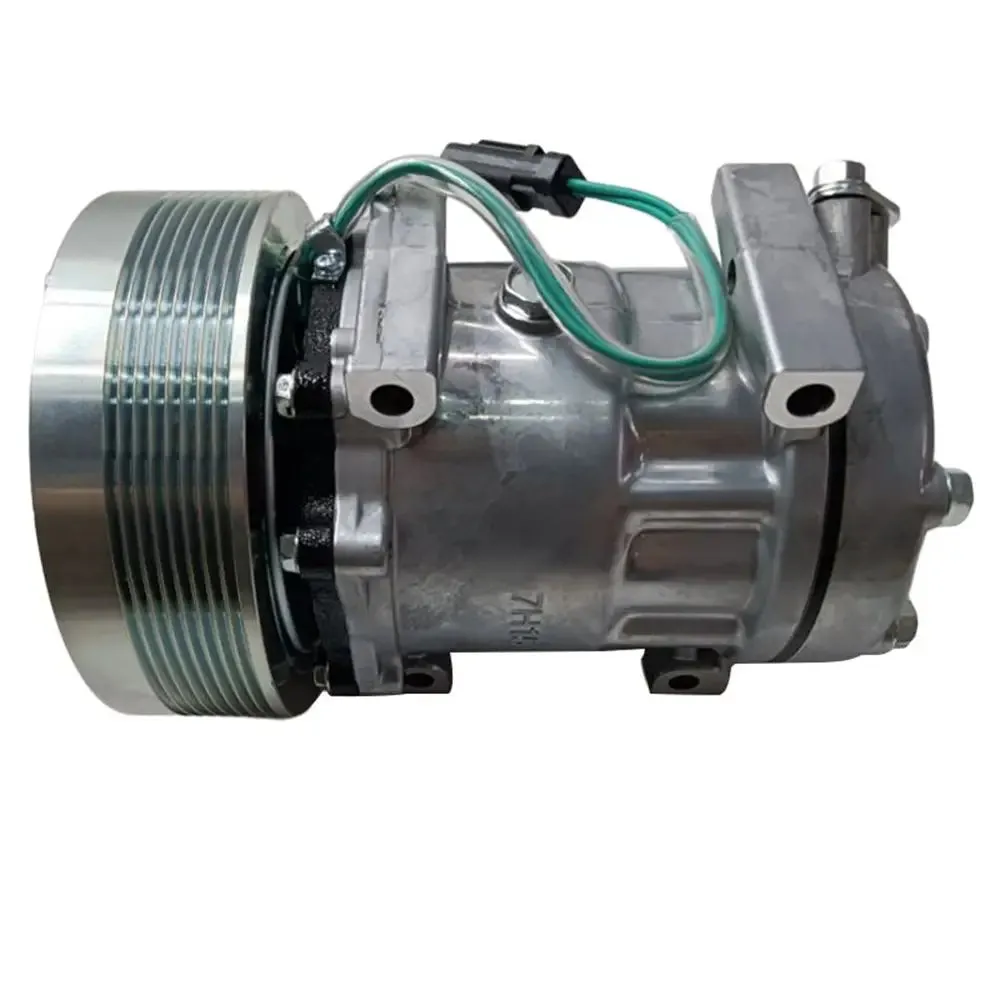

A/C Compressor 532-7322 for Caterpillar CAT 336E 336F 340F 349 349E 352 352F 374F 390F Excavator is a Air Conditioning Compressor replacement part indexed for Caterpillar 336 · C9.3 and Caterpillar 336 · C9.3B, with 3 application records on file. Match OEM part number CA5327322 and confirm fitment for Caterpillar HV...
This Air Conditioning Compressor is indexed for Caterpillar 336 · C9.3; Caterpillar 336 · C9.3B; Caterpillar 336E · C9.3; Caterpillar 336E H · C9.3. Compare reference number CA5327322 against the label on your existing Caterpillar component before ordering.
Additional cross references on file: 532-7322, 567-5159, 509-6421. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.
| Sanden Numbers | 6173 |
|---|---|
| Compressor Family | SD7H15 |
| Style | Sealed Heavy Duty |
| Compressor Mount Type | Direct |
| Rotation Direction | CW |

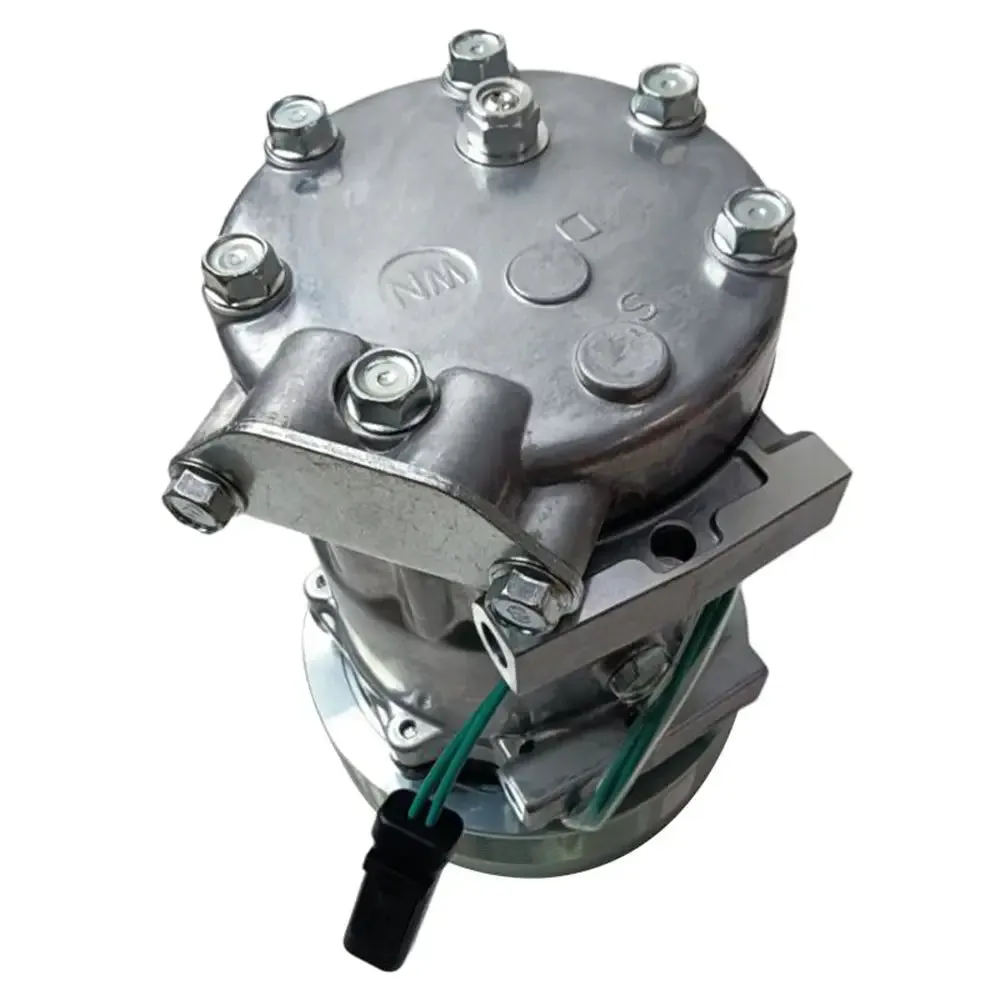

| Cylinder Head | WR |
| Port Angle | Vertical |
| Head Port Style | Pad O-Ring |
| Clutch Diameter | 149 mm ~ 5 and 7/8 inches |

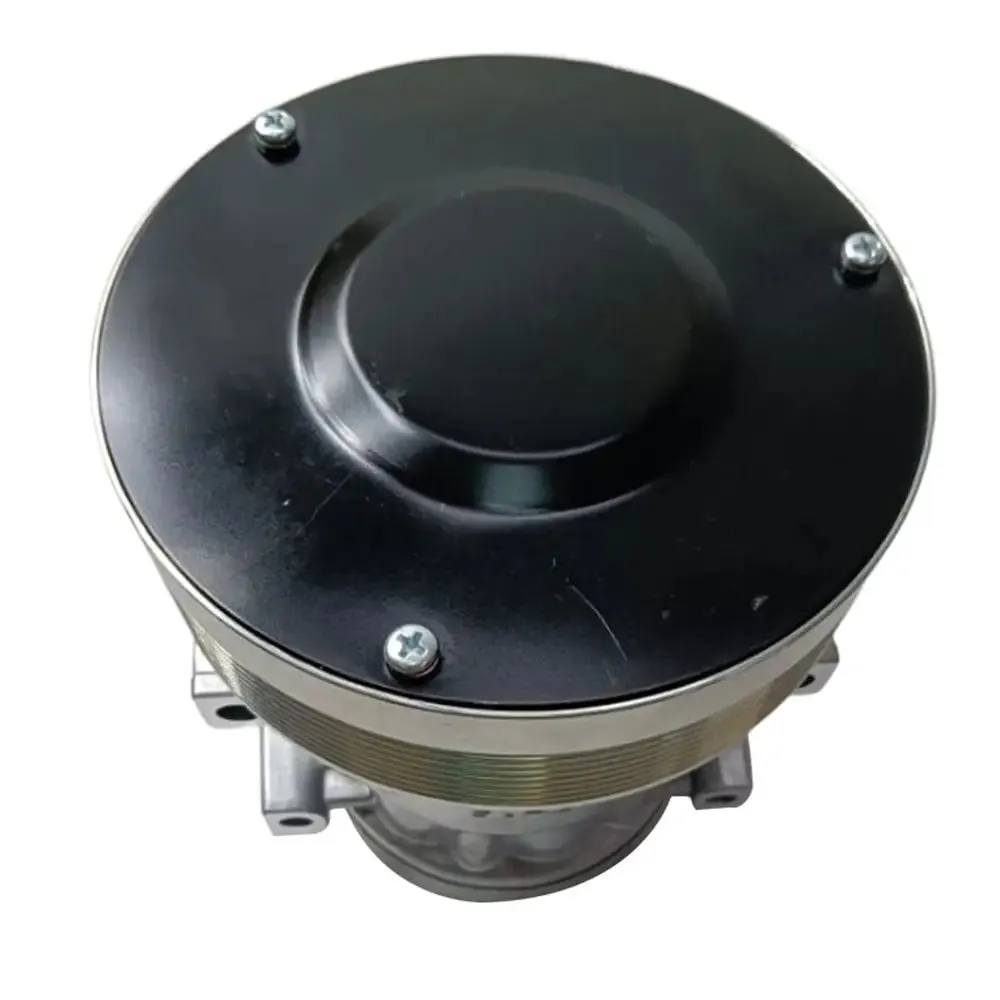

| Clutch Type | W/ Dust Cover |
| Belt Type | Serpentine |
| Number of Grooves | 8 |
| Voltage | 24 |

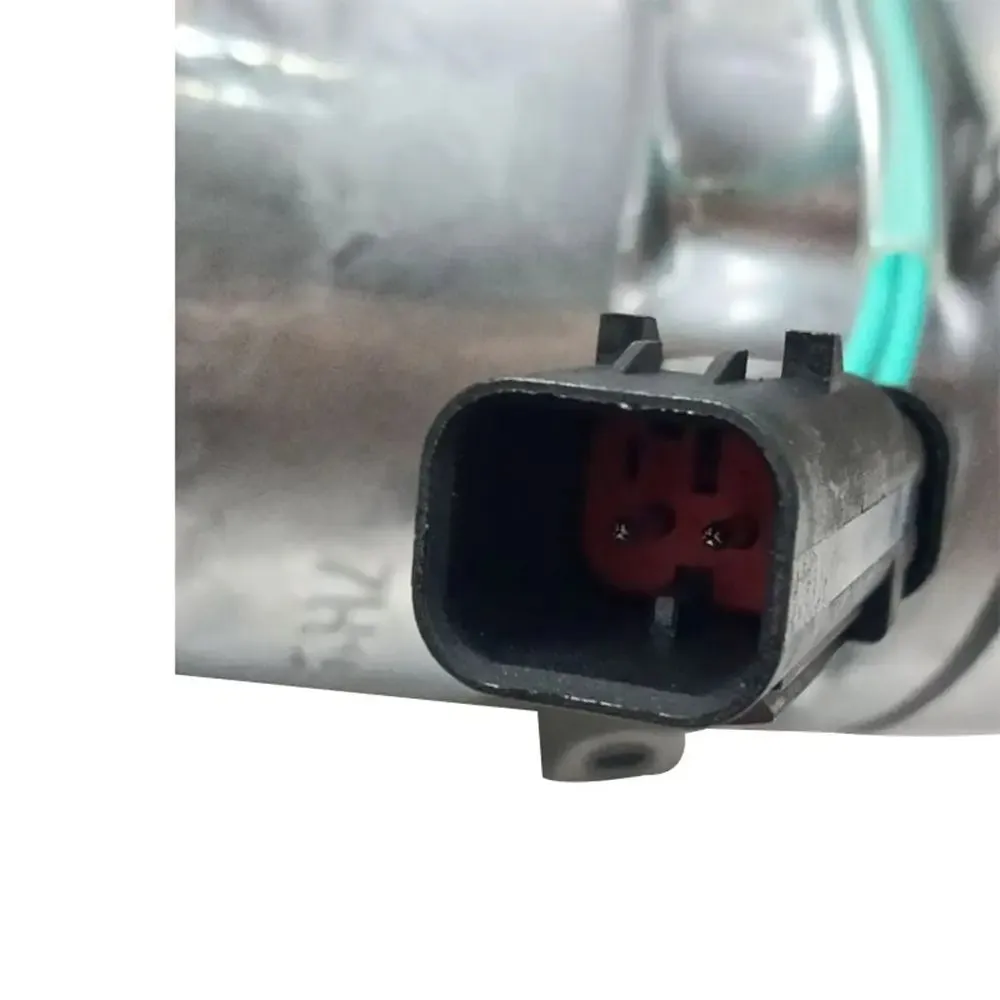

| Coil Connector | 2 Wire Deutsch |
| Coil Position | 12 O'clock |
| Oil Type | SP15 or PAG 100 |
| Oil Qty | 240cc |
| Refrigerant | R134a |
| Part Number | CA5327322, 532-7322, 5327322, 567-5159, 5675159, 509-6421, 5096421 |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
