OEM / REF: CA3E1909SKU: pilotpart122989

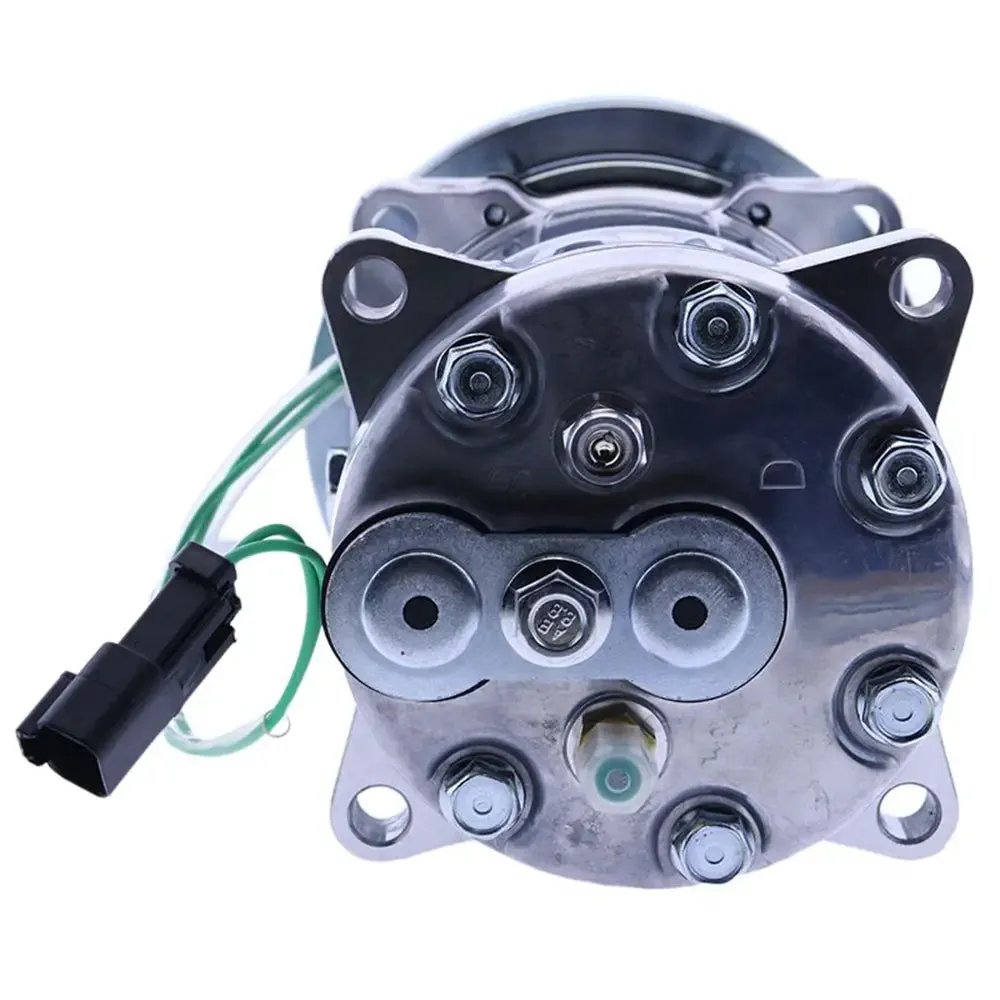

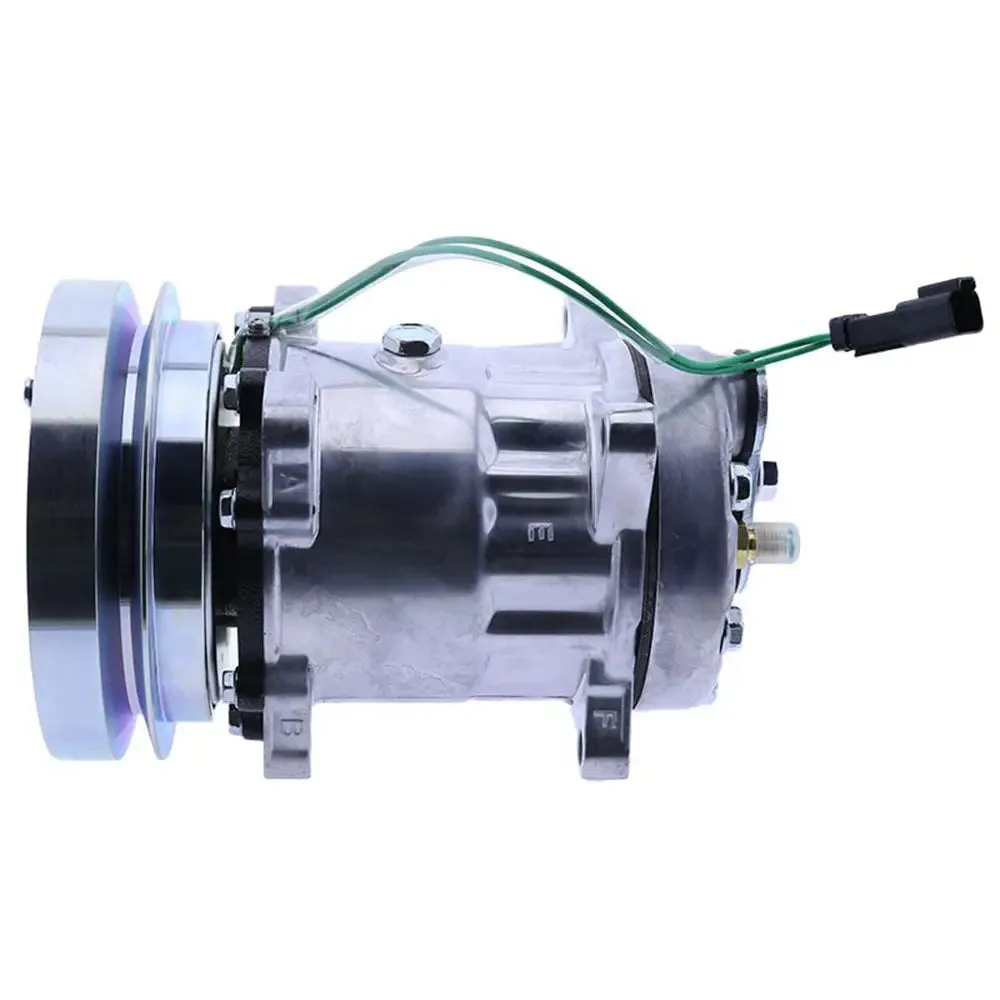

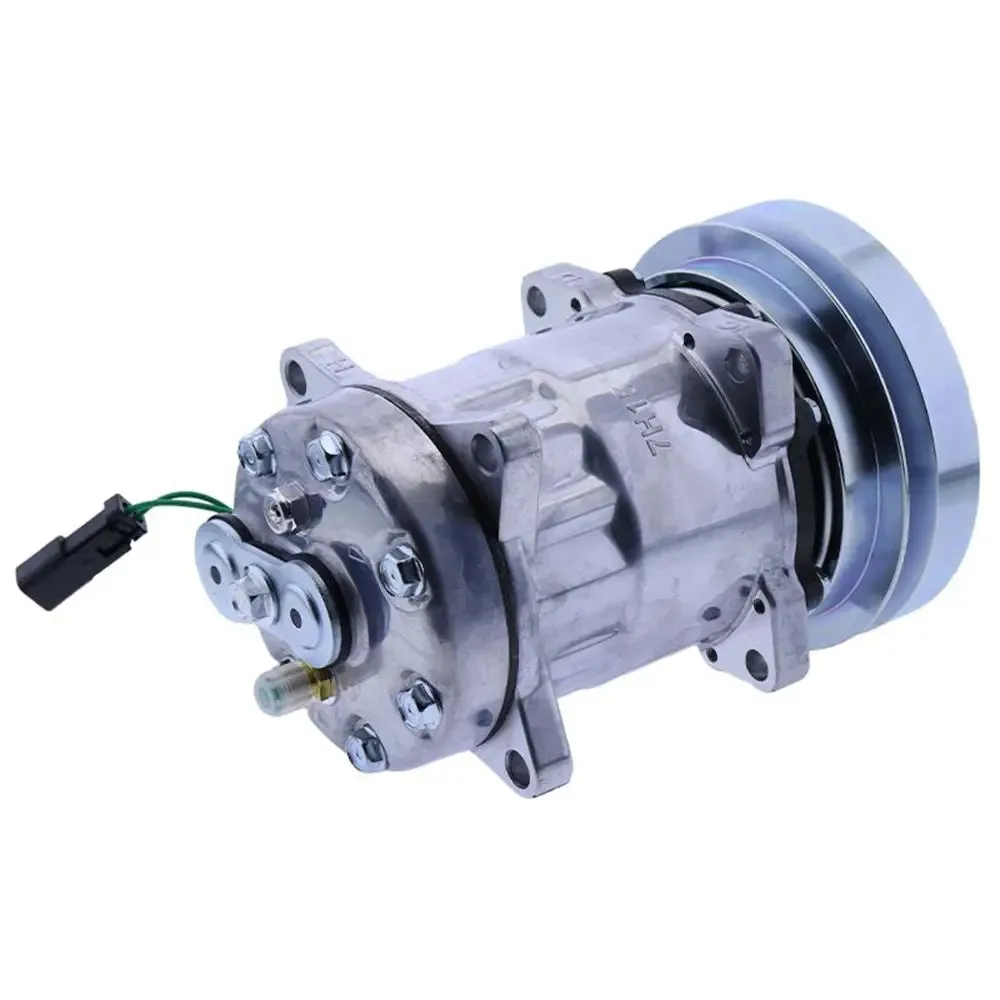

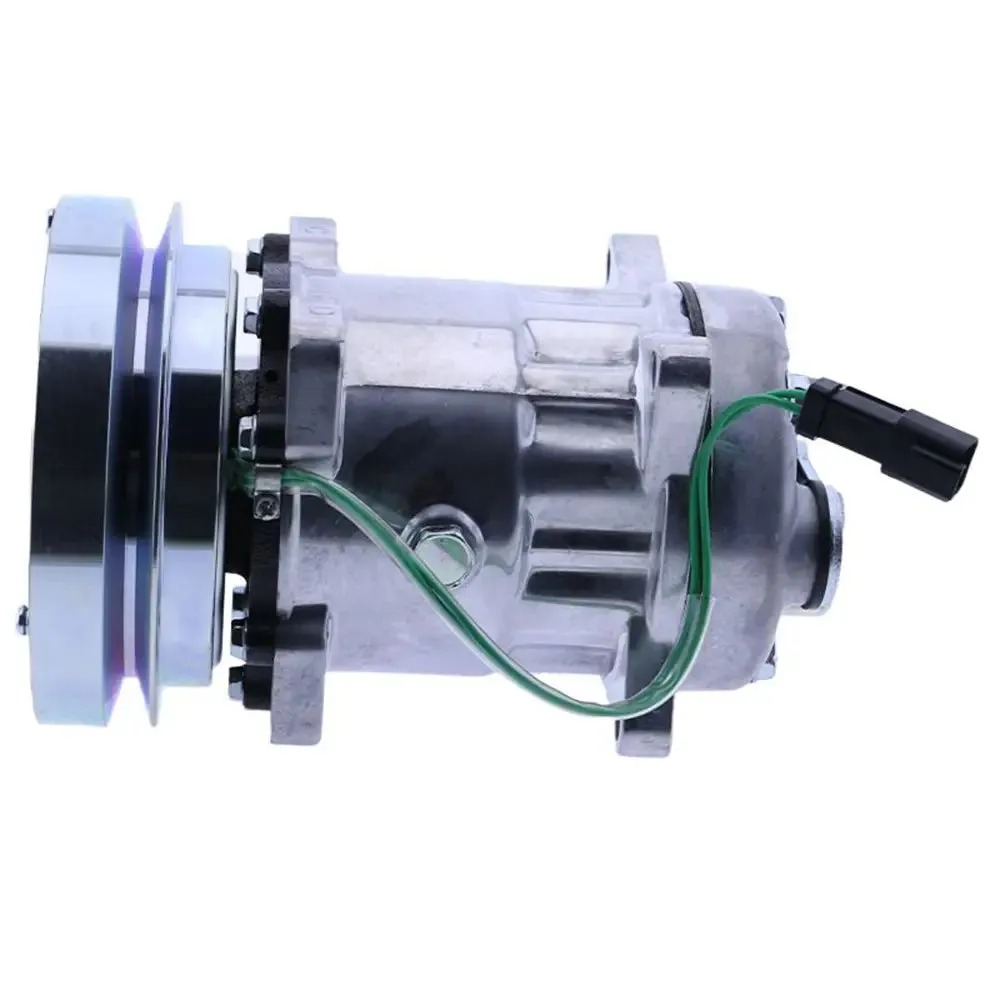

A/C Compressor 3E-1909 for Caterpillar CAT 928F 928G 938F 950F 960F 953B 953C 963B is a Air Conditioning Compressor replacement part indexed for Caterpillar IT28F and Caterpillar IT28G, with 3 application records on file. Match OEM part number CA3E1909 and confirm fitment for Caterpillar HVAC Parts before ordering.
This Air Conditioning Compressor is indexed for Caterpillar IT28F; Caterpillar IT28G; Caterpillar IT38F; Caterpillar 953B. Compare reference number CA3E1909 against the label on your existing Caterpillar component before ordering.
Additional cross references on file: 3E-1909. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.
| Sanden Number | 4658 |
|---|---|
| Compressor Family | SD7H15 |
| Compressor Mount Type | Ear |
| Rotation Direction | CW |
| Cylinder Head | GK |
| Port Angle | Horizontal |
| Head Port Head Style | O-Ring Compression |
| Clutch Diameter | 152 mm ~ 5.98 inches |
| Clutch Type | W/ Dust Cover |
| Belt Type | V-Belt |
| Number of Grooves | 1 |
| Voltage | 24 |
| Coil Connector | 2 Wire Deutsch |
| Coil Position | 12 O'clock |
| Oil Type | SP15 or PAG 100 |
| Oil Qty | 300cc |
| Refrigerant | R134a |
| Part Number | CA3E1909, 3E-1909, 3E1909 |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
