OEM / REF: CA3156547SKU: pilotpart122919

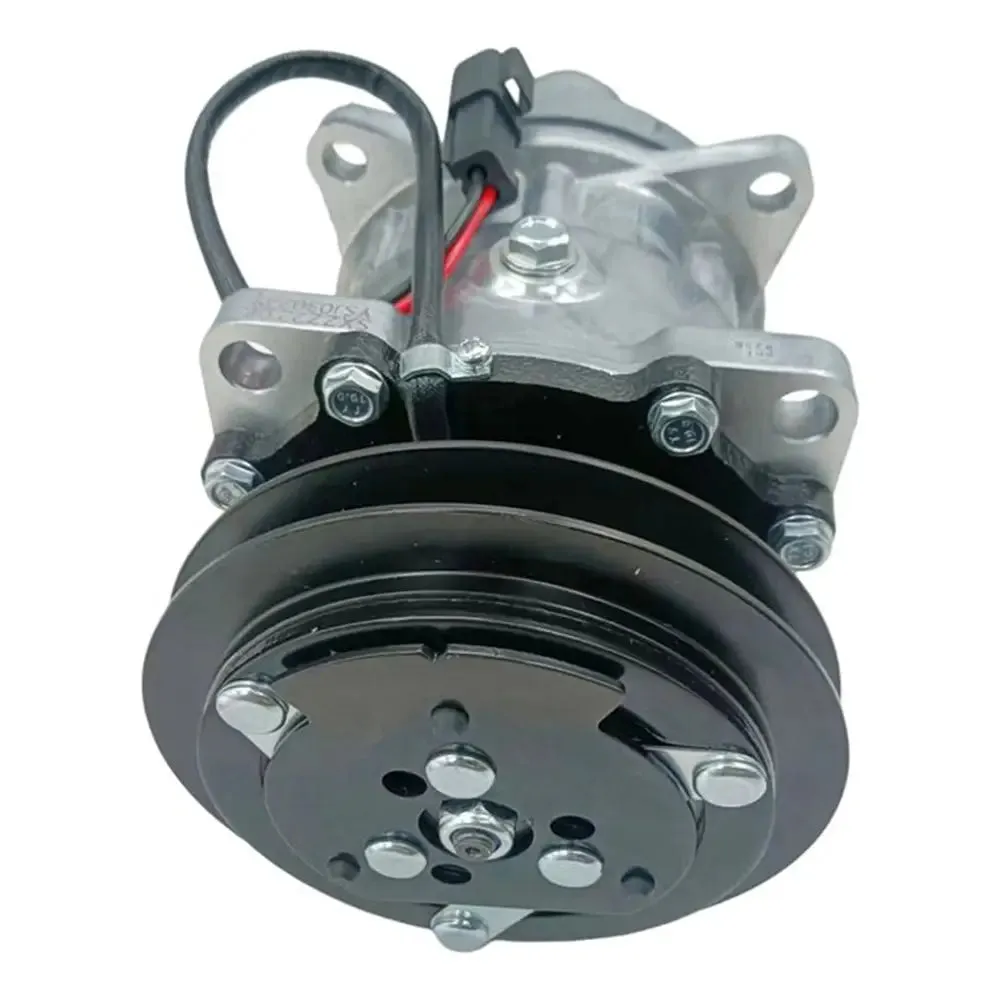

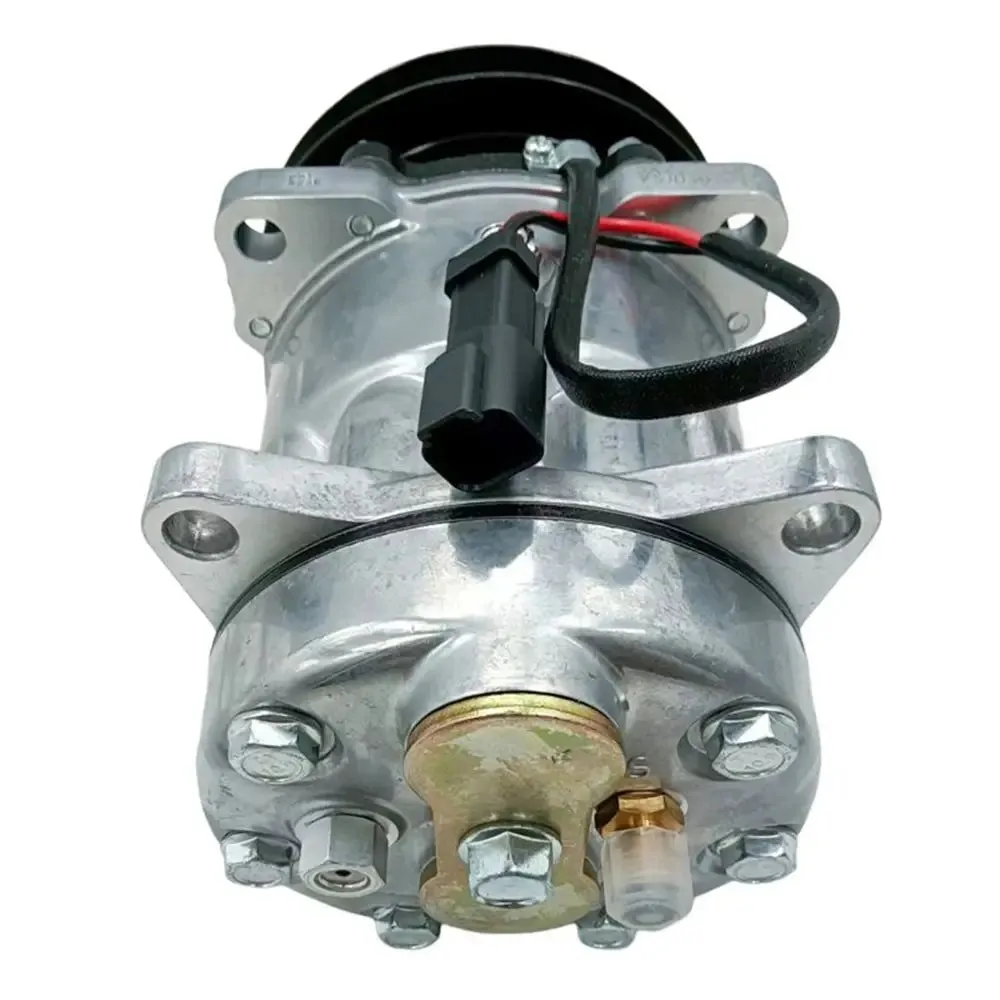

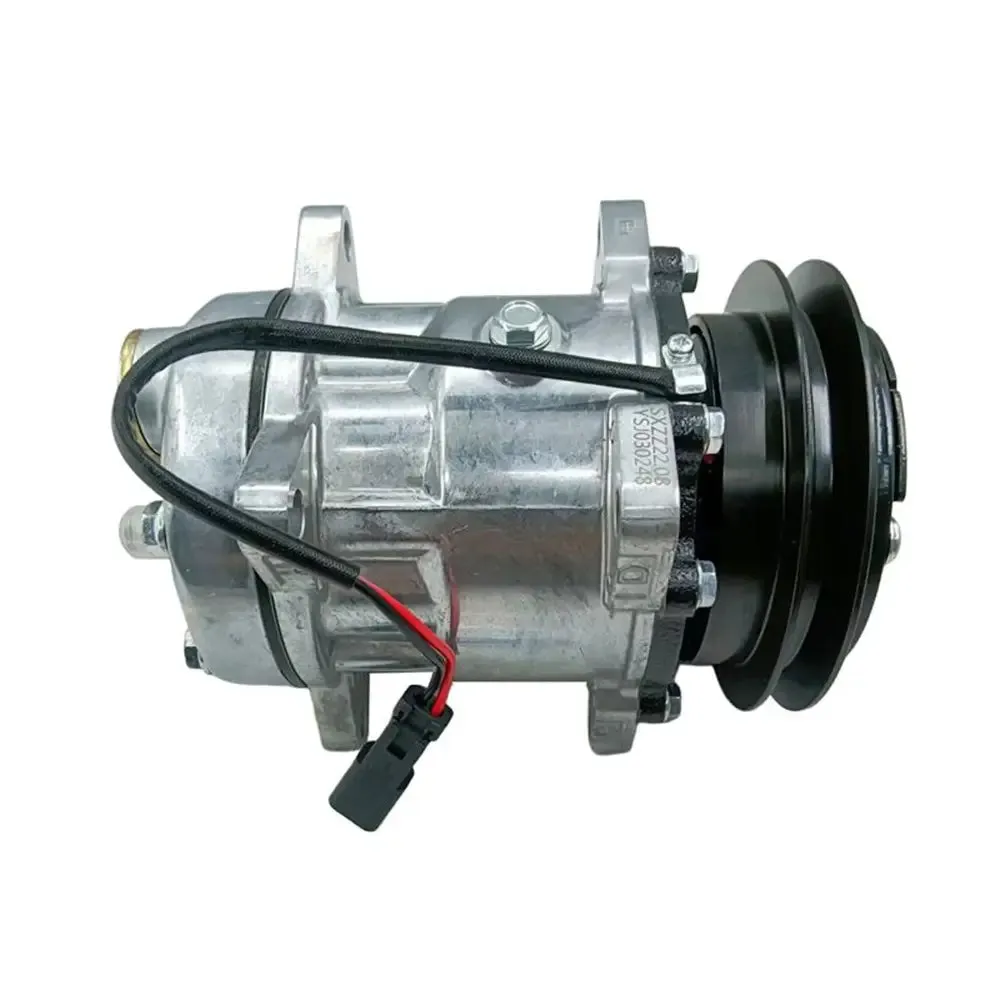

A/C Compressor 315-6547 for Caterpillar CAT 906H 906K 906M 907H 907K 907M 908H 908K 908M 910K 914K is a Air Conditioning Compressor replacement part indexed for Caterpillar 906K · C3.3B and Caterpillar 906M · C3.3B, with 3 application records on file. Match OEM part number CA3156547 and confirm fitment for Caterpill...
This Air Conditioning Compressor is indexed for Caterpillar 906K · C3.3B; Caterpillar 906M · C3.3B; Caterpillar 907M · C3.3B; Caterpillar 908K · C3.3B. Compare reference number CA3156547 against the label on your existing Caterpillar component before ordering.
Additional cross references on file: 315-6547, 509-3995. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.
| Sanden Number | 8960 |
|---|---|
| Compressor Family | SD7H13 |
| Style | Standard |
| Compressor Mount Type | Ear |
| Rotation Direction | CW |
| Cylinder Head | GK |
| Port Angle | Horizontal Pad |
| Head Port Head Style | O-Ring Compression |
| Clutch Diameter | 138 mm ~ 5 and 7/16 inches |
| Clutch Style | With Dust Cover |
| Belt Type | 1/2 wide V-Belt |
| Number of Grooves | 1 |
| Voltage | 12 |
| Coil Connector | 2 Wire Deutsch |
| Coil Position | 12 O'clock |
| Oil Type | SP15 or PAG 100 |
| Oil Qty | N.A. |
| Refrigerant | R134a |
| Part Number | CA3156547, 315-6547, 3156547, 509-3995, 5093995 |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
