OEM / REF: CA2769875SKU: pilotpart122891

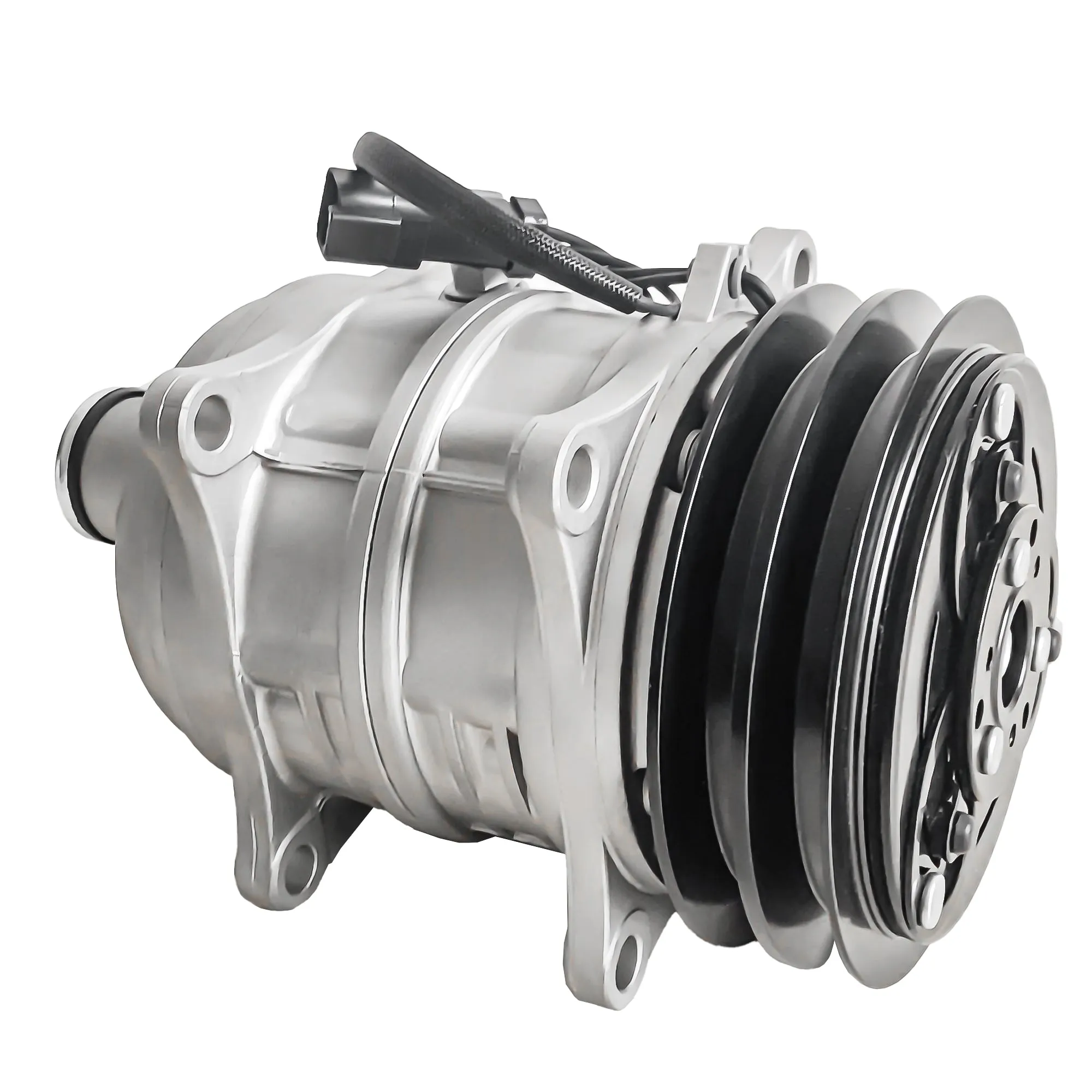

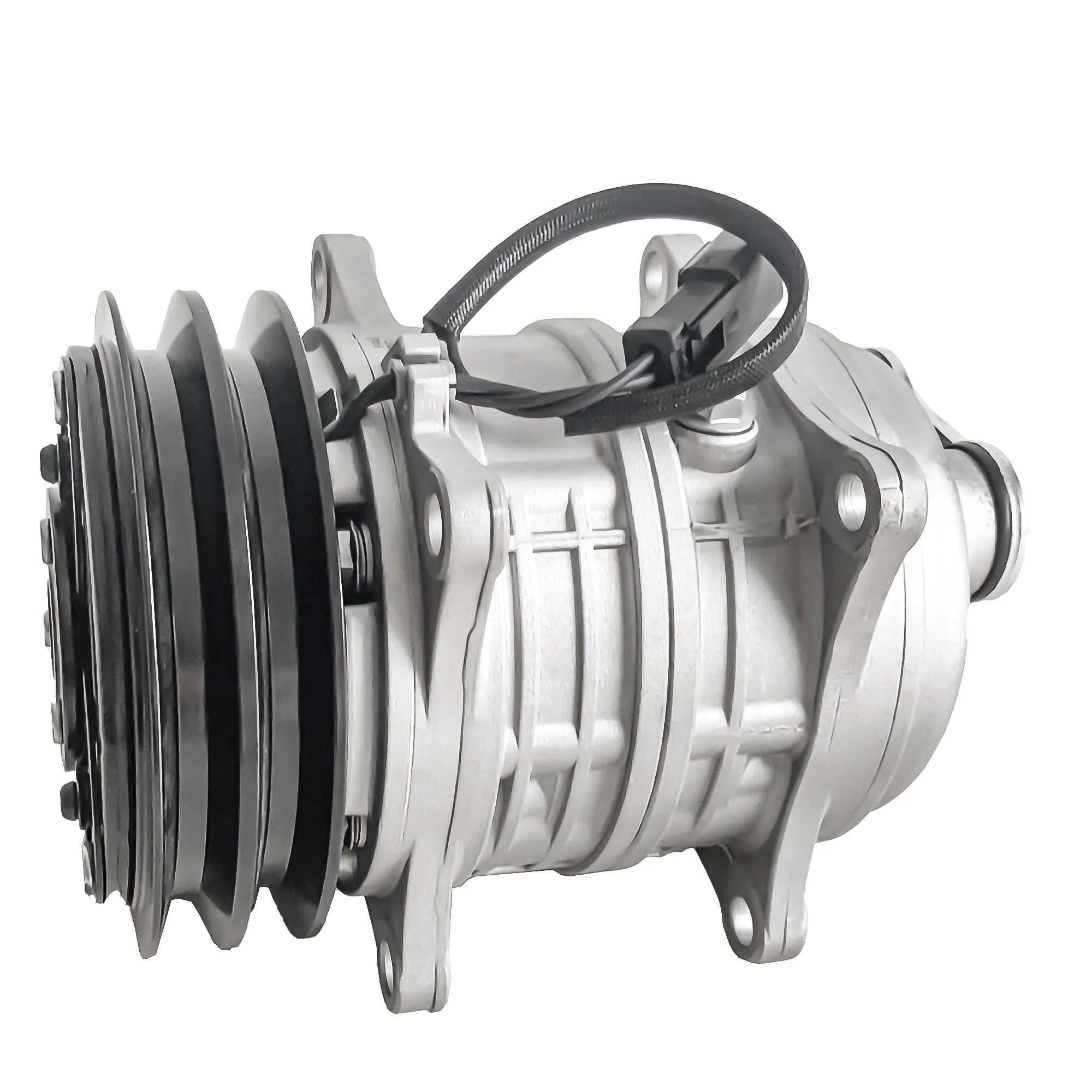

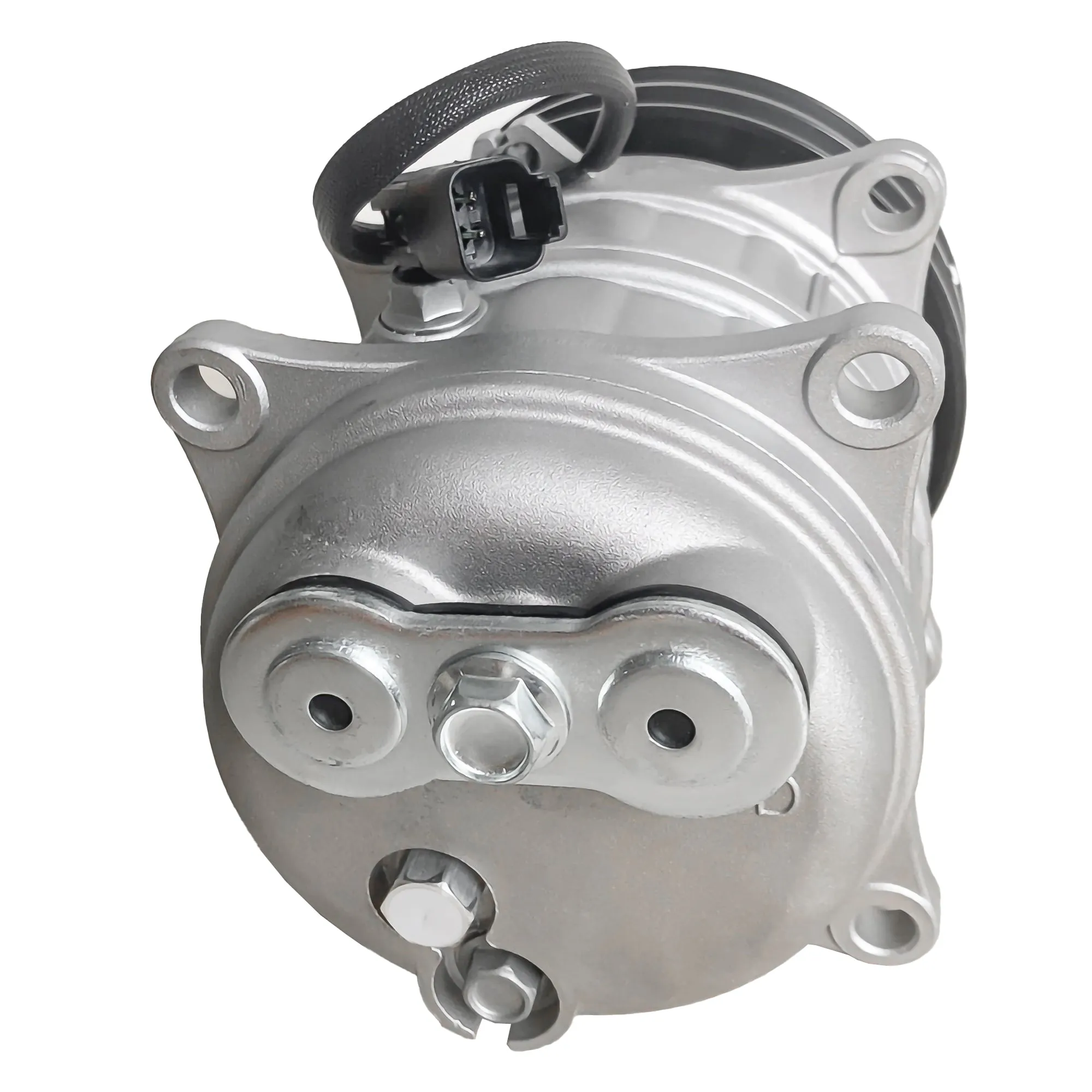

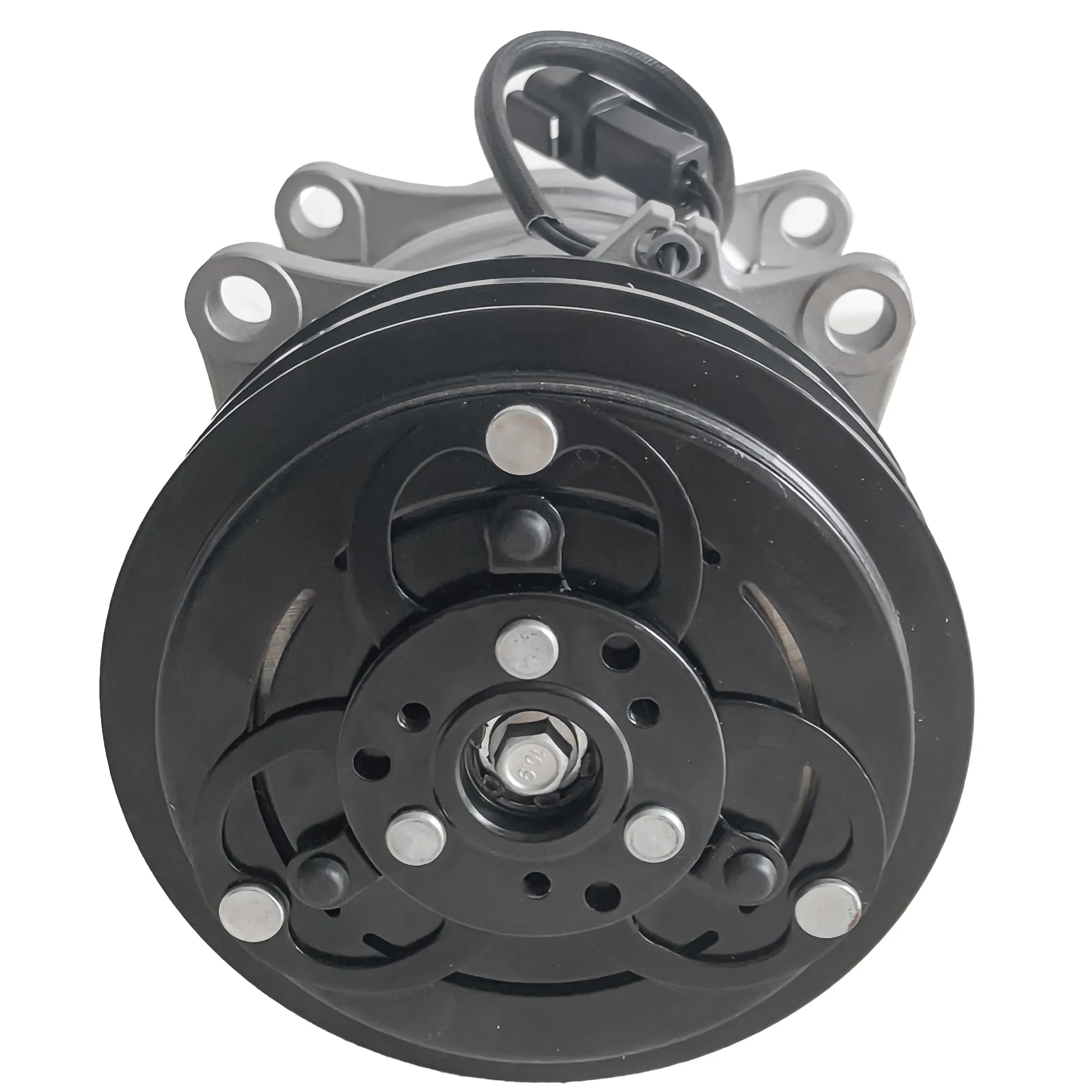

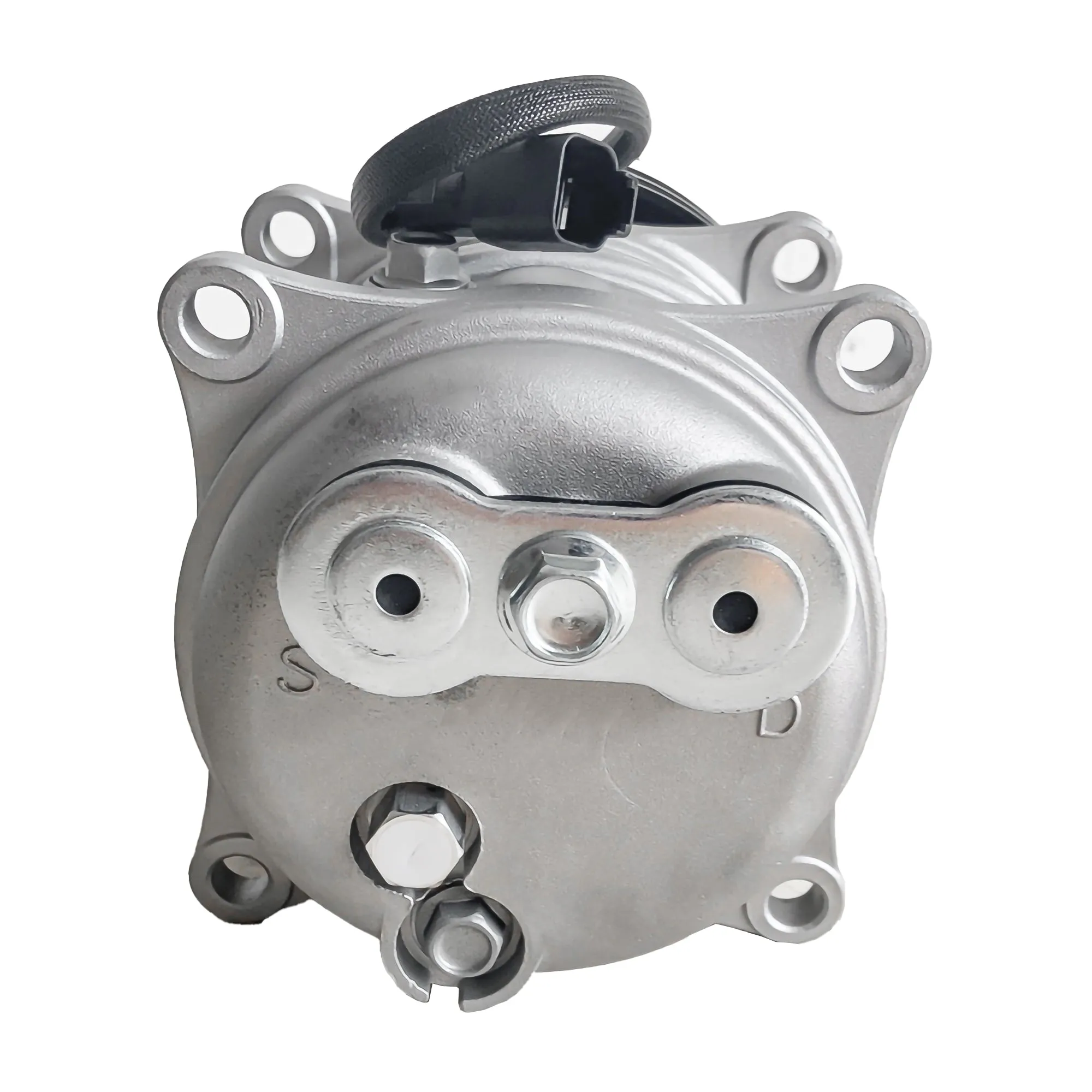

A/C Compressor 276-9875 258-2468 for Caterpillar CAT 226D 232D 239D 246C 256C 262C 272C 277C 279C 287C 289C 297C 299C is a Air Conditioning Compressor replacement part indexed for Caterpillar 226D and Caterpillar 232D, with 3 application records on file. Match OEM part number CA2769875 and confirm fitment for Caterp...
This Air Conditioning Compressor is indexed for Caterpillar 226D; Caterpillar 232D; Caterpillar 236B3; Caterpillar 239D. Compare reference number CA2769875 against the label on your existing Caterpillar component before ordering.
Additional cross references on file: 276-9875, CA2582468, 258-2468. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.
| Compressor Rotation | CW/ CCW |
|---|---|
| Fitting Type | Bolt-On |
| Fitting Orientation | Horizontal Pad - Can Use With All Seltec Bolt-On Manifolds |
| Clutch Type | Leaf Spring |
| Pulley Diameter | 125 mm ~ 4 and 15/16 inches |
| Number of Grooves | 2 Groove |
| Belt Type | V-Belt - 1/2 in. Width |
| Coil Voltage | 12 Volt With 2 Wire Deutsch Connector |
| Oil Type | PAG 46 |
| Factory Oil Charge | 150cc |
| Oil Capacity Oz | 5 |
| Refrigerant Type | R-134A |
| Part Number | CA2769875, 276-9875, 2769875, CA2582468, 258-2468, 2582468, 489-2769875, 4892769875, 103-52210, 10352210 |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
