OEM / REF: CA2144302SKU: pilotpart125698

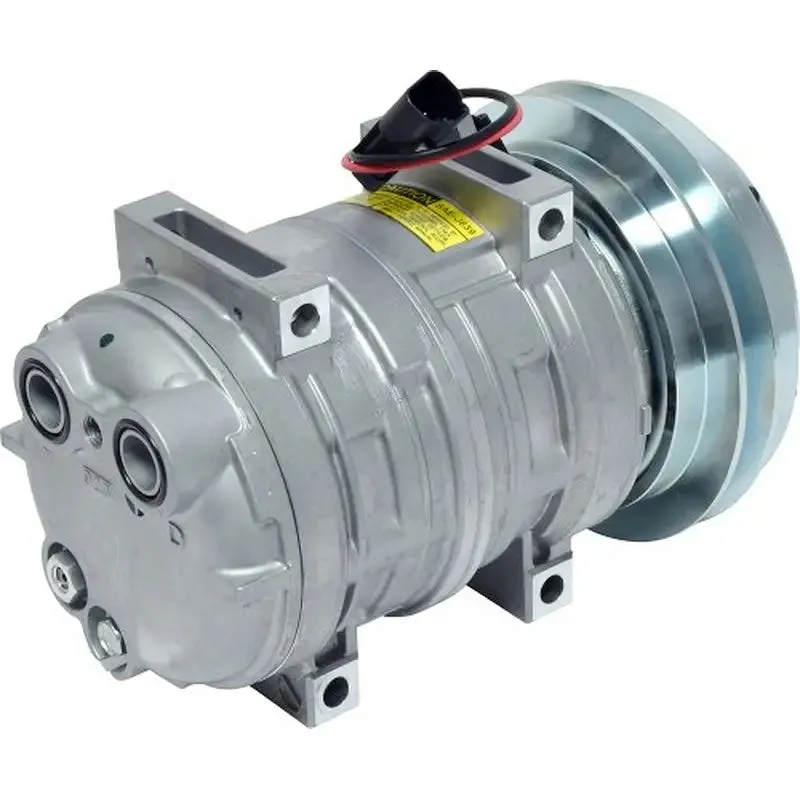

A/C Compressor 214-4302 for Caterpillar CAT Backhoe Loader 414E 416E 420E 422E 428E 430E 432E 434E 442E 444E 446D is a Air Conditioning Compressor replacement part indexed for Caterpillar 414E and Caterpillar 416E, with 3 application records on file. Match OEM part number CA2144302 and confirm fitment for Caterpilla...
This Air Conditioning Compressor is indexed for Caterpillar 414E; Caterpillar 416E; Caterpillar 420E; Caterpillar 422E. Compare reference number CA2144302 against the label on your existing Caterpillar component before ordering.
Additional cross references on file: 214-4302, 103-47250, 10047250. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.
| Voltage | 12V |
|---|---|
| Clutch Diameter | 152mm |
| No. of Grooves | 1 groove |
| Belt Type | 5/8" Belt |
| No. Comp. Cylinders | 10 cyl |
| Comp. Displacement (ci) | 13.1 cu.in. |
| Factory Oil Charge | 180cc Oil |
| Oil Type | PAG46 |
| Fitting Port Position | Top |
| Fitting Style | Male Insert O-Ring 10 & 12 |
| Head Type | TM21 ¡§C Univ Pad type |

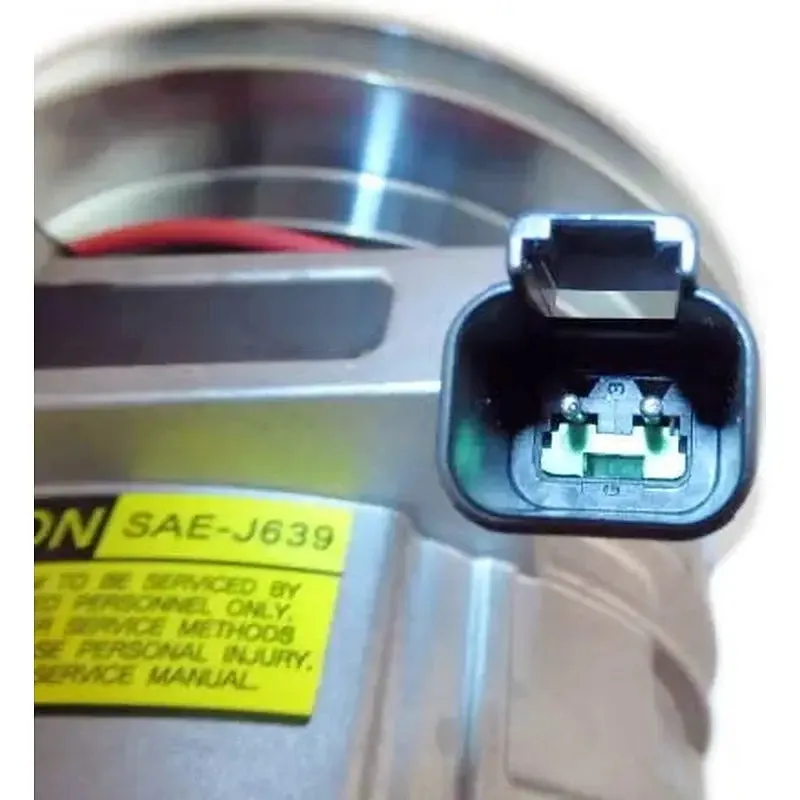

| Wire Type | 2 Wire Deutz |
| Model | TM21HX |
| Mounting Type | Direct mount |
| Manufacturer | Valeo |
| Part Number | CA2144302, 214-4302, 2144302, 103-47250, 10347250, 10047250, 100-47250 |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
