OEM / REF: CA1149484SKU: pilotpart122758

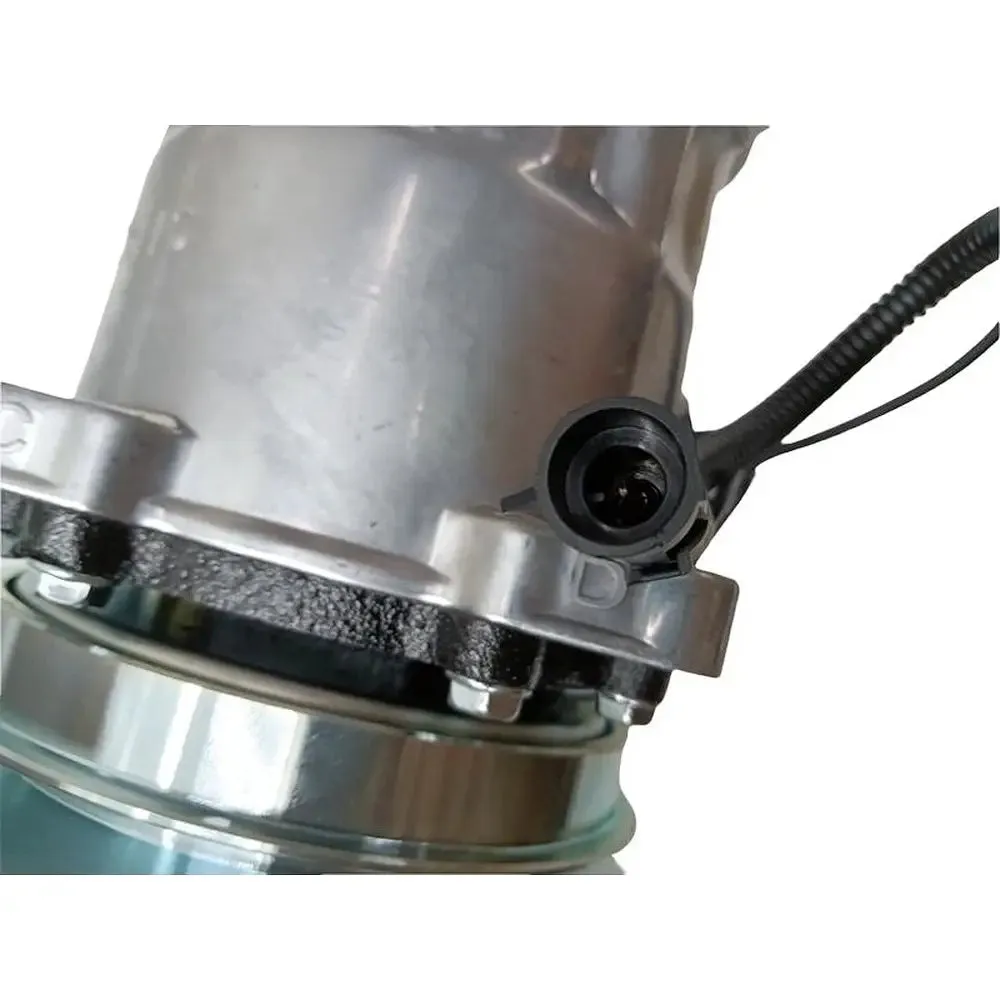

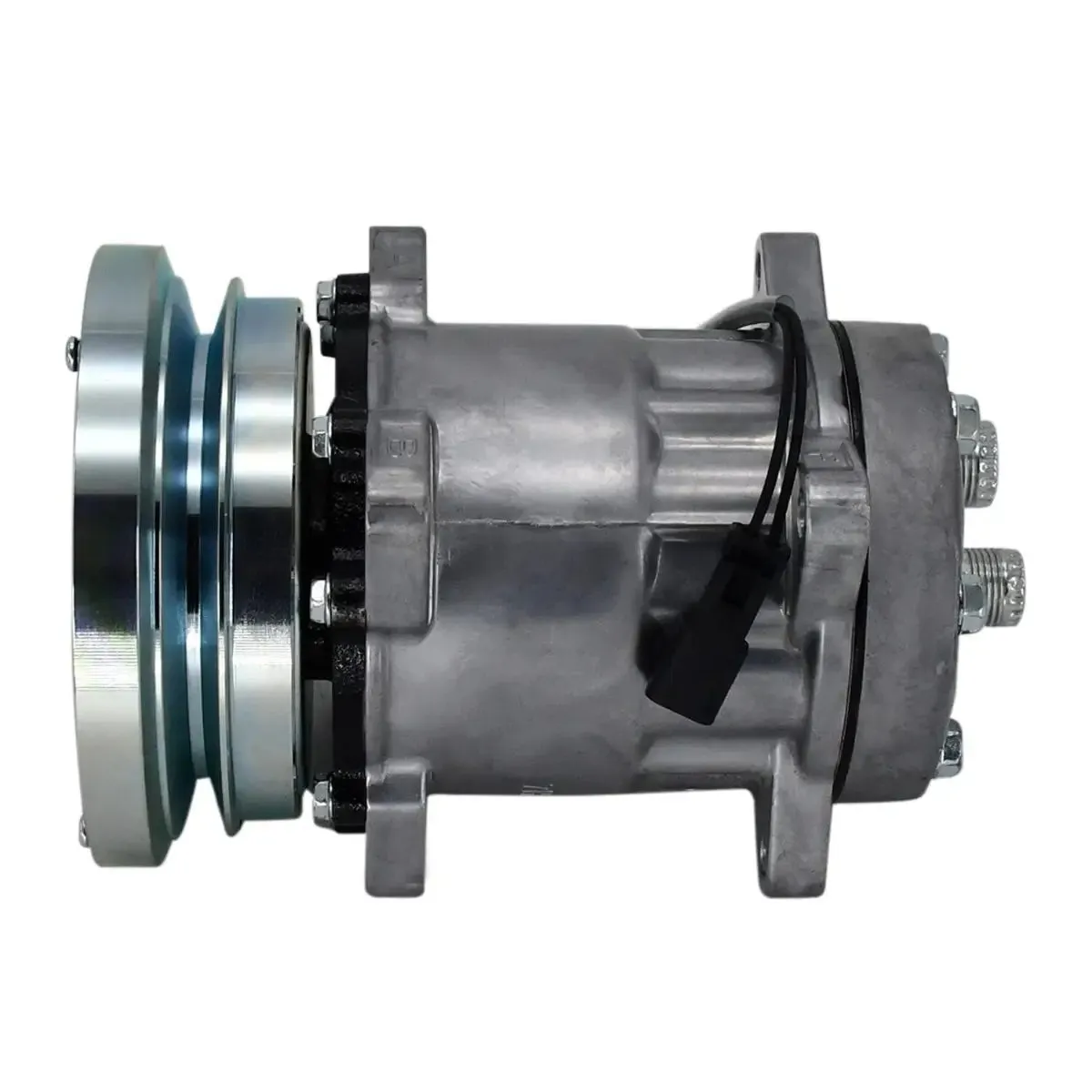

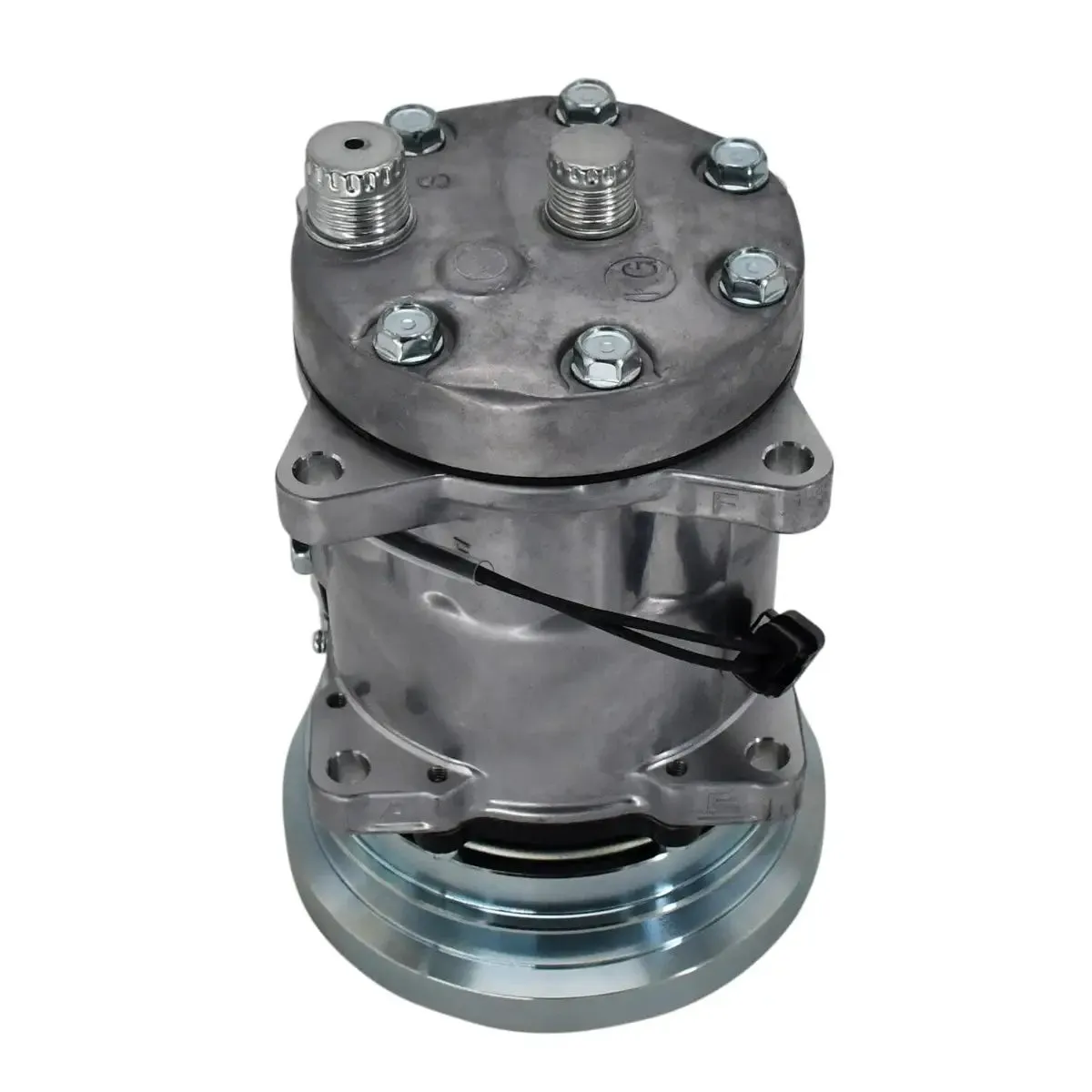

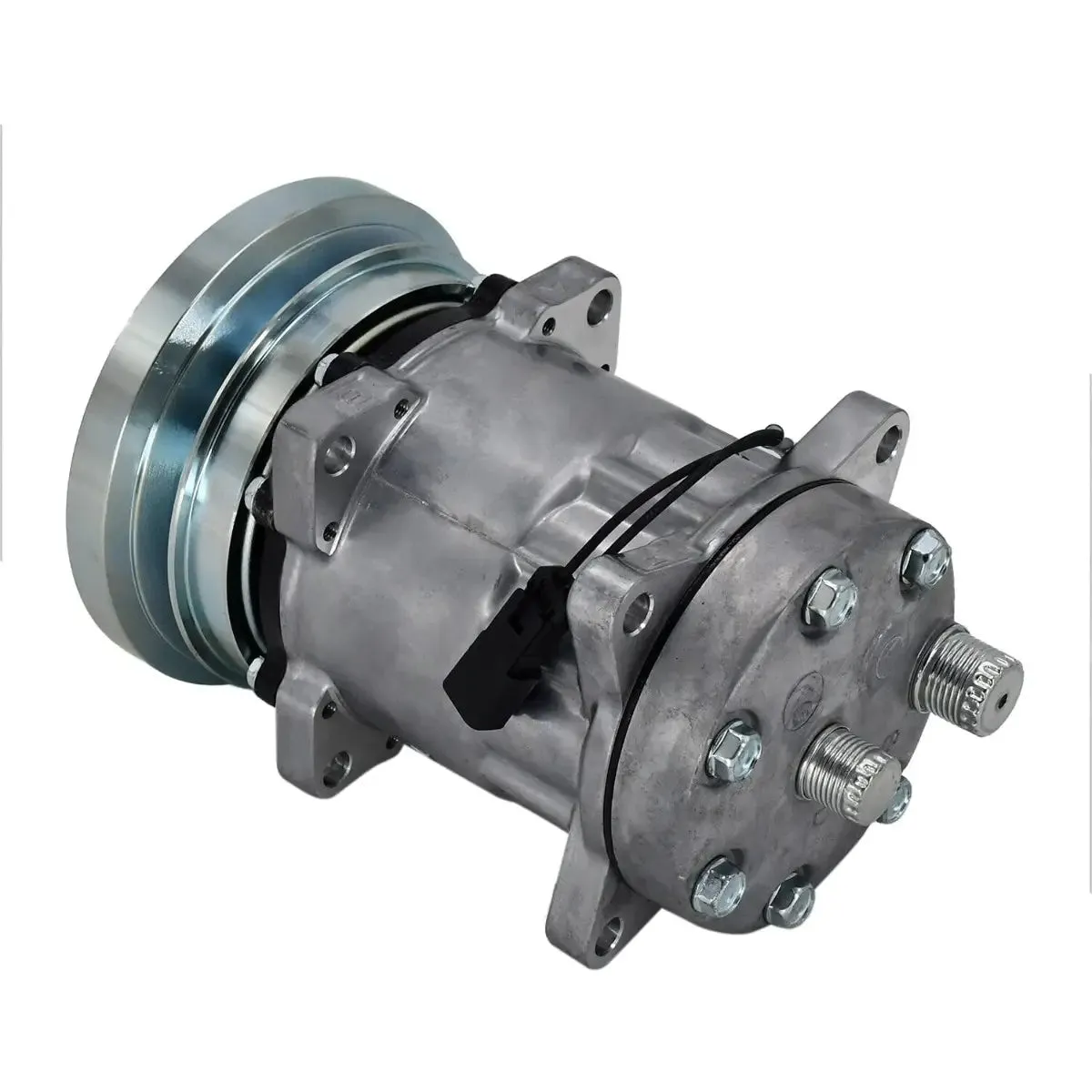

A/C Compressor 114-9484 for Caterpillar CAT Challenger 35 45 55 Agricultural Tractor 3116 3126 Engine is a Air Conditioning Compressor replacement part indexed for Caterpillar Challenger 35 and Caterpillar Challenger 45, with 3 application records on file. Match OEM part number CA1149484 and confirm fitment for Cate...
This Air Conditioning Compressor is indexed for Caterpillar Challenger 35; Caterpillar Challenger 45; Caterpillar Challenger 55; Caterpillar. Compare reference number CA1149484 against the label on your existing Caterpillar component before ordering.
Additional cross references on file: 114-9484, SD4480, SD4661. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.
| Compressor Family | SD7H15 |
|---|---|
| Style | Sealed Heavy Duty |
| Compressor Mount Type | Ear |
| Rotation Direction | CW |
| Cylinder Head | KC |
| Port Angle | Horizontal |
| Head Port Discharge Size | 3/4" Male Threaded |
| Head Port Suction Size | 7/8" Male Threaded |
| Clutch Diameter | 138 mm ~ 5 and 7/16 inches |
| Clutch Type | Dust Cover |
| Belt Type | V-Belt |
| Number of Grooves | 1 |
| Voltage | 12 |
| Coil Connector | 2 Wire Male Packard #12015792 |
| Coil Position | 12 O'clock |
| Oil Type | SP15 or PAG 100 |
| Oil Qty | 300cc |
| Refrigerant | R134a |
| Part Number | CA1149484, 114-9484, 1149484, SD4480, SD4661 |
| Part Number (AUTO CLIMA) | 40405285 |
| Part Number (CLAAS) | 3602390 |
| Part Number (CTR) | 1201502 |
| Part Number (SANDEN) | 4480, 4661, SD4480, SD4661 |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
