How do I confirm pilotpart426145 fits my machine?

Compare the OEM or reference part number, machine model, engine model, and serial number. You can also submit a fitment inquiry before ordering.

In Stock

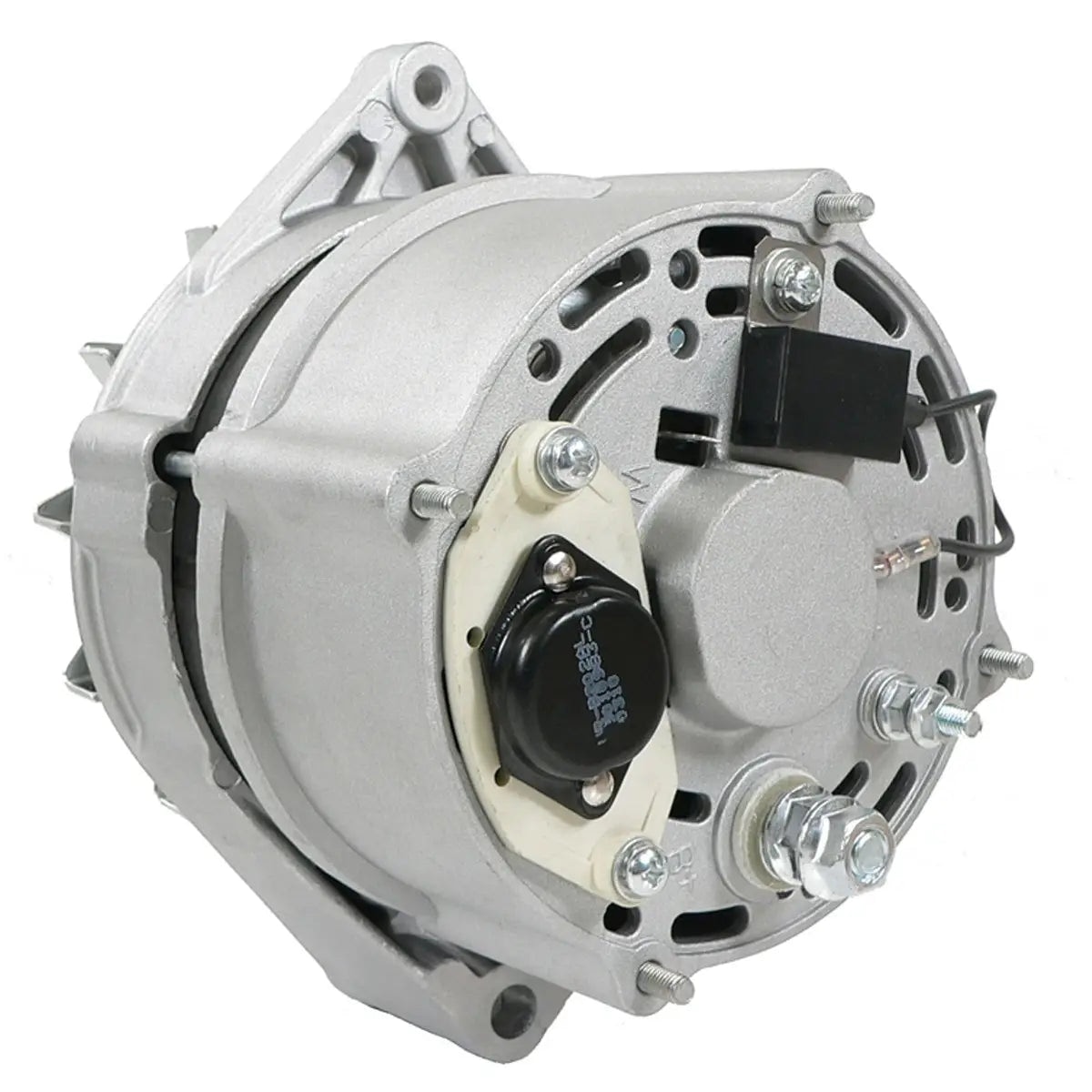

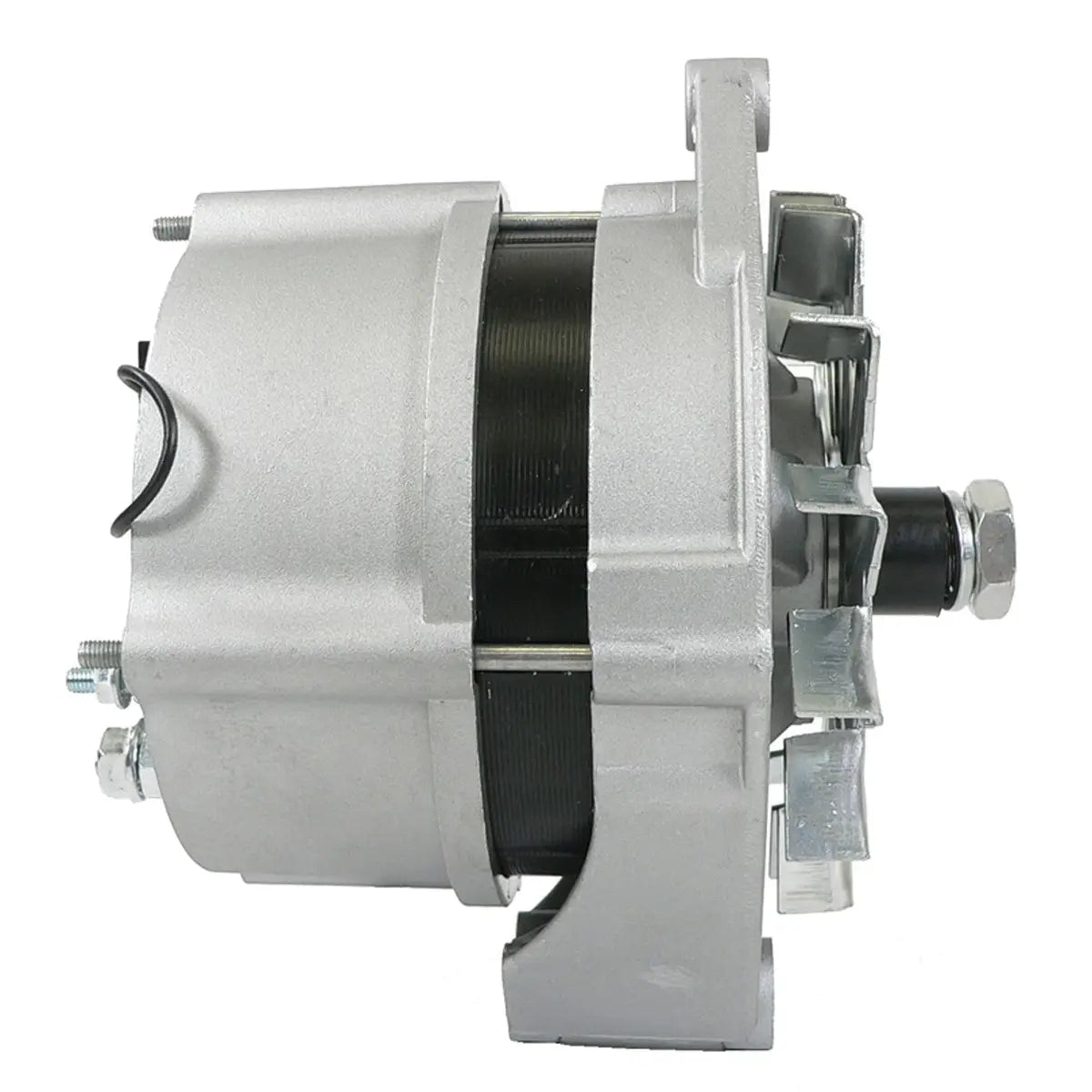

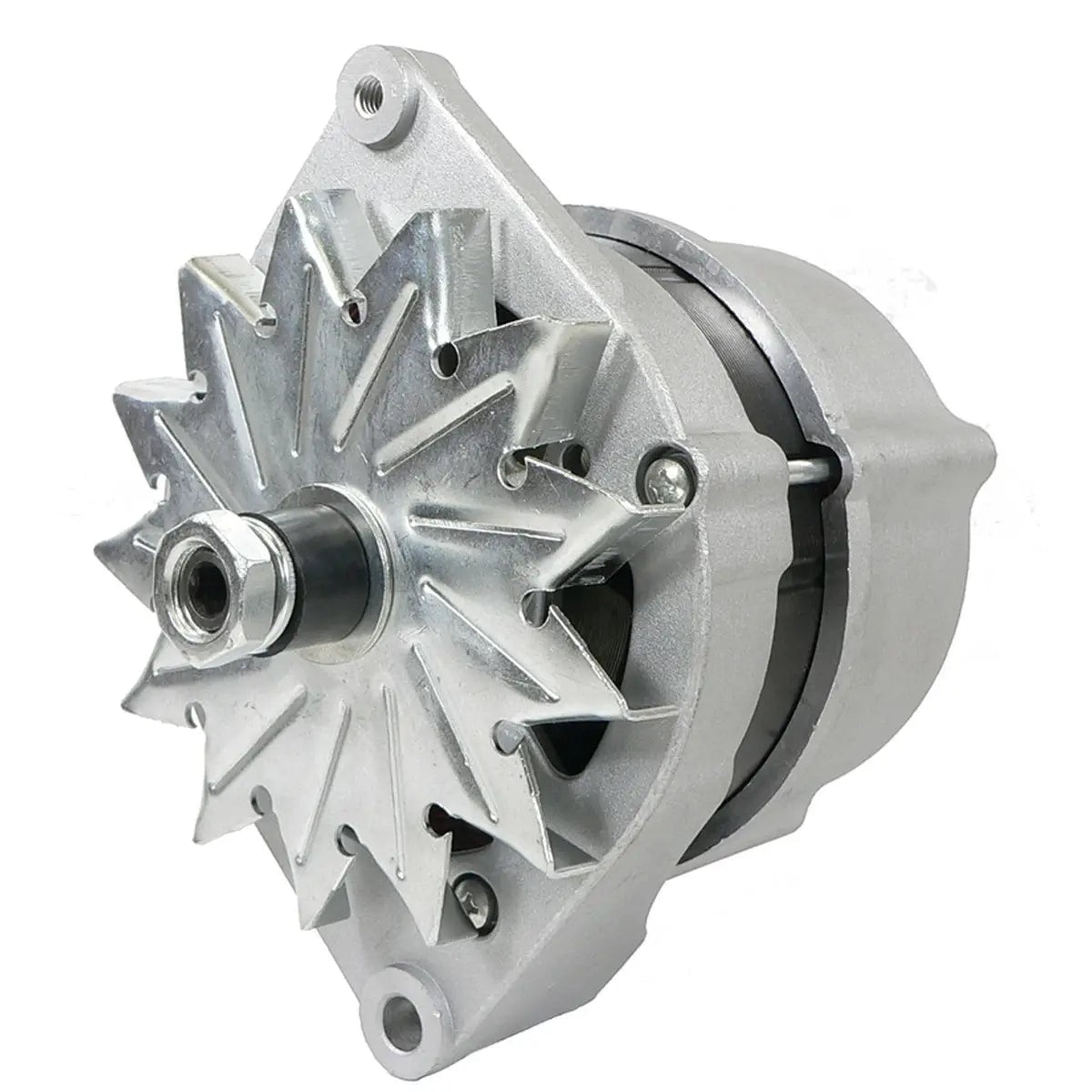

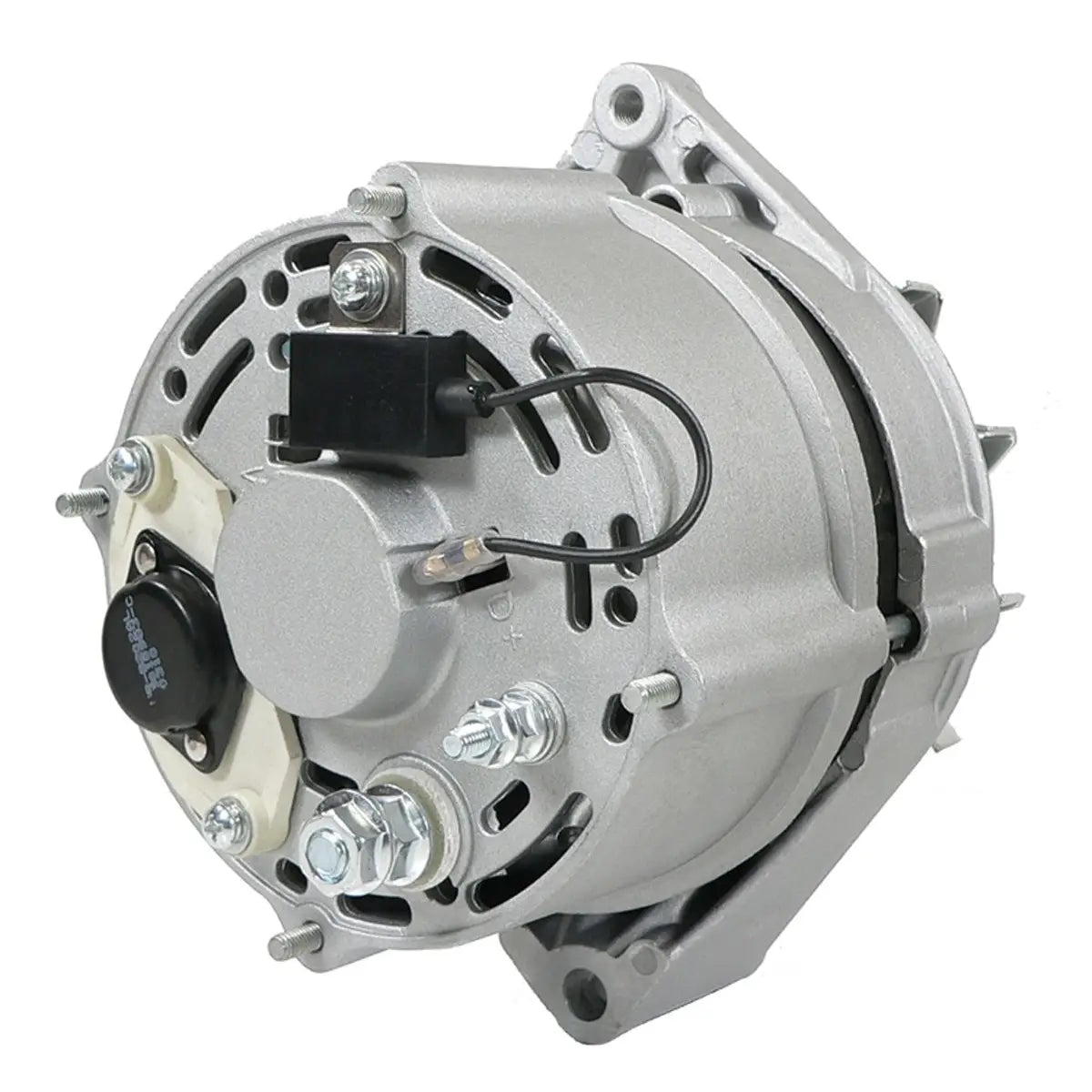

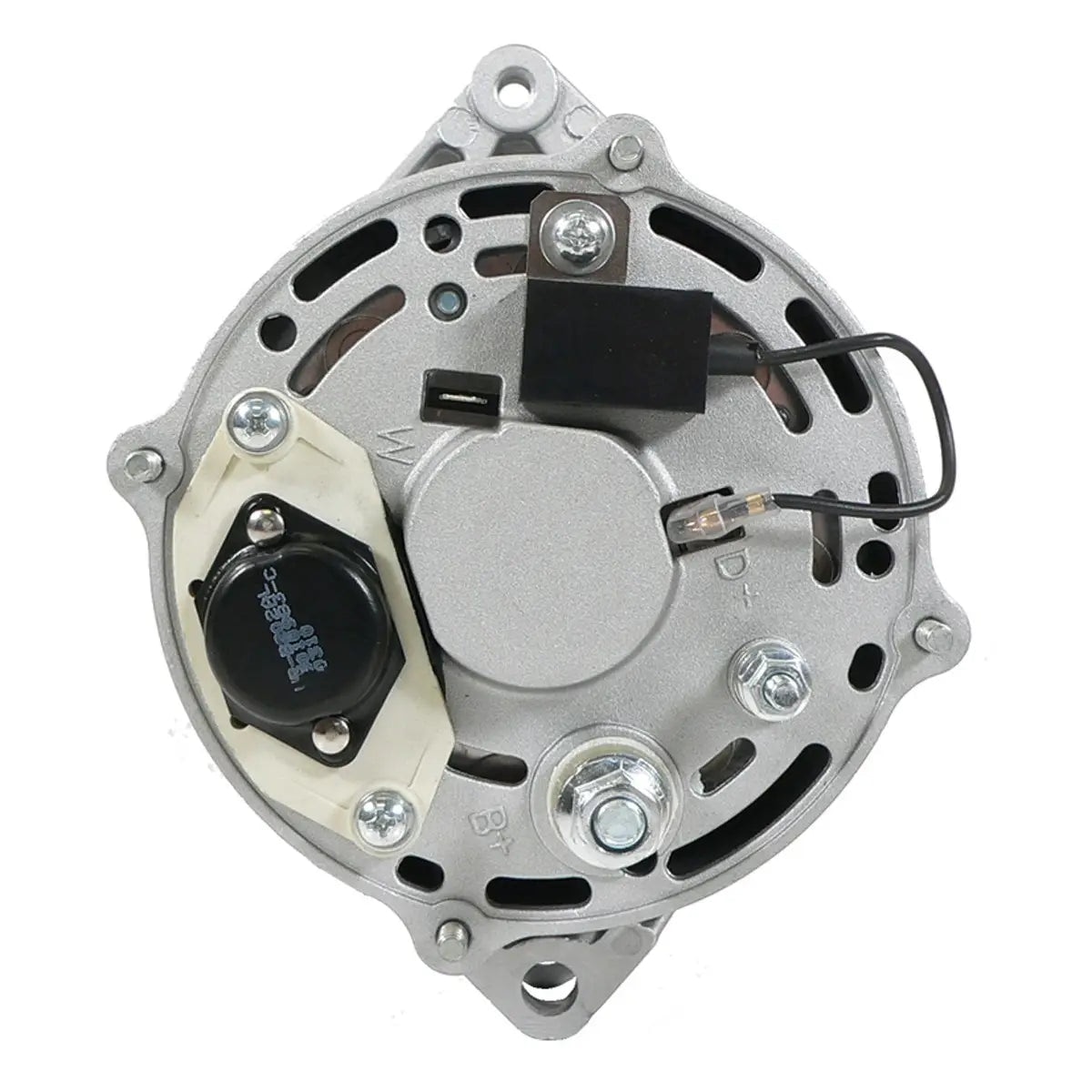

New Alternator AT220394 RE36267 Replacement For Case Loader Backhoe 580 580K 590 680 680L 780 780D

For John Deere Alternator

Alternator AT220394 for John Deere 6 12.54L Engine

OEM / REF: AT220394SKU: pilotpart426145

New Alternator AT220394 RE36267 Replacement For Case Loader Backhoe 580 580K 590 680 680L 780 780D is a Alternator replacement part indexed for JOHN DEERE 9860 STS · 6 12.54L · 2003-2007 and JOHN DEERE 9610 · 6 8.18L · 1998-2000, with 3 application records on file. Match OEM part number AT220394 and confirm fitment...

Stock: In stock
Condition: New
Fitment: John Deere Engine Spare Parts
Category: Alternator

Fitment support before you order
Worldwide delivery options

In stock — ready to order

$223.99USD/EA

~~$31,899.00~~Save 99%

Estimated delivery by quantity

Estimated delivery windows
Qty	Estimated delivery
1	Oct 22 – Oct 29
10	Oct 20 – Oct 27
50	Oct 18 – Oct 25

Estimates from today; confirm exact lead time before payment.

Quantity

Confirm fitment before ordering →

Lead times can vary by freight route and customs. Contact support for expedited shipping.

Alternator Description

This Alternator is indexed for JOHN DEERE 9860 STS · 6 12.54L · 2003-2007; JOHN DEERE 9610 · 6 8.18L · 1998-2000; JOHN DEERE 9600 · 6 7.67L · 1989-1993; JOHN DEERE 9500 · 6 7.67L · 1989-1993. Compare reference number AT220394 against the label on your existing John Deere component before ordering.

Additional cross references on file: RE36267. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.

Part Numbers and Cross References

AT220394 RE36267

Applications

JOHN DEERE 9860 STS · 6 12.54L · 2003-2007
JOHN DEERE 9610 · 6 8.18L · 1998-2000
JOHN DEERE 9600 · 6 7.67L · 1989-1993
JOHN DEERE 9500 · 6 7.67L · 1989-1993
JOHN DEERE 9410 · 6 6.78L · 1998-2000
JOHN DEERE 6603 · 6 6.78L · 2002-2005
JOHN DEERE 6403 · 4 4.52L · 2002-2005
JOHN DEERE 3830 · 4 3.91L · 1986-1992
JOHN DEERE 3430 · 4 3.91L · 1986-1992

Specifications

DESIGN	IR/EF
VOLTAGE	12
AMPERAGE	95
ROTATION	CW
PULLEY CLASS	w/o Pulley
NOTE 1	With W-terminal
FEATURE 1	100% Top-rated
Part Number	AT220394, RE36267

Fitment Notes

Brand or application signal: John Deere Engine Spare Parts
Product family: Alternator
System category: Engine Spare Parts > Engine Auxiliary Components > Alternator
Recommended verification: OEM number, engine model, serial number, old part photos, and dimensions.

Shipping & Returns

Availability: InStock
Shipping: Shipping quotes can be confirmed before payment for heavy or urgent orders.
Returns: Returns are easier when fitment is confirmed before ordering.
B2B support: Bulk, fleet, and repair-shop requests can be handled through the inquiry form.

Frequently Asked Questions

How do I confirm this part fits my machine?

Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.

Can I order if my part number is not listed?

Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.

Is this an OEM part?

Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
