Voltage Regulator Description

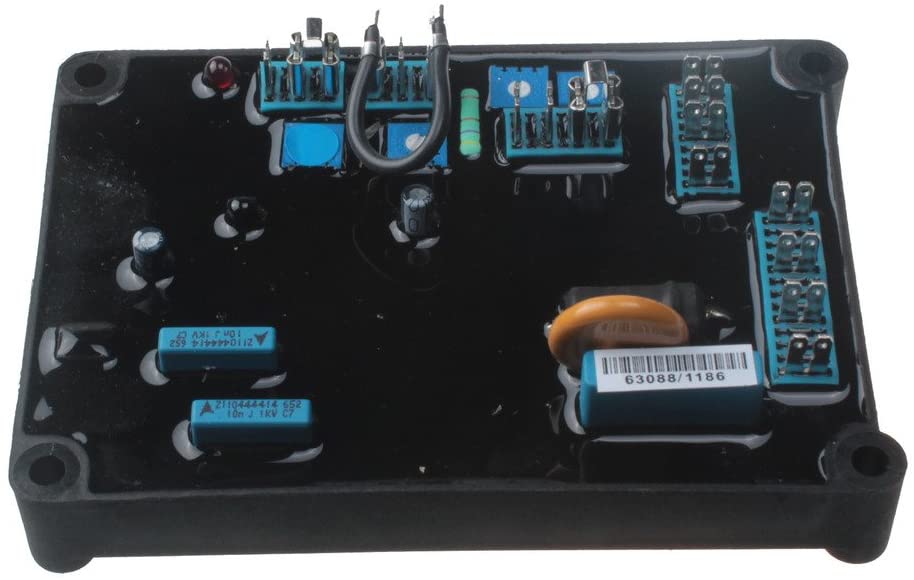

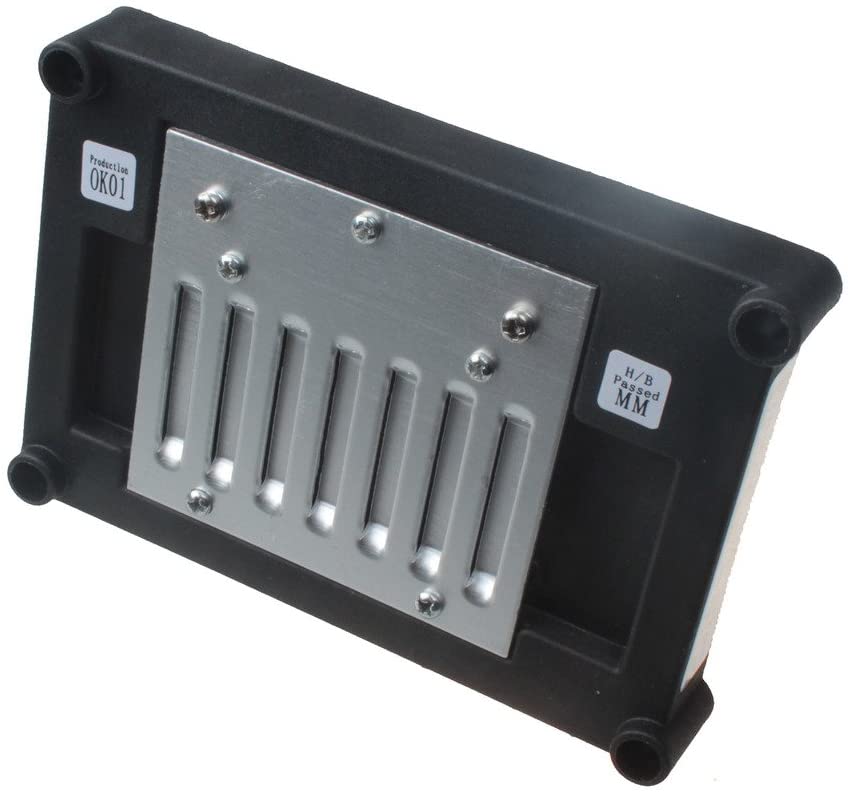

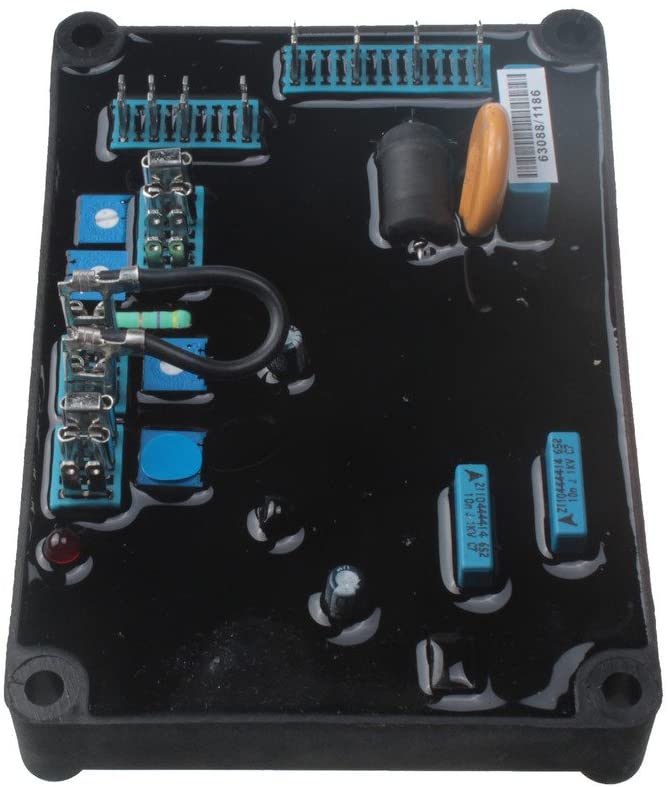

This Voltage Regulator is indexed for Generator Genset With 1 Year Warranty Description: AS480 is a half wave phase controlled AVR which forms part of the excitation structure of the brushless generator. The plan employs Surface Mount Technology (SMT), custom moldings and heat sinks to create a compact AVR assembly. The AVR also incorporates an interface to the optional Excitation Boost System (EBS) for the use where short-circuit current safeguarding is required.The AVR is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulation of +/- 1.0%. In response to his sample voltage, the AVR controls the power fed to the exciter field, and hence the main field, to sustain the machine output voltage within the specified limits, compensating for load, speed, temperature and power factor of the generator. Compare reference number pilotpart896275 against the label on your existing component before ordering.
Before checkout, compare OEM part number pilotpart896275, connector layout, mounting position, and machine serial number. For high-value or fitment-sensitive parts, submit the fitment form below so support can verify the match.
