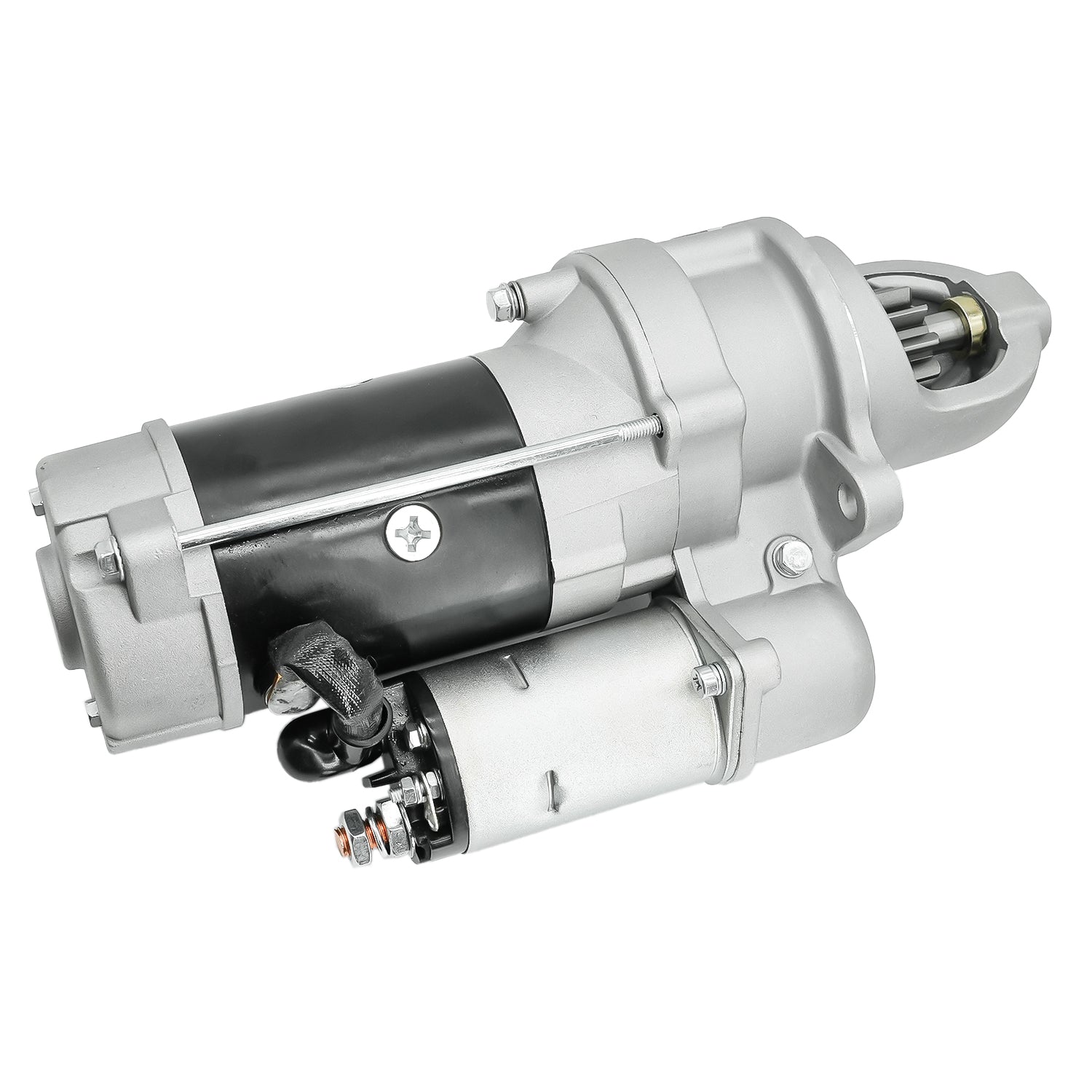

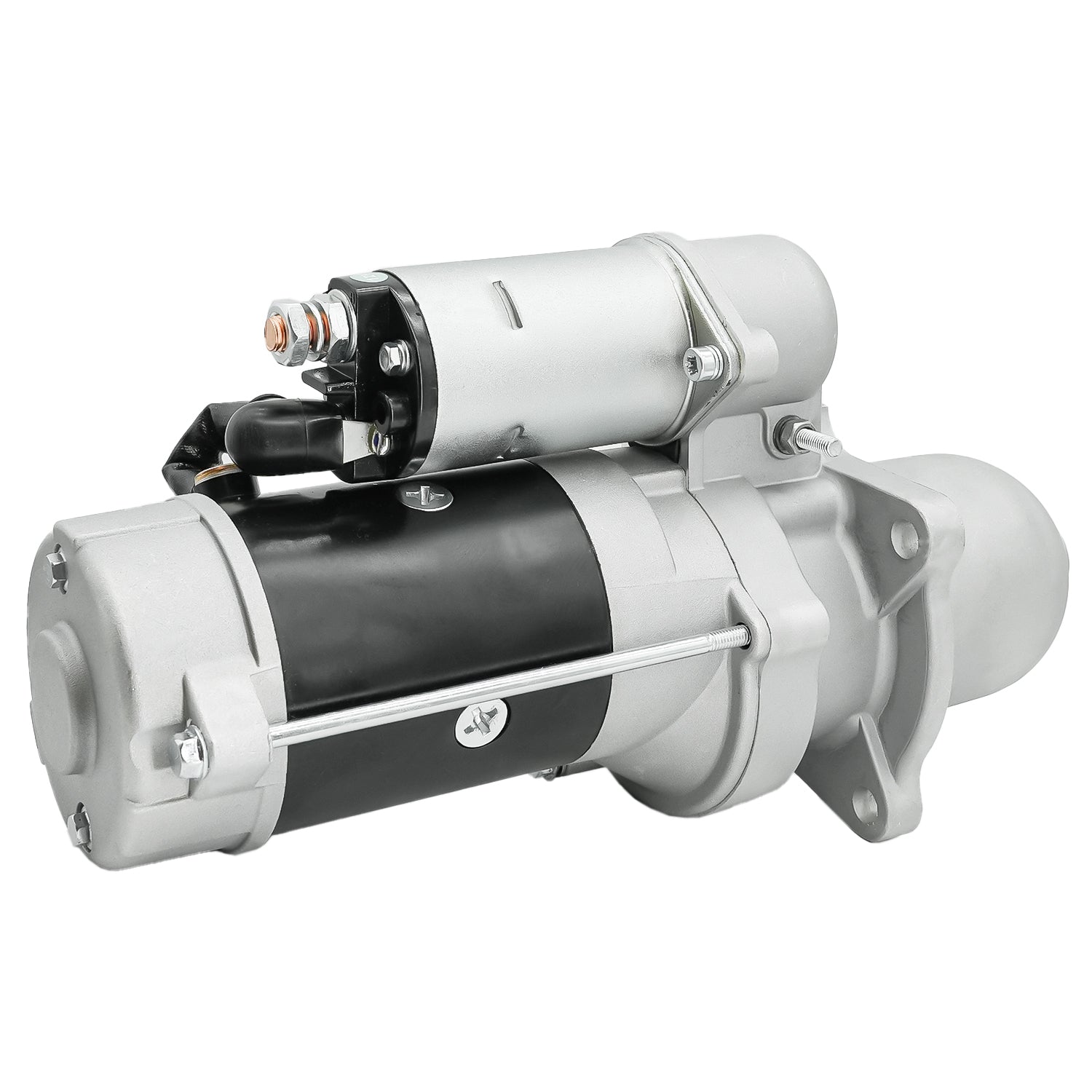

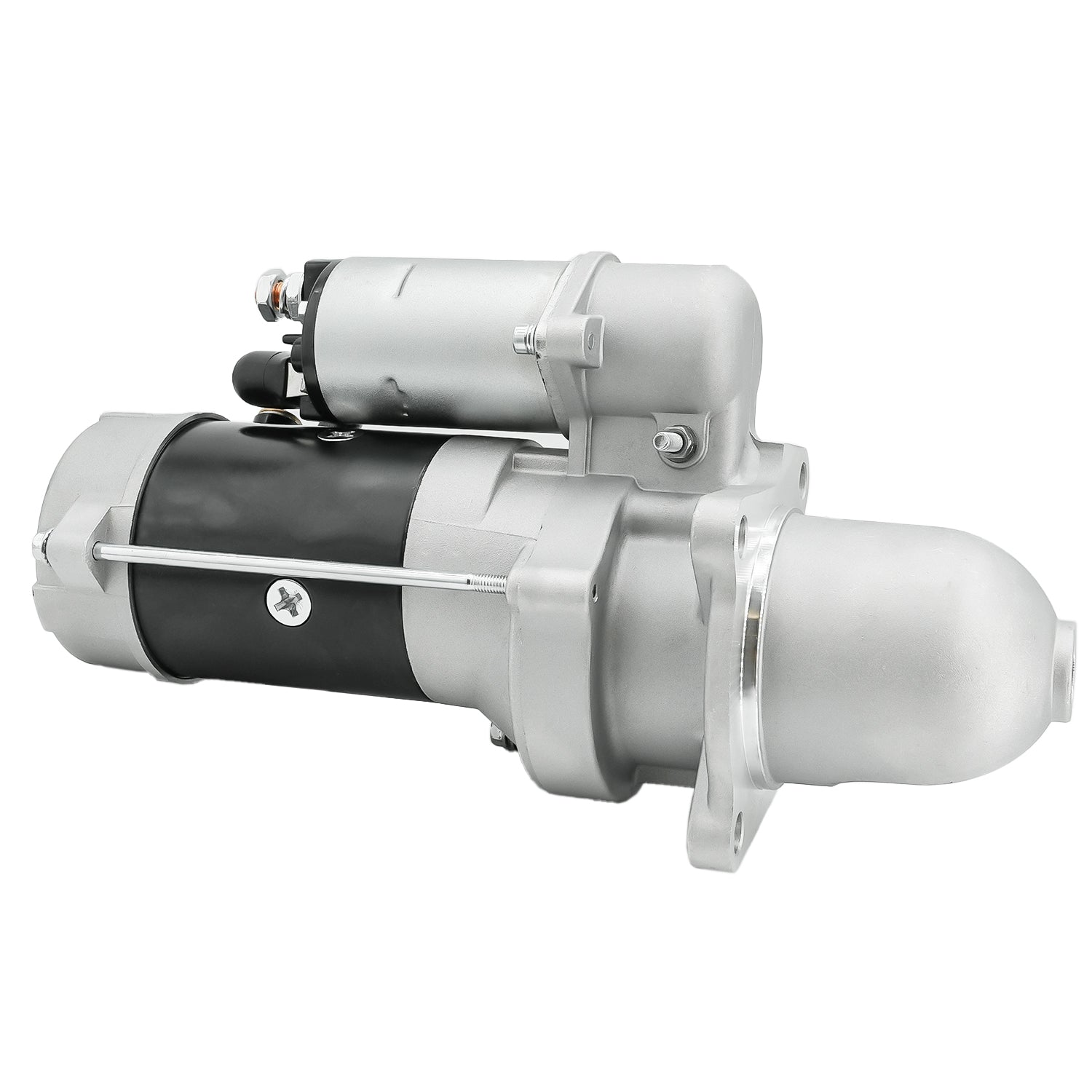

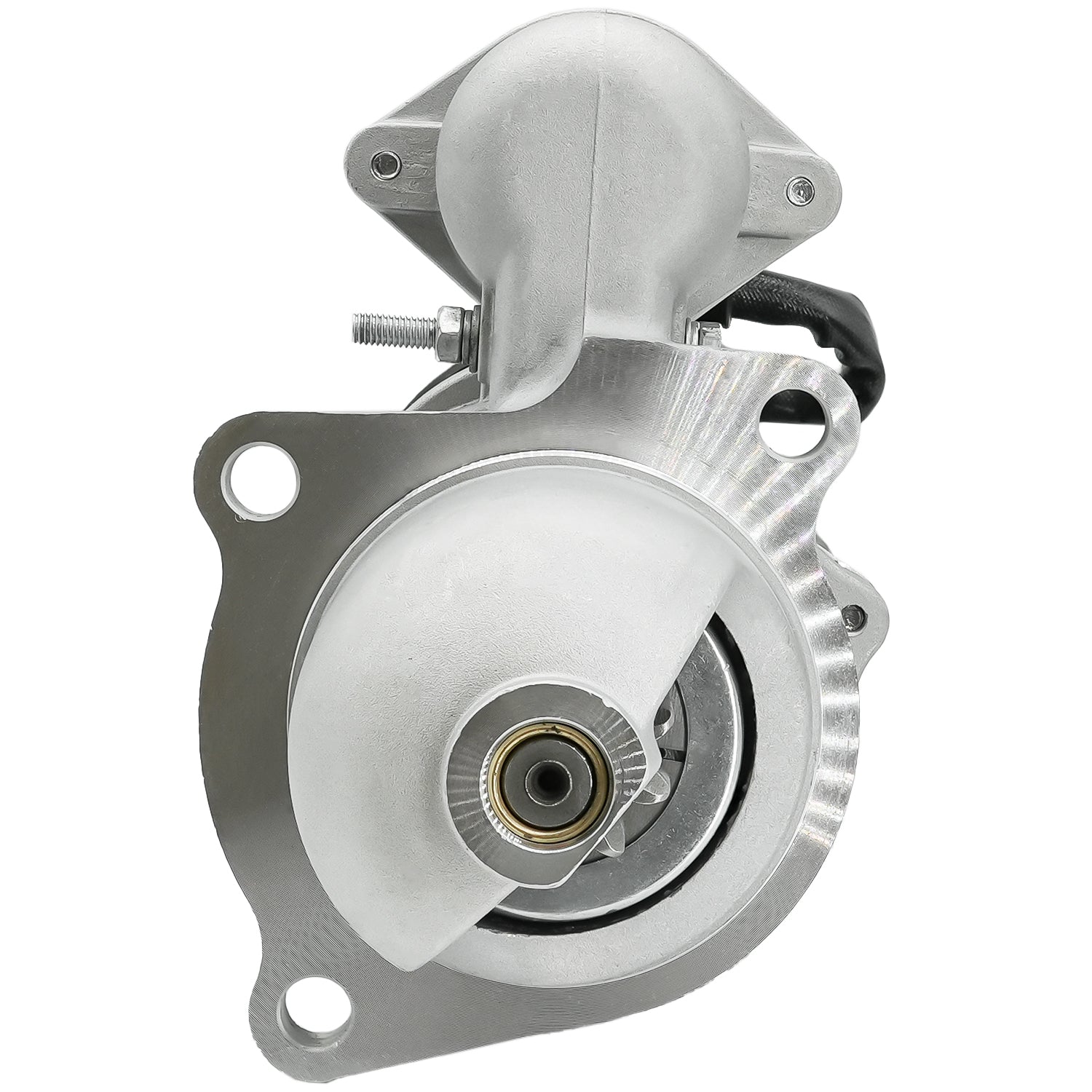

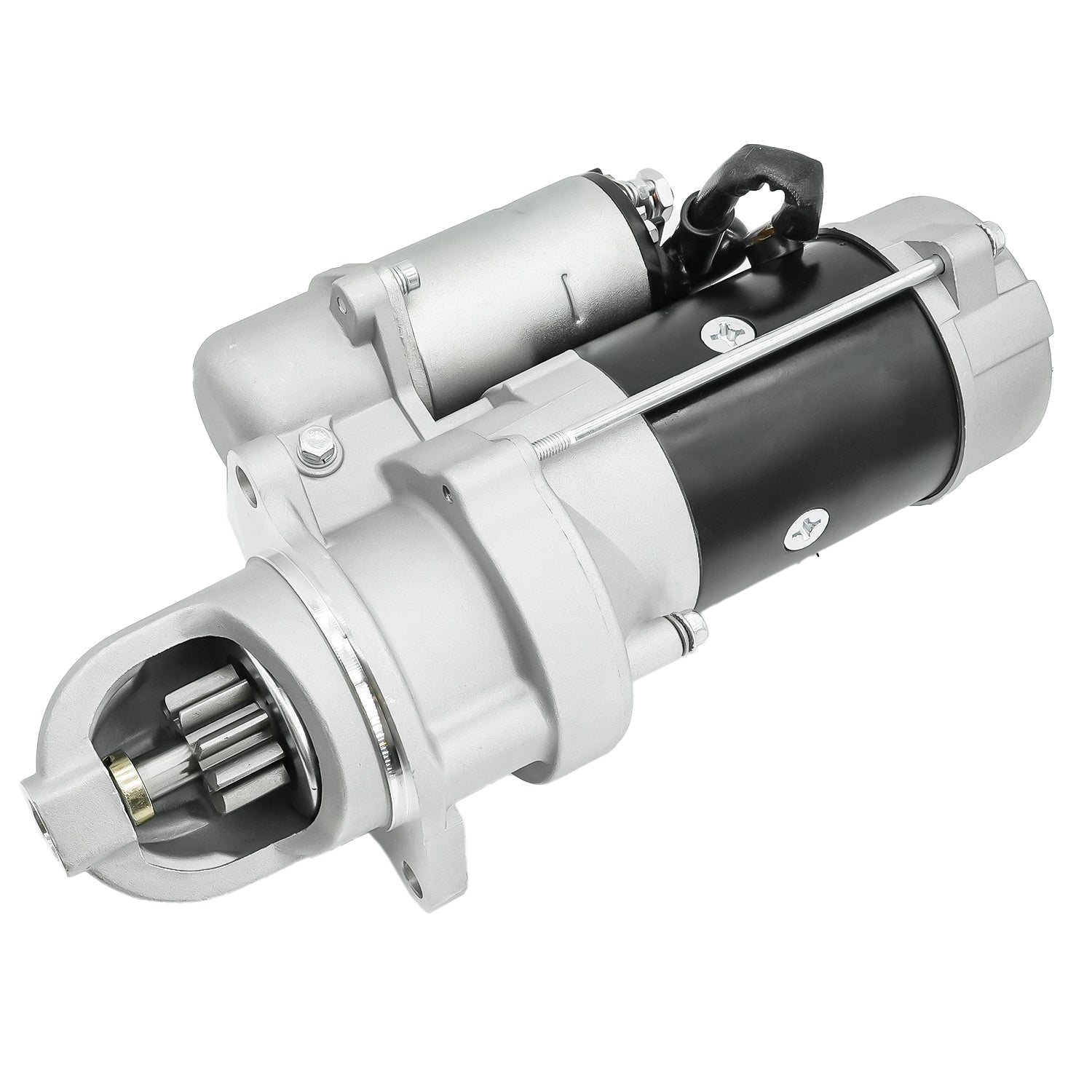

New 9T Starter Motor AR11161 AR11305 AT15335 for John Deere 500C 510 Tractors

For John Deere Starter Motor

Starter Motor AR11161 for John Deere Delco System Engine

OEM / REF: AR11161SKU: pilotpart726900

New 9T Starter Motor AR11161 AR11305 AT15335 for John Deere 500C 510 Tractors is a Starter Motor replacement part indexed for John Deere 500C · Diesel Engines Delco System · 1982-1977 and John Deere 510 · Delco System · 1986-1977. Match OEM part number AR11161 and confirm fitment for John Deere Engine Spare Parts be...

Stock: In stock
Condition: New
Fitment: John Deere Engine Spare Parts
Category: Starter Motor

Fitment support before you order
Worldwide delivery options

In stock — ready to order

$449.99USD/EA

~~$5,999.00~~Save 92%

Estimated delivery by quantity

Estimated delivery windows
Qty	Estimated delivery
1	Oct 22 – Oct 29
10	Oct 20 – Oct 27
50	Oct 18 – Oct 25

Estimates from today; confirm exact lead time before payment.

Quantity

Confirm fitment before ordering →

Lead times can vary by freight route and customs. Contact support for expedited shipping.

Starter Motor Description

This Starter Motor is indexed for John Deere 500C · Diesel Engines Delco System · 1982-1977; John Deere 510 · Delco System · 1986-1977. Compare reference number AR11161 against the label on your existing John Deere component before ordering.

Additional cross references on file: AR11305, AT15335, TY1456. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.

Part Numbers and Cross References

AR11161 AR11305 AT15335 TY1456 TY26007 TY6694 AR60085 TY26008 TY6722

Applications

John Deere 500C · Diesel Engines Delco System · 1982-1977
John Deere 510 · Delco System · 1986-1977

Specifications

TYPE	OSGR
VOLTAGE	12 VOLTS
ROTATION	CW
TEETH/SPLINES	9 TEETH/SPLINES
PINION/SPLINES OD	29.4MM / 1.157IN
DE HOUSING NUMBER	371-12073
MOUNTING HOLE 1	10.7MM ID UNTHREADED
MOUNTING HOLE 2	10.7MM ID UNTHREADED
MOUNTING HOLE 3	10.7MM ID UNTHREADED
Part Number (JOHN DEERE)	AR11161, AR11305, AT15335, TY1456, TY26007, TY6694, AR60085, TY26008, TY6722
Part Number	JOHN DEERE: AR11161, AR11305, AT15335, TY1456, TY26007, TY6694, AR60085, TY26008, TY6722

Fitment Notes

Brand or application signal: John Deere Engine Spare Parts
Product family: Starter Motor
System category: Engine Spare Parts > Engine Auxiliary Components > Starter Motor
Recommended verification: OEM number, engine model, serial number, old part photos, and dimensions.
