OEM / REF: AND0286SKU: pilotpart182314-01

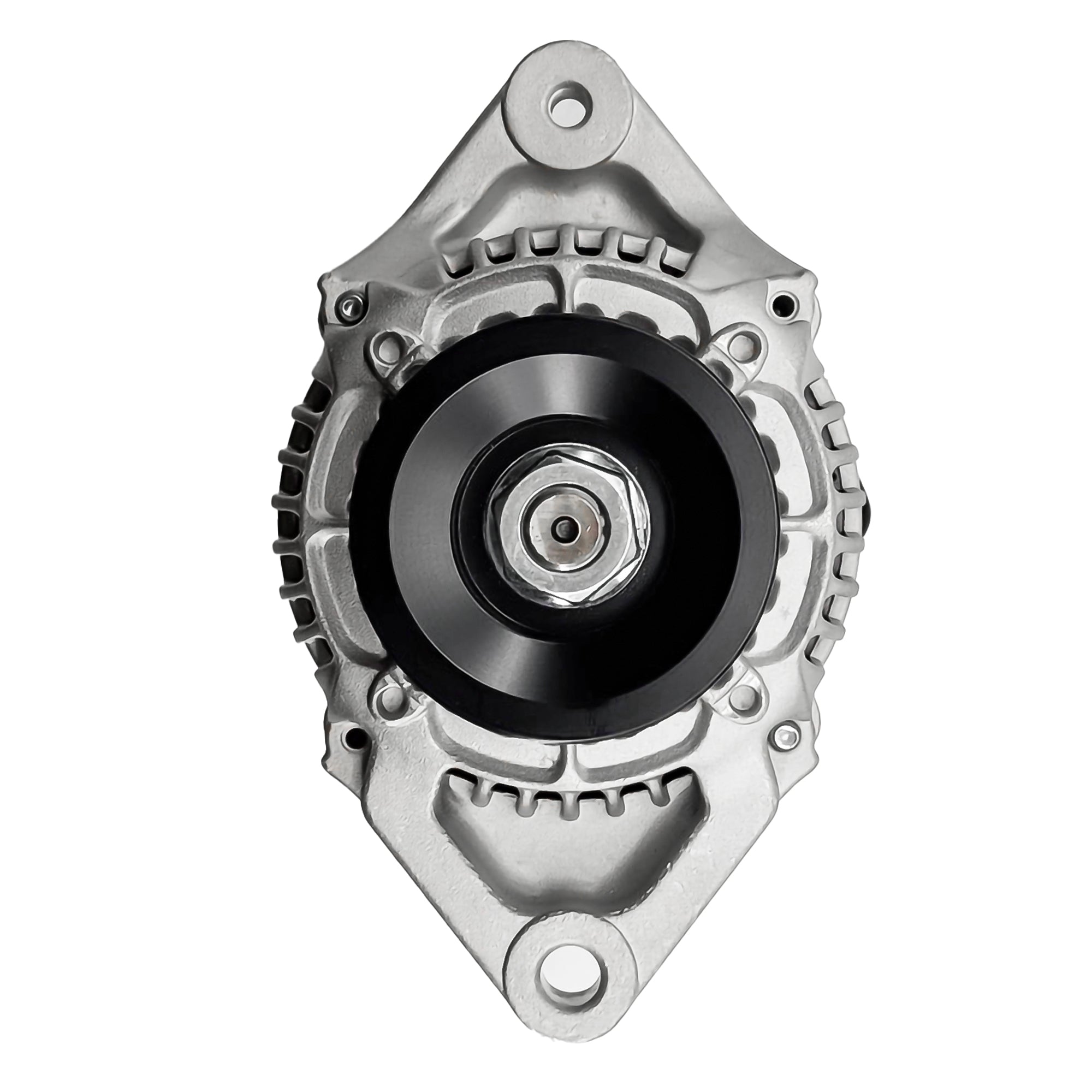

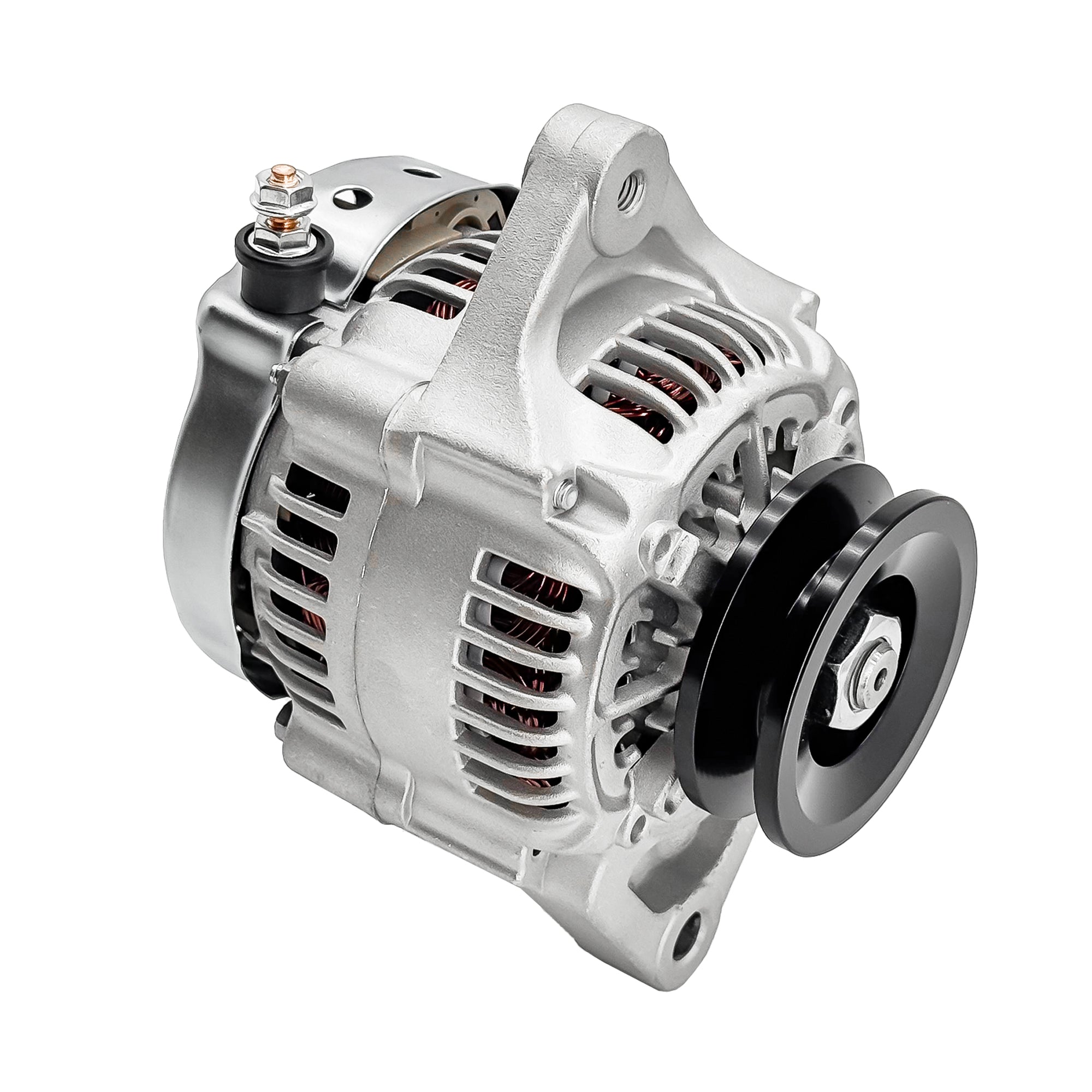

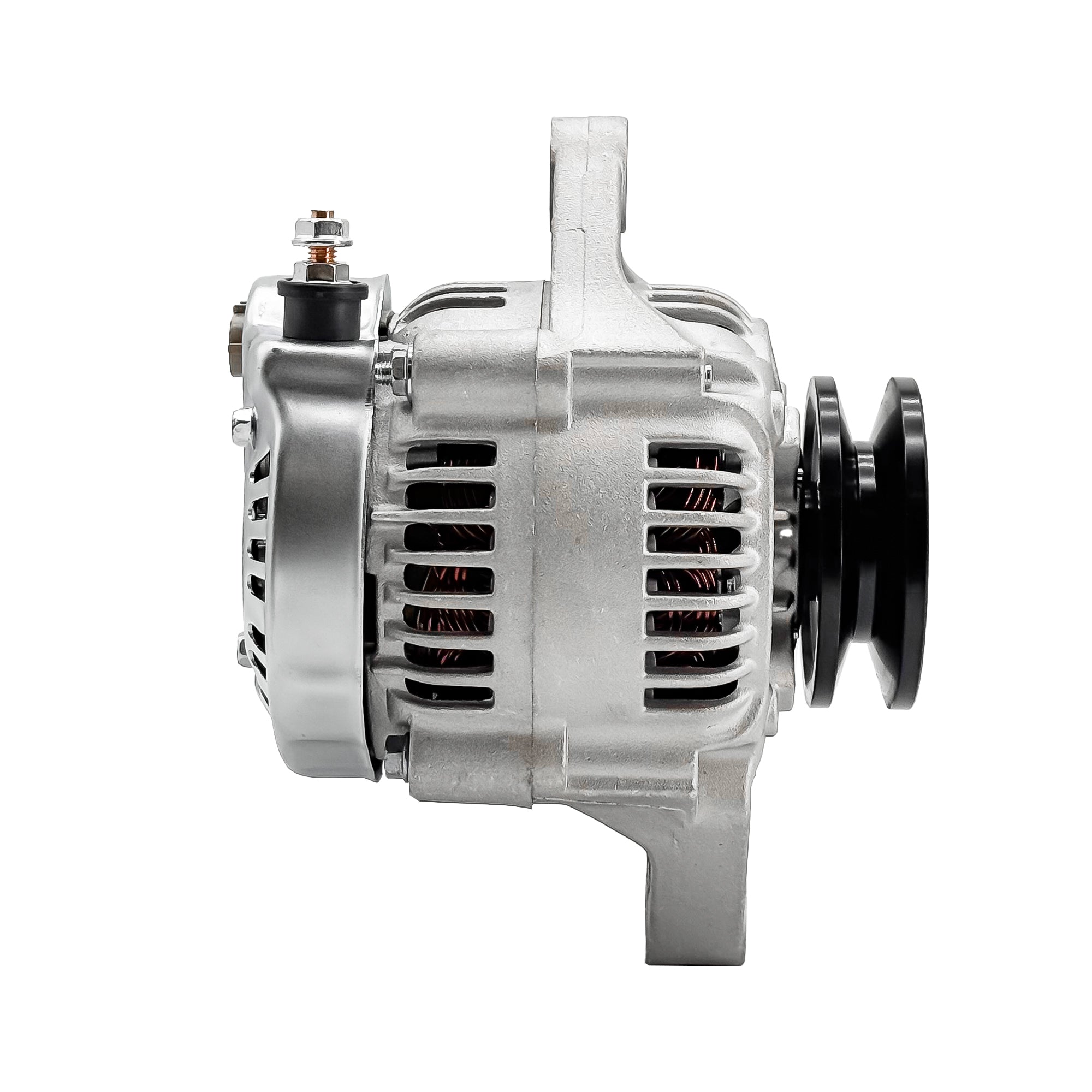

Alternator YM129423-77200 101211-1170 for Yanmar Engine 4TNE84 4TNV88 John Deere Tractors 4610 4700 4710 is a Alternator replacement part indexed for Case CX27B · Yanmar 3TNV82 and New Holland E27B · Yanmar 3TNV82A, with 3 application records on file. Match OEM part number AND0286 and confirm fitment for Komatsu Eng...
This Alternator is indexed for Case CX27B · Yanmar 3TNV82; New Holland E27B · Yanmar 3TNV82A; John Deere 110 TLB · Yanmar 4TNE84; John Deere 110 TLB · Yanmar 4TNV88. Compare reference number AND0286 against the label on your existing Komatsu component before ordering.
Additional cross references on file: ND101211-1170, ND9761219-117, 113742. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.
| Voltage | 12V |
|---|---|
| Amperage | 40A |
| Design | IR/IF |
| Rotation | CW |

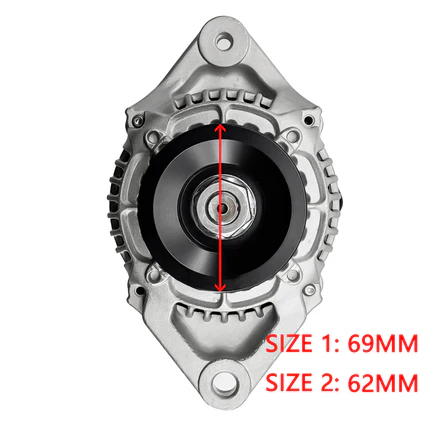

| Pulley Class | V1 |
| Note 1 | 13mm Belt |

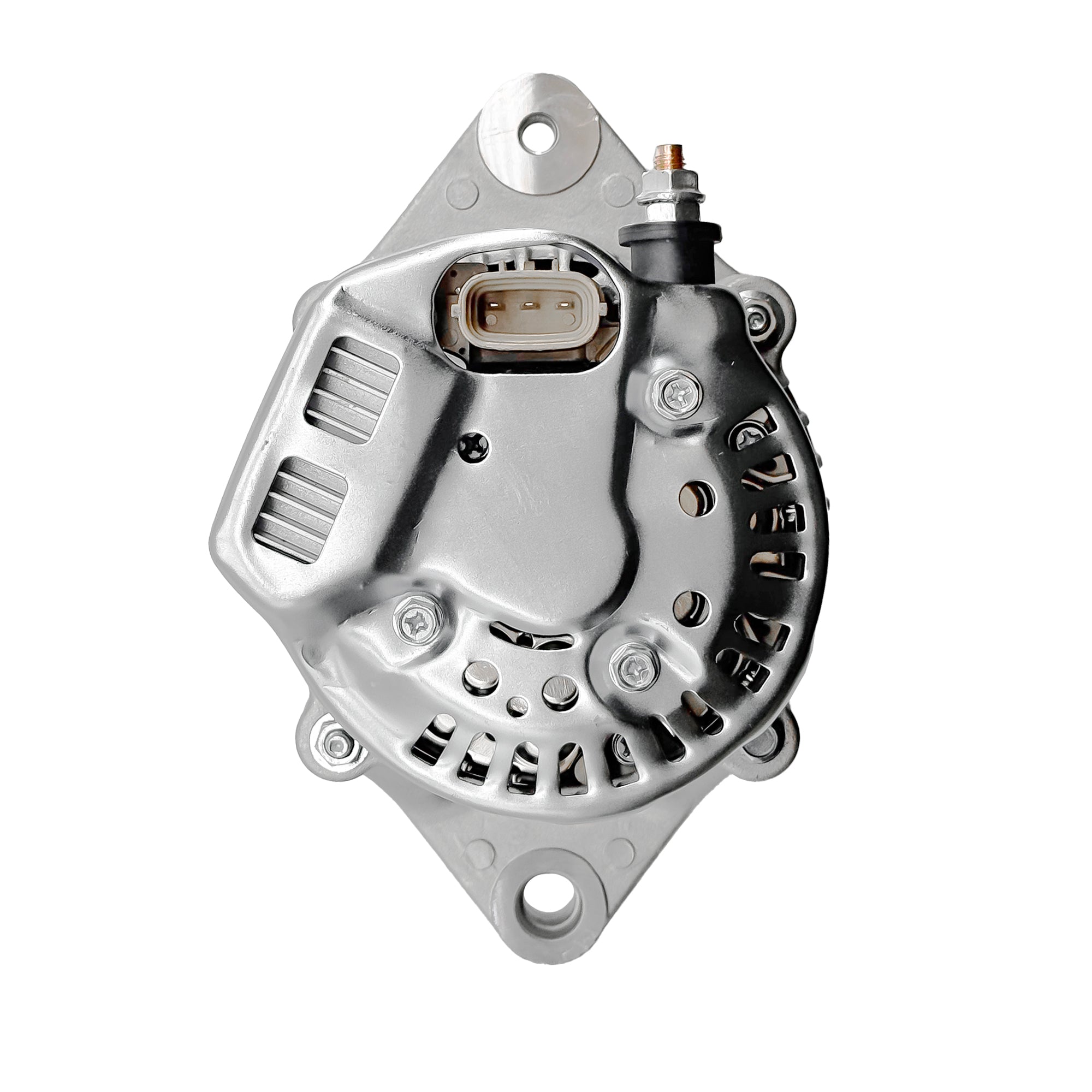

| Note 2 | P-IG-L plug |
| Part Number (ARROWHEAD) | AND0286 |
| Part Number (ARROWHEAD (OEM)) | ND101211-1170, ND9761219-117 |
| Part Number (CARGO) | 113742 |
| Part Number (CASE) | VV12942377200 |
| Part Number (DENSO) | 101211-1170 |
| Part Number (DENSO REMAN) | 9761219-117 |
| Part Number (ISUZU) | 5864002400 |
| Part Number (J & N) | 400-52159 |
| Part Number (JOHN DEERE) | AM879908, LVA12357, TY25243 |
| Part Number (LESTER) | 12356 |
| Part Number (NEW HOLLAND) | VV12942377200 |
| Part Number (NIPPON DENSO) | 101211-1170 |
| Part Number (WAI) | 12356N |
| Part Number (YANMAR) | 129423-77200, YM129423-77200, YM12942377200, 12942377200 |
| Part Number | ARROWHEAD: AND0286 ARROWHEAD (OEM): ND101211-1170, ND9761219-117 CARGO: 113742 CASE: VV12942377200 DENSO: 101211-1170 DENSO REMAN: 9761219-117 ISUZU: 5864002400 J & N: 400-52159 JOHN DEERE: AM879908, LVA12357, TY25243 LESTER: 12356 NEW HOLLAND: VV12942377200 NIPPON DENSO: 101211-1170 WAI: 12356N YANMAR: 129423-77200, YM129423-77200, YM12942377200, 12942377200 |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
