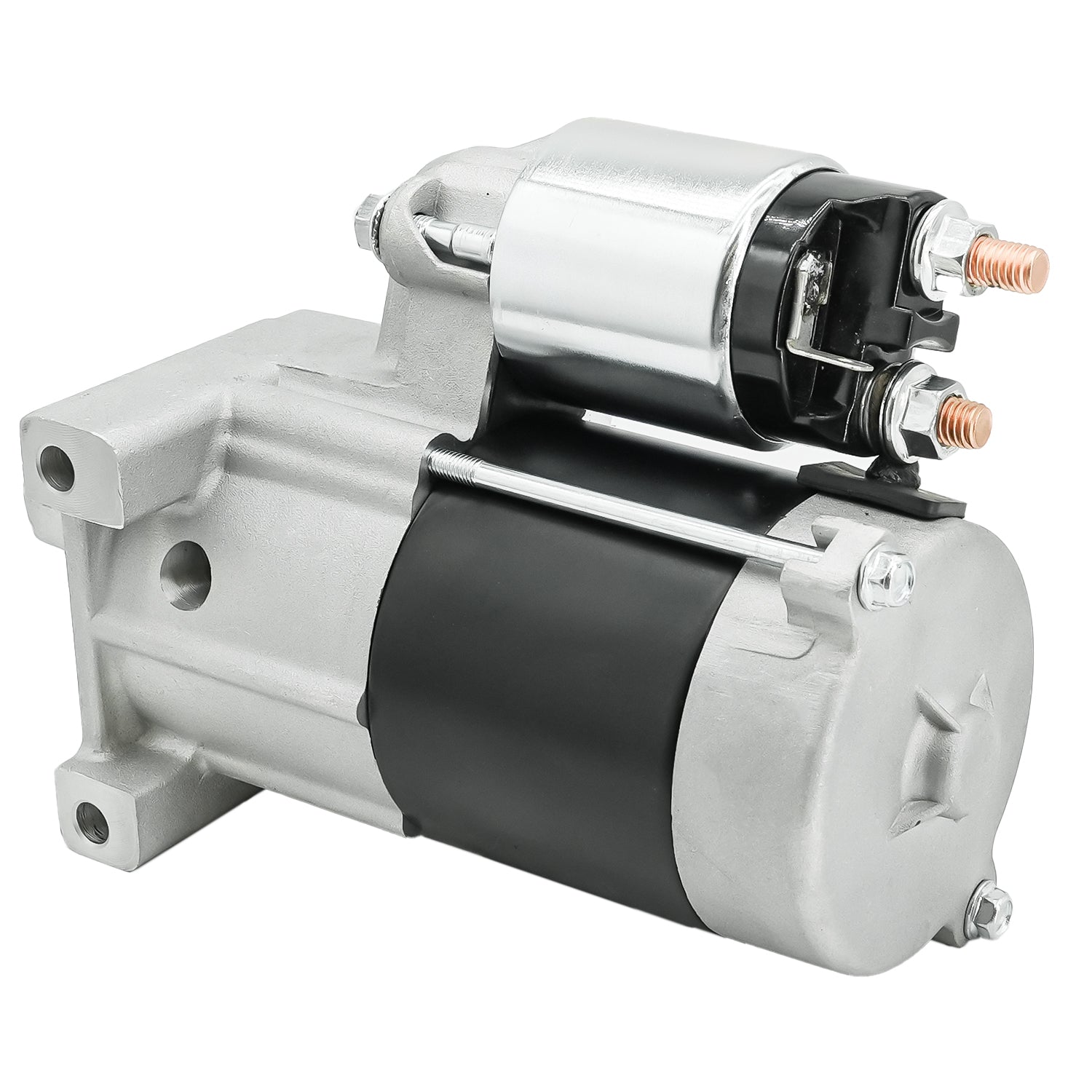

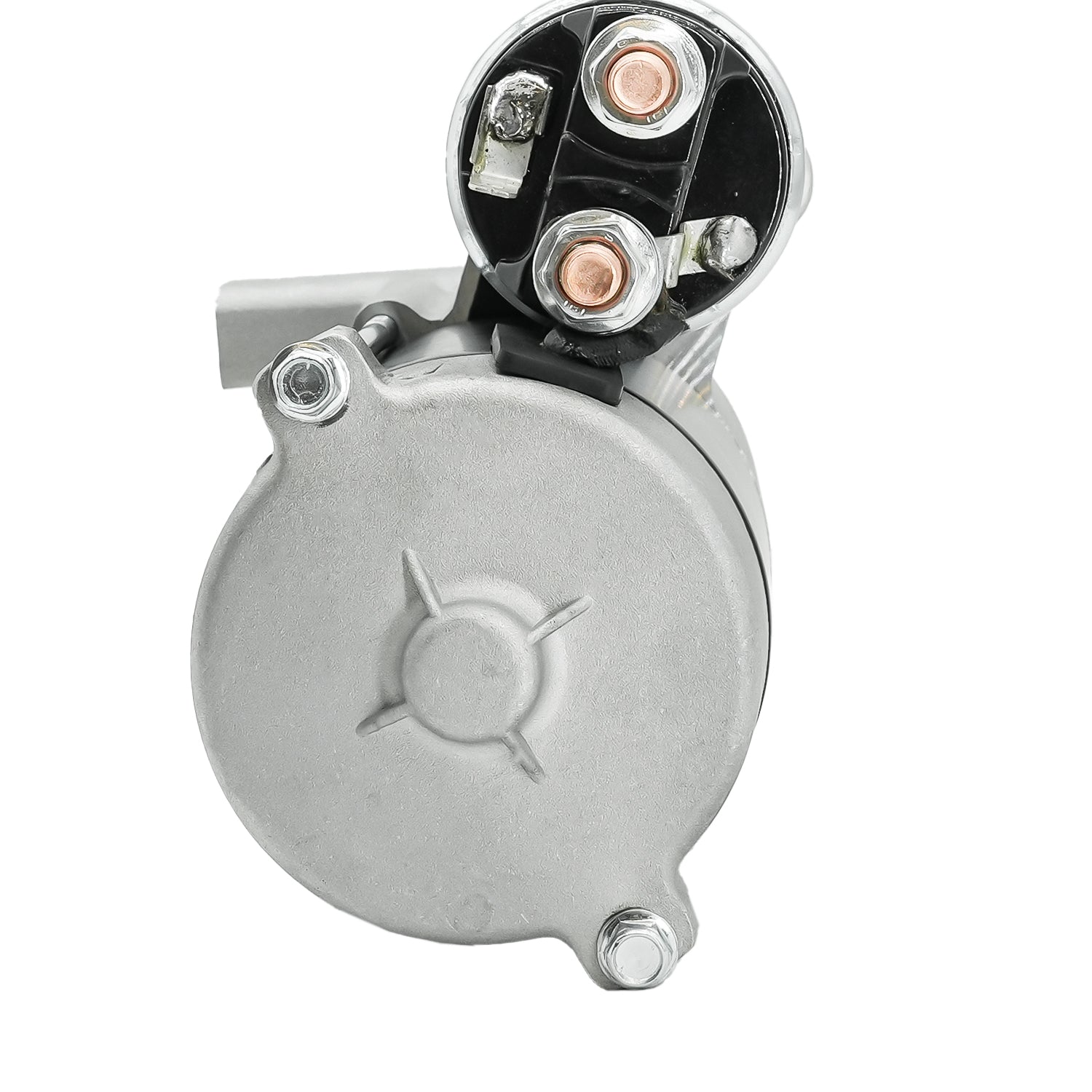

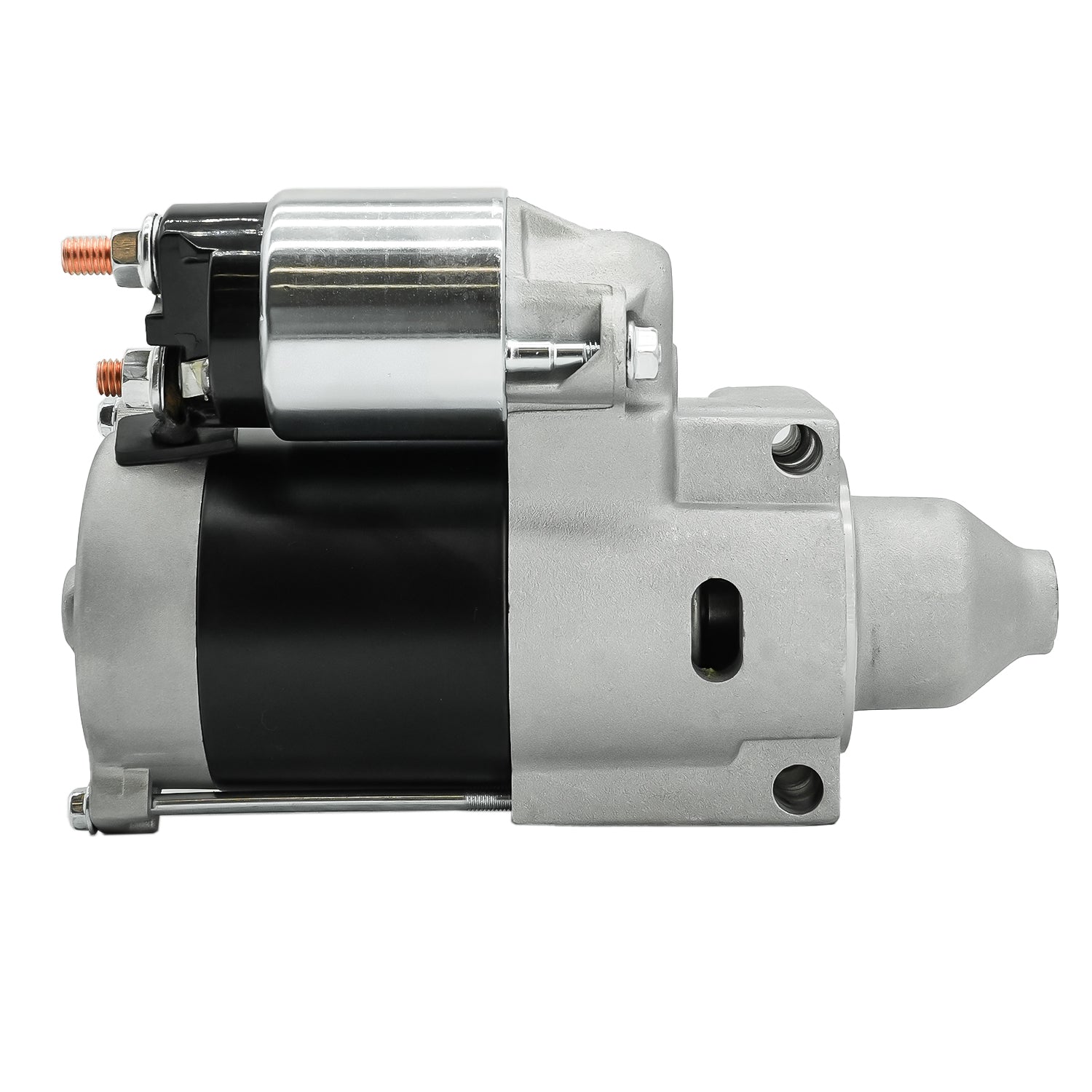

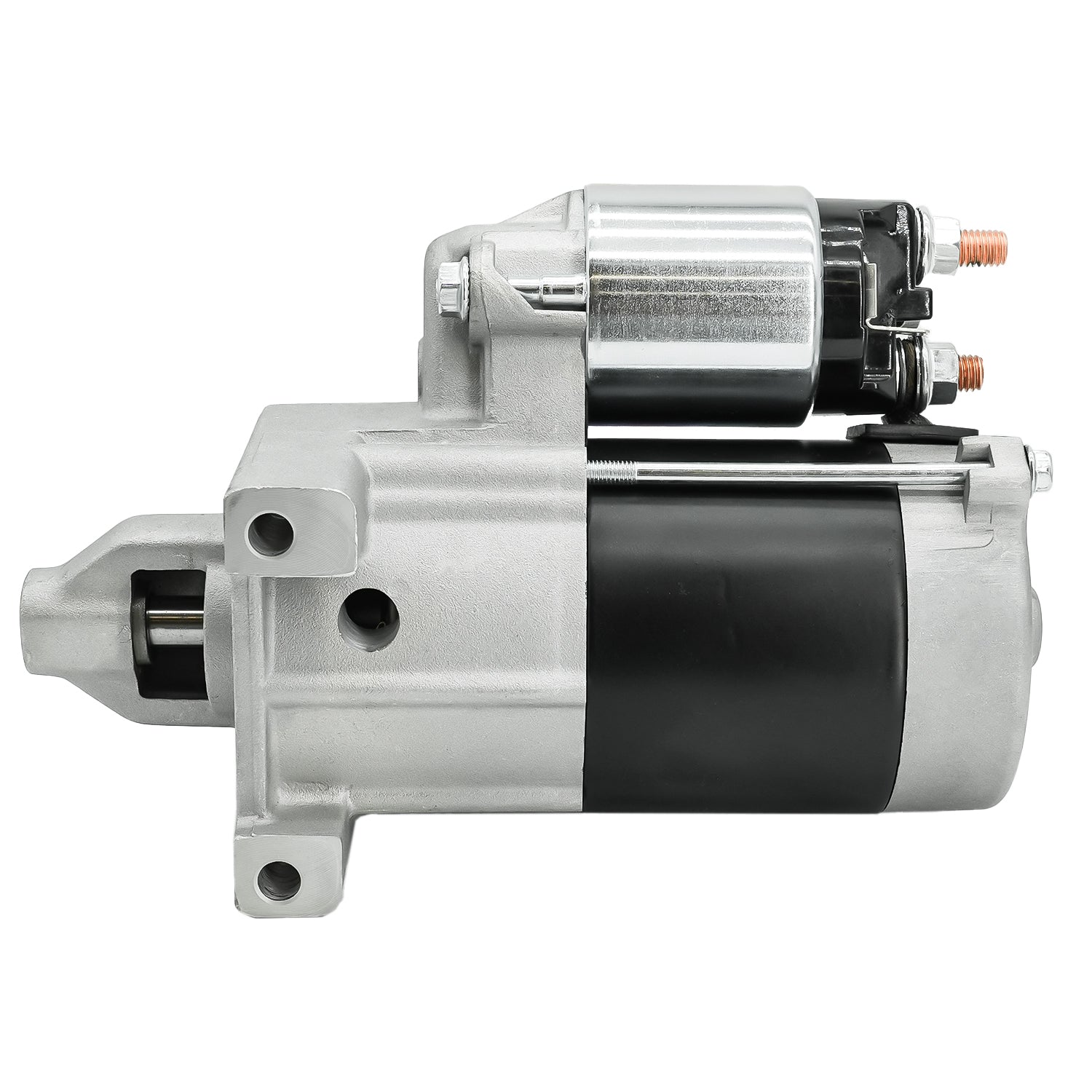

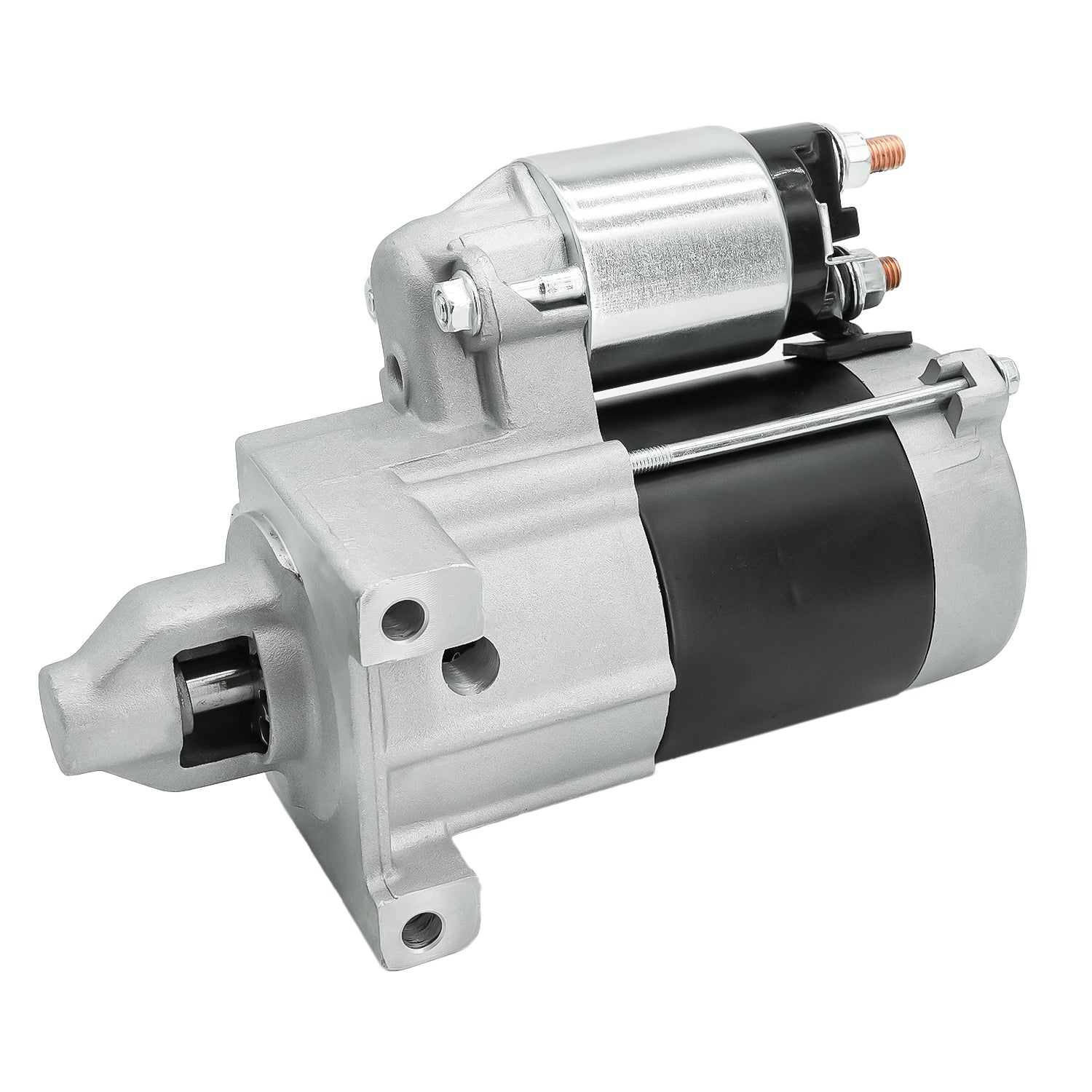

In StockNew Starter Motor 228000-7991 2280007991 AM133636 MIA11408 21163-7014 211637014 Compatible With John Deere Garden Tractor 325 335 GT235 GT245 GX255 GX335
Click to view full image
For John DeereStarter Motor

Starter Motor AM133636 for John Deere 1 CYL. 0.54L 535CC 33CID Engine

OEM / REF: AM133636SKU: pilotpart424906

New Starter Motor 228000-7991 2280007991 AM133636 MIA11408 21163-7014 211637014 Compatible With John Deere Garden Tractor 325 335 GT235 GT245 GX255 GX335 is a Starter Motor replacement part indexed for JOHN DEERE 325 · 1 CYL. 0.54L 535CC 33CID · 1995-1998 and JOHN DEERE 335 · 2 CYL. 0.68L 672CC 41CID JD 20HP GAS · 1...

Stock
In stock
Condition
New
Fitment
John Deere Engine Spare Parts
  • Fitment support before you order
  • Worldwide delivery options

Starter Motor Description

This Starter Motor is indexed for JOHN DEERE 325 · 1 CYL. 0.54L 535CC 33CID · 1995-1998; JOHN DEERE 335 · 2 CYL. 0.68L 672CC 41CID JD 20HP GAS · 1998-2001; JOHN DEERE GT235 · 2 CYL. 0.57L 570CC 35CID · 1998-2003; JOHN DEERE GT245 · 2 CYL. 0.68L 672CC 41CID KAWASAKI 20HP · 2002-2005. Compare reference number AM133636 against the label on your existing John Deere component before ordering.

Additional cross references on file: MIA11408, AM127877, SE501873. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.

Applications

  • JOHN DEERE 325 · 1 CYL. 0.54L 535CC 33CID · 1995-1998
  • JOHN DEERE 335 · 2 CYL. 0.68L 672CC 41CID JD 20HP GAS · 1998-2001
  • JOHN DEERE GT235 · 2 CYL. 0.57L 570CC 35CID · 1998-2003
  • JOHN DEERE GT245 · 2 CYL. 0.68L 672CC 41CID KAWASAKI 20HP · 2002-2005
  • JOHN DEERE GX255 · 2 CYL. 0.58L 585CC 36CID KAWASAKI 20HP · 2003-2005
  • JOHN DEERE GX335 · 2 CYL. 0.58L 585CC 36CID KAWASAKI 20HP AIR COOL · 2003-2005
  • JOHN DEERE LT190 · 2 CYL. 0.49L 494CC 30CID KAWASAKI 18HP · 2003-2005
  • JOHN DEERE LX277 · 2 CYL. 0.49L 494CC 30CID KAWASAKI 17HP GAS · 1998-2005
  • JOHN DEERE LX280 · 2 CYL. 0.49L 494CC 30CID KAWASAKI 18HP · 2003-2005
  • JOHN DEERE LX280 AWS · 2 CYL. 0.49L 494CC 30CID KAWASAKI 18HP · 2003-2005
  • JOHN DEERE LX288 · 2 CYL. 0.57L 570CC 35CID KAWASAKI 18HP · 1999-2003
  • JOHN DEERE X340 · 2 CYL. 0.68L 672CC 41CID KAWASAKI 25HP · 2006-2009
  • JOHN DEERE X534 · 2 CYL. 0.68L 672CC 41CID KAWASAKI 25HP · 2006-2009
  • JOHN DEERE 7H17 · KAWASAKI 17HP
  • JOHN DEERE 7H19 · KAWASAKI 19HP
  • JOHN DEERE 657A · KAWASAKI 23HP
  • JOHN DEERE 667A · KAWASAKI 23HP

Specifications

Voltage12V
Power0.6KW / 0.8HP
Number Of Teeth9T
RotationCCW
Starter TypeDD
Gear Od1.22IN / 31MM
Mtg Ear 1 Hole8MM UNTHREADED
Mtg Ear 2 Hole8MM UNTHREADED
Part Number (John Deere)AM133636, MIA11408, AM127877, SE501873
Part NumberJohn Deere: AM133636, MIA11408, AM127877, SE501873

Fitment Notes

Brand or application signal
John Deere Engine Spare Parts
Product family
Starter Motor
System category
Engine Spare Parts > Engine Auxiliary Components > Starter Motor
Recommended verification
OEM number, engine model, serial number, old part photos, and dimensions.

Shipping & Returns

Availability
InStock
Shipping
Shipping quotes can be confirmed before payment for heavy or urgent orders.
Returns
Returns are easier when fitment is confirmed before ordering.
B2B support
Bulk, fleet, and repair-shop requests can be handled through the inquiry form.

Frequently Asked Questions

How do I confirm this part fits my machine?

Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.

Can I order if my part number is not listed?

Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.

Is this an OEM part?

Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.

Confirm fitment

Send machine details before ordering high-risk parts.
