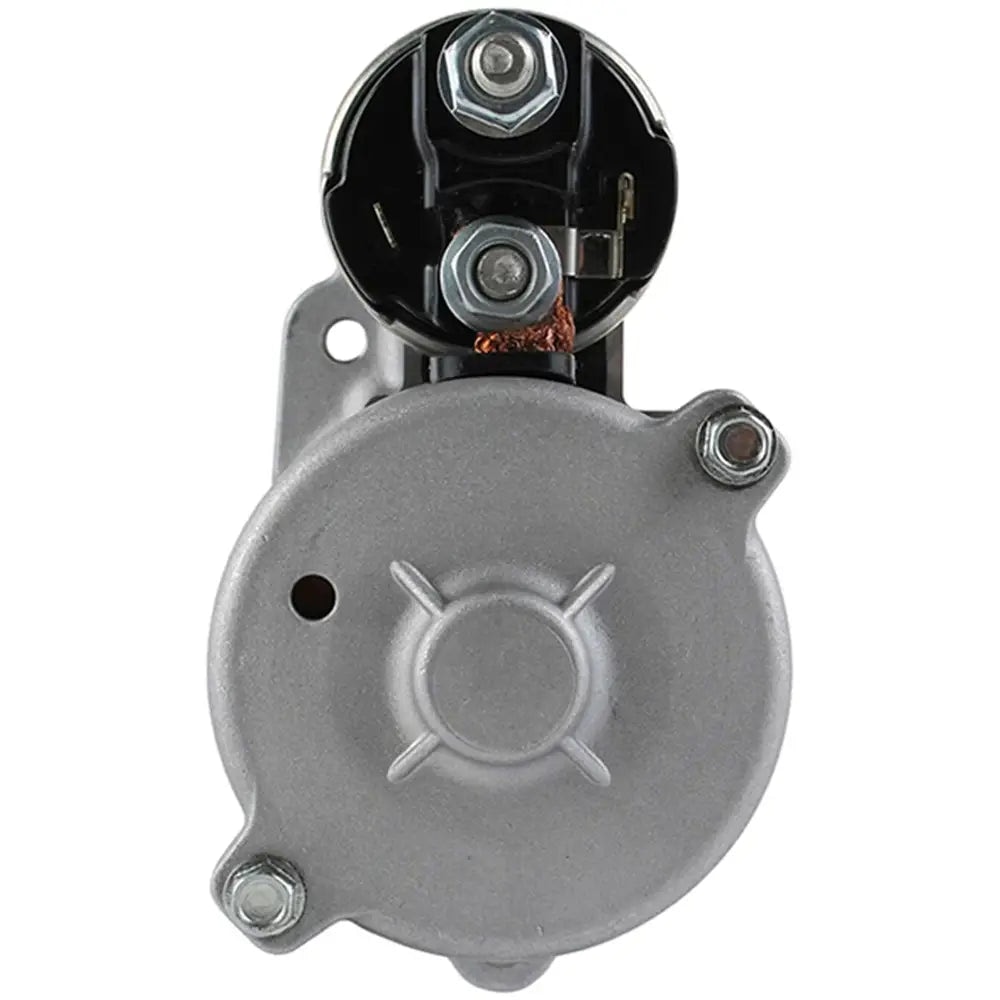

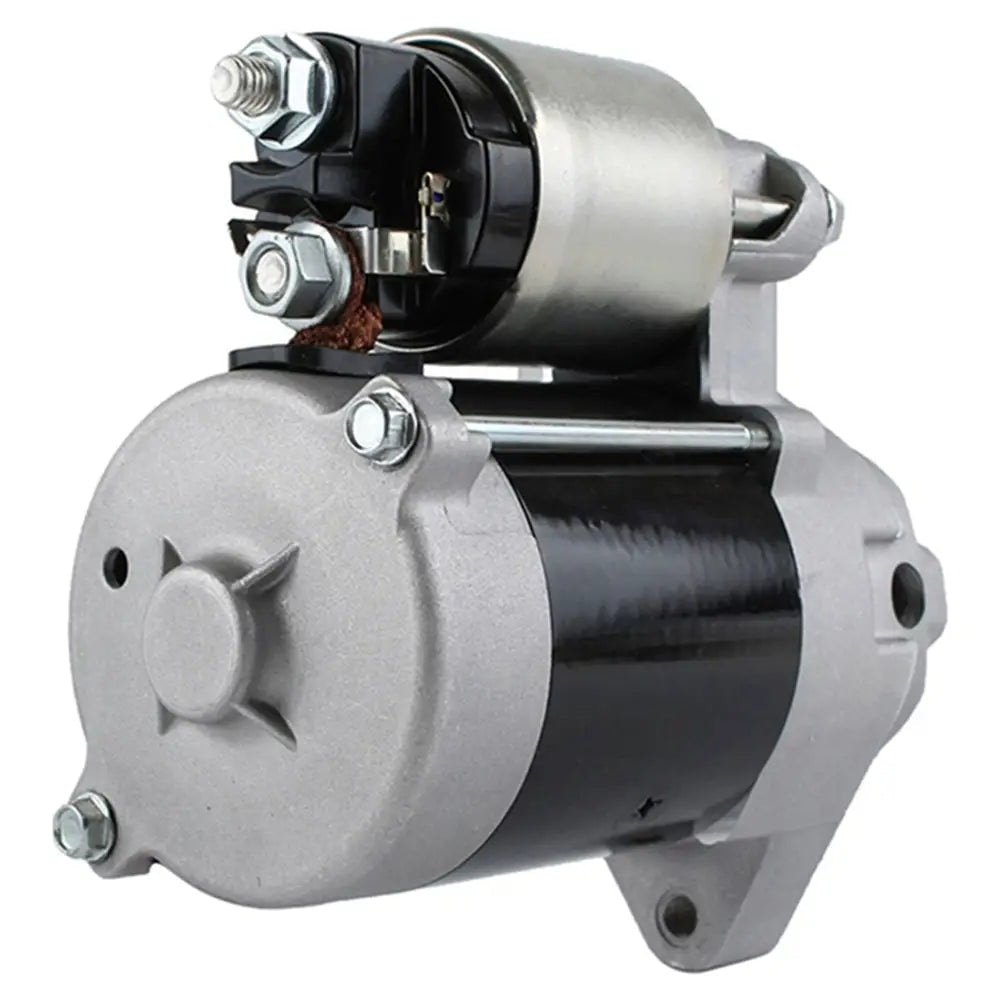

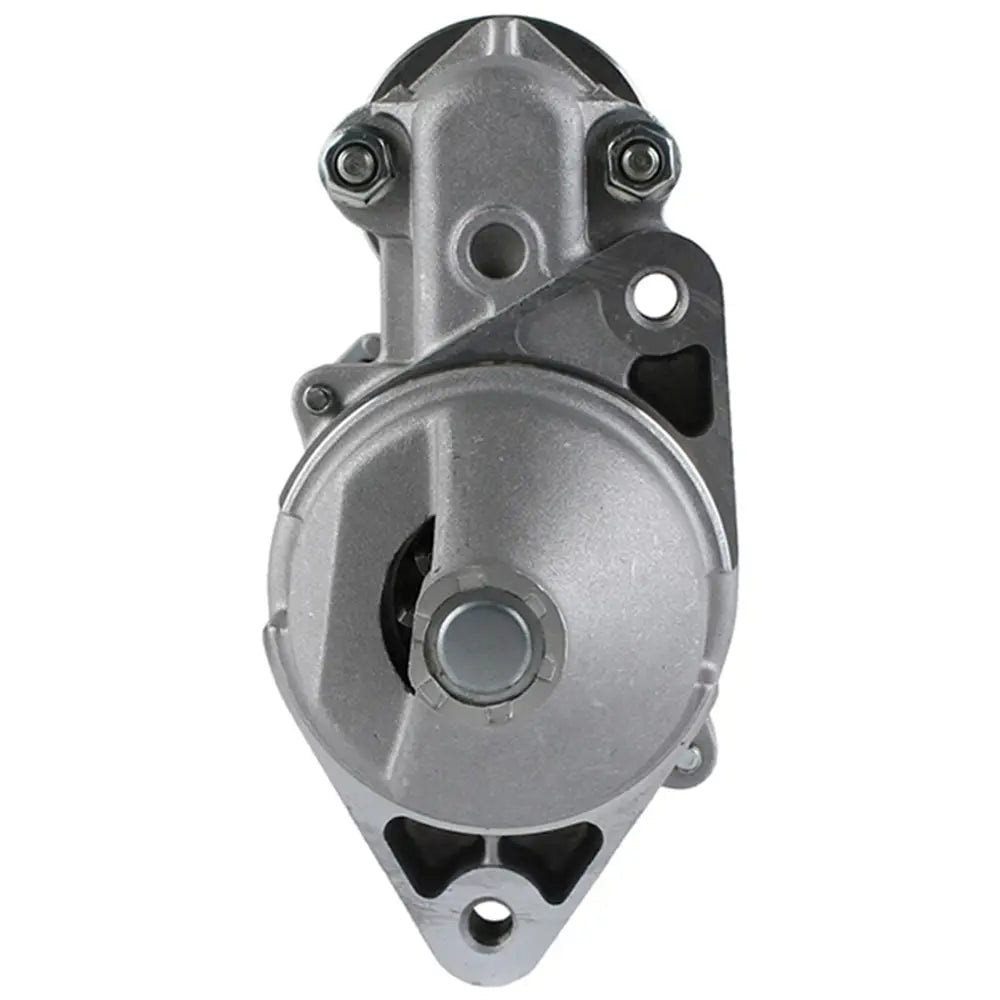

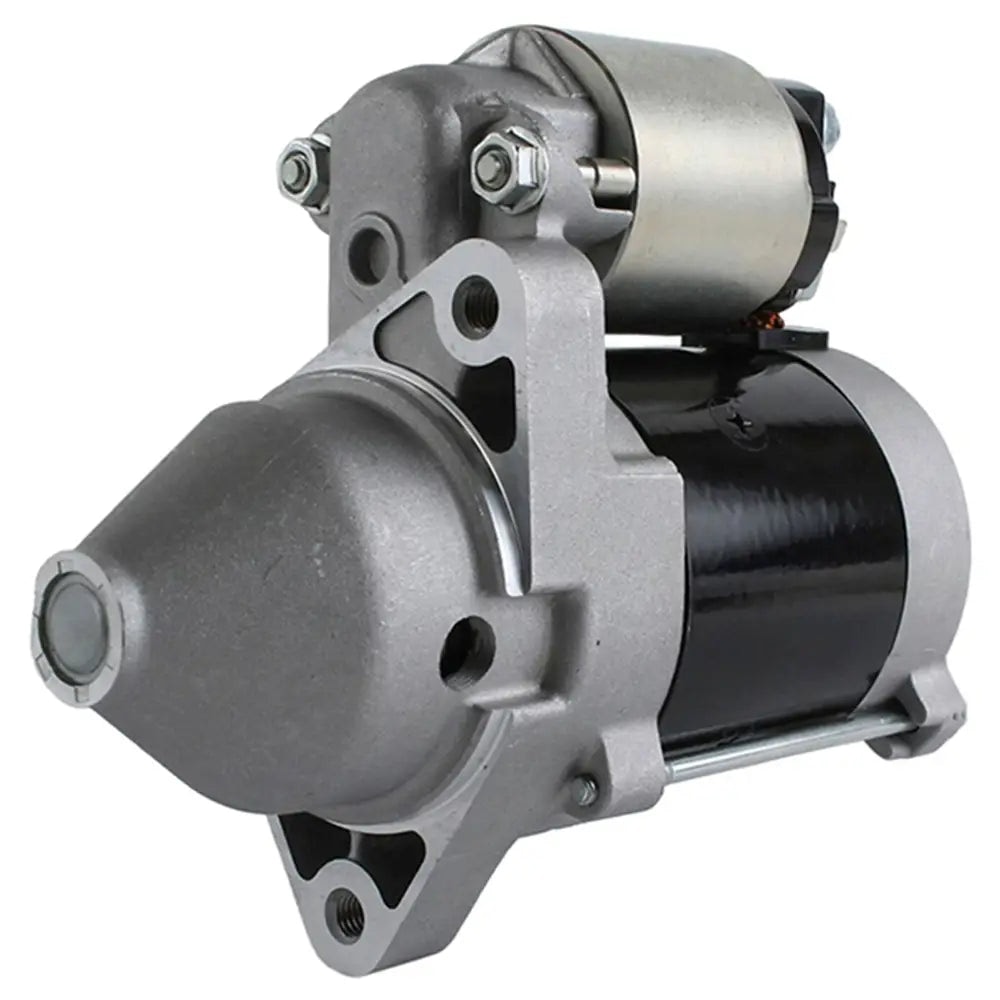

New Starter Replacement For Kawasaki Engines FC400V FC401V FC420C AM104559, 211632073, 211632073A, 12498-63010, 128000-4020, SND0287, 41052055

For John Deere Starter Motor

Starter Motor AM104559 for John Deere 1 0.42L Engine

OEM / REF: AM104559SKU: pilotpart384047

New Starter Replacement For Kawasaki Engines FC400V FC401V FC420C AM104559, 211632073, 211632073A, 12498-63010, 128000-4020, SND0287, 41052055 is a Starter Motor replacement part indexed for John Deere LX176 · 1 0.42L · 1991-1998 and John Deere GT242 · 1 0.42L · 1993-1996, with 3 application records on file. Match O...

Stock: In stock
Condition: New
Fitment: John Deere Engine Spare Parts
Category: Starter Motor

Fitment support before you order
Worldwide delivery options

In stock — ready to order

$238.99USD/EA

~~$33,999.00~~Save 99%

Estimated delivery by quantity

Estimated delivery windows
Qty	Estimated delivery
1	Oct 22 – Oct 29
10	Oct 20 – Oct 27
50	Oct 18 – Oct 25

Estimates from today; confirm exact lead time before payment.

Quantity

Confirm fitment before ordering →

Lead times can vary by freight route and customs. Contact support for expedited shipping.

Starter Motor Description

This Starter Motor is indexed for John Deere LX176 · 1 0.42L · 1991-1998; John Deere GT242 · 1 0.42L · 1993-1996; John Deere F510 · 1 0.4L · 1990-1998; John Deere 245 · 1 0.42L · 1993-1994. Compare reference number AM104559 against the label on your existing John Deere component before ordering.

Additional cross references on file: 211632073, 211632073A, 12498-63010. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.

Part Numbers and Cross References

AM104559 211632073 211632073A 12498-63010128000-4020SND0287 41052055UNIT

Applications

John Deere LX176 · 1 0.42L · 1991-1998
John Deere GT242 · 1 0.42L · 1993-1996
John Deere F510 · 1 0.4L · 1990-1998
John Deere 245 · 1 0.42L · 1993-1994
John Deere HD45 · 1 0.42L · 2000-2003
John Deere GS45 · 1 0.42L · 1990-1998
John Deere GS30 · 1 0.42L · 1993-1994

Specifications

Voltage	12V
Power	0.6kw
Teeth	9T
Rotation	CCW
Part Number	AM104559, 211632073, 211632073A, 12498-63010, 128000-4020, SND0287, 41052055UNIT

Fitment Notes

Brand or application signal: John Deere Engine Spare Parts
Product family: Starter Motor
System category: Engine Spare Parts > Engine Auxiliary Components > Starter Motor
Recommended verification: OEM number, engine model, serial number, old part photos, and dimensions.

Shipping & Returns

Availability: InStock
Shipping: Shipping quotes can be confirmed before payment for heavy or urgent orders.
Returns: Returns are easier when fitment is confirmed before ordering.
B2B support: Bulk, fleet, and repair-shop requests can be handled through the inquiry form.

Frequently Asked Questions

How do I confirm this part fits my machine?

Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.

Can I order if my part number is not listed?

Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.

Is this an OEM part?

Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
