How do I confirm pilotpart400266 fits my machine?

Compare the OEM or reference part number, machine model, engine model, and serial number. You can also submit a fitment inquiry before ordering.

In Stock

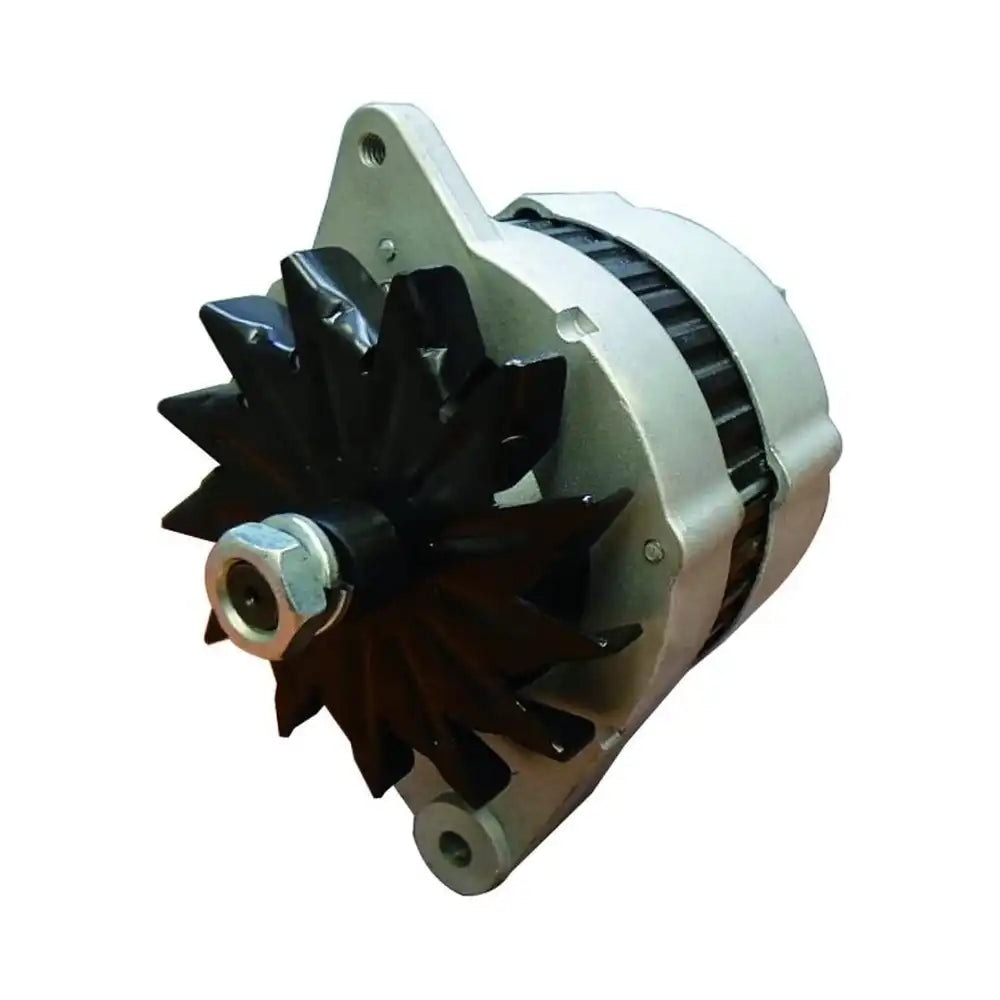

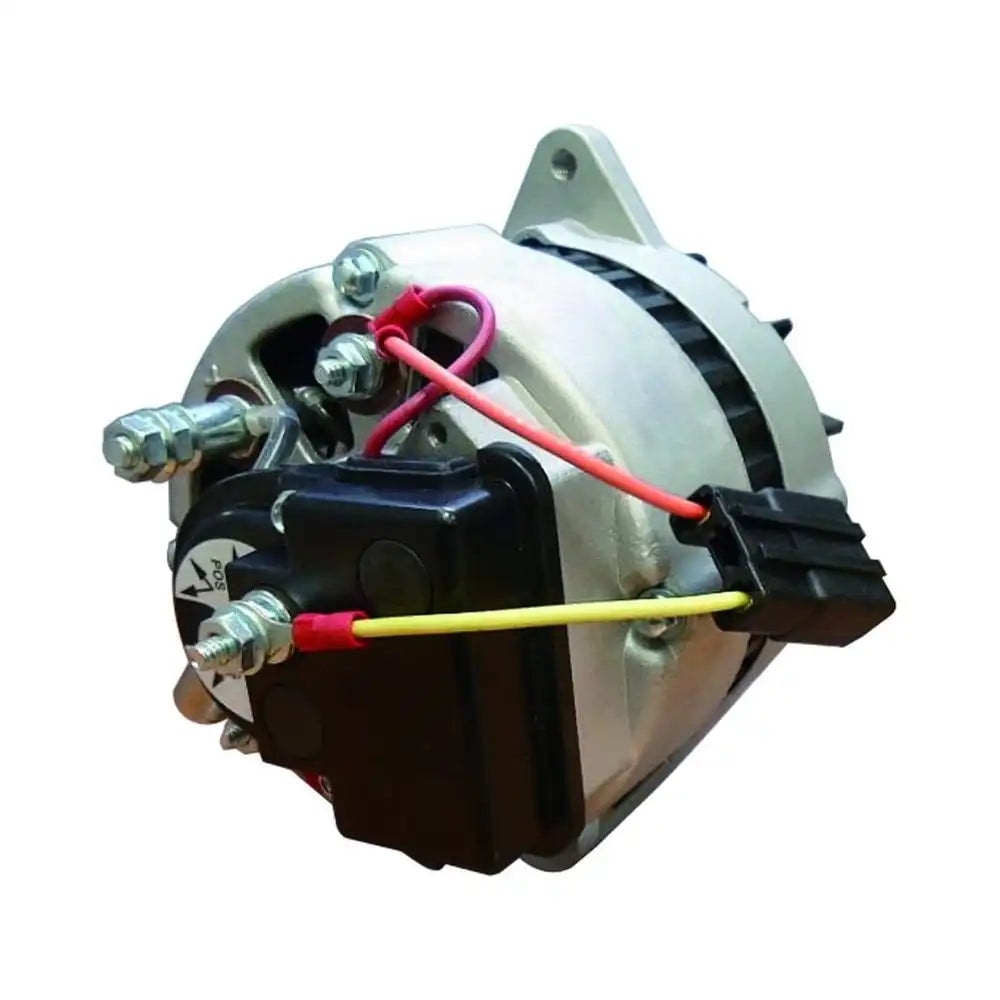

New Alternator Replacement For John Deere Tractors Combines Pickers Crawlers Loaders AH11221, AH112211, TY6653, TY6748, 8MR2030T, 110-242, 110-537, 110-570, AMO0014, 40016033

For John Deere Alternator

Alternator AH11221 for John Deere 9600

OEM / REF: AH11221SKU: pilotpart400266

New Alternator Replacement For John Deere Tractors Combines Pickers Crawlers Loaders AH11221, AH112211, TY6653, TY6748, 8MR2030T, 110-242, 110-537, 110-570, AMO0014, 40016033 is a Alternator replacement part indexed for John Deere 9600 and John Deere 9500, with 3 application records on file. Match OEM part number AH...

Stock: In stock
Condition: New
Fitment: John Deere Engine Spare Parts
Category: Alternator

Fitment support before you order
Worldwide delivery options

In stock — ready to order

$298.99USD/EA

~~$42,499.00~~Save 99%

Estimated delivery by quantity

Estimated delivery windows
Qty	Estimated delivery
1	Oct 22 – Oct 29
10	Oct 20 – Oct 27
50	Oct 18 – Oct 25

Estimates from today; confirm exact lead time before payment.

Quantity

Confirm fitment before ordering →

Lead times can vary by freight route and customs. Contact support for expedited shipping.

Alternator Description

This Alternator is indexed for John Deere 9600; John Deere 9500; John Deere 8820; John Deere 7720. Compare reference number AH11221 against the label on your existing John Deere component before ordering.

Additional cross references on file: AH112211, TY6653, TY6748. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.

Part Numbers and Cross References

AH11221 AH112211 TY6653 TY6748 8MR2030T 110-242 110-537 110-570 AMO0014 40016033 SE501374

Applications

John Deere 9600
John Deere 9500
John Deere 8820
John Deere 7720
John Deere 4420
John Deere 3830
John Deere 3430

Specifications

Voltage	12
Amperage	90
Design	IR/EF
Rotation	CW
Pulley Class	w/o Pulley
Part Number	AH11221, AH112211, TY6653, TY6748, 8MR2030T, 110-242, 110-537, 110-570, AMO0014, 40016033, SE501374

Fitment Notes

Brand or application signal: John Deere Engine Spare Parts
Product family: Alternator
System category: Engine Spare Parts > Engine Auxiliary Components > Alternator
Recommended verification: OEM number, engine model, serial number, old part photos, and dimensions.

Shipping & Returns

Availability: InStock
Shipping: Shipping quotes can be confirmed before payment for heavy or urgent orders.
Returns: Returns are easier when fitment is confirmed before ordering.
B2B support: Bulk, fleet, and repair-shop requests can be handled through the inquiry form.

Frequently Asked Questions

How do I confirm this part fits my machine?

Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.

Can I order if my part number is not listed?

Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.

Is this an OEM part?

Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
