OEM / REF: SD9285SKU: pilotpart125026

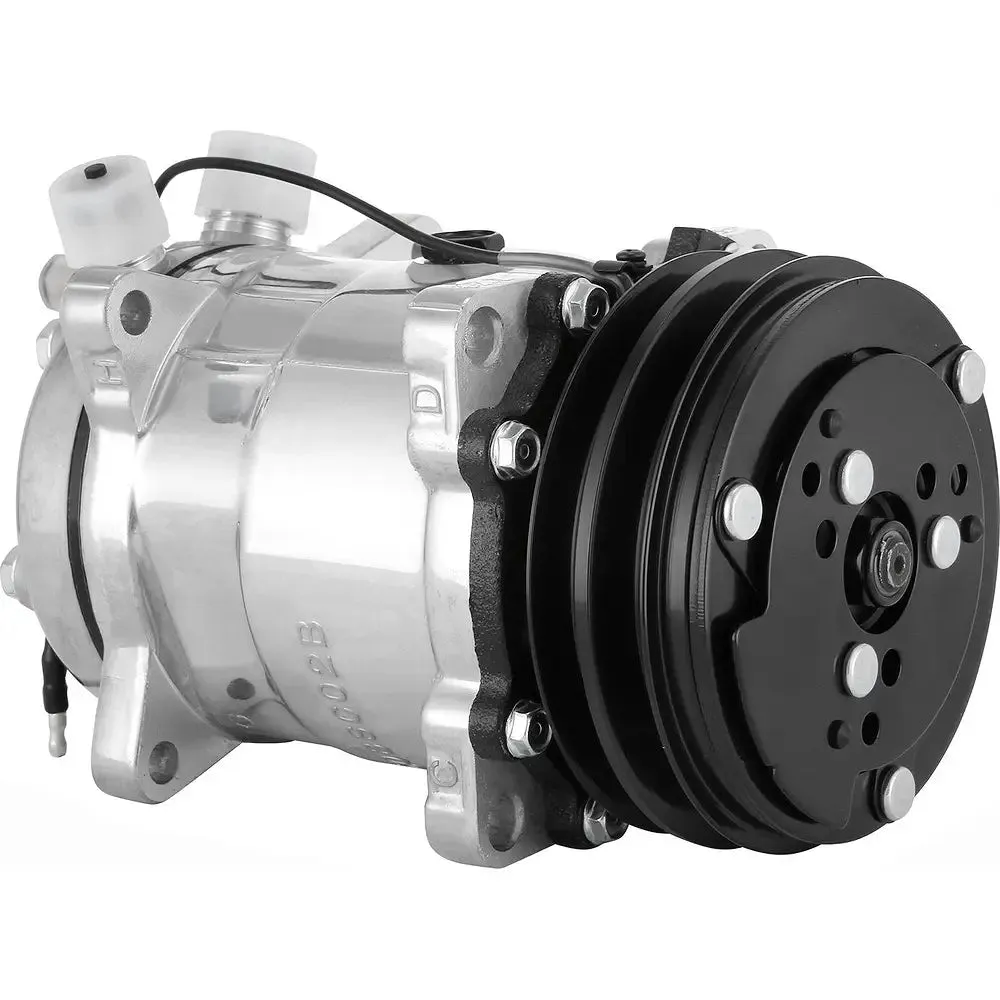

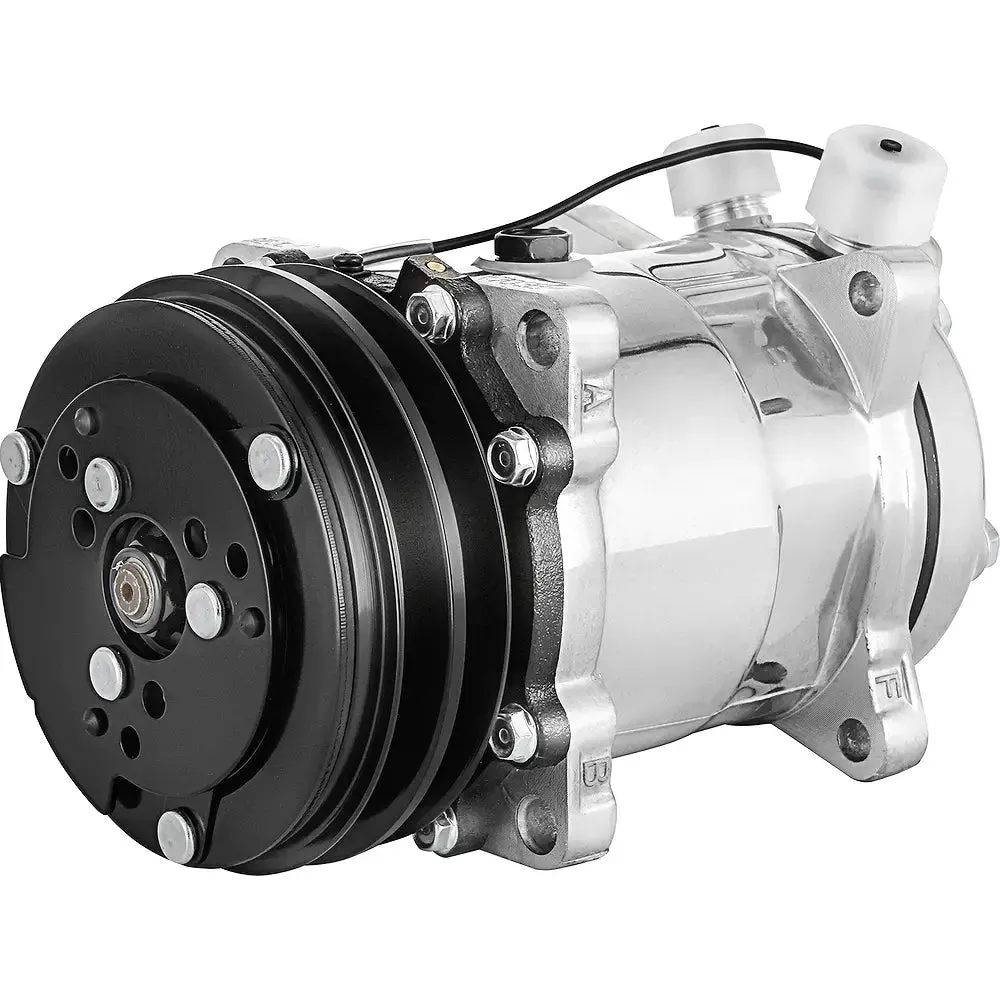

Air Conditioning Compressor SD9285 is listed under HVAC Parts > Air Conditioning Compressor with catalog data including Type: A/C Compressor, Air Conditioner Compressor, Air Conditioning Compressor; Sanden Number: 9285; Compressor Family: SD508. Verify fitment for HVAC Parts applications using the OEM number, mounti...
This Air Conditioning Compressor is indexed for Part Number. Compare reference number SD9285 against the label on your existing component before ordering.
Additional cross references on file: 9285, 206RD401A, 61104-0017. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.
| Type | A/C Compressor, Air Conditioner Compressor, Air Conditioning Compressor |
|---|---|
| Sanden Number | 9285 |
| Compressor Family | SD508 |
| Style | Standard |
| Compressor Mount Type | Ear |
| Rotation Direction | CW |
| Cylinder Head | FG |
| Port Angle | Vertical |
| Thread Size | 3/4X7/8 |

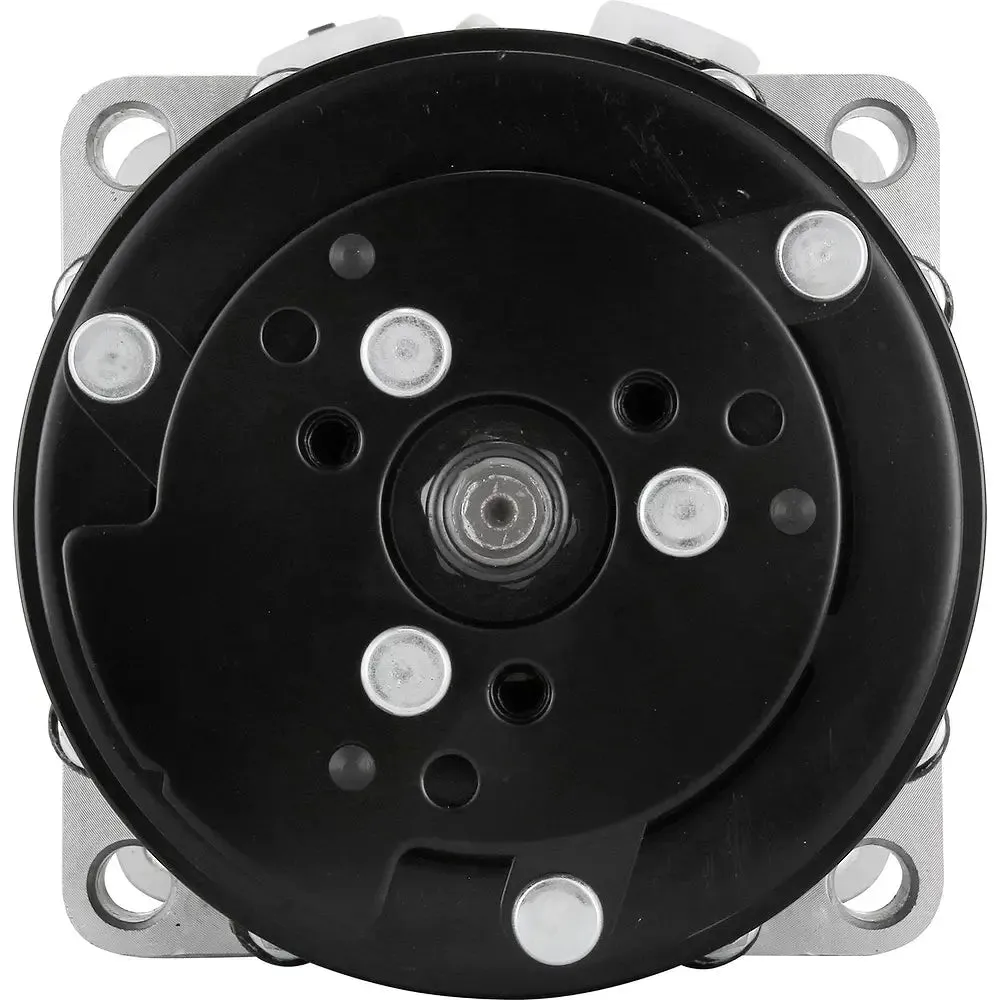

| Clutch Diameter | 132 mm ~ 5 and 3/16 inches |
| Belt Type | V-Belt |
| Number of Grooves | 2 |
| Voltage | 12 |
| Coil Connector | 1 Wire Bullet |
| Part Number | SD9285, 9285, 206RD401A, 61104-0017, 611040017, 4798258, ABP-N83-304832, ABPN83304832, 5920, N83-303272, N83-304202, N83-304272, N83-304332, N83303272, N83304202, N83304272, N83304332, 501-200A, LE1000, LE1055, LE1060, E93Z-19703B, E93Z19703B, 1401010, 206RD45, 206RD45A, 206RD45AM, 206RD48AM, 25164625, 544929-C1, 18-03536, K318-27-3, 75R-81702, 75R-8212, RD5-11348-0, RD5-5443-0, 544929C1, 1803536, K318273, 75R81702, 75R8212, RD5113480, RD554430, 5424, 5742, 9120, 9139, 9677, 9694, 3918270, 02-7029595, 61104-3417, N83-304684, 027029595, 611043417, N83304684 |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
