OEM / REF: 87363860SKU: pilotpart125628
A/C Compressor 87363860 87649534 for CASE Windrower WDX2302 WDX1202 WDX1902 WD1203 WD1903 WD2303 is a Air Conditioning Compressor replacement part indexed for Case WD1203 and Case WD1903, with 3 application records on file. Match OEM part number 87363860 and confirm fitment for CASE HVAC Parts before ordering.
This Air Conditioning Compressor is indexed for Case WD1203; Case WD1903; Case WD2303; Case WDX1202. Compare reference number 87363860 against the label on your existing CASE component before ordering.
Additional cross references on file: 87649534, 4046, 4121U. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.
| Compressor Family | SD7H15 |
|---|---|
| Style | Enhanced Super Heavy Duty |
| Compressor Mount Type | Direct |
| Rotation Direction | CW |

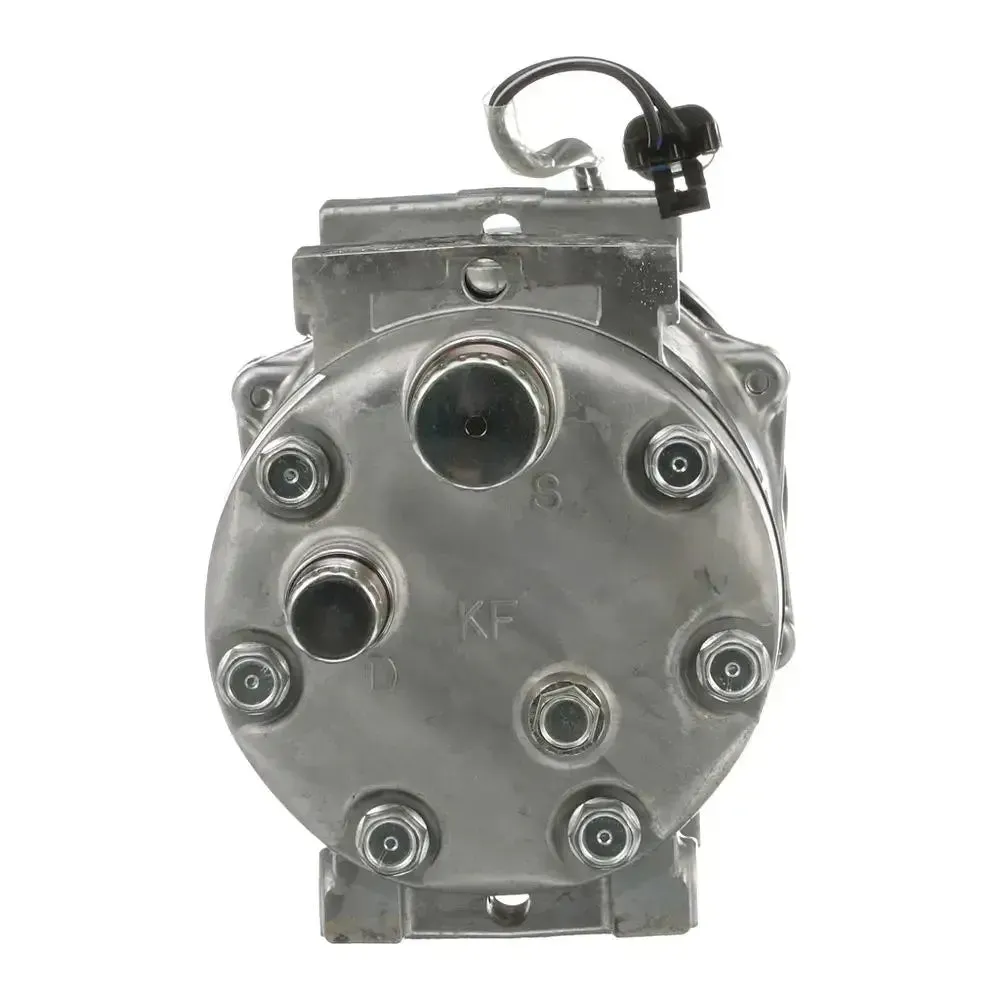

| Cylinder Head | KF |
| Port Angle | Horizontal |
| Head Port Style | 1 1/16" X 3/4" |
| Clutch Diameter | 119 mm ~ 4 and 11/16 inches |
| Belt Type | Serpentine |
| Number of Grooves | 8 |
| Voltage | 12V |
| Part Number | 87363860, 87649534, 4046, 4121U, 4545, SD4545 |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
