OEM / REF: 86993463SKU: pilotpart125509
A/C Compressor 86993463 for CASE 1021F 1121F 6130 635 7010 7120 7130 7230 8010 8120 8230 9010 9120 9230 4430 is a Air Conditioning Compressor replacement part indexed for Case MAGNUM 215 and Case MAGNUM 235, with 3 application records on file. Match OEM part number 86993463 and confirm fitment for CASE HVAC Parts be...
This Air Conditioning Compressor is indexed for Case MAGNUM 215; Case MAGNUM 235; Case MAGNUM 245; Case MAGNUM 250. Compare reference number 86993463 against the label on your existing CASE component before ordering.
Before checkout, compare OEM part number 86993463, connector layout, mounting position, and machine serial number. For high-value or fitment-sensitive parts, submit the fitment form below so support can verify the match.
| Compressor Family | SD7H15 |
|---|---|
| Style | Heavy Duty |
| Compressor Mount Type | Direct |
| Rotation Direction | CW |

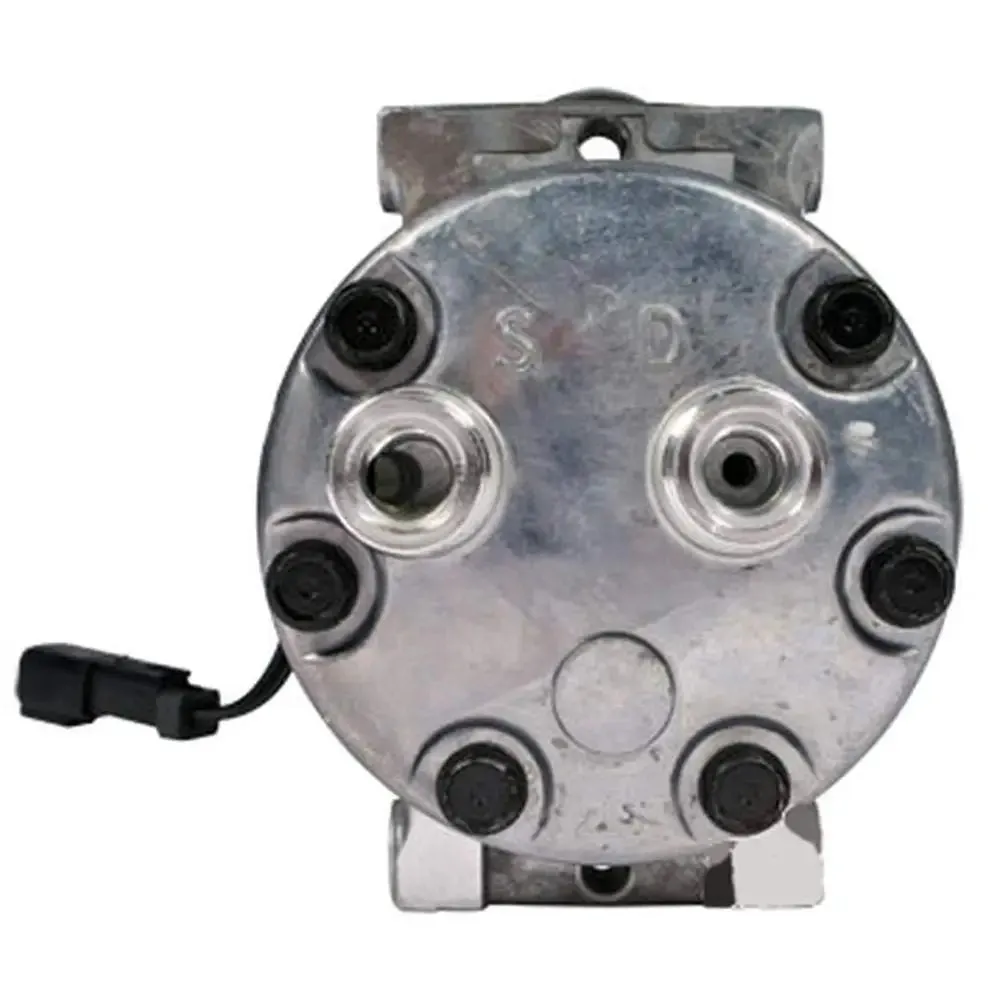

| Cylinder Head | MD |
| Port Angle | Horizontal |
| Head Port Style | 1 X 14 |
| Clutch Diameter | 152 mm ~ 6 inch |
| Clutch Style | With Dust Cover |
| Belt Type | Serpentine |
| Number of Grooves | 8 |
| Voltage | 12V |

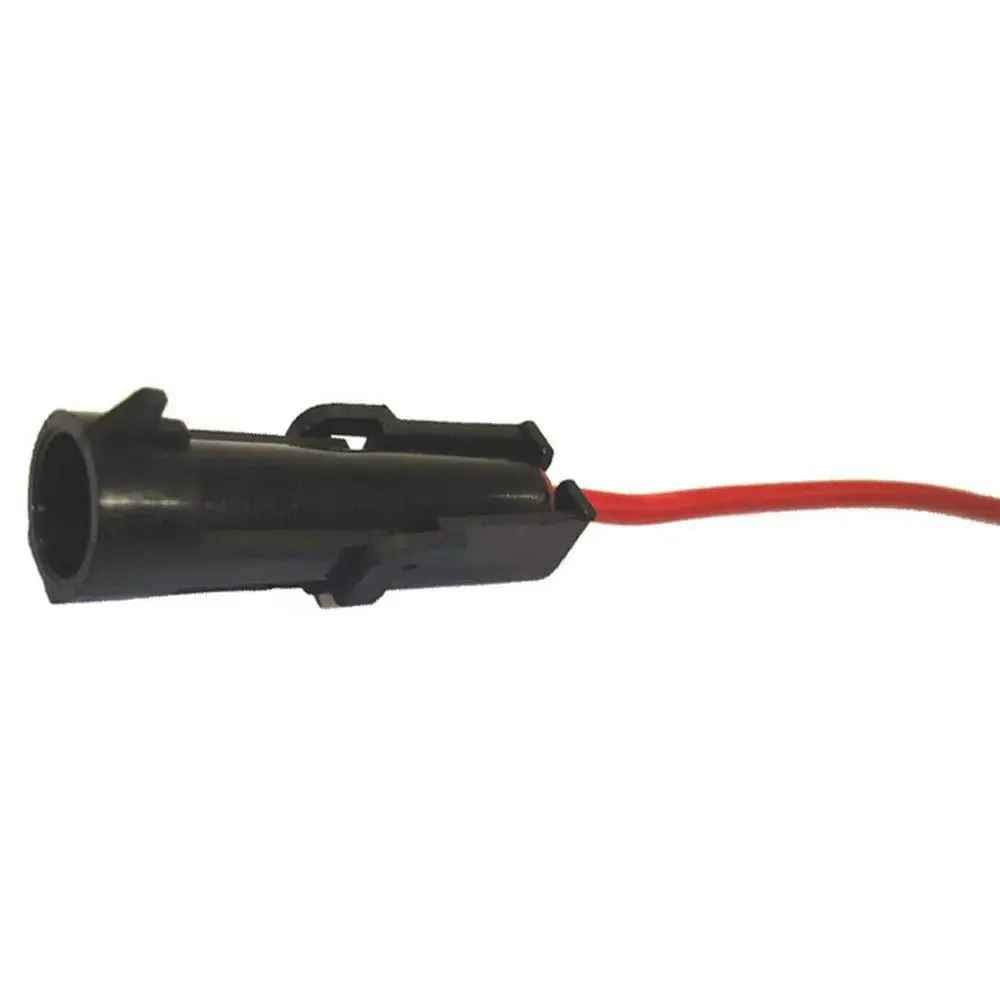

| Coil Connector | 1 Wire Female Packard #12010996 |
| Coil Position | 12 O'clock |
| Oil Type | SP15 or PAG 100 |
| Oil Qty | 285cc |
| Part Number | 86993463 |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
