OEM / REF: 86992613SKU: pilotpart124739

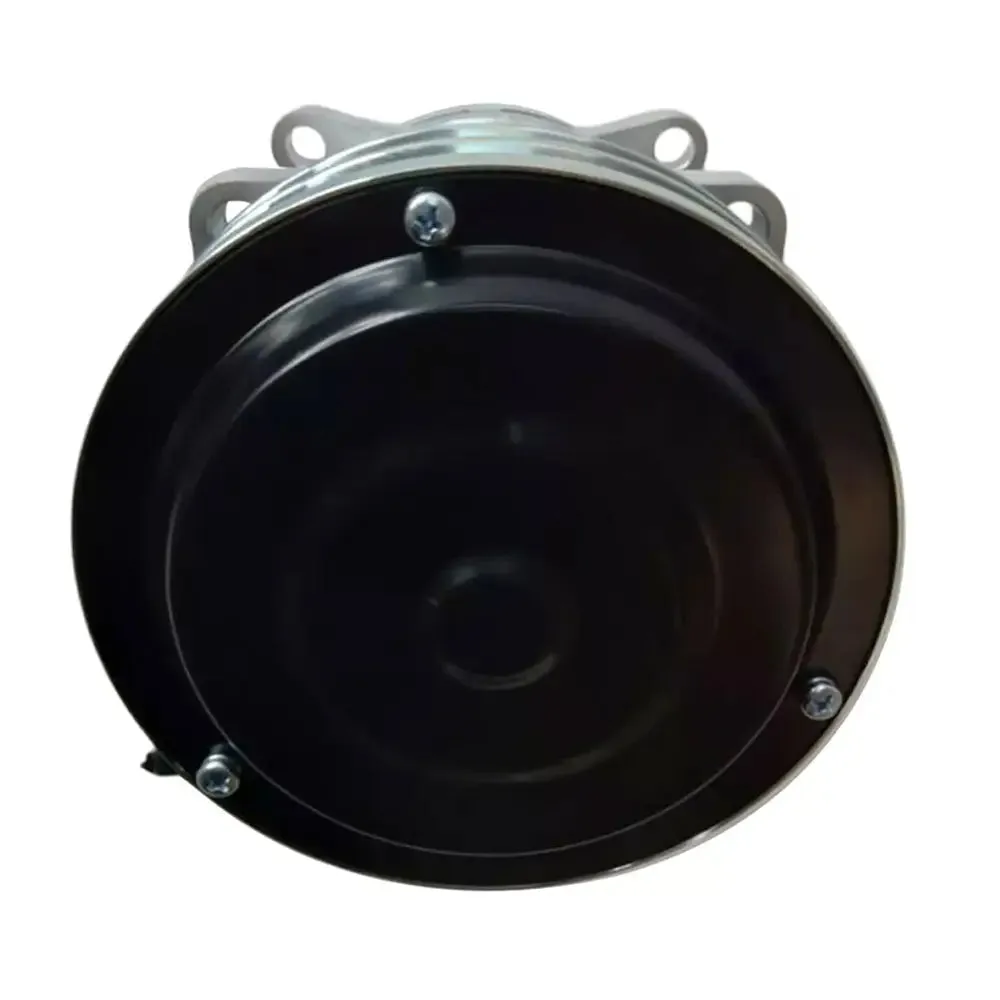

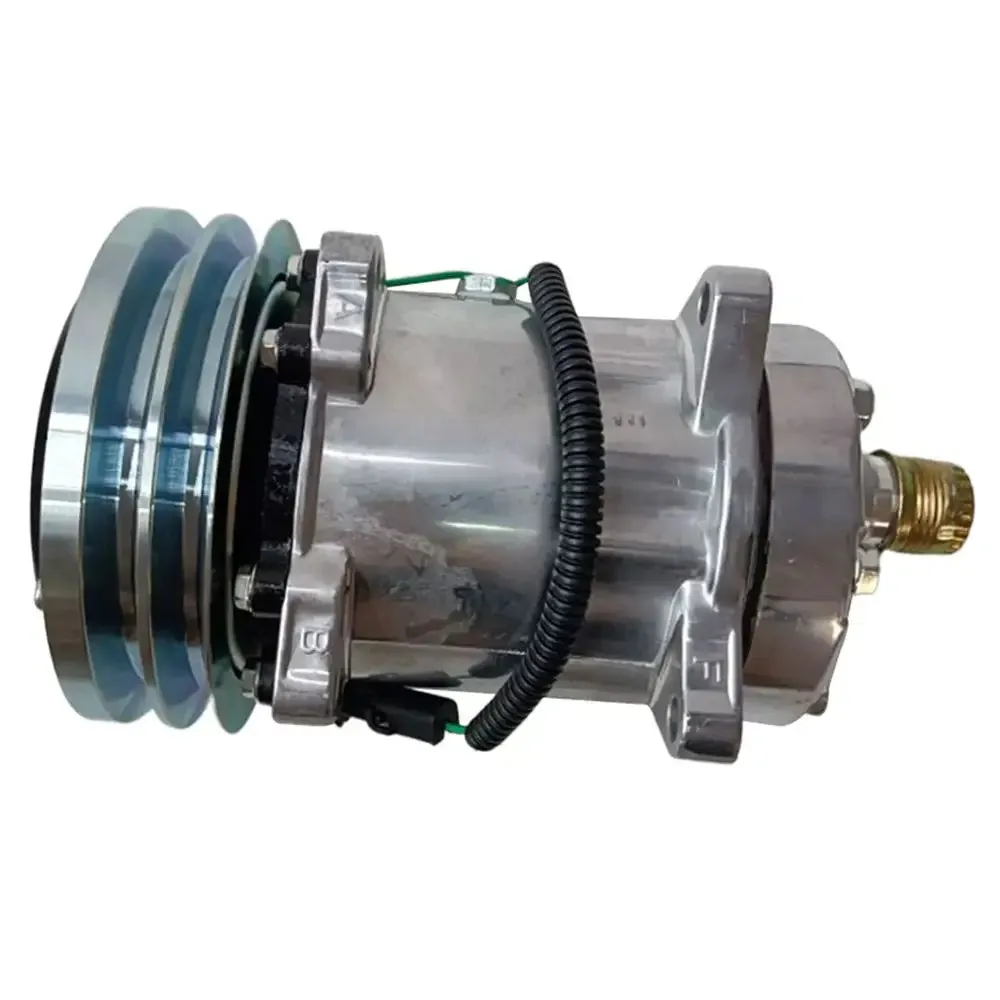

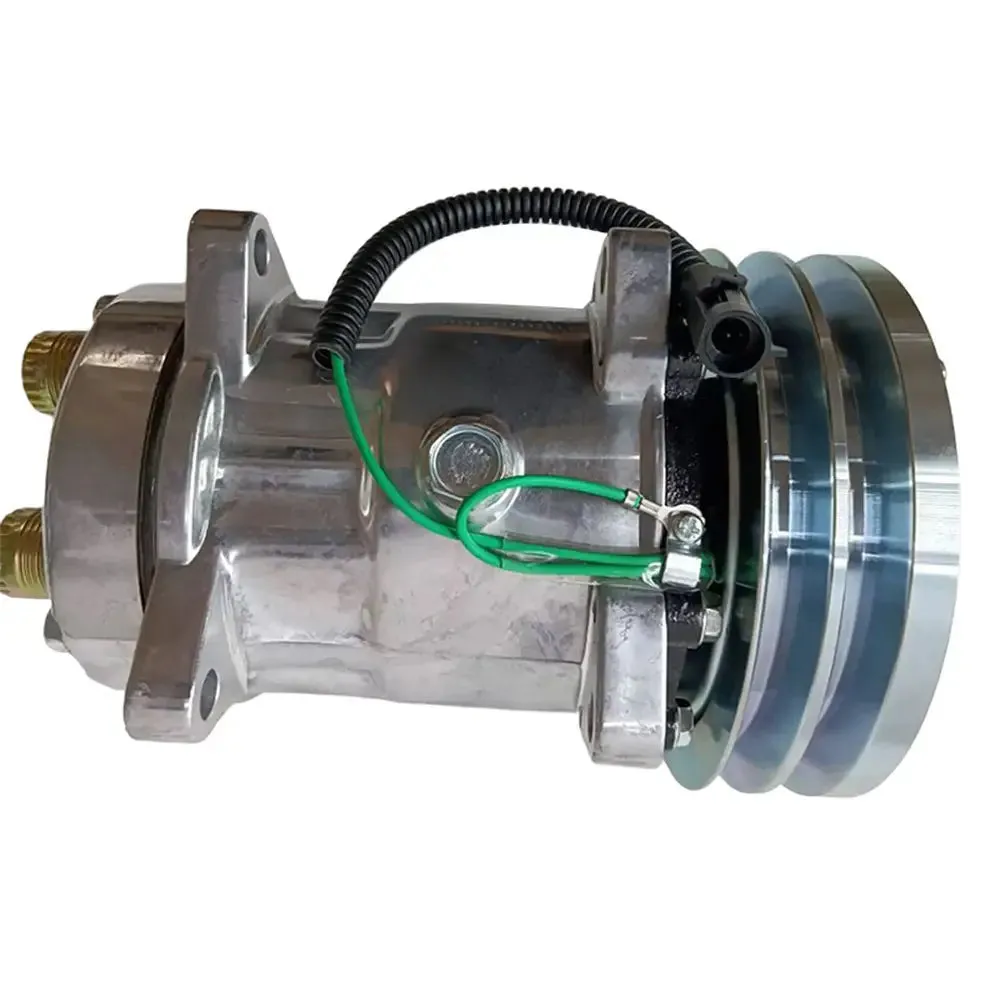

Air Conditioning Compressor 86992613 For New Holland Wheel Loader LW110.B LW130.B is a Air Conditioning Compressor replacement part indexed for New Holland LW110.B and New Holland LW130.B. Match OEM part number 86992613 and confirm fitment for New Holland HVAC Parts before ordering.
This Air Conditioning Compressor is indexed for New Holland LW110.B; New Holland LW130.B. Compare reference number 86992613 against the label on your existing New Holland component before ordering.
Before checkout, compare OEM part number 86992613, connector layout, mounting position, and machine serial number. For high-value or fitment-sensitive parts, submit the fitment form below so support can verify the match.
| Voltage | 24V |
|---|---|
| Number of Grooves | 2 |
| Sanden Number | 4489 |
| Compressor Family | SD7H15 |
| Style | Sealed Heavy Duty |
| Compressor Mount Type | Ear |
| Rotation Direction | CW |
| Cylinder Head | MD |
| Port Angle | Horizontal |
| Head Port Discharge Size | 1 X 14 Male Thread |
| Head Port Suction Size | 1 X 14 Male Thread |
| Clutch Diameter | 152 mm ~ 5.98 inches |
| Clutch Type | W/ Dust Cover |
| Belt Type | V-Belt |
| Coil Connector | 1 Wire Female Packard #12010996 |
| Coil Position | 12 O'clock |
| Oil Type | SP15 or PAG 100 |
| Oil Qty | 285cc |
| Refrigerant | R134a |
| Part Number | 86992613 |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
