OEM / REF: 862031SKU: pilotpart414413

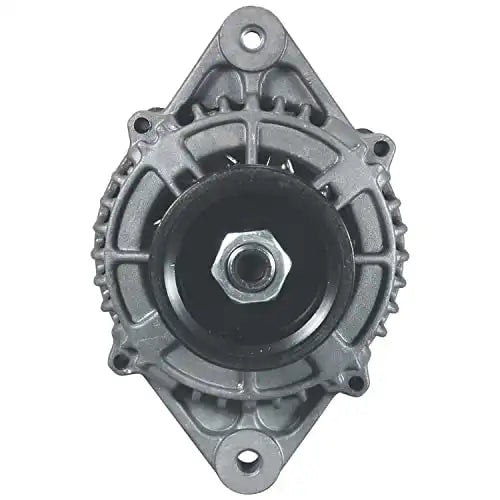

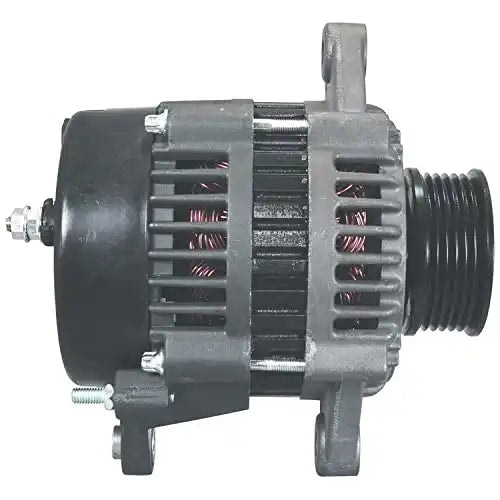

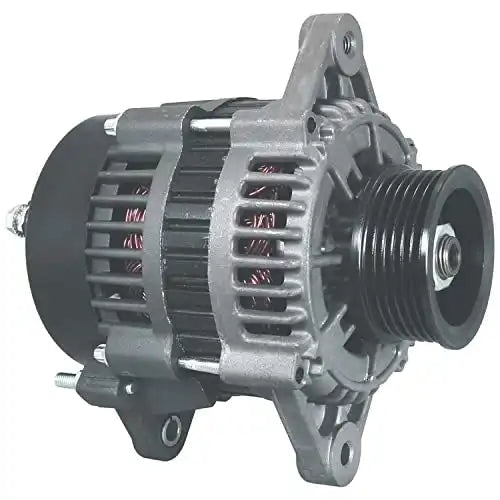

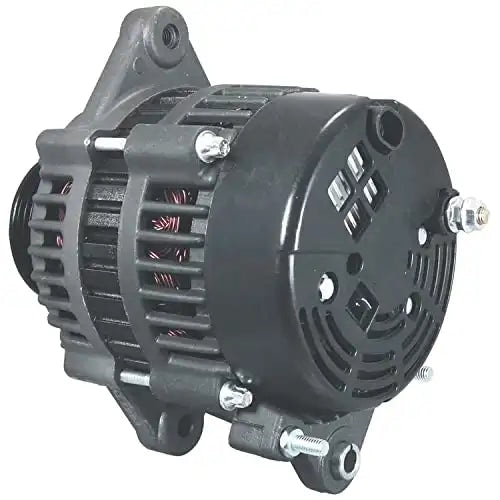

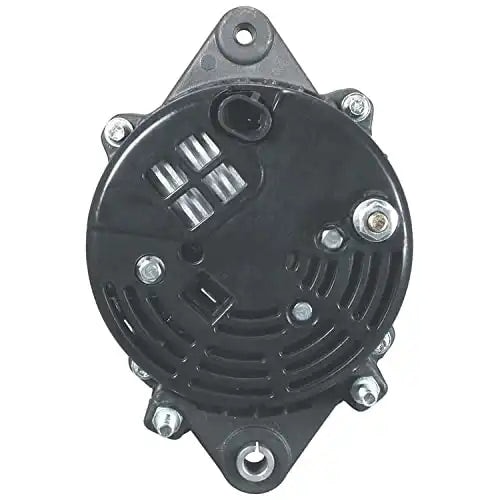

MerCruiser Alternator 862031 is listed under Engine Spare Parts > Alternator with catalog data including Condition: NEW; Design / Type: PMA; Voltage: 12. Verify fitment for MerCruiser Engine Spare Parts using the OEM number, mounting points, and photos of your existing part.
This Alternator is indexed for Part Number. Compare reference number 862031 against the label on your existing MerCruiser component before ordering.
Additional cross references on file: 862031T, 862031T1, 219232. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.
| Condition | NEW |
|---|---|
| Design / Type | PMA |
| Voltage | 12 |
| Amperage | 70 |
| Rotation | CW |
| Regulator/Fan | IR/IF |
| Plug Code | 358 |
| Pulley Class | S6 |
| Pulley OD (mm) | 63 |
| Mounting Hardware Included | No |
| Notes | PERMANENT MAGNET |
| Part Number (Mercury Marine) | 862031, 862031T, 862031T1 |
| Part Number (Daewoo) | 219232 |
| Part Number (Delco) | 19020601, 19020609 |
| Part Number (Prestolite) | 20115019TBA |
| Part Number (Lester) | 8460 |
| Part Number (Arrowhead) | ADR0299 |
| Part Number (J & N Automotive) | 400-12151, 400-12151R, 400-12295 |
| Part Number (NAPA Pro Series) | 68460 |
| Part Number (Wilson Heavy Duty) | 90-01-4422, 90-01-4425 |
| Part Number (MPA HD) | X68460 |
| Part Number (Mallory) | 9-19110 |
| Part Number (Sierra Marine) | 18-6293 |
| Part Number (Romaine Electric) | 36-8460, 8460N, 8460N-105A |
| Part Number (API Marine) | 20099 |
| Part Number (Dixie Electric) | A-1665 |
| Part Number | Mercury Marine: 862031, 862031T, 862031T1 Daewoo: 219232 Delco: 19020601, 19020609 Prestolite: 20115019TBA Lester: 8460 Arrowhead: ADR0299 J & N Automotive: 400-12151, 400-12151R, 400-12295 NAPA Pro Series: 68460 Wilson Heavy Duty: 90-01-4422, 90-01-4425 MPA HD: X68460 Mallory: 9-19110 Sierra Marine: 18-6293 Romaine Electric: 36-8460, 8460N, 8460N-105A API Marine: 20099 Dixie Electric: A-1665 |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
