OEM / REF: 82008688SKU: pilotpart125495

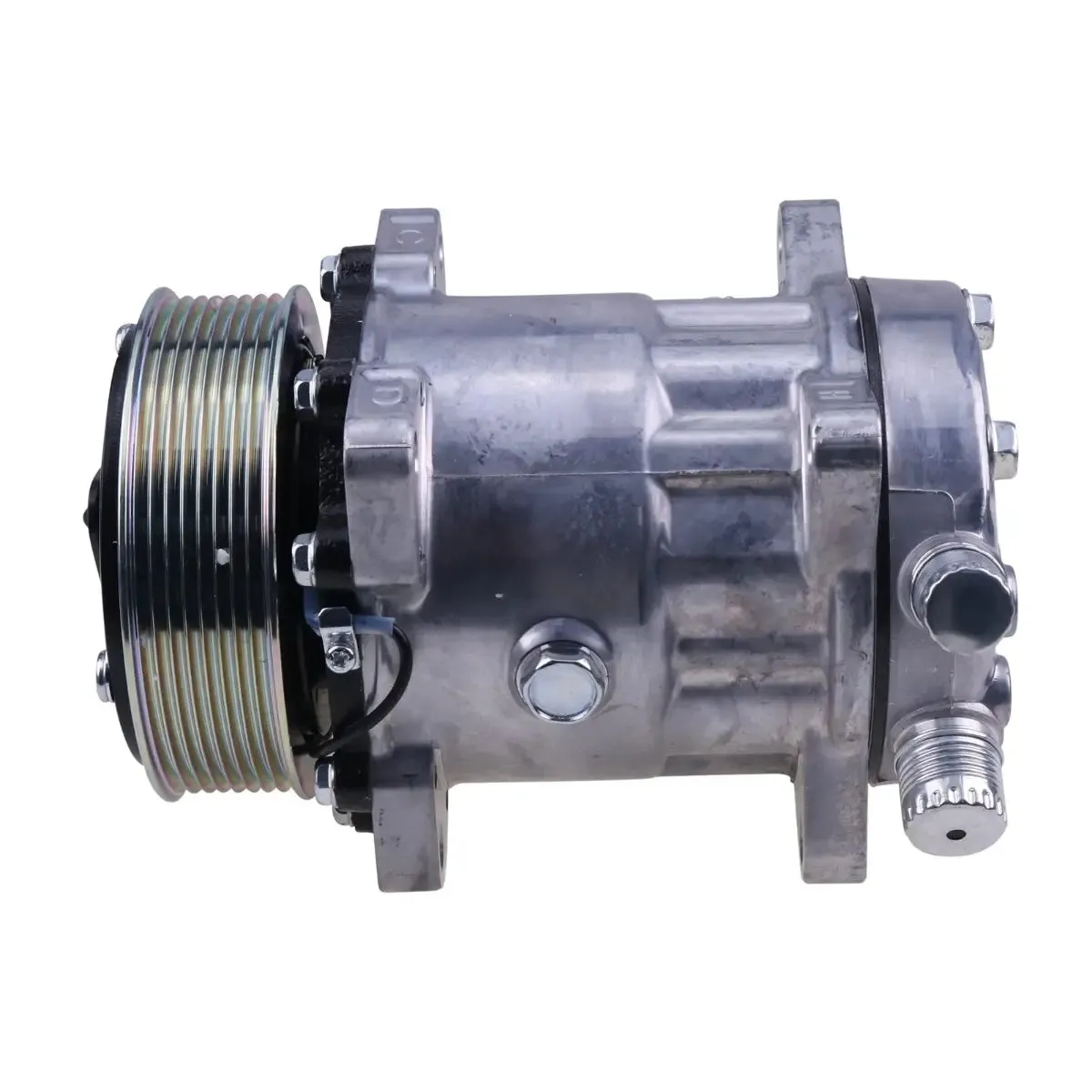

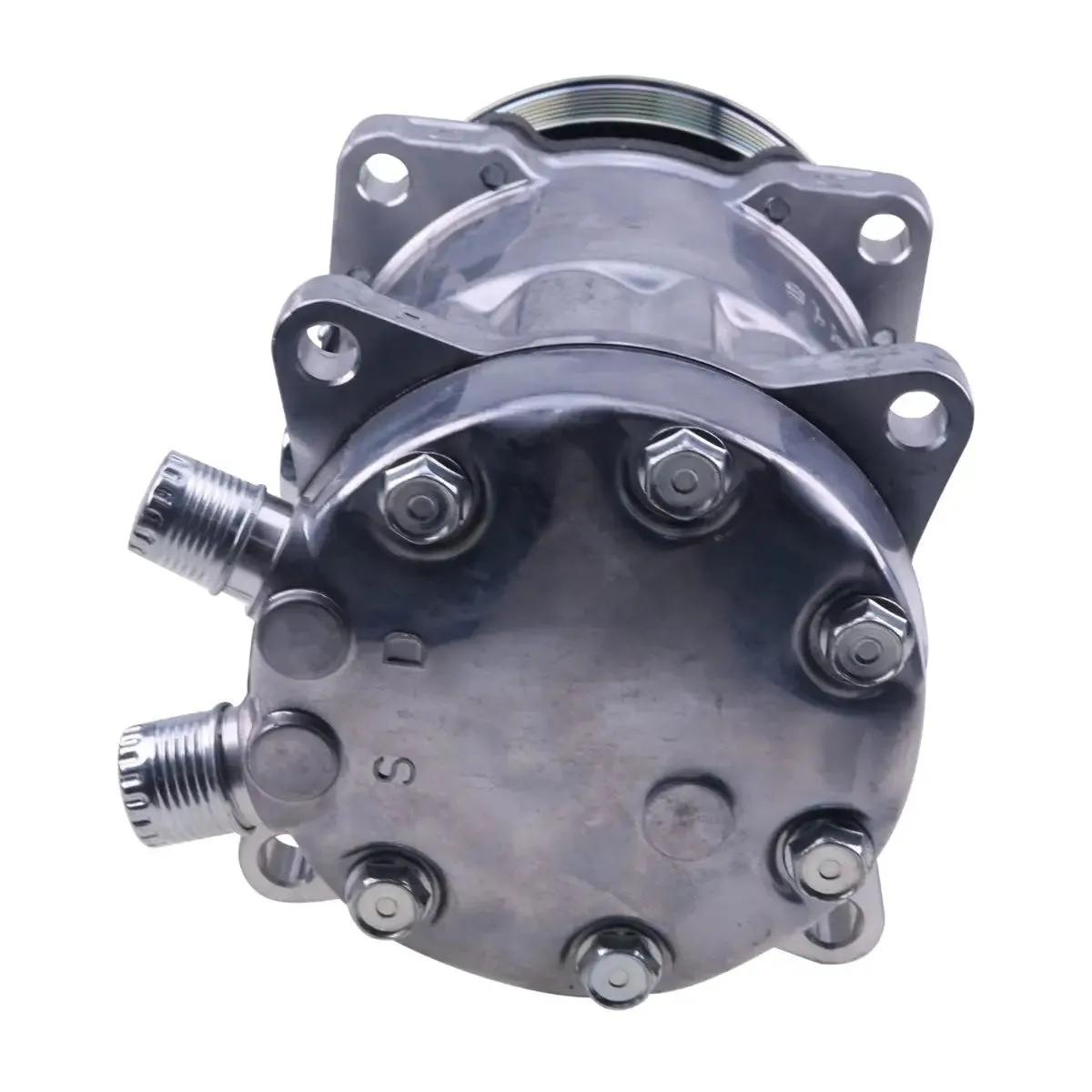

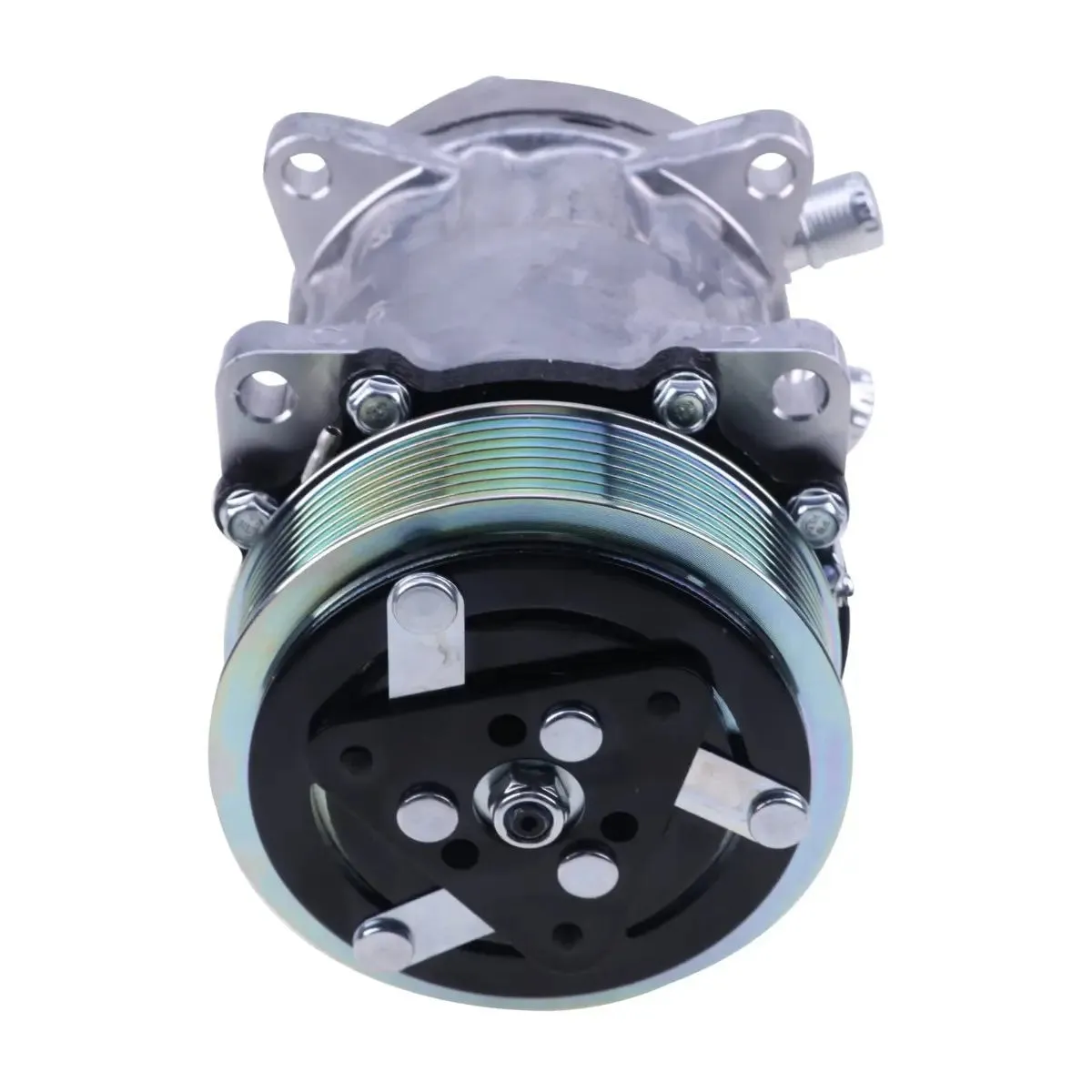

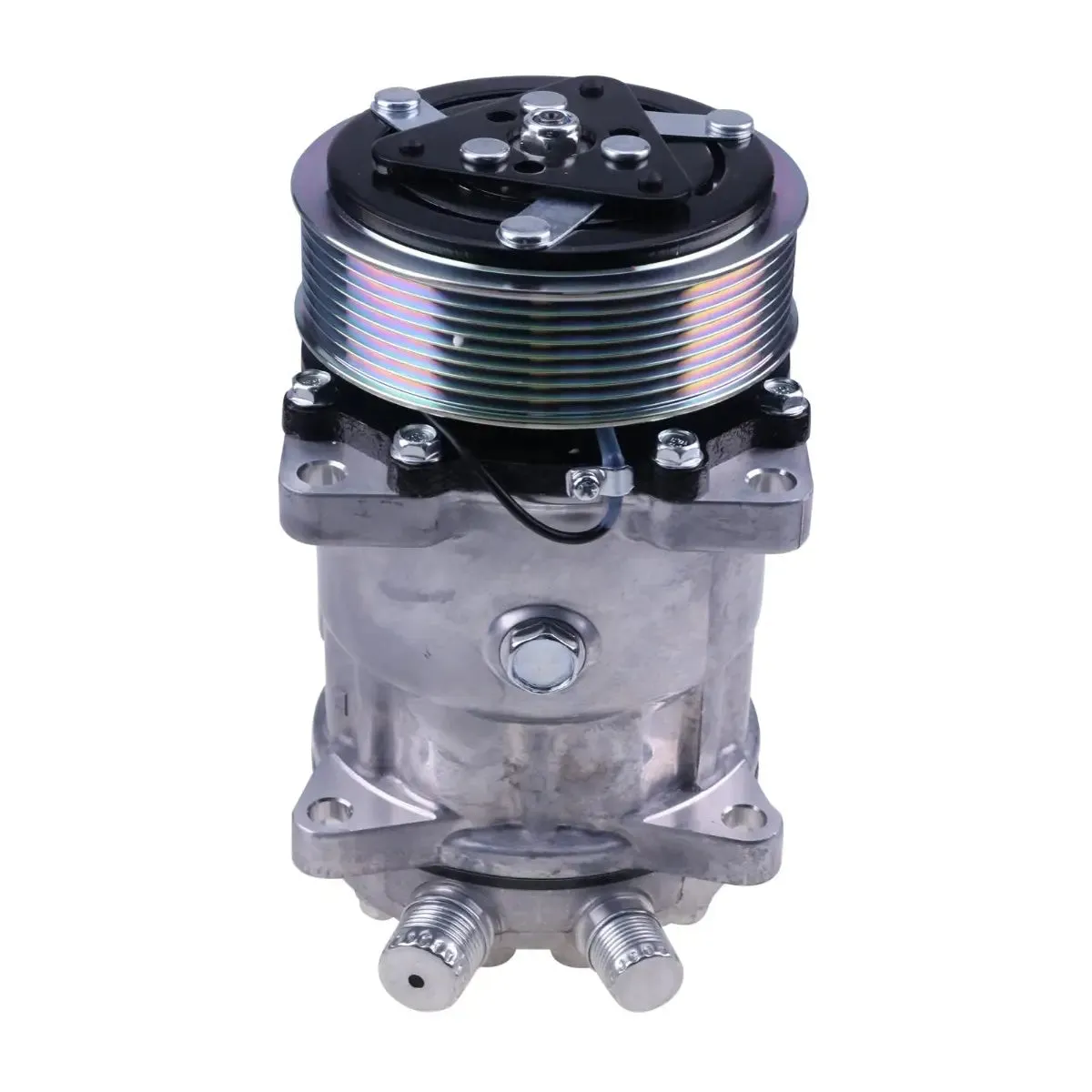

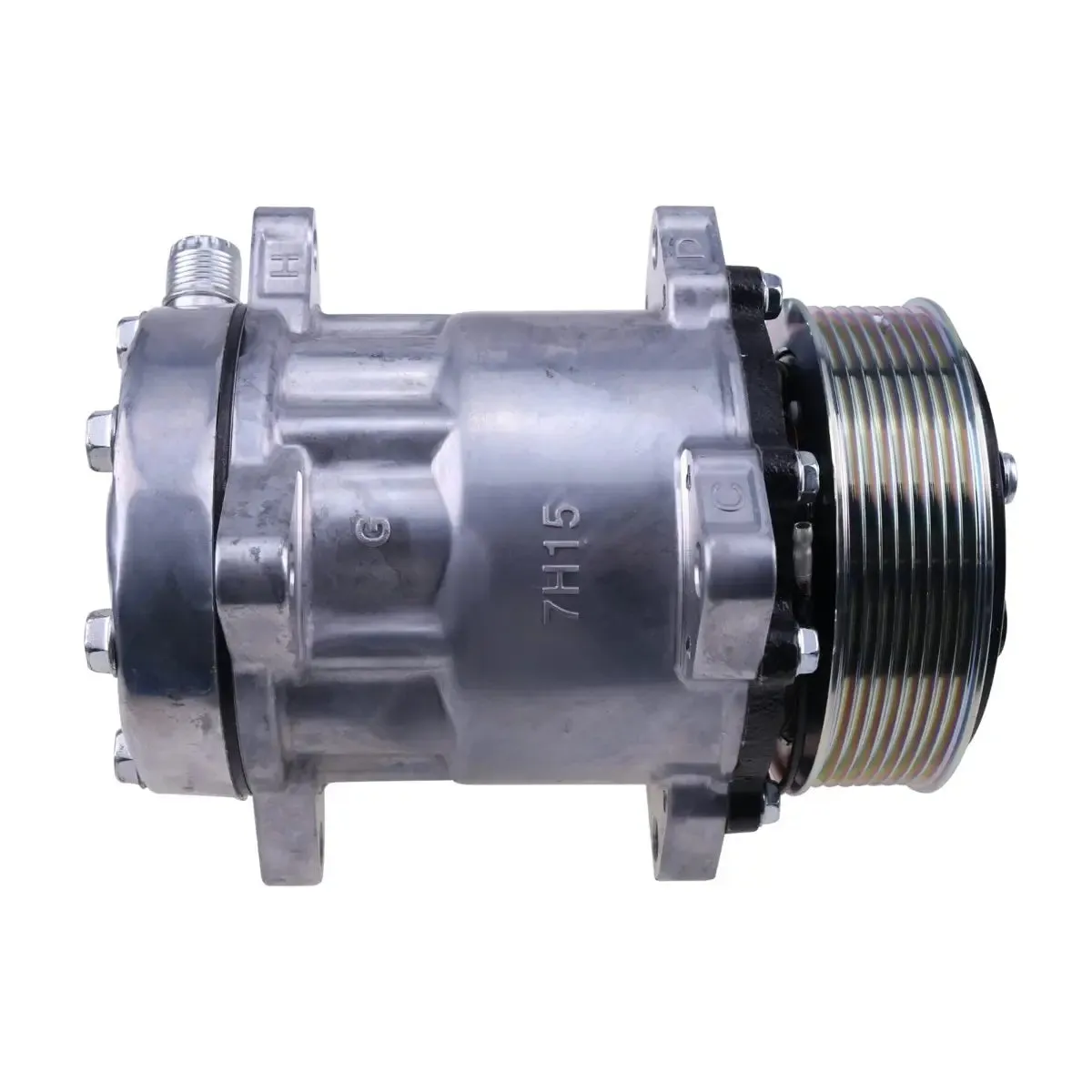

A/C Compressor 82016158 for Ford New Holland Tractor 8160 8340 8360 8560 TM115 TM120 TM125 TM130 TV140 TV145 is a Air Conditioning Compressor replacement part indexed for New Holland 555 and New Holland 555A, with 3 application records on file. Match OEM part number 82008688 and confirm fitment for New Holland HVAC...
This Air Conditioning Compressor is indexed for New Holland 555; New Holland 555A; New Holland 555B; New Holland 555C. Compare reference number 82008688 against the label on your existing New Holland component before ordering.
Additional cross references on file: 82016158, 820161581, 8177089. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.
| Compressor Family | SD7H15 |
|---|---|
| Compressor Mount Type | Ear |
| Rotation Direction | CW |
| Cylinder Head | JE |
| Port Angle | Vertical |
| Head Port Style | O-Ring |
| Head Port Discharge Size | 3/4" Male Threaded |
| Head Port Suction Size | 7/8" Male Threaded |
| Clutch Diameter | 119 mm ~ 4 and 11/16 inches |
| Clutch Style | Dust Cover |
| Belt Type | Serpentine |
| Number of Grooves | 8 |
| Voltage | 12V |
| Coil Connector | 1 Wire Male Bullet |
| Coil Position | 12 O'clock |
| Oil Type | SP15 or PAG 100 |
| Oil Qty | 135cc |
| Refrigerant | R134a |
| Part Number (New Holland) | 82008688, 82016158 |
| Part Number (Volvo) | 820161581, 8177089 |
| Part Number (Sanden) | 4444, 4711, 5312, 5371, 5706, 6022, 6125, 7492, 7865, 7890, 8013, 8028, 8083, 8100, 8103, 9682, 194711, 1014J9, 1027G9, 8177089, 18-04081, 1804081 |
| Part Number (Airsource) | 5706G |
| Part Number (Alliance) | N83-304344, N83304344, N83-304562, N83304562 |
| Part Number (Carrier AC) | 18-00093-02, 180009302 |
| Part Number (Fleetrite) | 1ZGG705006 |
| Part Number (Kysor) | 1401114 |
| Part Number (Paccar Kenworth Peterbilt) | 18-04081 |
| Part Number (Red Dot) | 75R-81482, 75R81482, 75R-8462, 75R8462, RD5-11322-0, RD5113220 |
| Part Number (Western Star) | 61104-3450, 611043450 |
| Part Number (Hella) | 351126001, 8FK351126-001, 8FK351126001 |
| Part Number (Powermax) | 7010467 |
| Part Number (DRI) | 700510846 |
| Part Number (Denso) | DCP99928, DCP99929 |
| Part Number (Cargo) | 240346 |
| Part Number | New Holland: 82008688, 82016158 Volvo: 820161581, 8177089 Sanden: 4444, 4711, 5312, 5371, 5706, 6022, 6125, 7492, 7865, 7890, 8013, 8028, 8083, 8100, 8103, 9682, 194711, 1014J9, 1027G9, 8177089, 18-04081, 1804081 Airsource: 5706G Alliance: N83-304344, N83304344, N83-304562, N83304562 Carrier AC: 18-00093-02, 180009302 Fleetrite: 1ZGG705006 Kysor: 1401114 Paccar Kenworth Peterbilt: 18-04081 Red Dot: 75R-81482, 75R81482, 75R-8462, 75R8462, RD5-11322-0, RD5113220 Western Star: 61104-3450, 611043450 Hella: 351126001, 8FK351126-001, 8FK351126001 Powermax: 7010467 DRI: 700510846 Denso: DCP99928, DCP99929 Cargo: 240346 |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
