OEM / REF: 8200101SKU: pilotpart426306

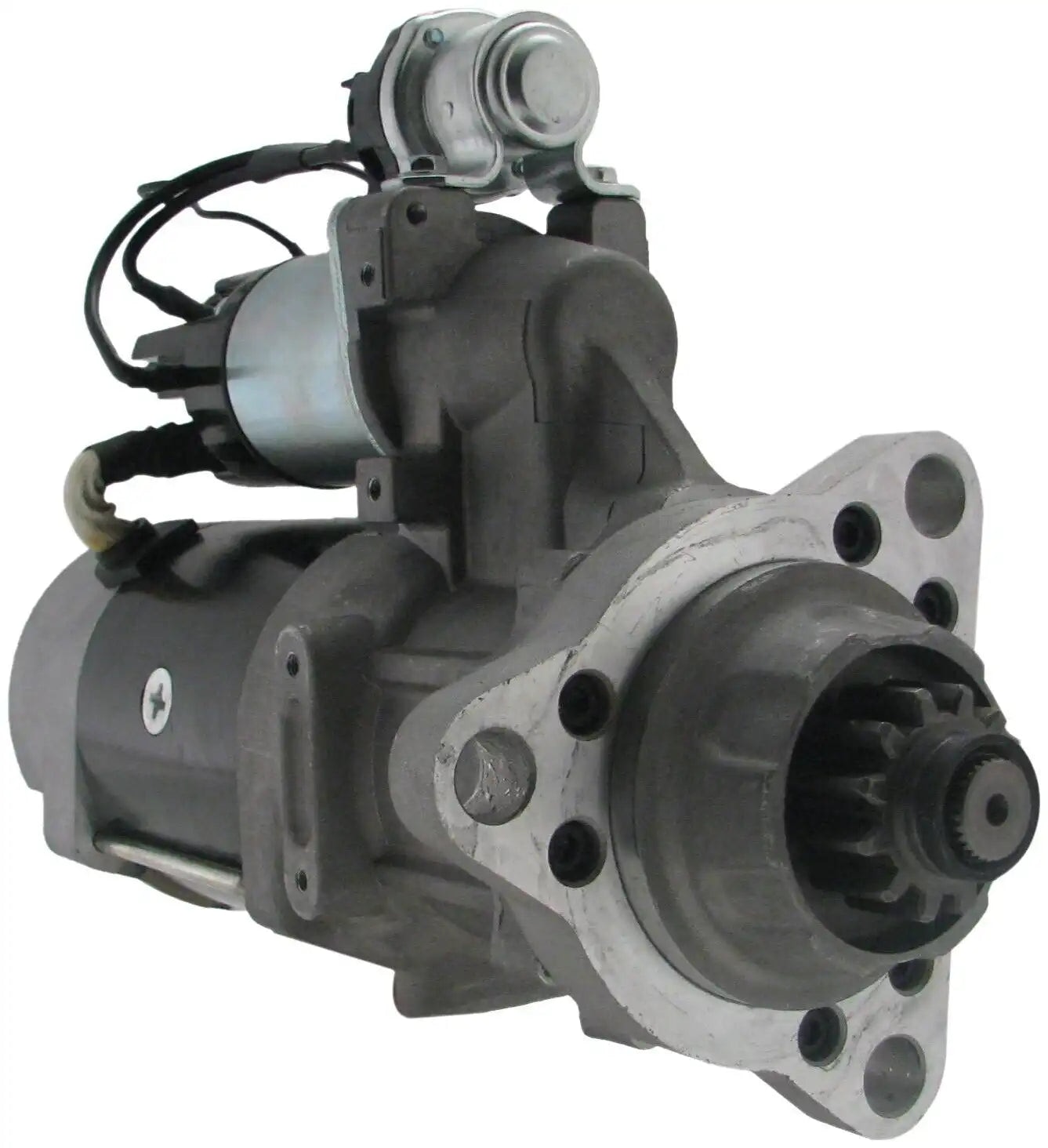

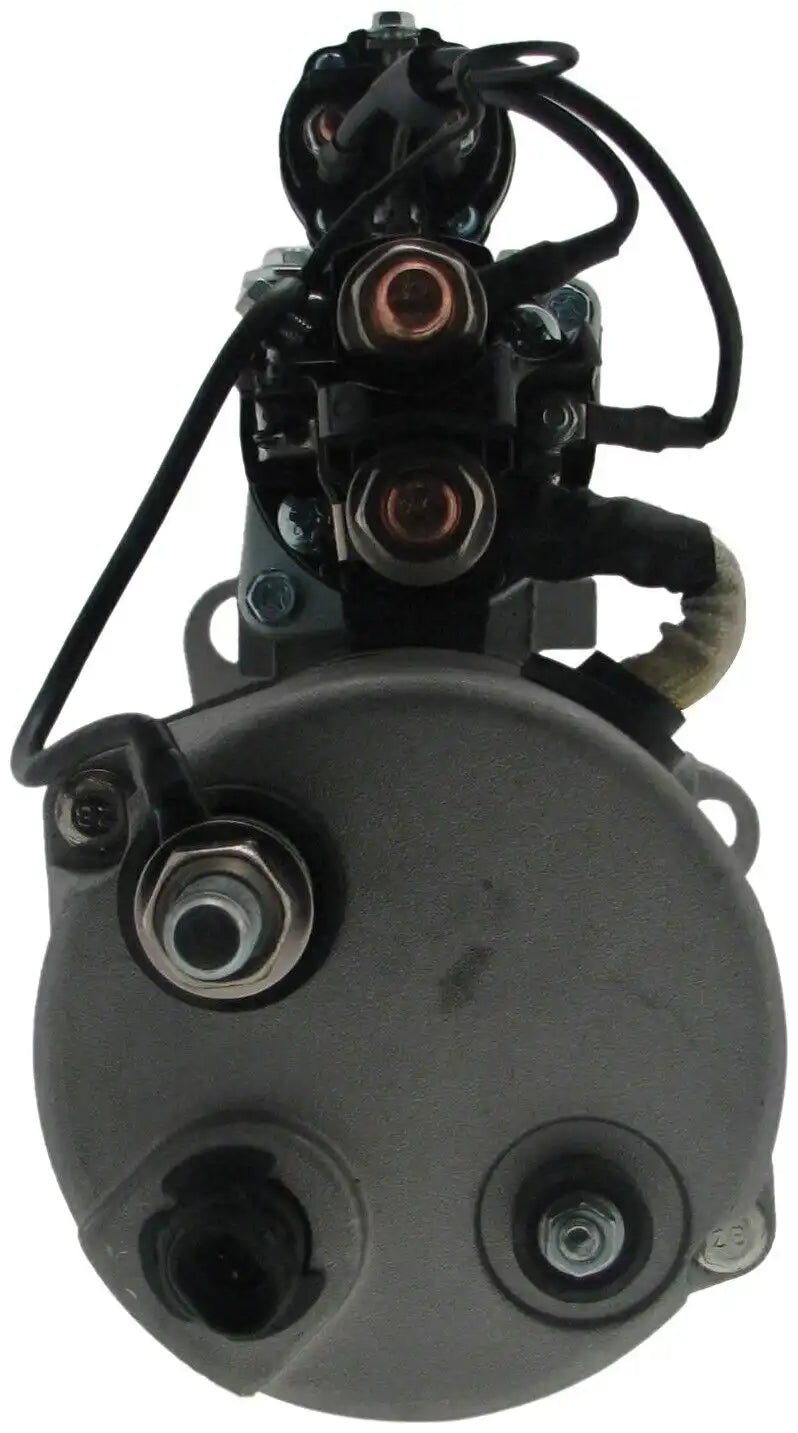

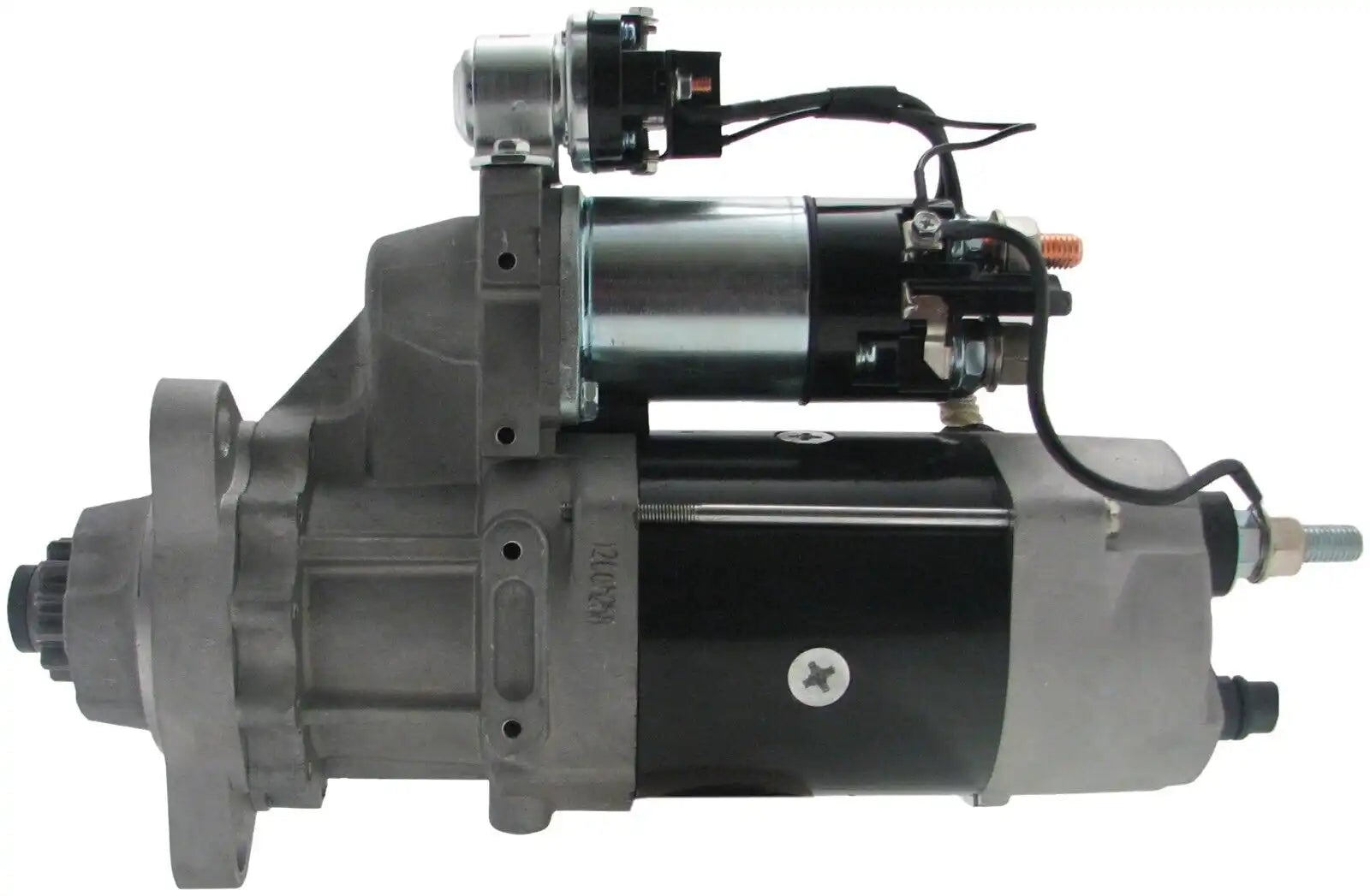

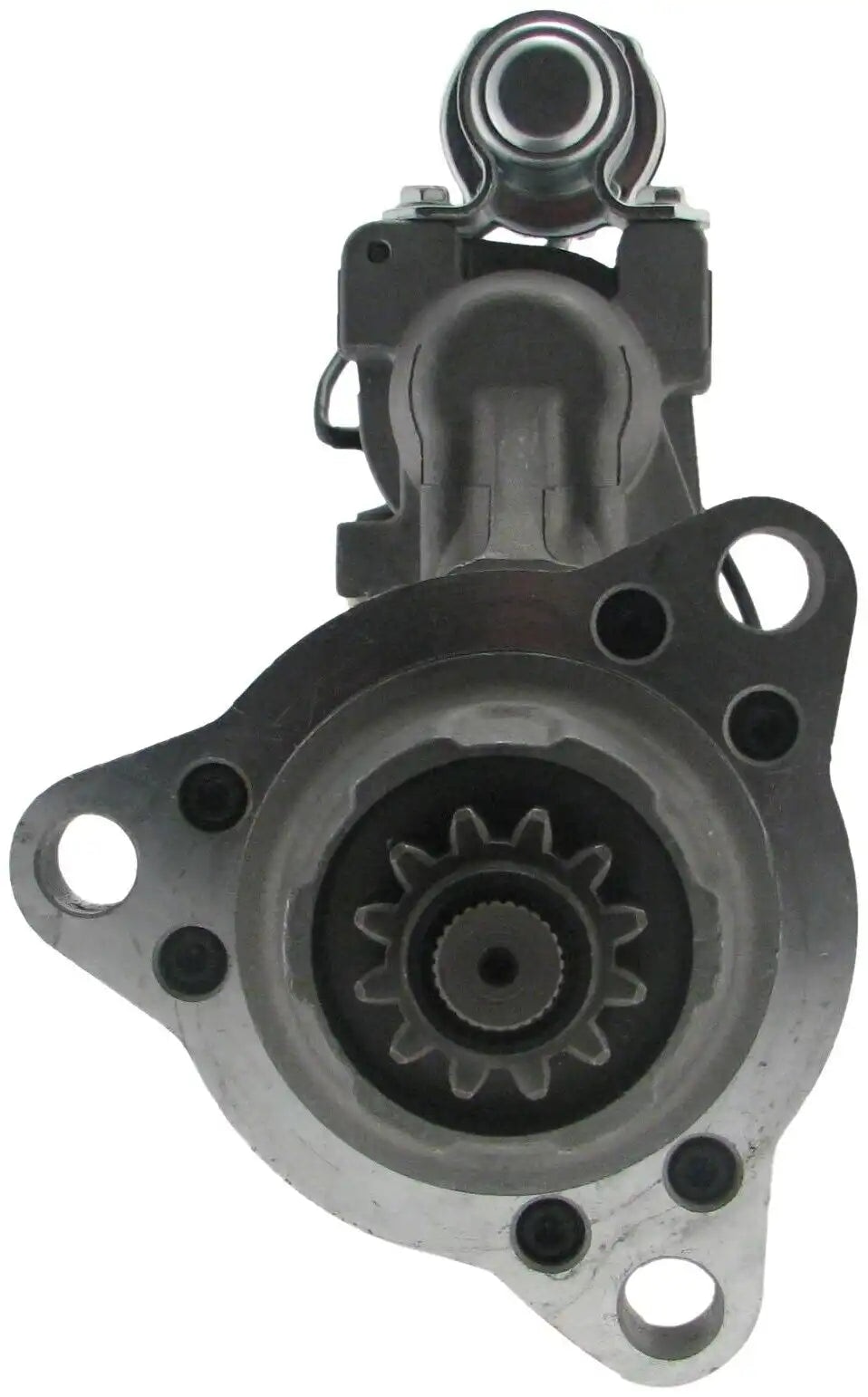

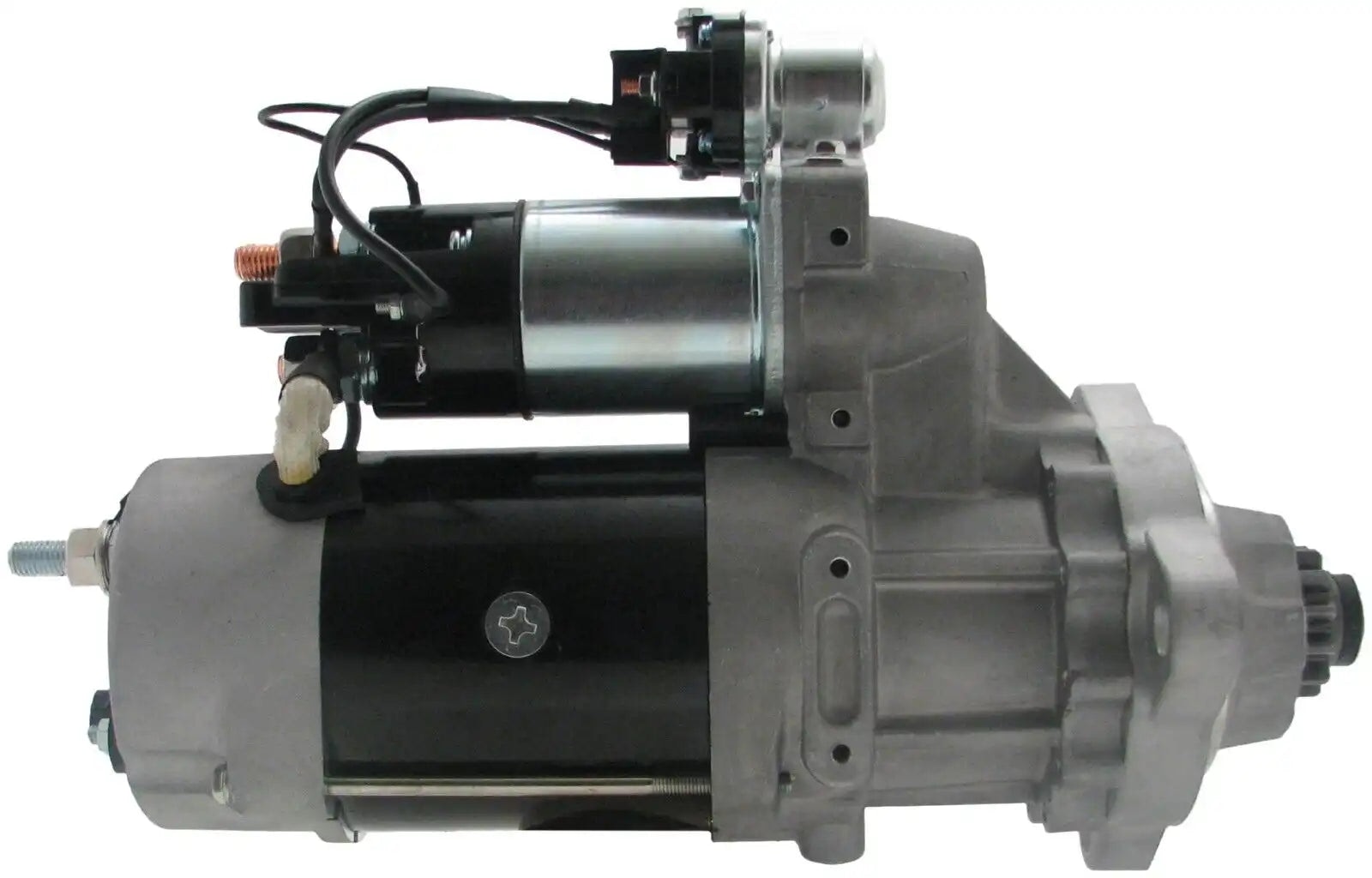

New USA Made Starter 690644C91 for Case Excavator 9040 6T-830 Diesel 1993-2003 is a Starter Motor replacement part indexed for Case 1155E · 6-830 and Case 9040 · 6T-830, with 3 application records on file. Match OEM part number 8200101 and confirm fitment for CASE Engine Spare Parts before ordering.
This Starter Motor is indexed for Case 1155E · 6-830; Case 9040 · 6T-830; Case 9040B · 6T-830; Case 9045B · 6T-830. Compare reference number 8200101 against the label on your existing CASE component before ordering.
Additional cross references on file: 8200435, 8200027, 8200044. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.
| Voltage | 24V |
|---|---|
| Power | 9kW / 12.06HP |
| Teeth | 12T |
| Rotation | CW |
| Starter Type | PLGR |
| Number of Teeth | 12 Gear |
| OD | 1.819in / 46.2mm |
| Solenoid Position | 82 Degrees Mtg |
| Ear 1 Hole | 16.7mm |
| Unthreaded Mtg Ear 2 Hole | 16.7mm |
| Unthreaded Mtg Ear 3 Hole | 16.7mm |
| Part Number (Delco) | 8200101, 8200435, 8200027, 8200044, 8200450, 19011512, 10461759, 8200086, 8200702, 8300011, 8200029, 8200043, 19011511, 10461758, 8200447, 8300014, 19011524, 8200448, 8200713, 8200726 |
| Part Number (Komatsu) | 1219520H92, 1219521H92, 1219526H92, 1221592H91, 1243215H92, 6742-01-4240, 6742014240, 6742-82-4230, 6742824230, 690644C91, R1219521H92, R6742014240, STR1016 |
| Part Number (Cummins) | 5284106, 3102763, 3938499, 3675297RX, 3936332, 5256416, 2871254, 3102767, 3675296RX, 5256414, 5284105 |
| Part Number | Delco: 8200101, 8200435, 8200027, 8200044, 8200450, 19011512, 10461759, 8200086, 8200702, 8300011, 8200029, 8200043, 19011511, 10461758, 8200447, 8300014, 19011524, 8200448, 8200713, 8200726 Komatsu: 1219520H92, 1219521H92, 1219526H92, 1221592H91, 1243215H92, 6742-01-4240, 6742014240, 6742-82-4230, 6742824230, 690644C91, R1219521H92, R6742014240, STR1016 Cummins: 5284106, 3102763, 3938499, 3675297RX, 3936332, 5256416, 2871254, 3102767, 3675296RX, 5256414, 5284105 |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
