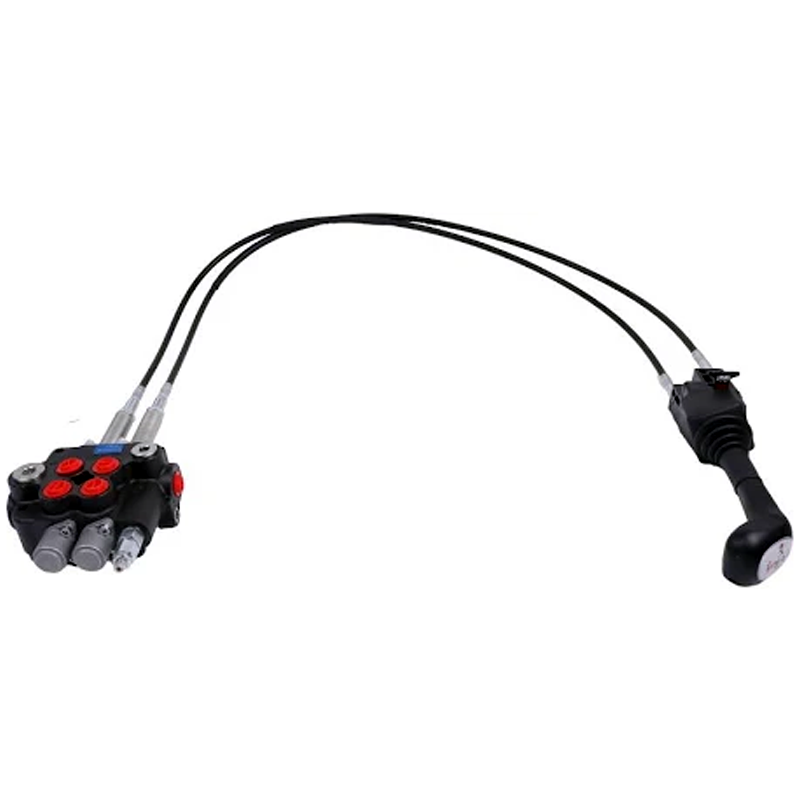

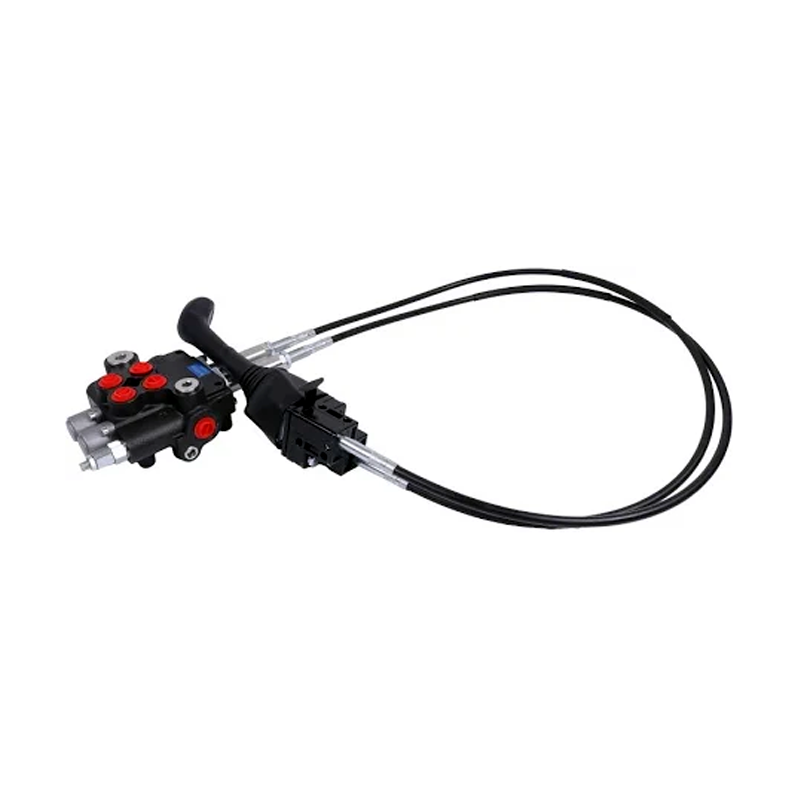

Joystick Controller Description
This Joystick Controller is indexed for s: Model: P80, 2 Spool Nominal flow: 21gpm (80l/min) Max. working pressure: 25MPa (3625PSI) Relief valve pressure: 17MPa, Adjustable Applicable temperature: -20～80℃ Max operating pressure P = 3600psi (250 bar); T = 150psi (10 bar); A , B = 4300psi (300 bar) P, A, B ports: G 1/2" T, N port: G 3/4" Features: O function, spring reset Open center system (pump-to-tank flow) Flexible shaft + one control and two handles (flexible shaft 1.5m) All spools are standard double acting with spring return in neutral position. Compare reference number pilotpart347091 against the label on your existing component before ordering.
Before checkout, compare OEM part number pilotpart347091, connector layout, mounting position, and machine serial number. For high-value or fitment-sensitive parts, submit the fitment form below so support can verify the match.
