OEM / REF: 78-1188SKU: pilotpart713663

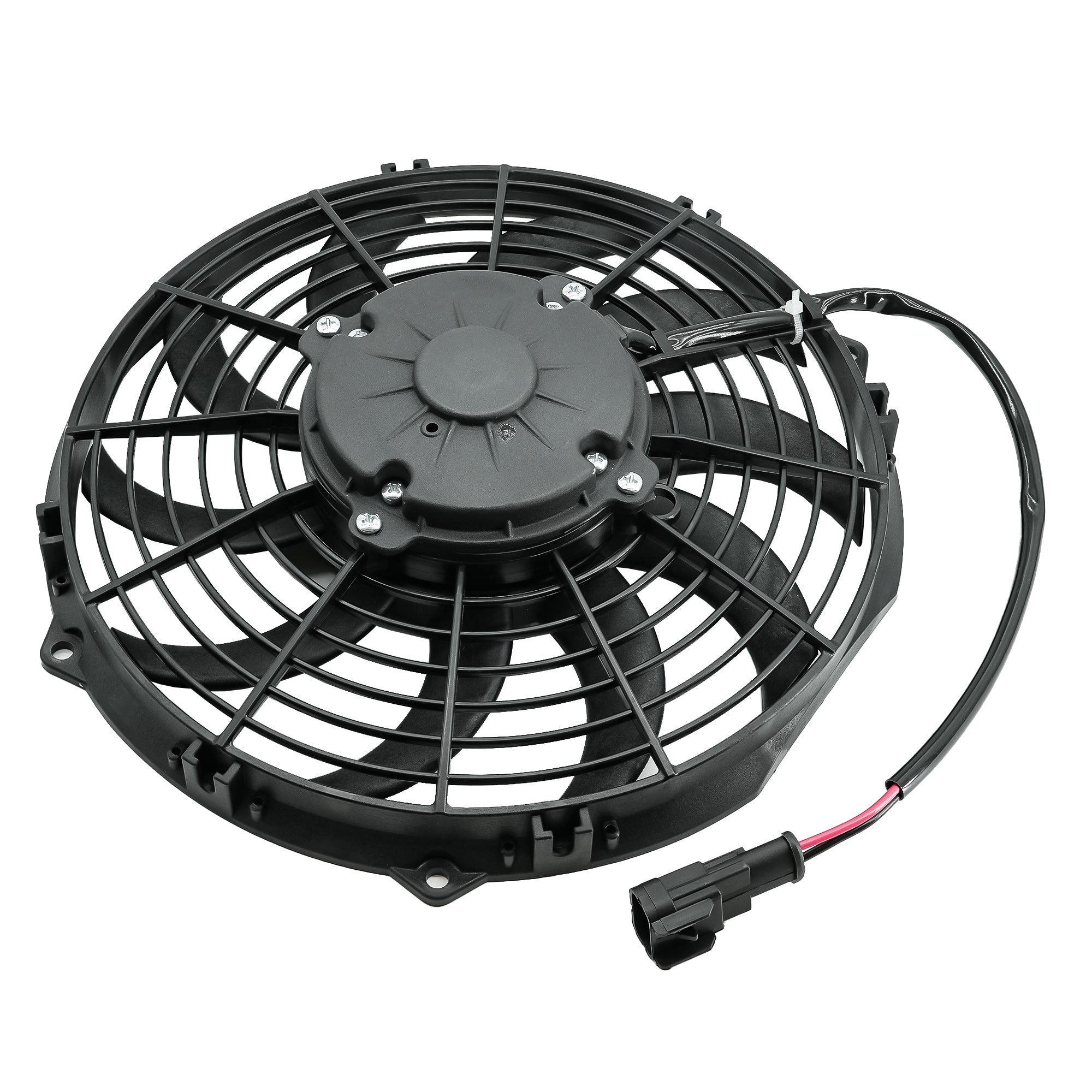

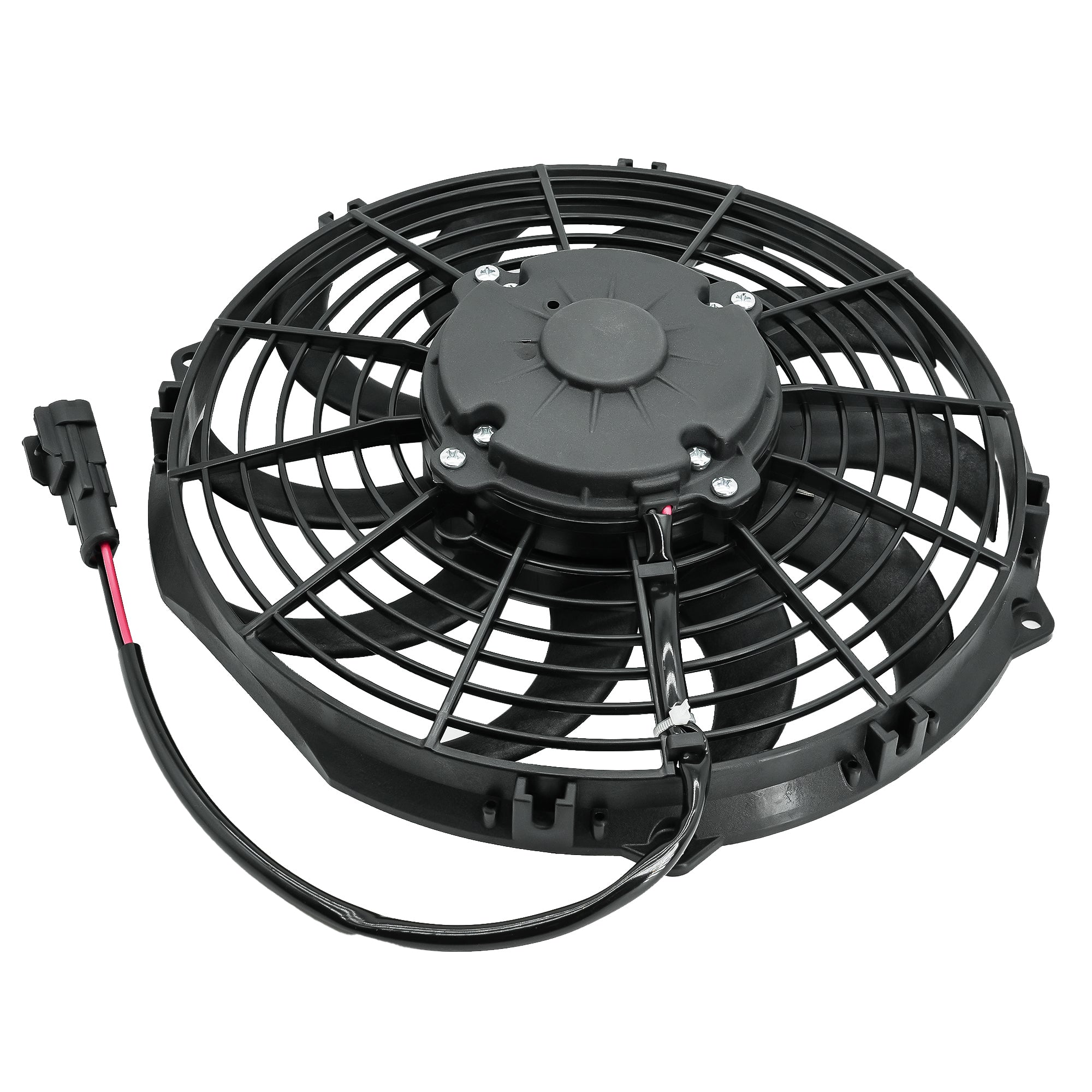

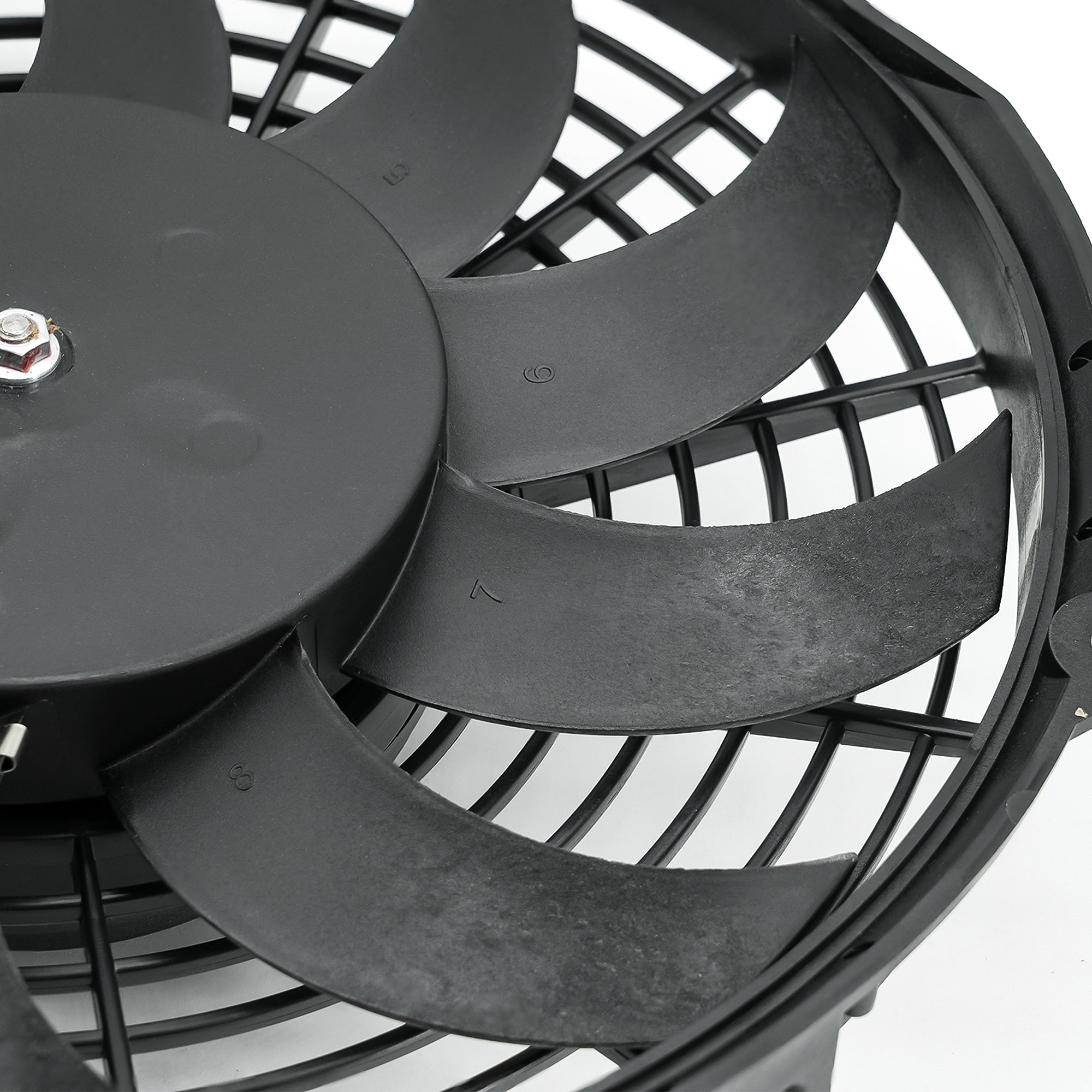

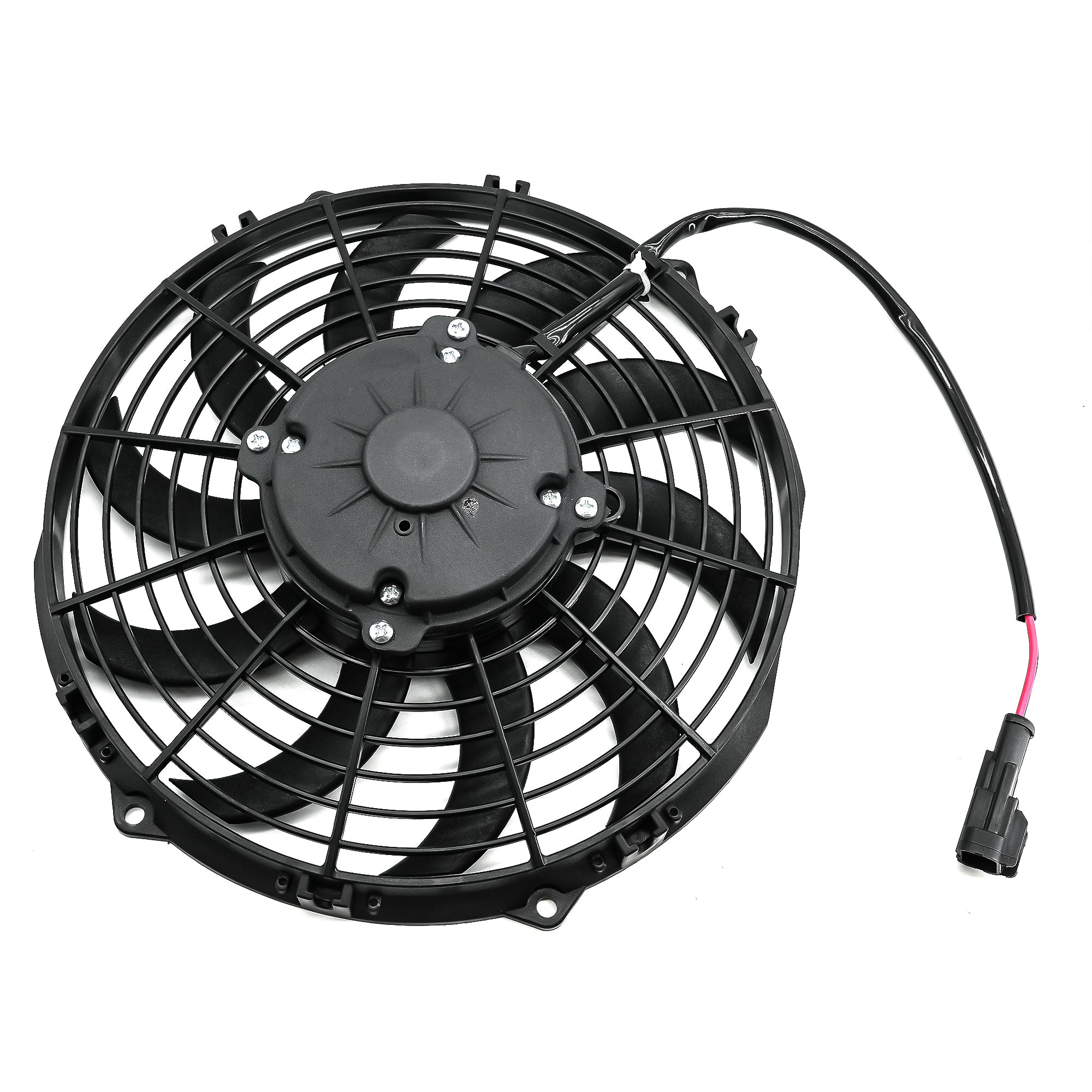

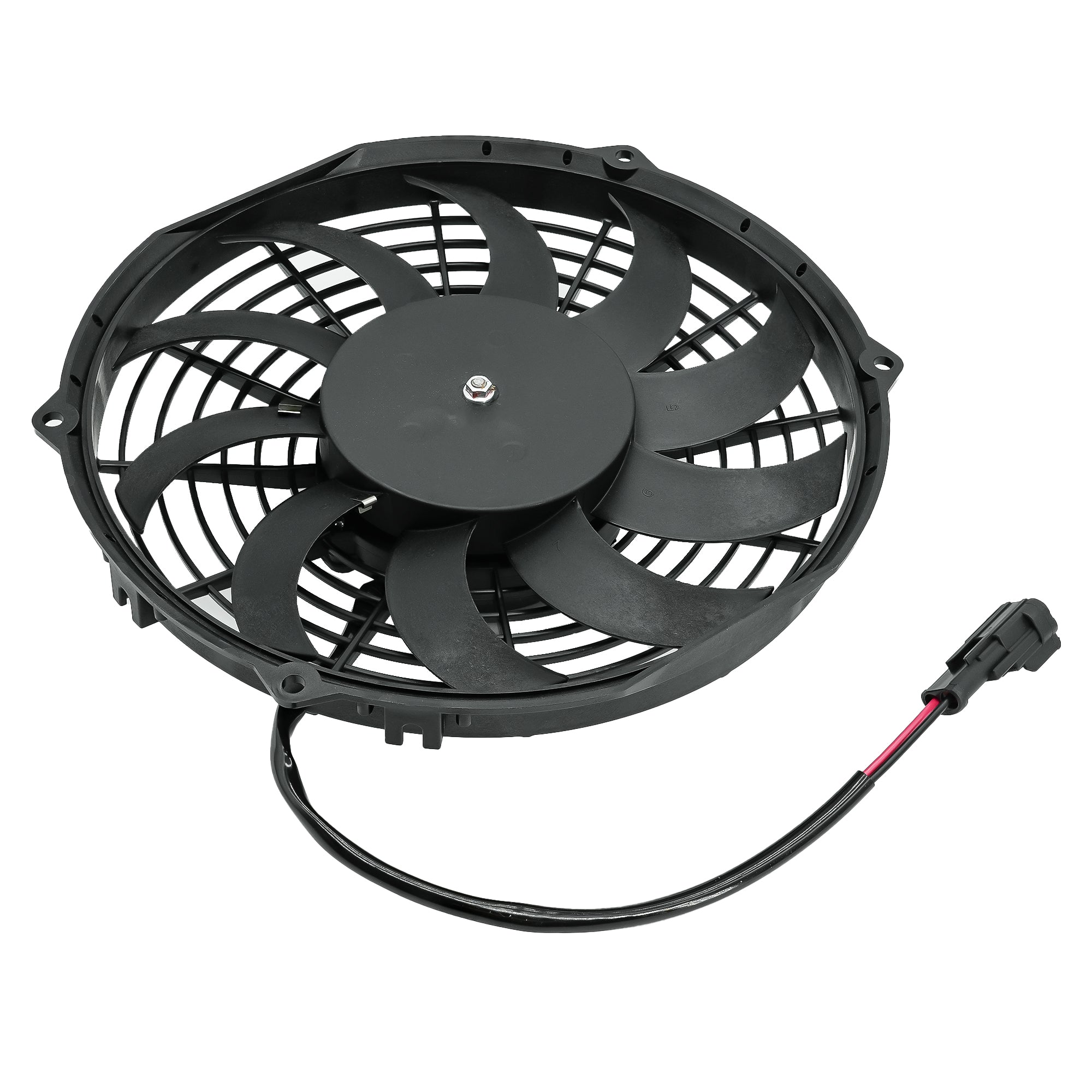

24V 120W 78-1188 Universal Blow Engine Cooling Fan 280mm/10Inch for Thermo King VM-400 VM-405 is a Fan replacement part indexed for Thermo King VM-400 and Thermo King VM-400 Max, with 3 application records on file. Match OEM part number 78-1188 and confirm fitment for Thermo King HVAC Parts before ordering.
This Fan is indexed for Thermo King VM-400; Thermo King VM-400 Max; Thermo King VM-405 Max. Compare reference number 78-1188 against the label on your existing Thermo King component before ordering.
Before checkout, compare OEM part number 78-1188, connector layout, mounting position, and machine serial number. For high-value or fitment-sensitive parts, submit the fitment form below so support can verify the match.
| Type | Blowing (S) |
|---|---|
| Consumption of current max. | I = 4,1A |
| Efficiency | 1450 m3/h |
| Voltage | 24V |
| Diameter 1 | 284mm / 11.18" |
| Diameter 2 | 268mm / 10.55" |
| Hole distance 1 | 246mm / 9.68" |
| Hole distance 2 | 142mm / 5.59" |
| Height | 52mm / 2.05" |
| Part Number (Thermo King) | 78-1188, 781188, 781-188 |
| Part Number | Thermo King: 78-1188, 781188, 781-188 |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
