OEM / REF: 75R81432SKU: pilotpart125621

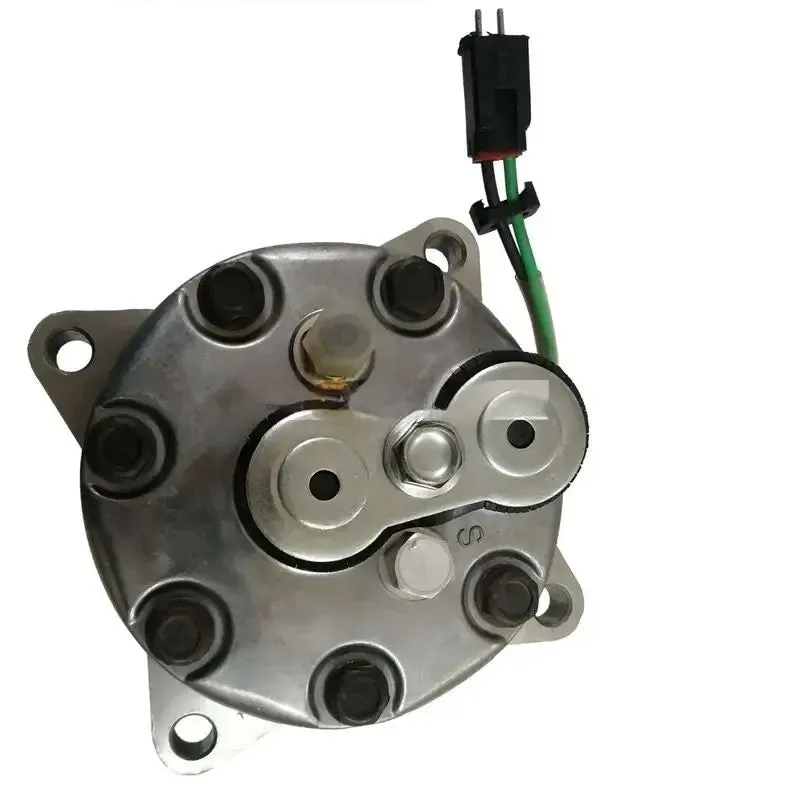

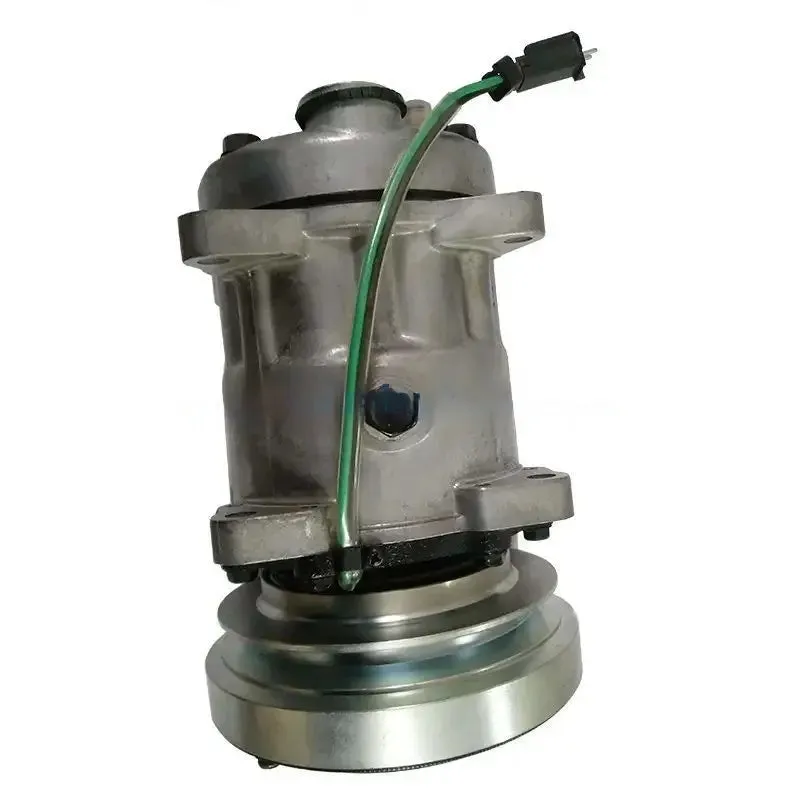

A/C Compressor 75R81432 for Red Dot is a Air Conditioning Compressor replacement part indexed for Part Number and Red Dot. Match OEM part number 75R81432 and confirm fitment for Red HVAC Parts before ordering.
This Air Conditioning Compressor is indexed for Part Number; Red Dot. Compare reference number 75R81432 against the label on your existing Red component before ordering.
Additional cross references on file: 75R-84592, 75R-84592DS, 75R-89472. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.
| Compressor Family | SD7H15 |
|---|---|
| Style | Sealed Heavy Duty |
| Compressor Mount Type | Ear |
| Rotation Direction | CW |
| Cylinder Head | GK |
| Port Angle | Horizontal |
| Head Port Head Style | O-Ring Compression |
| Clutch Diameter | 138 mm ~ 5 and 7/16 inches |
| Clutch Type | W/ Dust Cover |
| Belt Type | V-Belt |
| Number of Grooves | 1 |
| Voltage | 12V |
| Coil Connector | 2 Wire Deutsch |
| Part Number | 75R81432, 75R-81432, 75R-84592, 75R84592, 75R-84592DS, 75R84592DS, 75R-89472, 75R-89472, RD-5-11220-0, RD5112200, RD-5-11220-0DS, RD5112200DS |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
