OEM / REF: 60-DaySKU: pilotpart099336-01

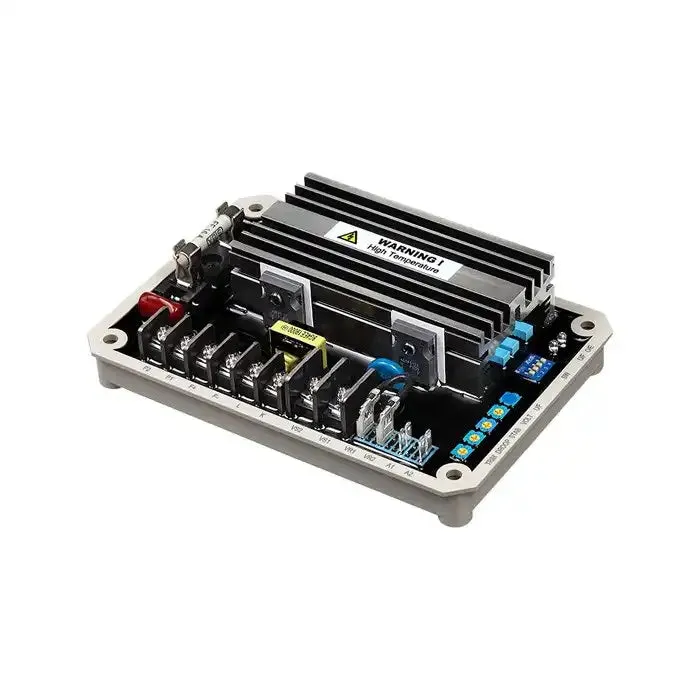

Unclassified 60-Day is listed under Tools and Accessories > Unclassified with catalog data including Voltage: 220 to 600 Vac 1 or 3 phase selectable; Frequency: 50/60 Hz selectable; Current: Continuous 3.5A; Intermittent 7A for 10 seconds. Verify fitment for Tools and Accessories applications using the OEM number, m...
This Unclassified is indexed for Part Number. Compare reference number 60-Day against the label on your existing component before ordering.
Additional cross references on file: ADVR2200M. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.
| Voltage | 220 to 600 Vac 1 or 3 phase selectable |
|---|---|
| Frequency | 50/60 Hz selectable |
| Current | Continuous 3.5A; Intermittent 7A for 10 seconds |
| Resistance | ≧ 18 ohms @ power input 110 Vac; ≧ 36 ohms @ power input 220 Vac |
| Burden in Shunt & PMG Wiring | 550 VA @ power input 110 Vac; 1100 VA @ power input 220 Vac |
| Volts Regulation | < +/-0.5% (with 4% engine governing) |
| Build Up Voltage | Residual volts at AVR terminal > 5 Vac @ 25 Hz |
| Over Excitation Protection | Inverse-time 125 +/-5 Vdc @ power input 220 Vac |
| External Volts Adjustment | Max. +/-5% @ 500 ohms 1 watt potentiometer; Max. +/-10% @ 1000 ohms 1 watt potentiometer |
| Static Power Dissipation | Max. 12 watts |
| EMI Suppression | Internal electromagnetic interference filtering |
| Soft Start Ramp Time | 4 seconds +/-10% |
| Voltage Thermal Drift | < 3% at temperature range -40 to +70 °C |
| Analogue Input | Input resistance > 2 kΩ |
| Quadrature Droop Input | CT 1A/5A > 5VA (DIP switch setting); Sensitivity Max. +/-7% @ P.F +/-0.7 |
| Under Frequency Protection(Factory Setting) | 50 Hz system presets knee point at 45 Hz; 60 Hz system presets knee point at 55 Hz |
| Operating Temperature | -40 to +70 °C |
| Storage Temperature | -40 to +85 °C |
| Relative Humidity | Max. 95% |
| Vibration | 5.5Gs @ 60 Hz |
| VOLT | Voltage adjustment |
| STAB | Stability adjustment |
| U/F | Setting under frequency protection knee point |
| DROOP | Droop adjustment |
| TRIM | Analogue input adjustment |
| DIP | Voltage droop ratio setting |
| O/E LED | Over excitation protection indicator |
| U/F LED | Under frequency protection indicator |
| Dimension | 150.0 (L) x 135.0 (W) x 55.5 (H) mm; 5.91 (L) x 5.31 (W) x 2.19 (H) inch |
| Weight | 470 g +/-2%; 1.04 lb +/-2% |
| Part Number | ADVR2200M, ADVR-2200M |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
