OEM / REF: 60-03493NASKU: pilotpart713649

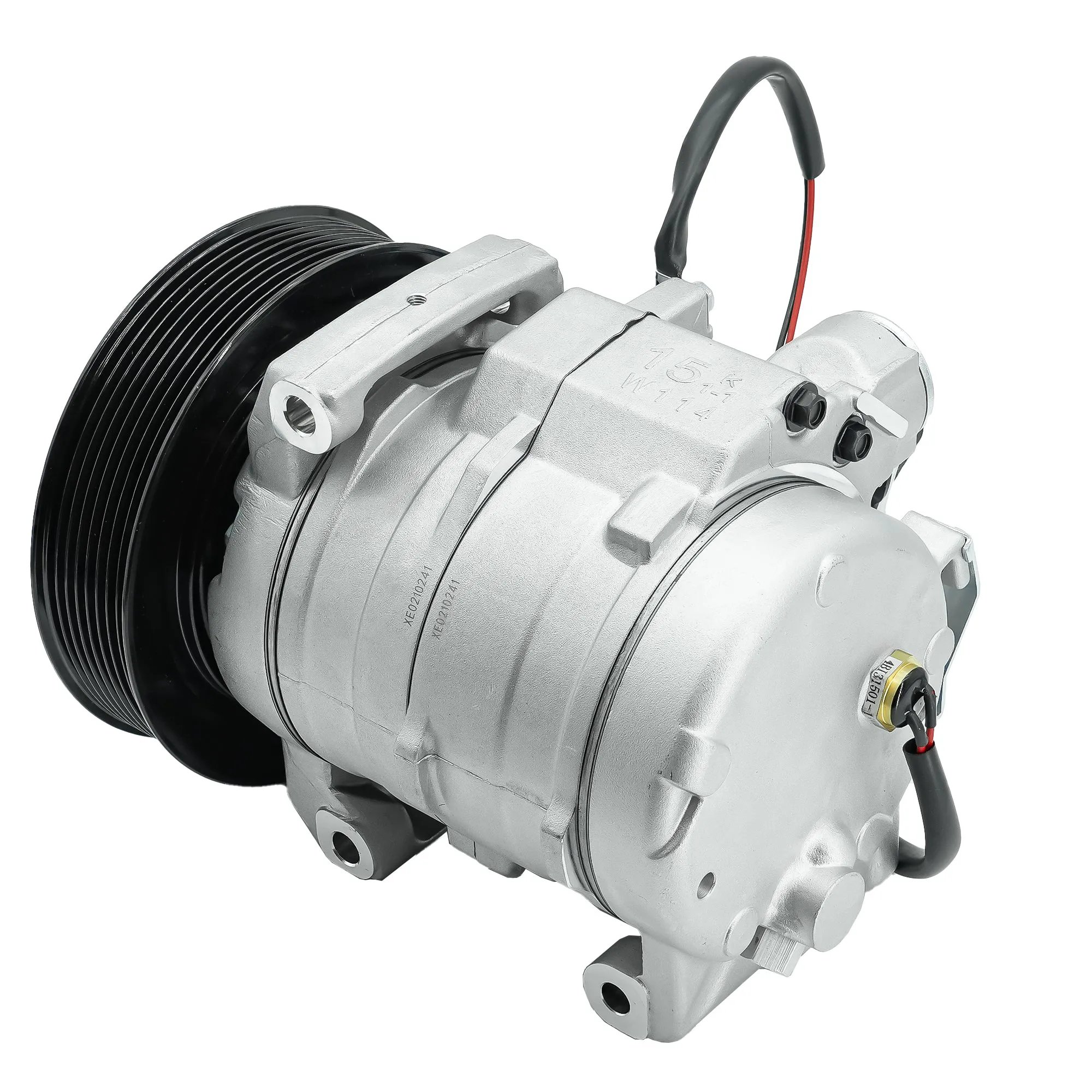

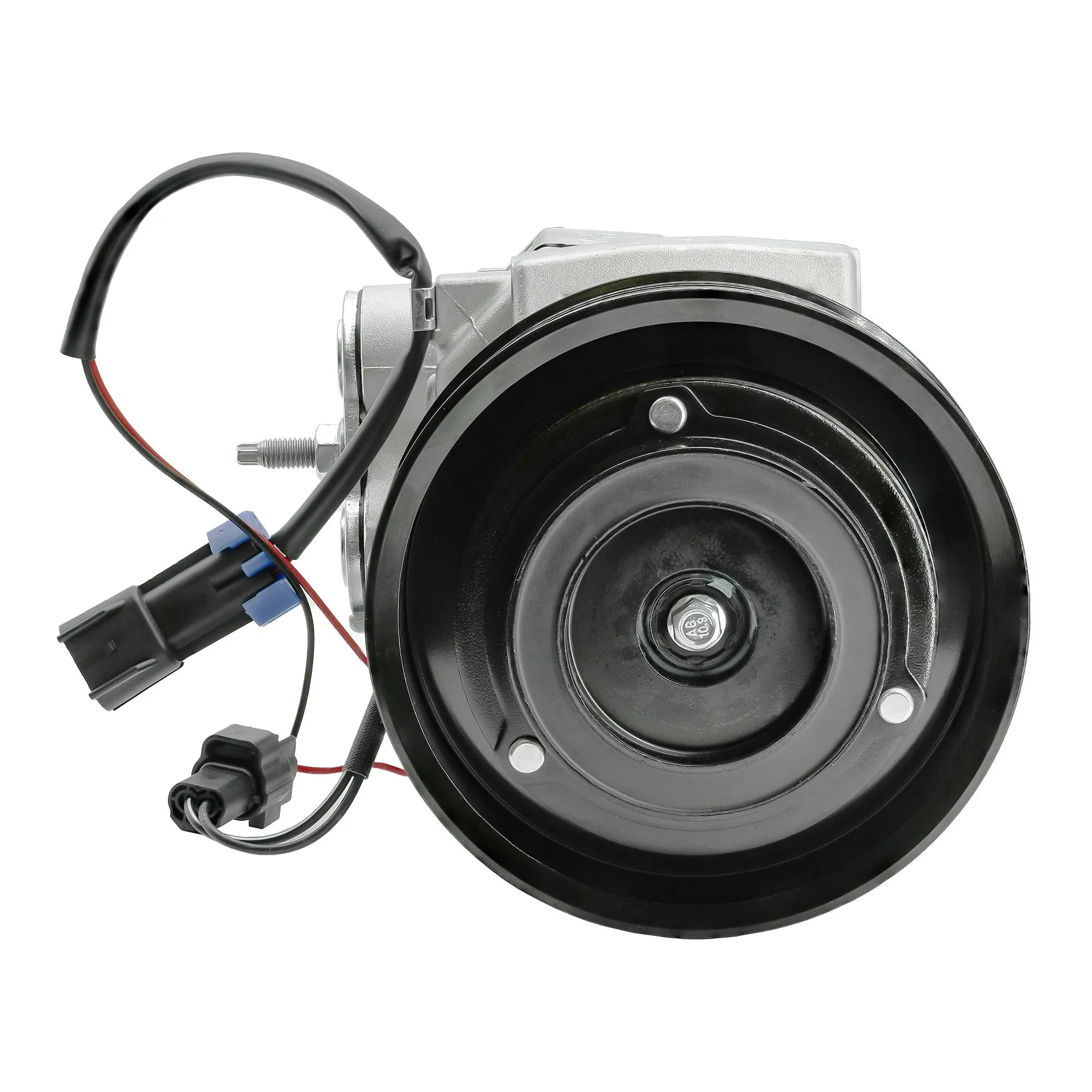

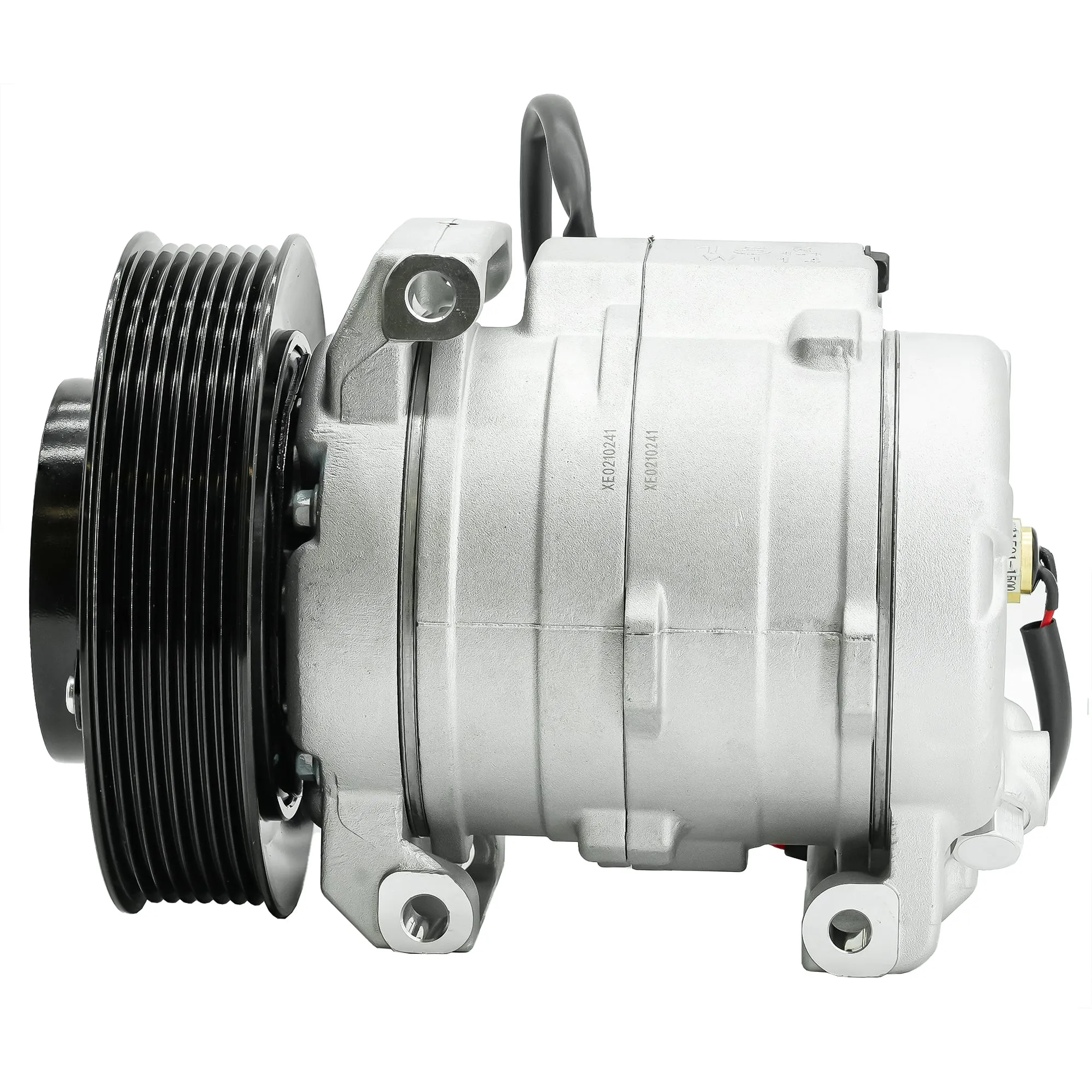

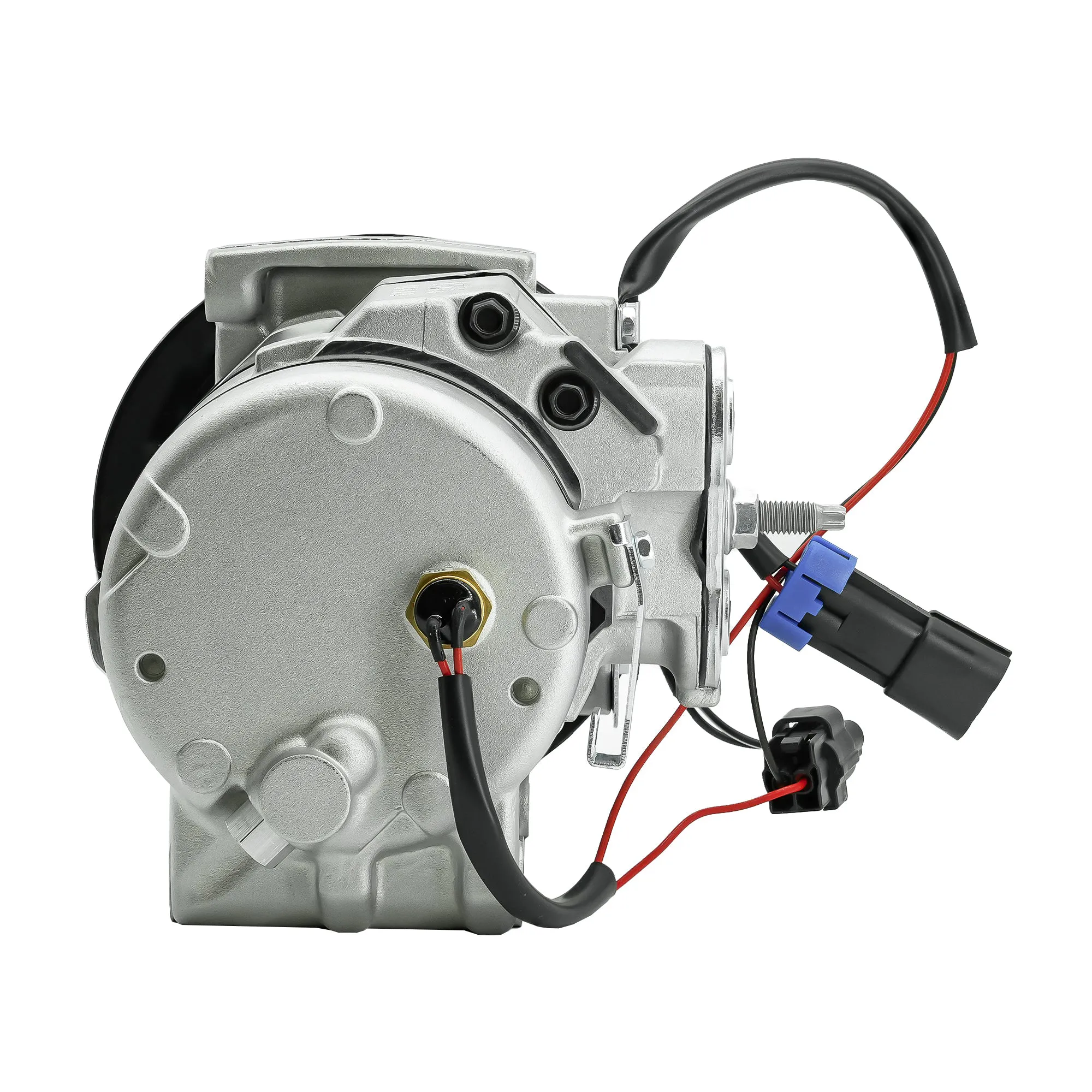

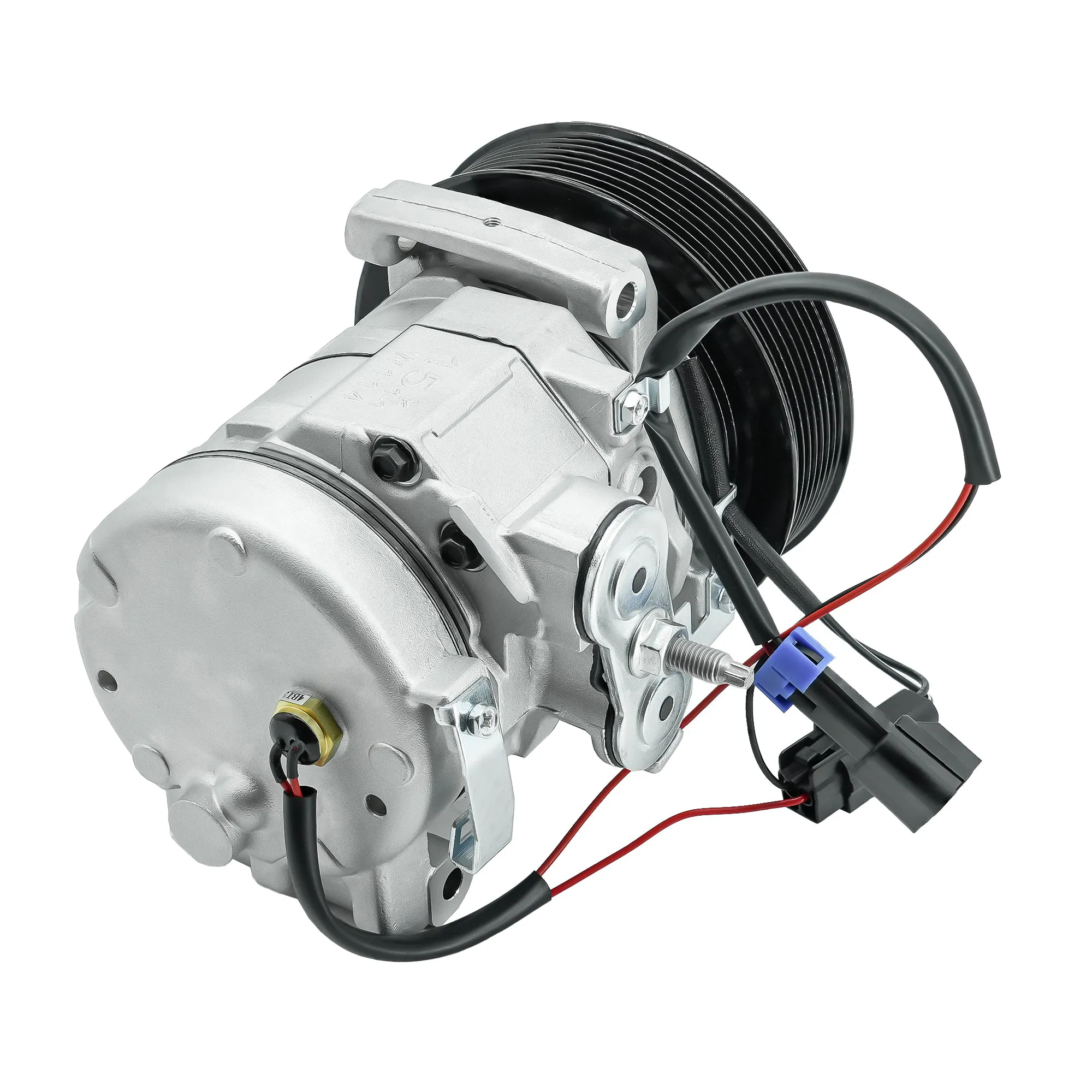

Air Conditioning Compressor 10S15C A/C 22-65770-000 for Western Star 4700 4700SB 4700SF is a Air Conditioning Compressor replacement part indexed for Western Star 4700SB · 2012-2018 and Western Star 4700SF · 2012-2018. Match OEM part number 60-03493NA and confirm fitment for Western Star HVAC Parts before ordering.
This Air Conditioning Compressor is indexed for Western Star 4700SB · 2012-2018; Western Star 4700SF · 2012-2018. Compare reference number 60-03493NA against the label on your existing Western Star component before ordering.
Additional cross references on file: 16003493-101, 16003493-102, 16003493-103. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.
| Voltage | 12V |
|---|---|
| Number of Grooves | 8 |
| Compressor Type | Denso |
| Compressor Model | 10S15C |
| Compressor Mount Type | Direct |
| Belt Type | Serpentine belt |
| Clutch Diameter | 140MM ~ 5 and 1/2 Inches |
| Oil Type | PAG46 |
| Refrigerant | R134a |
| Part Number | 60-03493NA, 6003493NA, 16003493-101, 16003493-102, 16003493-103, 226577000, 22-65770-000, 22-65770-001, 22-75835-000, 4472801501 |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
