OEM / REF: 506011-6800SKU: pilotpart123094

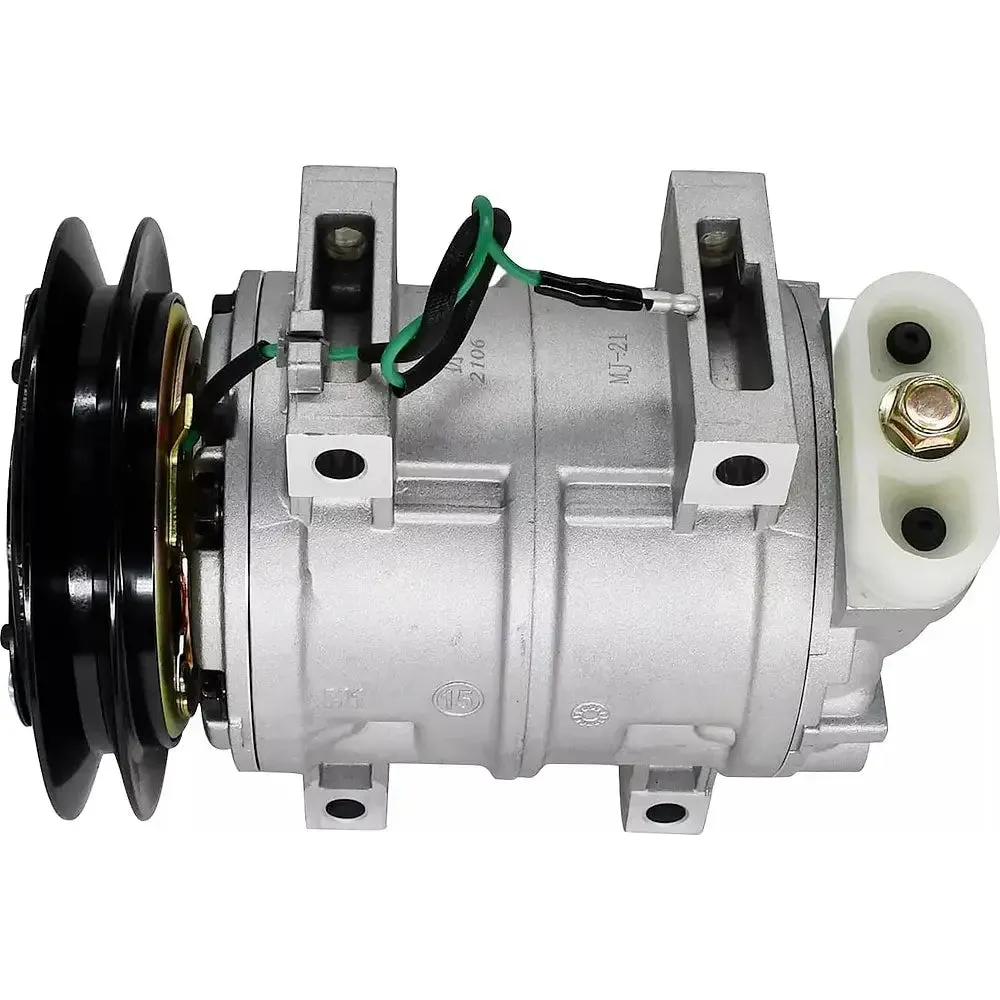

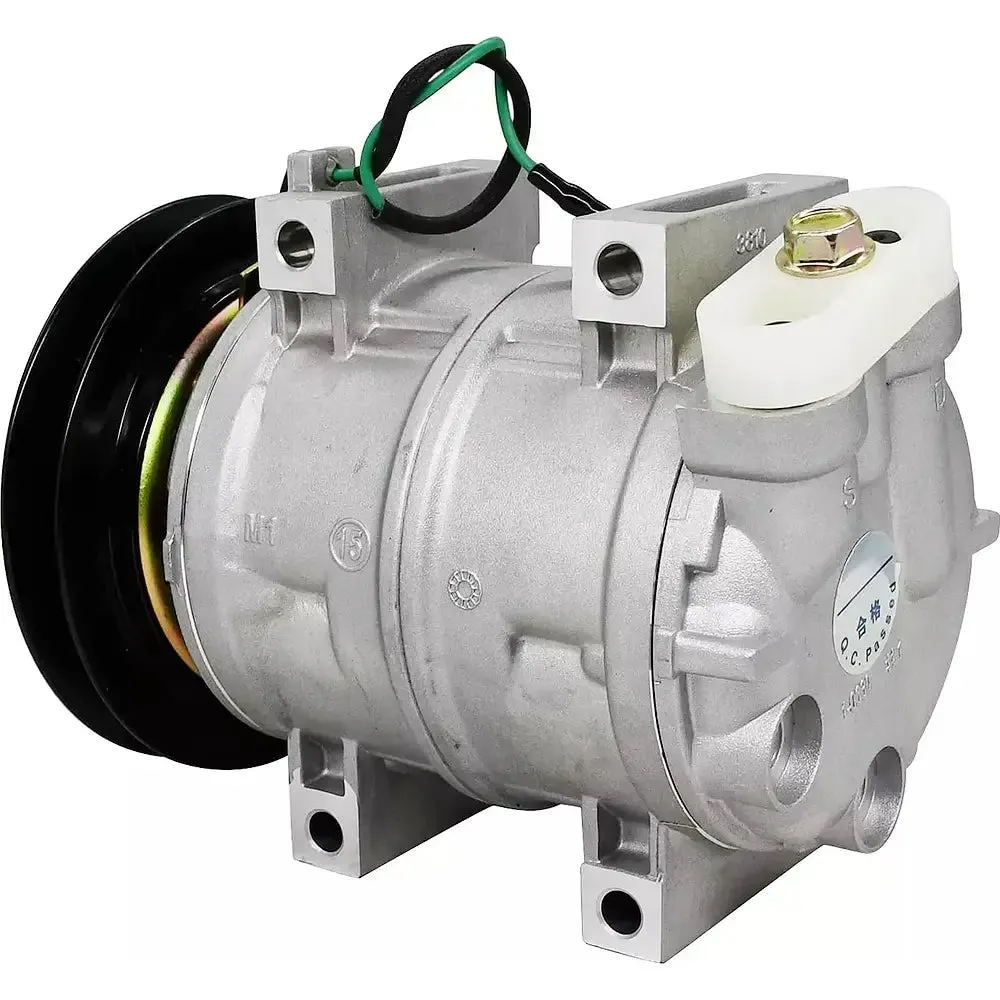

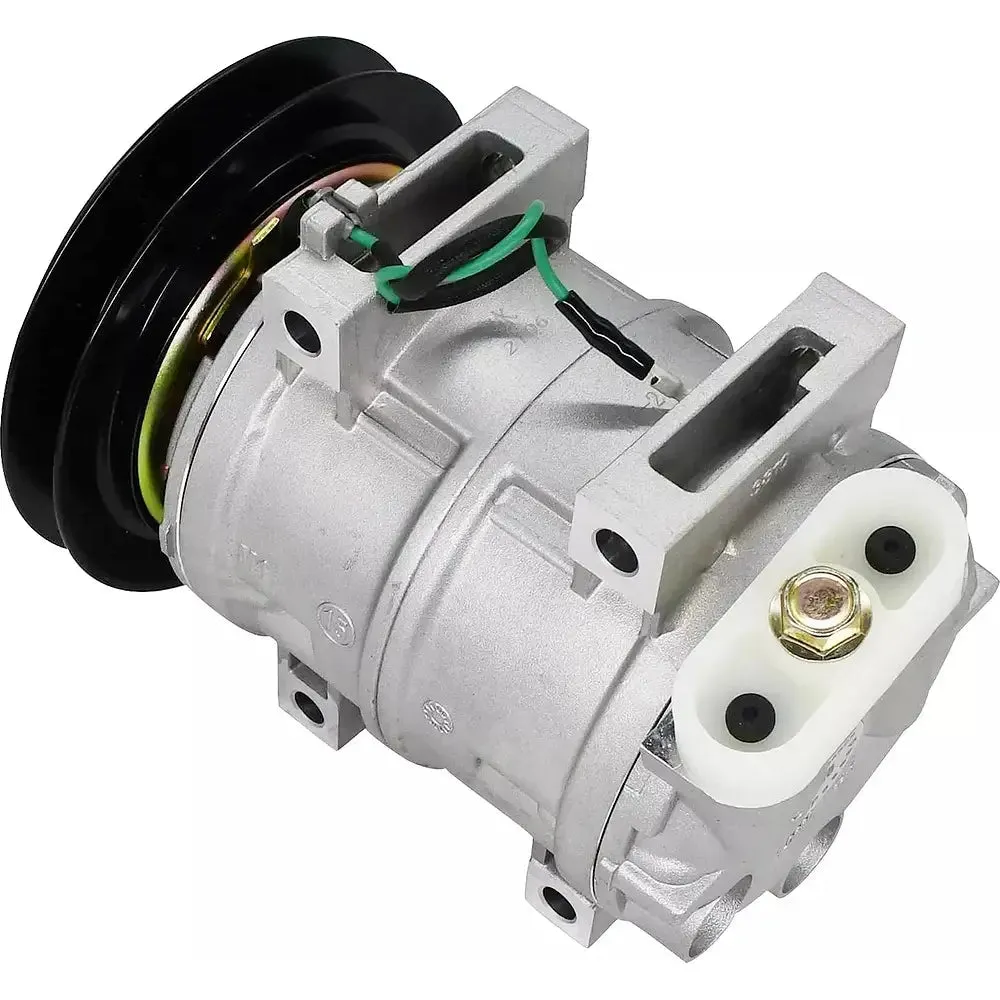

A/C Compressor 506011-6800 for Komatsu PC100-6 PC120 PC210 PC300 PC350 PC400 is a Air Conditioning Compressor replacement part indexed for Komatsu PC100-6 and Komatsu PC120, with 3 application records on file. Match OEM part number 506011-6800 and confirm fitment for Komatsu HVAC Parts before ordering.
This Air Conditioning Compressor is indexed for Komatsu PC100-6; Komatsu PC120; Komatsu PC210; Komatsu PC300. Compare reference number 506011-6800 against the label on your existing Komatsu component before ordering.
Additional cross references on file: PC350, PC400, 5062115762. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.
| Model | DKS15CH |
|---|---|
| Application | Farm & Off-Road Applications |
| Voltage | 24V |
| Clutch Diameter | 139mm |
| No. of Grooves | 1 groove |
| Belt Type | 5/8'' Belt |
| No. Comp. Cylinders | 6 cyl |
| Fitting Style | Top Pad |
| A-B Distance | 2-1/4'' |
| Head Type | DKS Style 2 |
| Wire Type | 1 Wire harness |
| Replacement Clutch Assy. | NSS |
| Mounting Type | Direct mount |
| Oil Type | PAG100 |
| Product Name | Compressor |
| Refrigerant Type | R134a |
| O-Ring #1 | 0013 |
| O-Ring #2 | 0015 |
| Shaft Type | Splined shaft |
| Notes | Single bolt manifold at 11 PM |
| Part Number | 506011-6800, 5060116800 |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
