OEM / REF: 423-S62-4330SKU: pilotpart125131

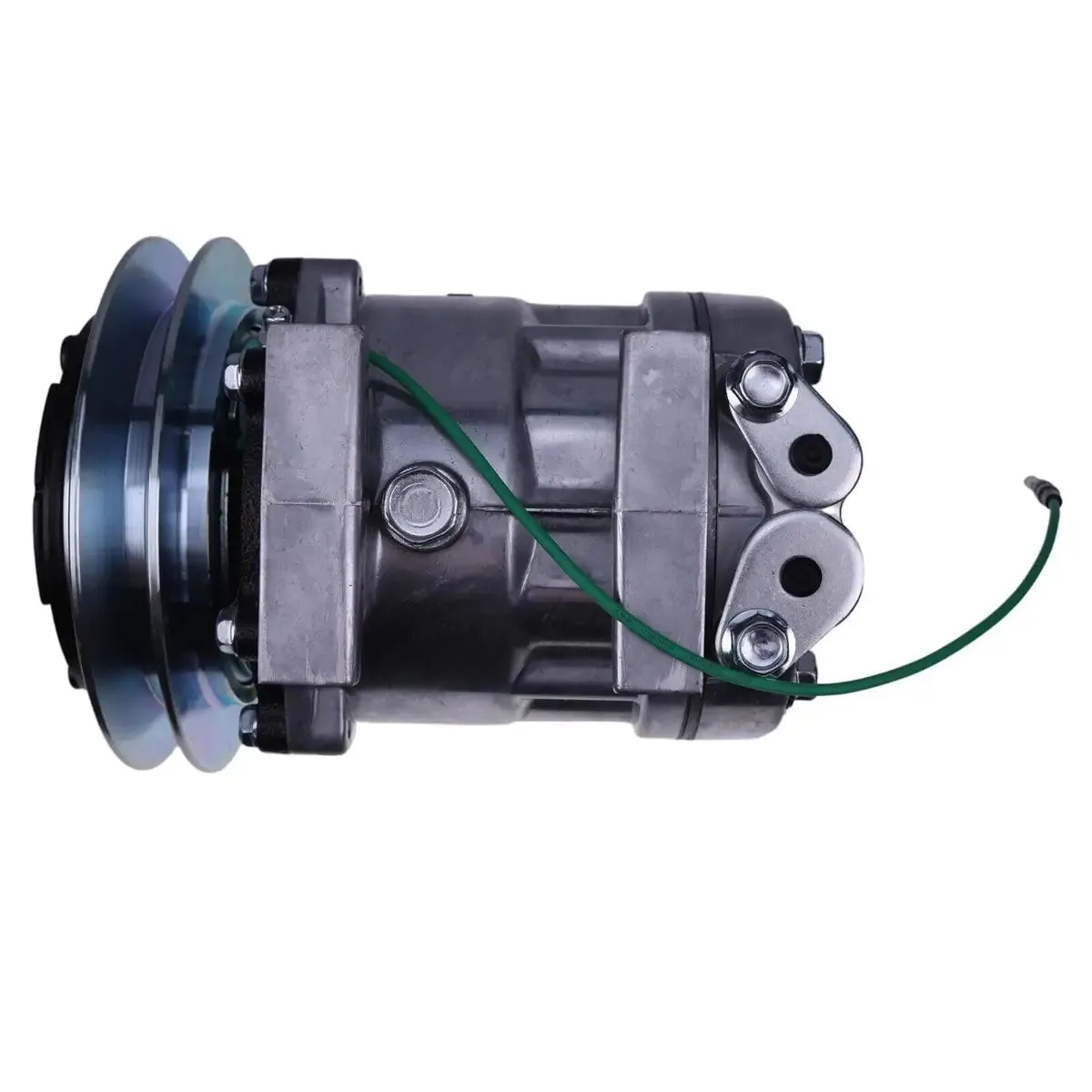

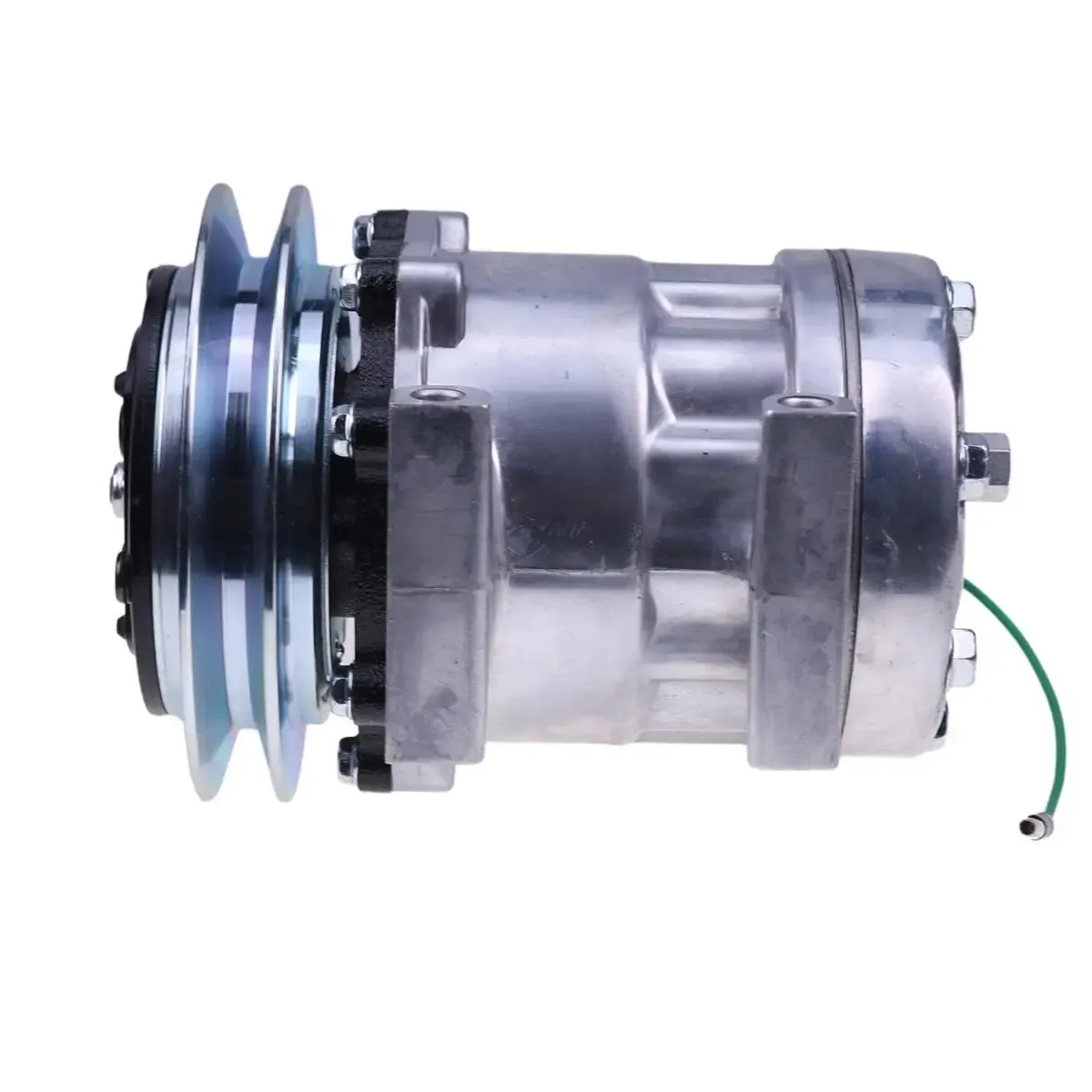

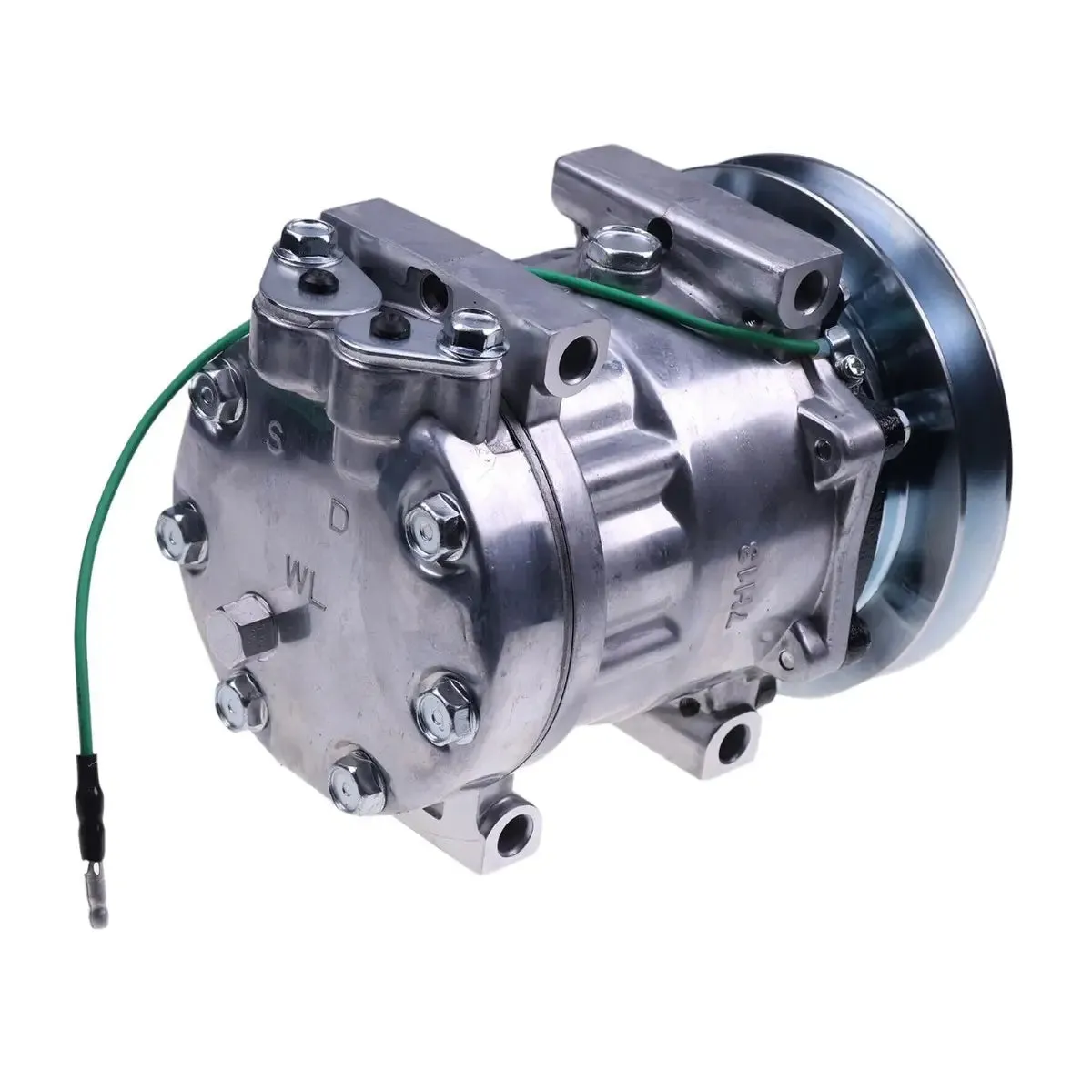

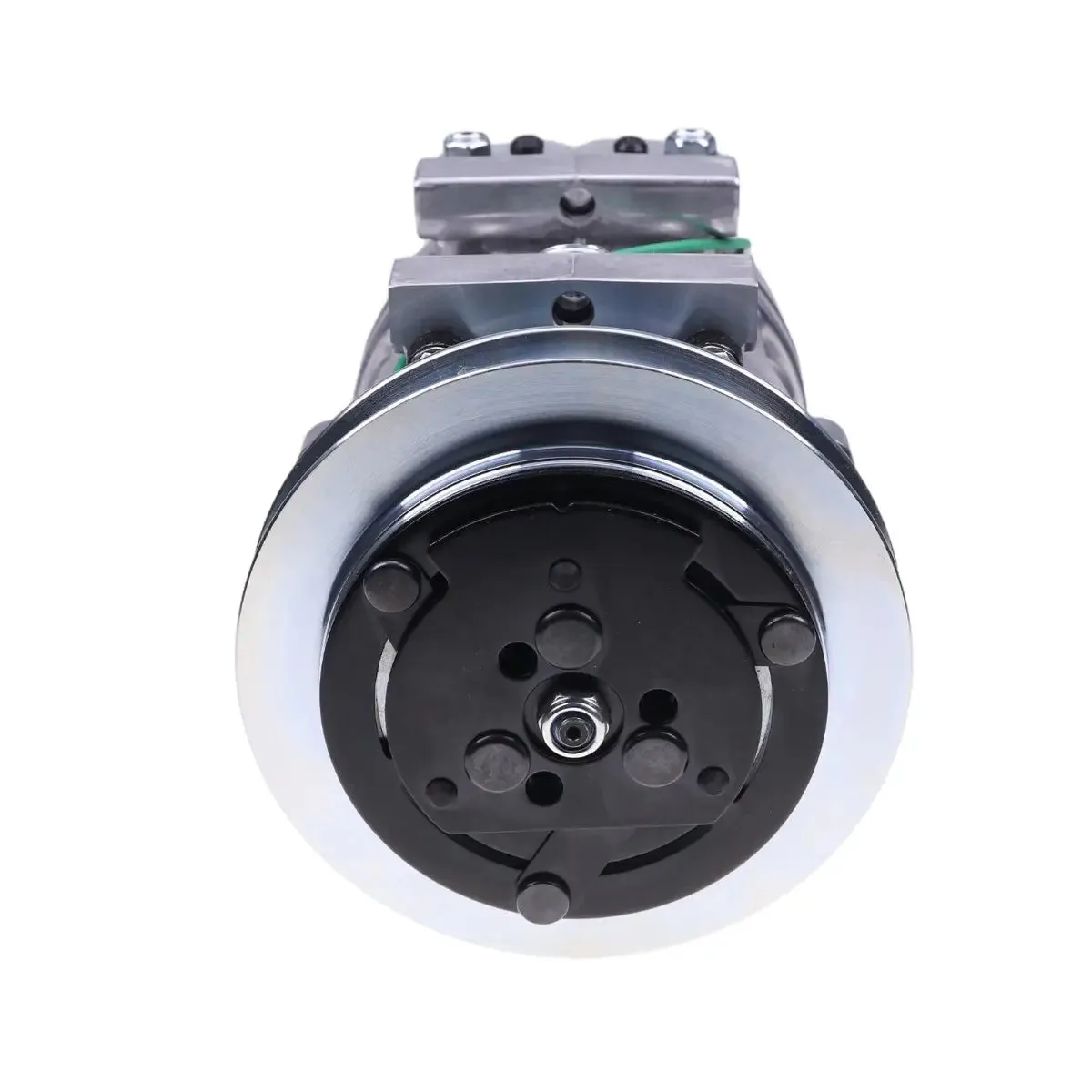

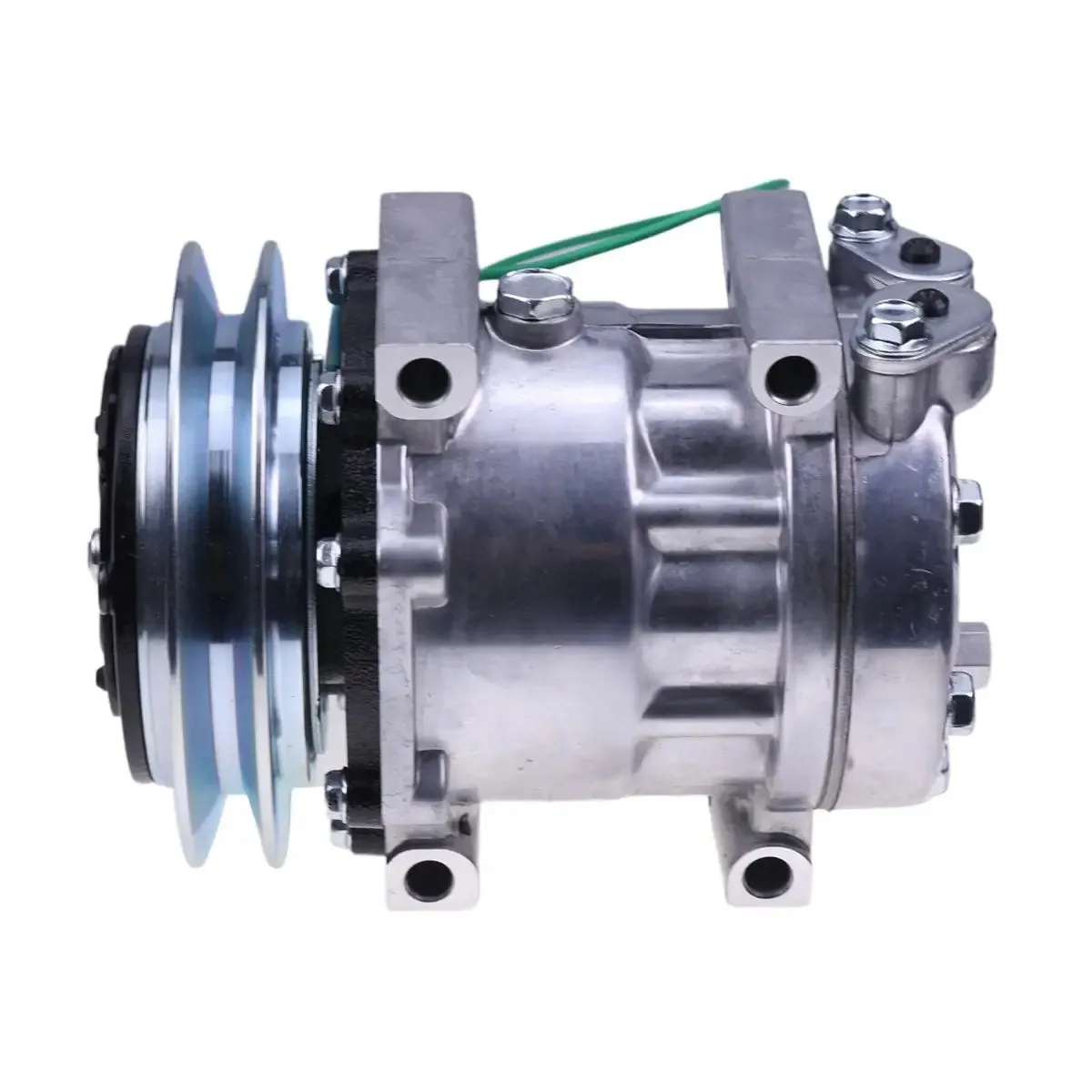

A/C Compressor 423-S62-4330 for Komatsu WA150-6 WA200-6 WA250-6 WA320-6 WA320-7 WA320-8 WA380-6 WA430-6 WA450-6 WA470-6 WA480-6 is a Air Conditioning Compressor replacement part indexed for Komatsu HD785-7 and Komatsu PC60-8, with 3 application records on file. Match OEM part number 423-S62-4330 and confirm fitment...
This Air Conditioning Compressor is indexed for Komatsu HD785-7; Komatsu PC60-8; Komatsu PC70-8; Komatsu WA150-6. Compare reference number 423-S62-4330 against the label on your existing Komatsu component before ordering.
Additional cross references on file: 8948. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.
| Compressor Family | SD7H13 |
|---|---|
| Style | Standard |
| Compressor Mount Type | Direct |
| Rotation Direction | CW |
| Cylinder Head | WL |
| Port Angle | Vertical |
| Head Port Style | Pad |
| Clutch Diameter | 146 mm ~ 5 and 3/4 inches |
| Clutch Style | With Dust Cover |
| Belt Type | 5/8 Width V-Belt |
| Number of Grooves | 1 |
| Voltage | 24V |
| Part Number (Komatsu) | 423-S62-4330, 423S624330 |
| Part Number (Sanden Number) | 8948 |
| Part Number | Komatsu: 423-S62-4330, 423S624330 Sanden Number: 8948 |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
