OEM / REF: 415-2557SKU: pilotpart122996

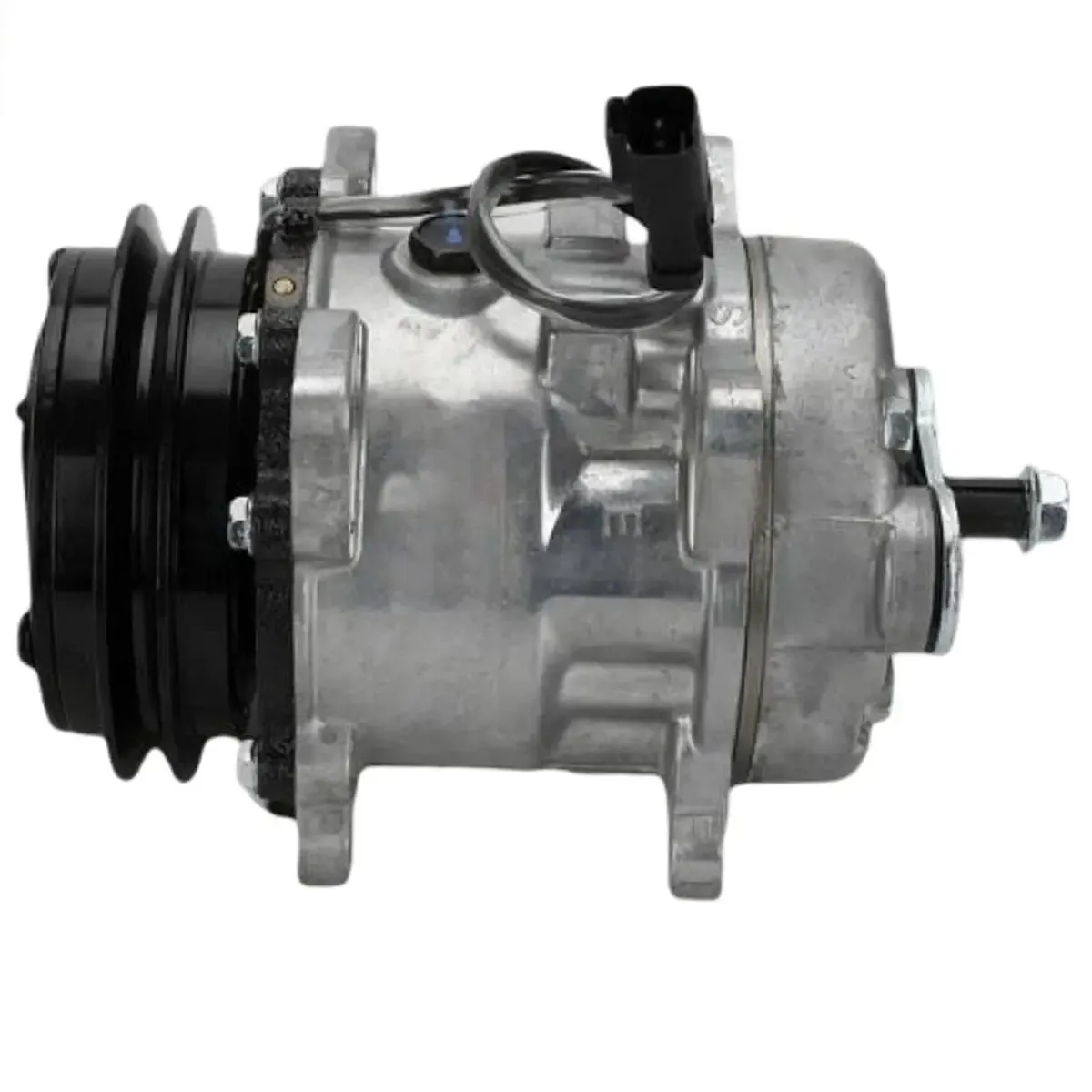

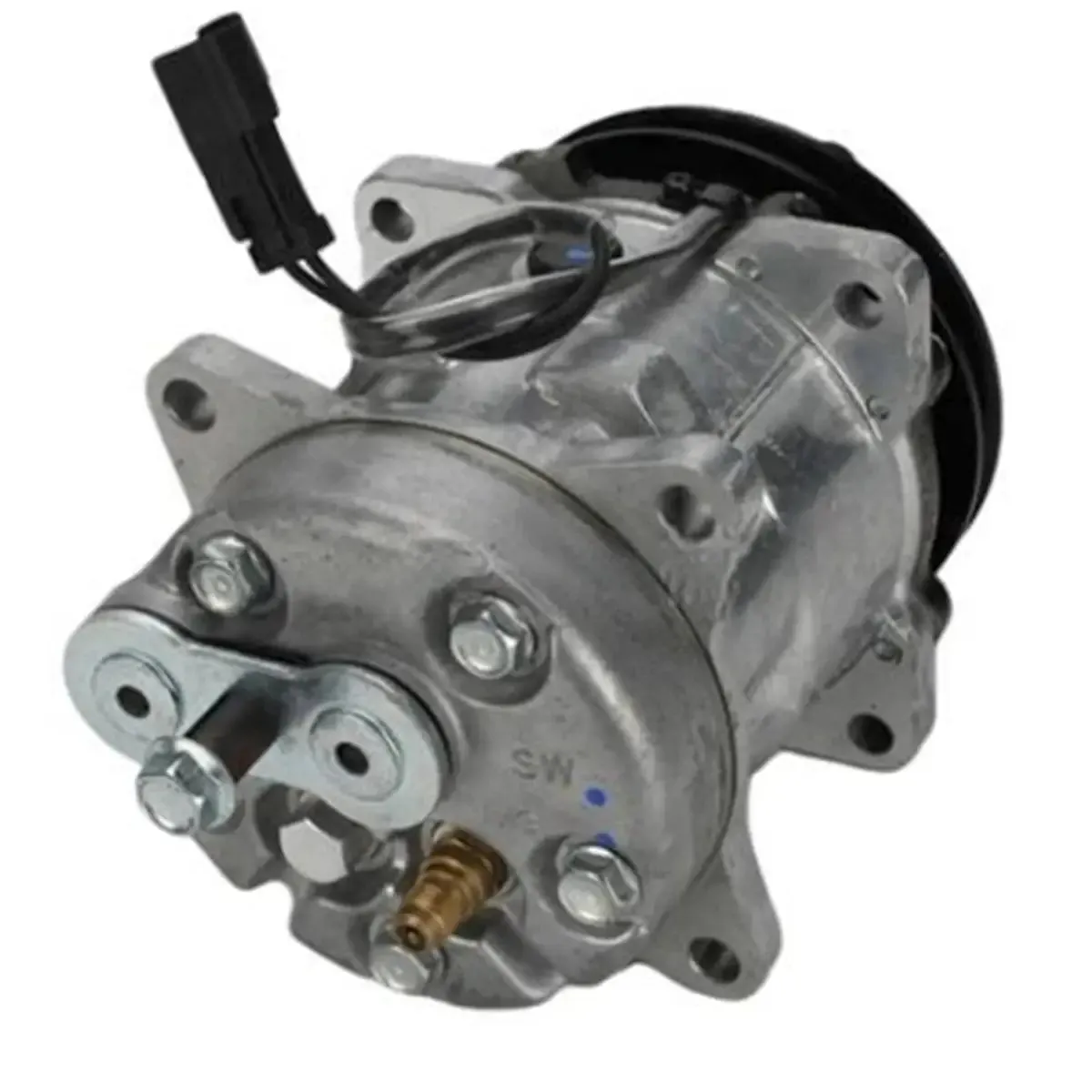

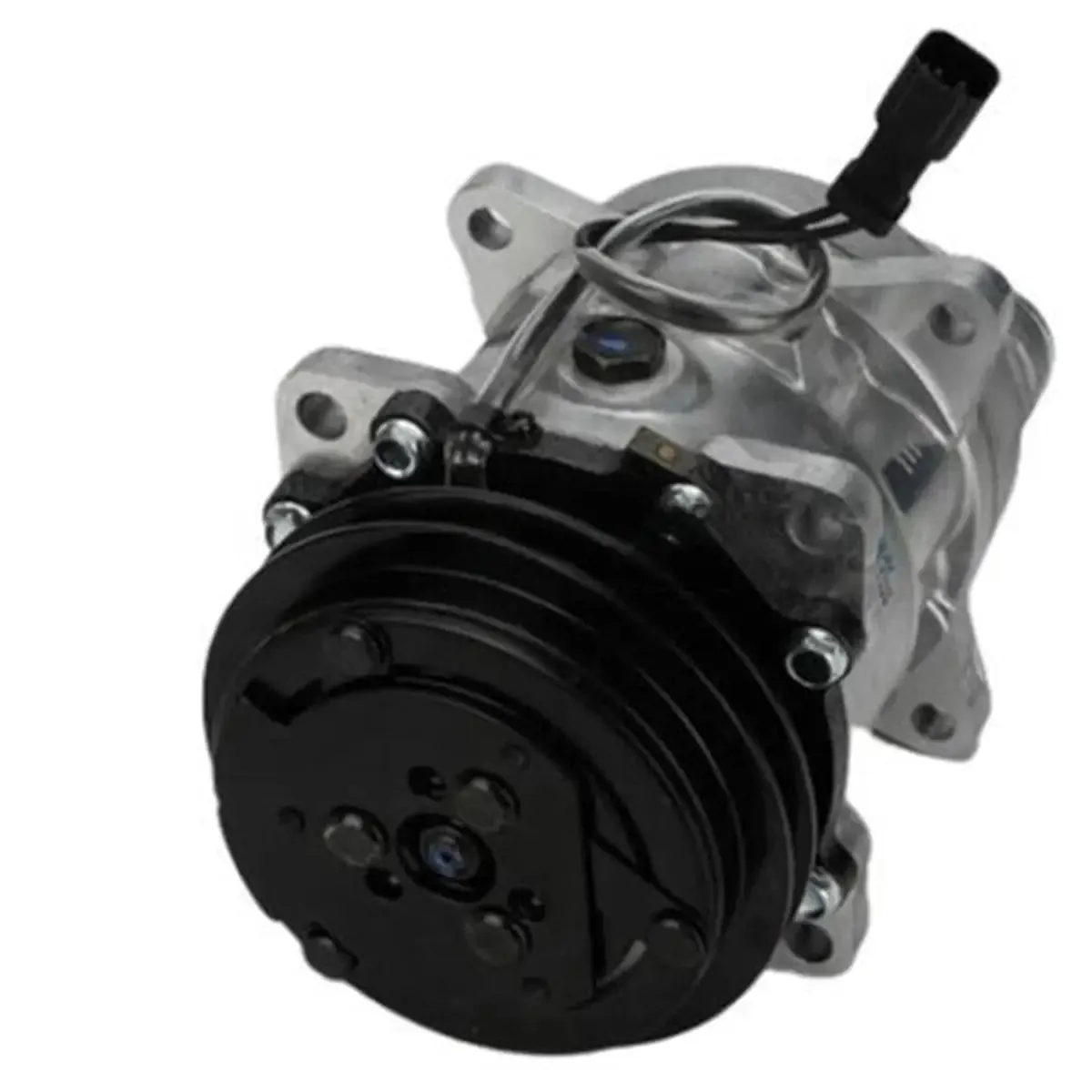

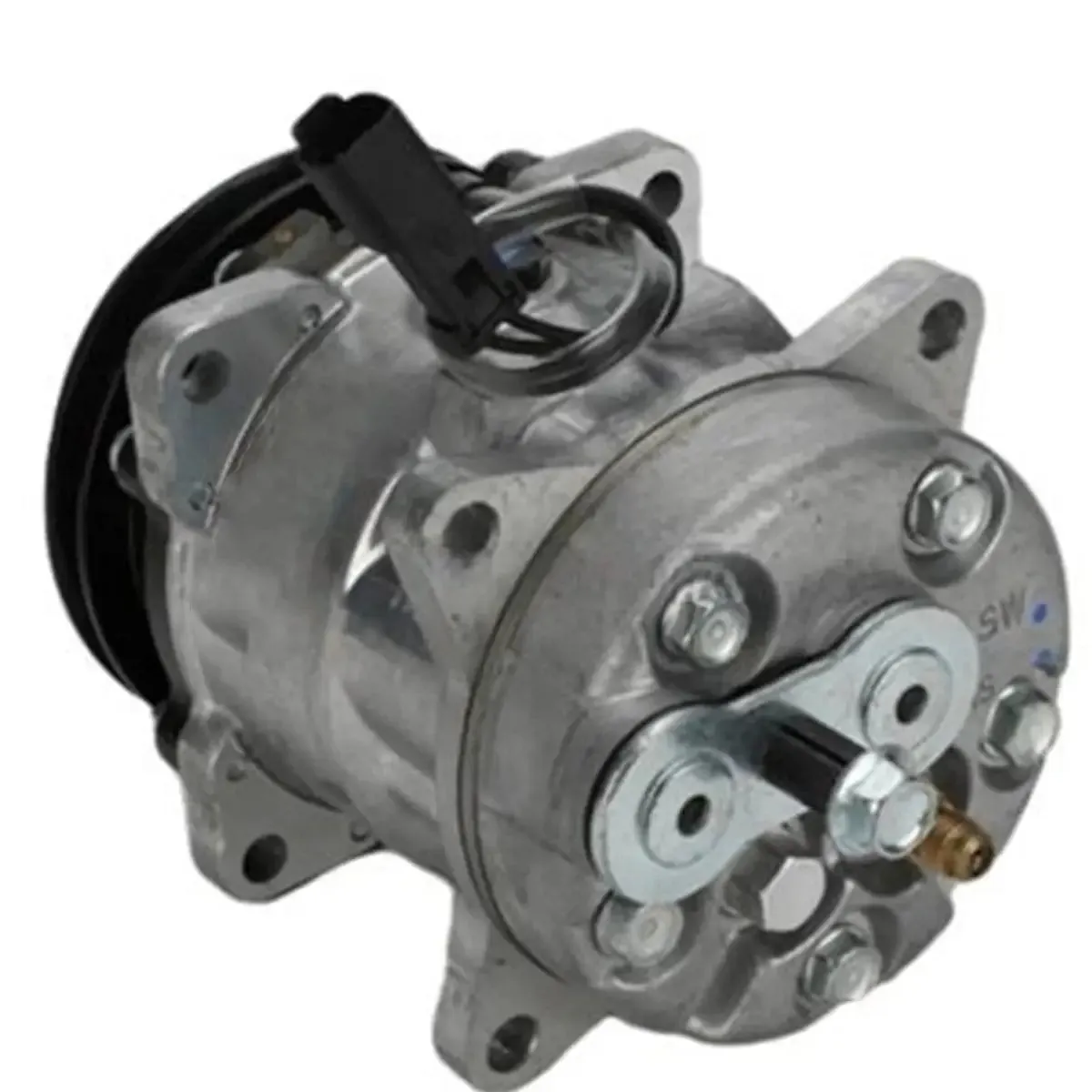

A/C Compressor 415-2557 for Caterpillar CAT Excavator 307 307E 307E2 308E 308E2 Engine C2.6 C3.3B is a Air Conditioning Compressor replacement part indexed for CAT 307 and CAT 307E, with 3 application records on file. Match OEM part number 415-2557 and confirm fitment for Caterpillar HVAC Parts before ordering.
This Air Conditioning Compressor is indexed for CAT 307; CAT 307E; CAT 307E2; CAT 308E. Compare reference number 415-2557 against the label on your existing Caterpillar component before ordering.
Additional cross references on file: CA4152557. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.
| Voltage | 12V |
|---|---|
| Compressor Family | SD7H13 |
| Style | Heavy Duty |
| Compressor Mount Type | Direct |
| Rotation Direction | CW |
| Cylinder Head | GK |
| Port Angle | Horizontal Pad |
| Clutch Diameter | 125 mm ~ 4/16 inches |
| Clutch Type | With Dust Cover |
| Belt Type | V-belt |
| Number of Grooves | 2 |
| Coil Connector | 2 Wire Deutsch #DT04-2P-E |
| Coil Position | 12 O'clock |
| Oil Type | SP20 or PAG 100 |
| Oil Qty | 135cc |
| Refrigerant | R134a |
| Part Number | 415-2557, 4152557, CA4152557 |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
