OEM / REF: SD4545SKU: pilotpart123584

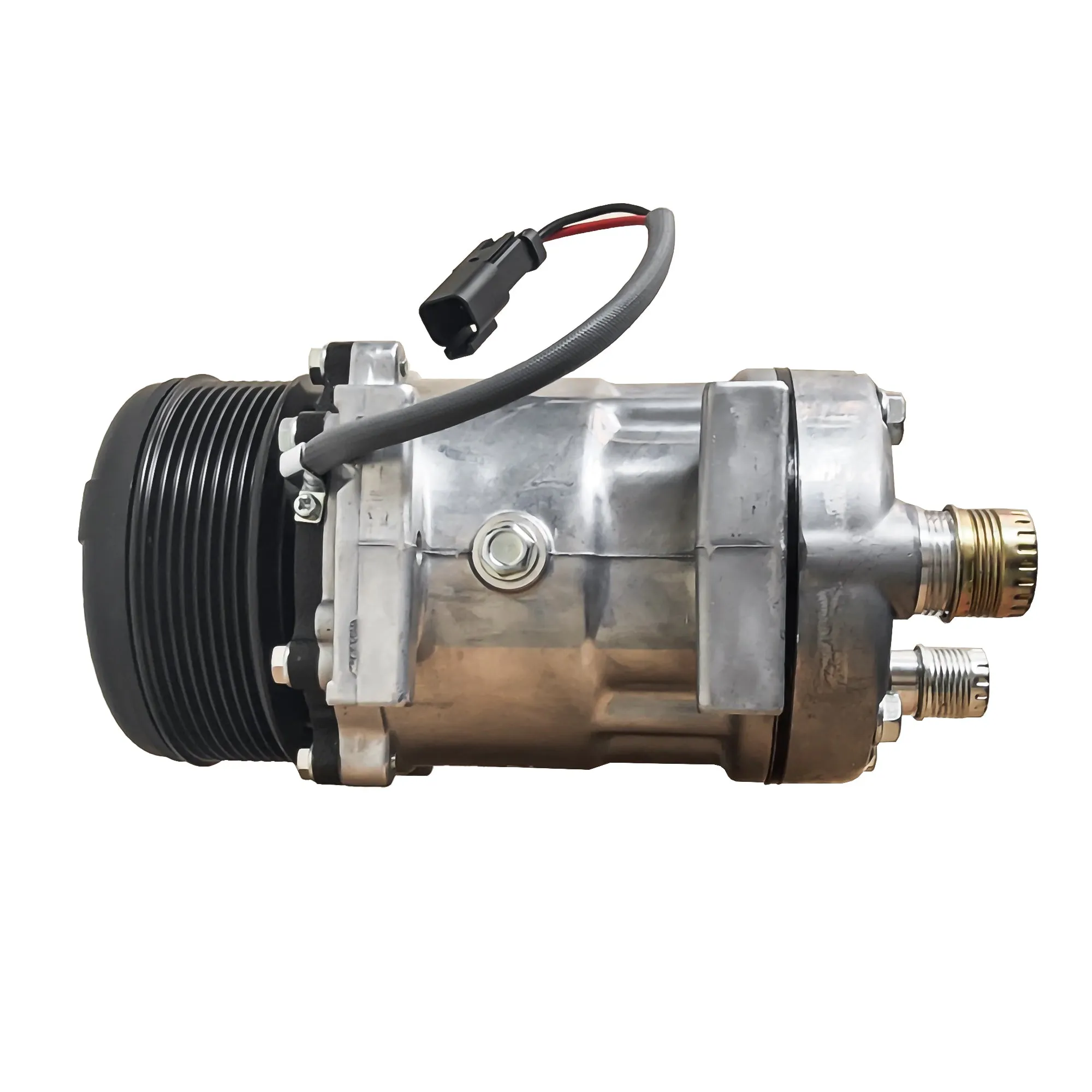

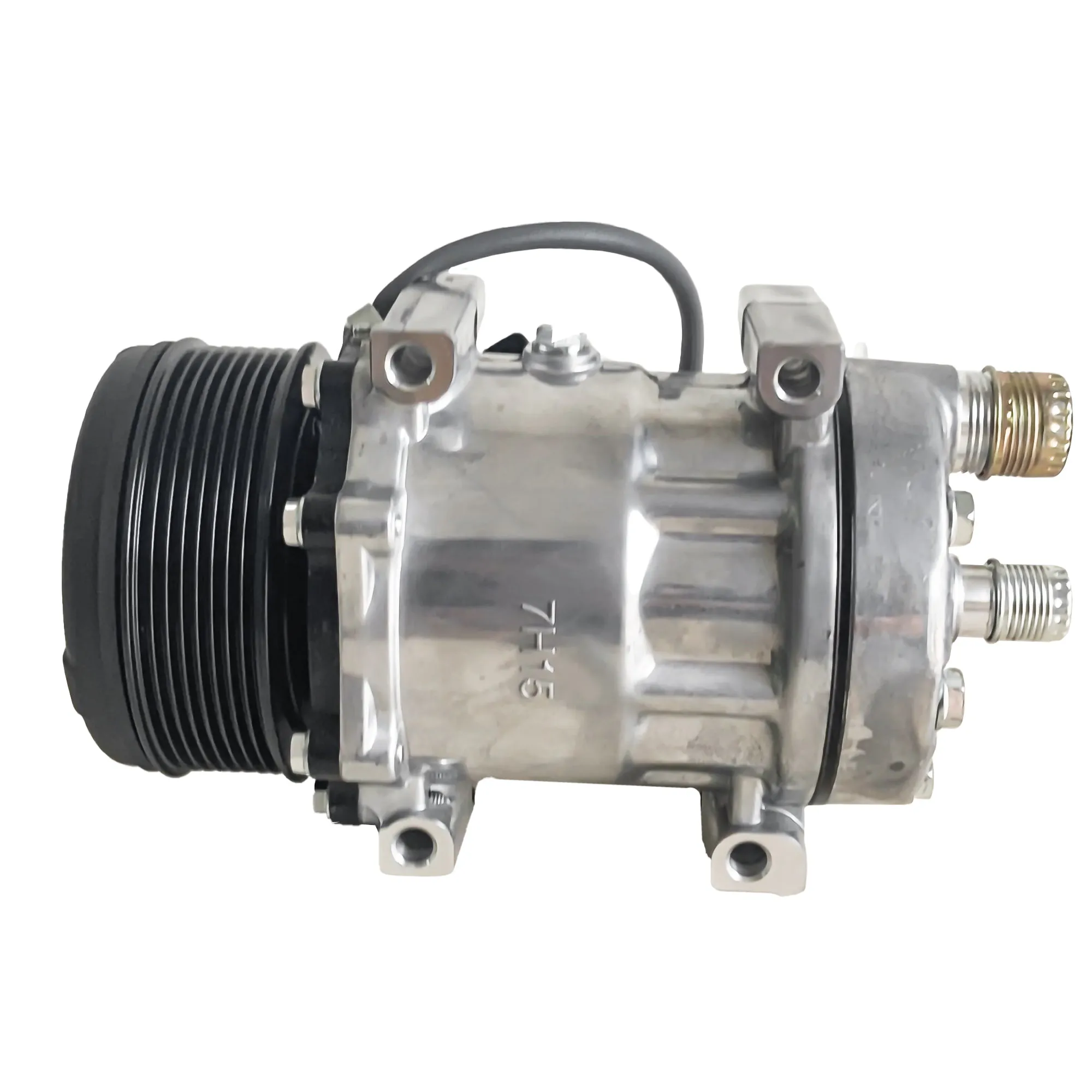

Sanden Air Conditioning Compressor SD4545 is listed under HVAC Parts > Air Conditioning Compressor with catalog data including Voltage: 12V; Number of Grooves: 8; Compressor Family: SD7H15. Verify fitment for Sanden HVAC Parts using the OEM number, mounting points, and photos of your existing part.
This Air Conditioning Compressor is indexed for Part Number. Compare reference number SD4545 against the label on your existing Sanden component before ordering.
Additional cross references on file: 4545, 4121, 4121U. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.
| Voltage | 12V |
|---|---|
| Number of Grooves | 8 |
| Compressor Family | SD7H15 |
| Style | Enhanced |
| Compressor Mount Type | Direct |
| Rotation Direction | CW |

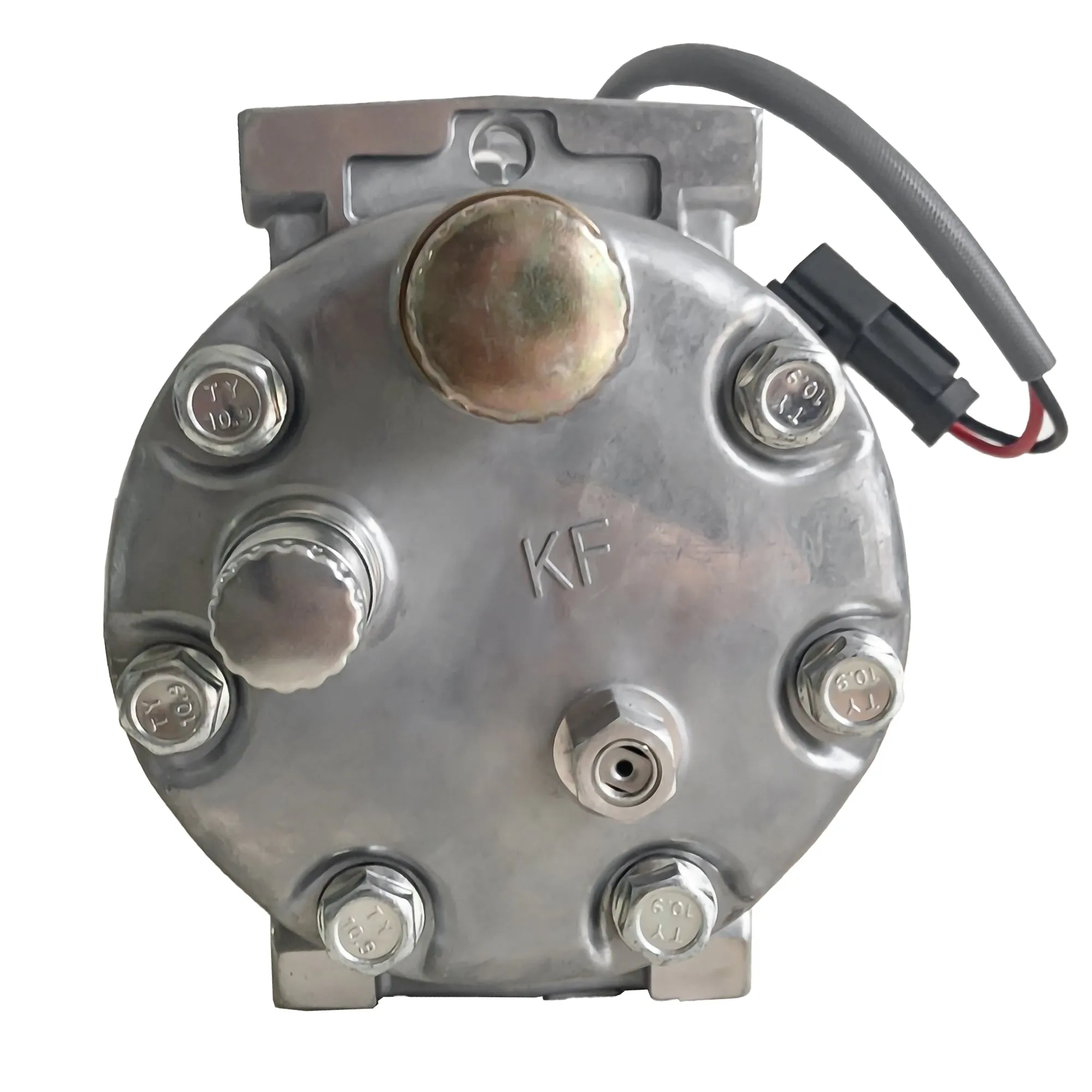

| Cylinder Head | KF |
| Port Angle | Horizontal |
| Head Port Style | 1 1/16" X 3/4" |
| Clutch Diameter | 119 mm ~ 4 and 11/16 inches |
| Belt Type | Serpentine |

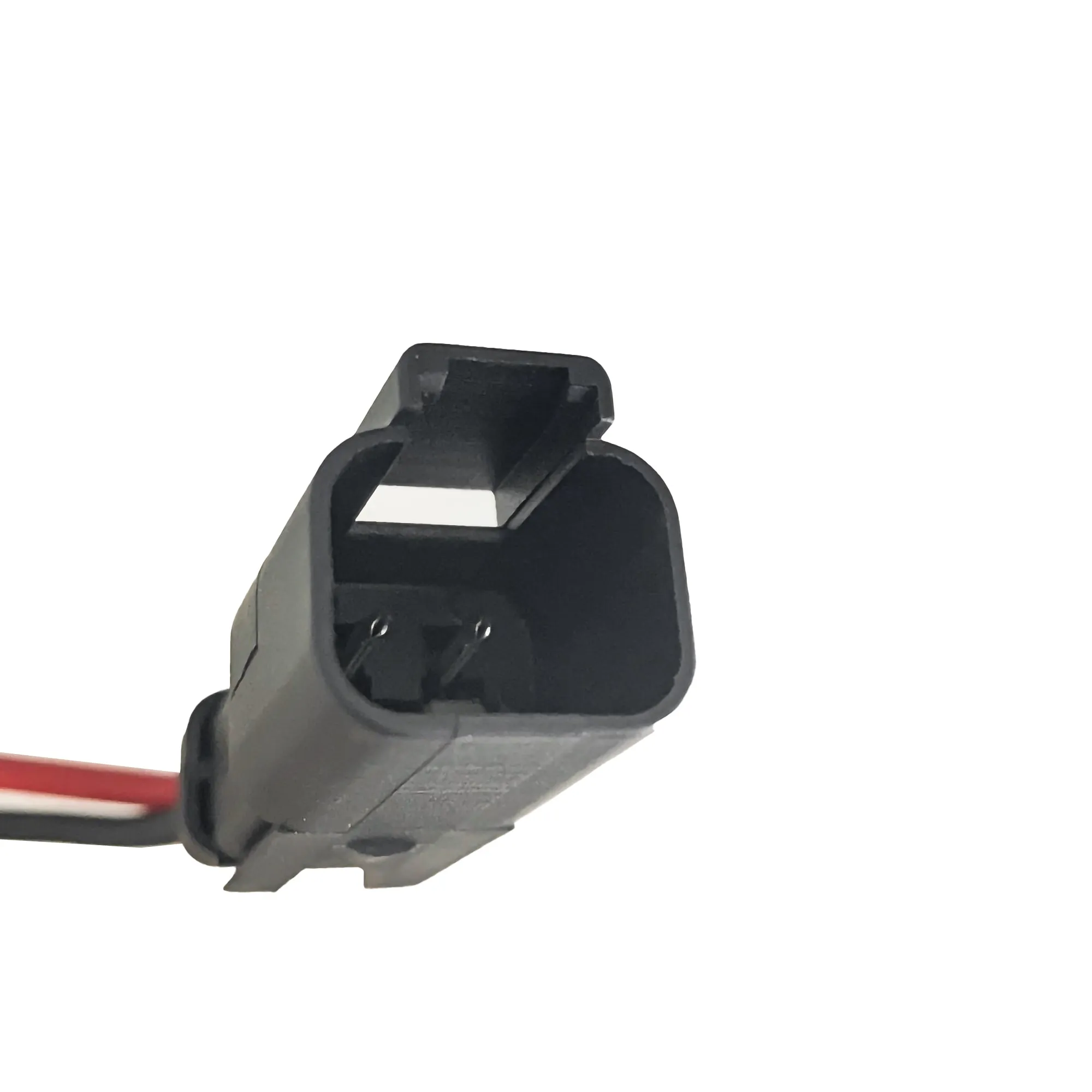

| Coil Connector | 2 Wire Male Packard #12015792 |
| Coil Position | 12 O'clock |
| Oil Type | SP15 or PAG 100 |
| Oil Qty | 270cc |
| Part Number | SD4545, 4545, 4121, 4121U, 4046 |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
