How do I confirm pilotpart386588 fits my machine?

Compare the OEM or reference part number, machine model, engine model, and serial number. You can also submit a fitment inquiry before ordering.

In Stock

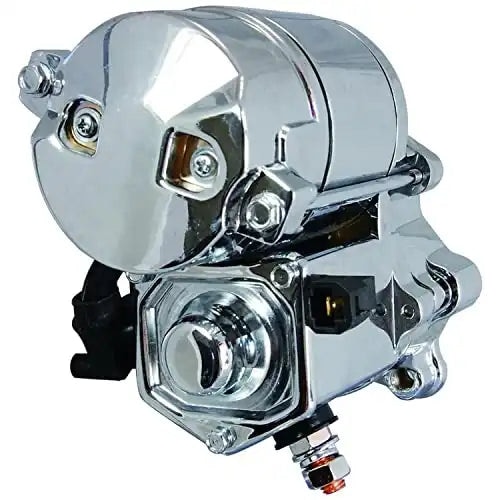

New Chrome Starter Replacement For 1981-2014 Harley Davidson Sportster 3139091, 31390-91A, 31390-91B, 31390-91E, 31390-91F, 31391-91, 31391-91A, 31391-91B, 31514-90, SHD0004, 41052136, SHD0004C

For Harley Davidson Starter Motor

Starter Motor 41052136 for Harley Davidson XR1200X 10-13

OEM / REF: 41052136SKU: pilotpart386588

New Chrome Starter Replacement For 1981-2014 Harley Davidson Sportster 3139091, 31390-91A, 31390-91B, 31390-91E, 31390-91F, 31391-91, 31391-91A, 31391-91B, 31514-90, SHD0004, 41052136, SHD0004C is a Starter Motor replacement part indexed for Part Number and HARLEY DAVIDSON XR1200X 10-13, with 3 application records o...

Stock: In stock
Condition: New
Fitment: Harley Davidson Engine Spare Parts
Category: Starter Motor

Fitment support before you order
Worldwide delivery options

In stock — ready to order

$199.13USD/EA

~~$31,599.00~~Save 99%

Estimated delivery by quantity

Estimated delivery windows
Qty	Estimated delivery
1	Oct 23 – Oct 30
10	Oct 21 – Oct 28
50	Oct 19 – Oct 26

Estimates from today; confirm exact lead time before payment.

Quantity

Confirm fitment before ordering →

Lead times can vary by freight route and customs. Contact support for expedited shipping.

Starter Motor Description

This Starter Motor is indexed for Part Number; HARLEY DAVIDSON XR1200X 10-13; HARLEY DAVIDSON XR1200 09-10; HARLEY DAVIDSON XR1000 83-85. Compare reference number 41052136 against the label on your existing Harley Davidson component before ordering.

Additional cross references on file: SHD0004C. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.

Part Numbers and Cross References

41052136 SHD0004C

Applications

Part Number
HARLEY DAVIDSON XR1200X 10-13
HARLEY DAVIDSON XR1200 09-10
HARLEY DAVIDSON XR1000 83-85
HARLEY DAVIDSON XLX-61 83-85
HARLEY DAVIDSON XLX 1000 83-85
HARLEY DAVIDSON XLSA Roadster Anniv. 82-82
HARLEY DAVIDSON XLS Sportster Sport 00-03
HARLEY DAVIDSON XLS Roadster 81-85
HARLEY DAVIDSON XLR Sportster Roadster 02-07
HARLEY DAVIDSON XLN Nightster 07-07
HARLEY DAVIDSON XLL Sportster Low 05-07
HARLEY DAVIDSON XLH883HUG Sportster 883 Hugger 87-03
HARLEY DAVIDSON XLH883DLX Sportster 883 Deluxe 86-95
HARLEY DAVIDSON XLH883 86-03
HARLEY DAVIDSON XLH1200 88-03
HARLEY DAVIDSON XLH1100 86-87
HARLEY DAVIDSON XLH1000 81-85
HARLEY DAVIDSON XLH Sportster Liberty 86-86
HARLEY DAVIDSON XLH Sportster 81-92
HARLEY DAVIDSON XLC Sportster Custom 00-07
HARLEY DAVIDSON XL883R Sportster 883 Roadster 02-13
HARLEY DAVIDSON XL883N Iron 883 09-14
HARLEY DAVIDSON XL883L SuperLow 11-14
HARLEY DAVIDSON XL883L Sportster 883 Low 05-11
HARLEY DAVIDSON XL883C Sportster 883 Custom 98-10
HARLEY DAVIDSON XL883 Sportster 04-08
HARLEY DAVIDSON XL50 50th Anniversary Sportster 07-07
HARLEY DAVIDSON XL1200X Forty-Eight 10-14
HARLEY DAVIDSON XL1200V Seventy-Two 12-14
HARLEY DAVIDSON XL1200S Sportster 1200 Sport 96-03
HARLEY DAVIDSON XL1200R Sportster 1200 Roadster 04-08
HARLEY DAVIDSON XL1200N Sportster 1200 Nightster 07-12
HARLEY DAVIDSON XL1200L Sportster 1200 Low 06-11
HARLEY DAVIDSON XL1200C Sportster 1200 Custom 96-14
HARLEY DAVIDSON XL Sportster Hugger 93-02
HARLEY DAVIDSON XL Sportster Deluxe 93-95
HARLEY DAVIDSON XL Sportster Anniv. 93-93
HARLEY DAVIDSON XL Sportster 93-03

Specifications

Part Number	41052136, SHD0004C

Fitment Notes

Brand or application signal: Harley Davidson Engine Spare Parts
Product family: Starter Motor
System category: Engine Spare Parts > Engine Auxiliary Components > Starter Motor
Recommended verification: OEM number, engine model, serial number, old part photos, and dimensions.

Shipping & Returns

Availability: InStock
Shipping: Shipping quotes can be confirmed before payment for heavy or urgent orders.
Returns: Returns are easier when fitment is confirmed before ordering.
B2B support: Bulk, fleet, and repair-shop requests can be handled through the inquiry form.

Frequently Asked Questions

How do I confirm this part fits my machine?

Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.

Can I order if my part number is not listed?

Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.

Is this an OEM part?

Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
