OEM / REF: 41012186RSKU: pilotpart399300

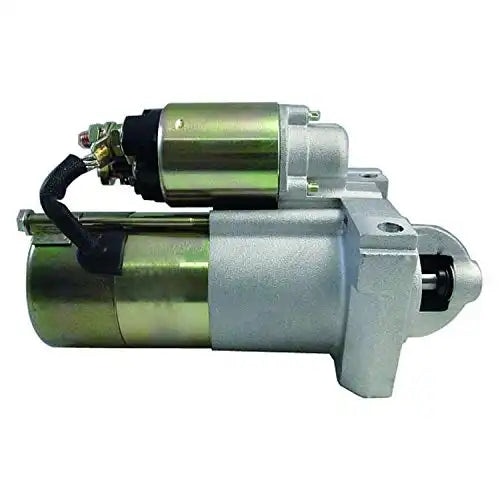

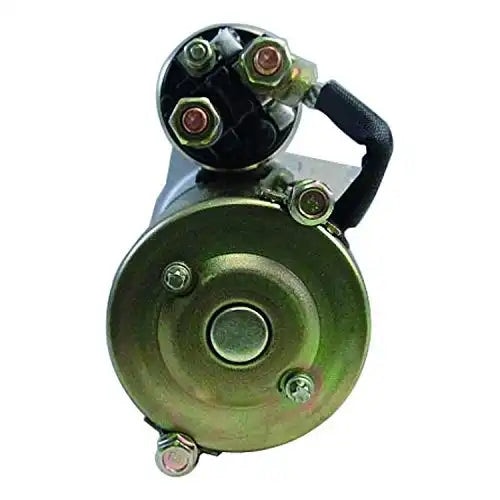

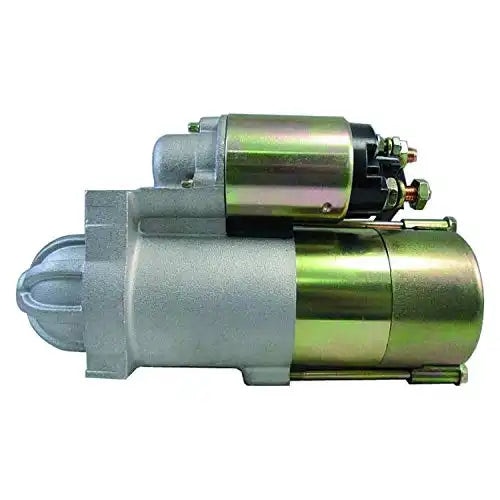

New Performance Zinc Gear Reduction Starter Straight Mounting Block Replacement For GM Chevy LS1-LS6 V8 5.7L 350 Camaro Corvette Firebird 97 98 99 00 01 1997-2001 SDR0097 41012186, 41012186R, 41012443 is a Starter Motor replacement part indexed for Part Number and HUMMER H2 · V8 6.0L · 2003-2005, with 3 application...
This Starter Motor is indexed for Part Number; HUMMER H2 · V8 6.0L · 2003-2005; GMC Yukon XL 2500 · V8 6.0L · 2000-2005; GMC Yukon XL 1500 · V8 6.0L · 2002-2005. Compare reference number 41012186R against the label on your existing Chevrolet component before ordering.
Additional cross references on file: 41012443. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.
| Part Number | 41012186R, 41012443 |
|---|---|
| SPECIFICATIONS | 1.6kW/12 Volt, CW, 11-Tooth Pinion |
| UNIT TYPE | PG260L PMGR |
| SERIES | PG260L |
| DESIGN | PMGR |
| VOLTAGE | 12 |
| KW | 1.6 |
| ROTATION | CW |
| NUMBER OF TEETH | 11 |
| NOTE 1 | Also replaces PG260M starter: 9000853 ( 6492) |
| NOTE 2 | Also replaces PG260M starter: 9000834, 866 ( 6482) however must use 85-1507 long inboard mtg. bolt (M10 x 1.50 x 113mm) |
| FEATURE 1 | 100% Top-rated |
| FEATURE 2 | OE performance torque & output |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
