OEM / REF: 410-52349SKU: pilotpart439389

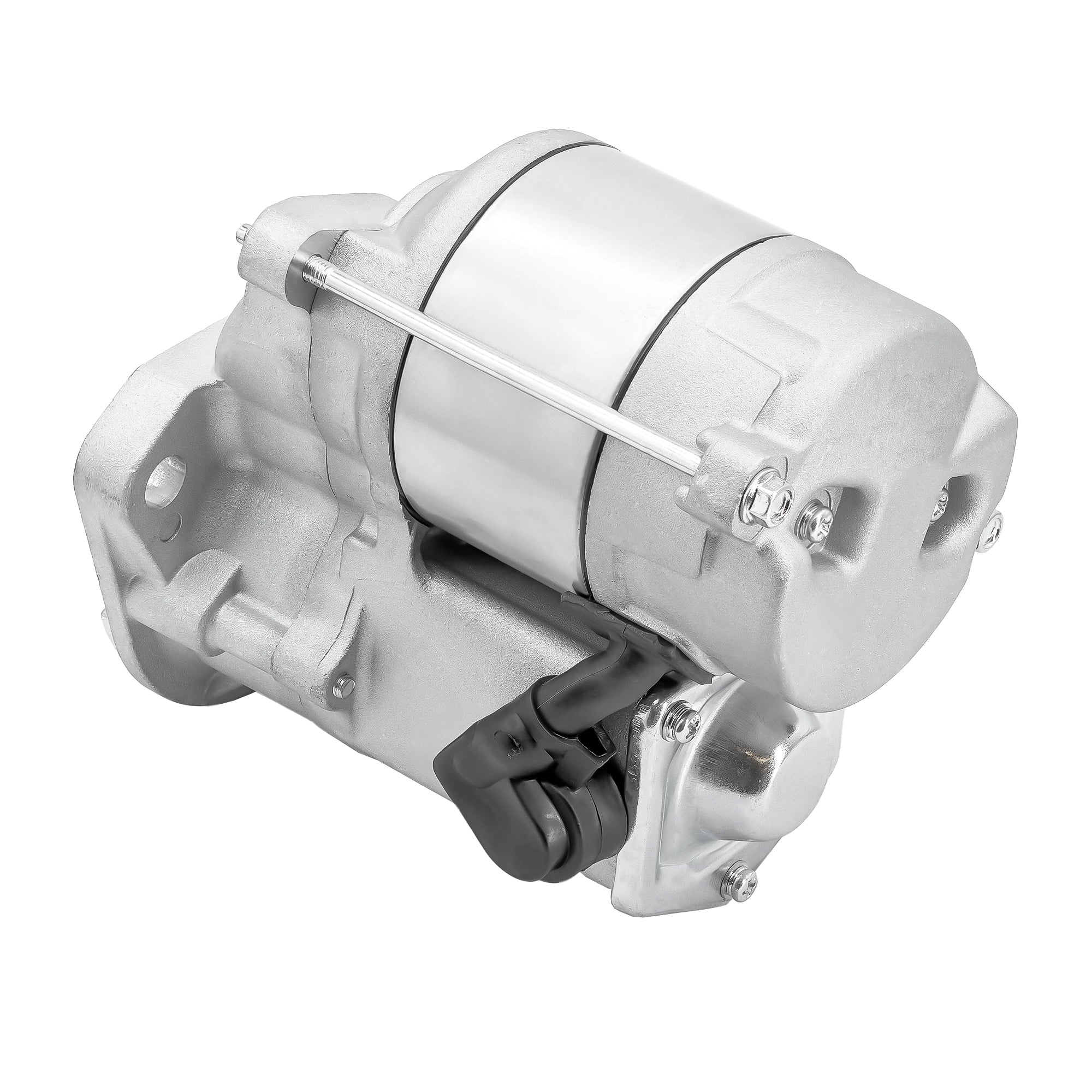

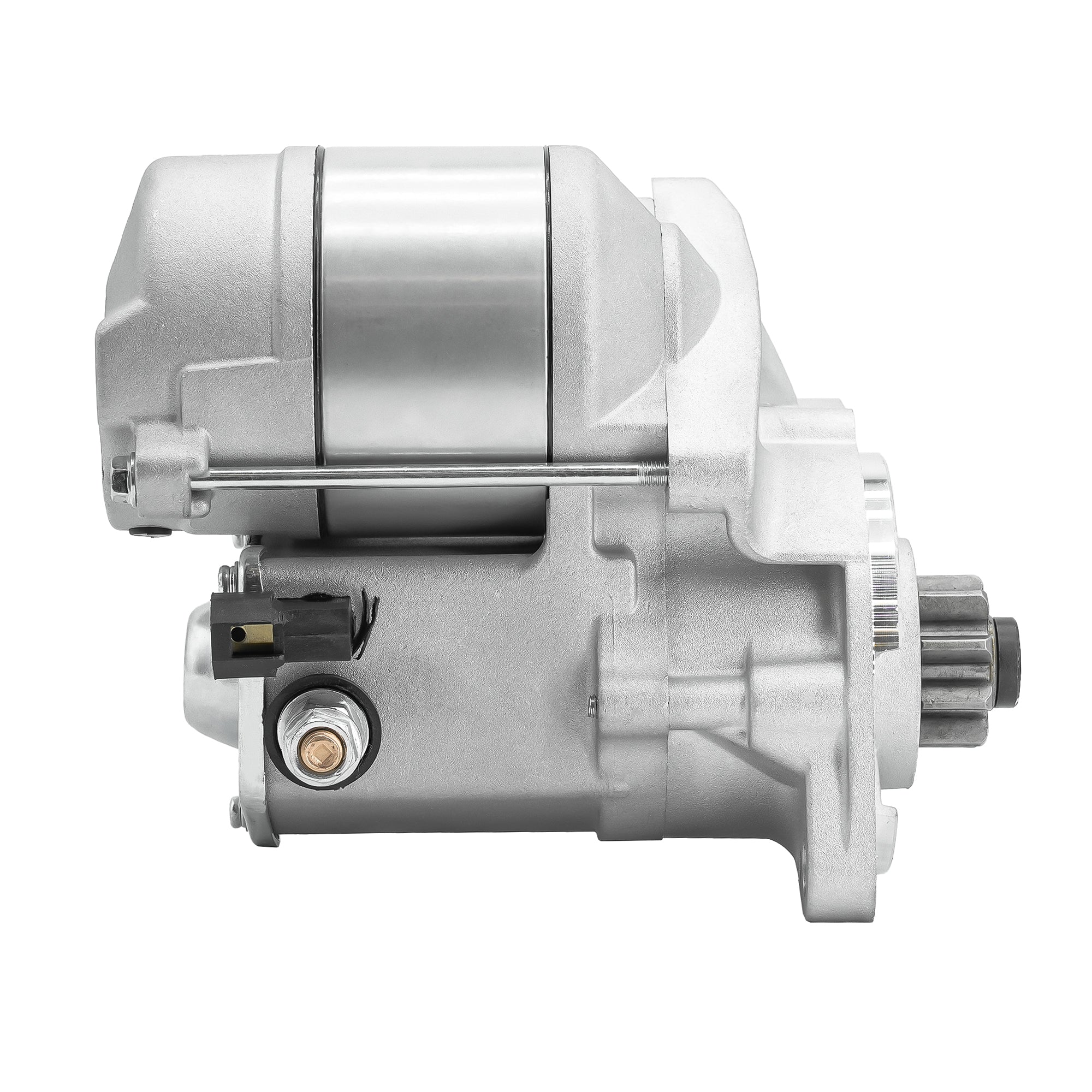

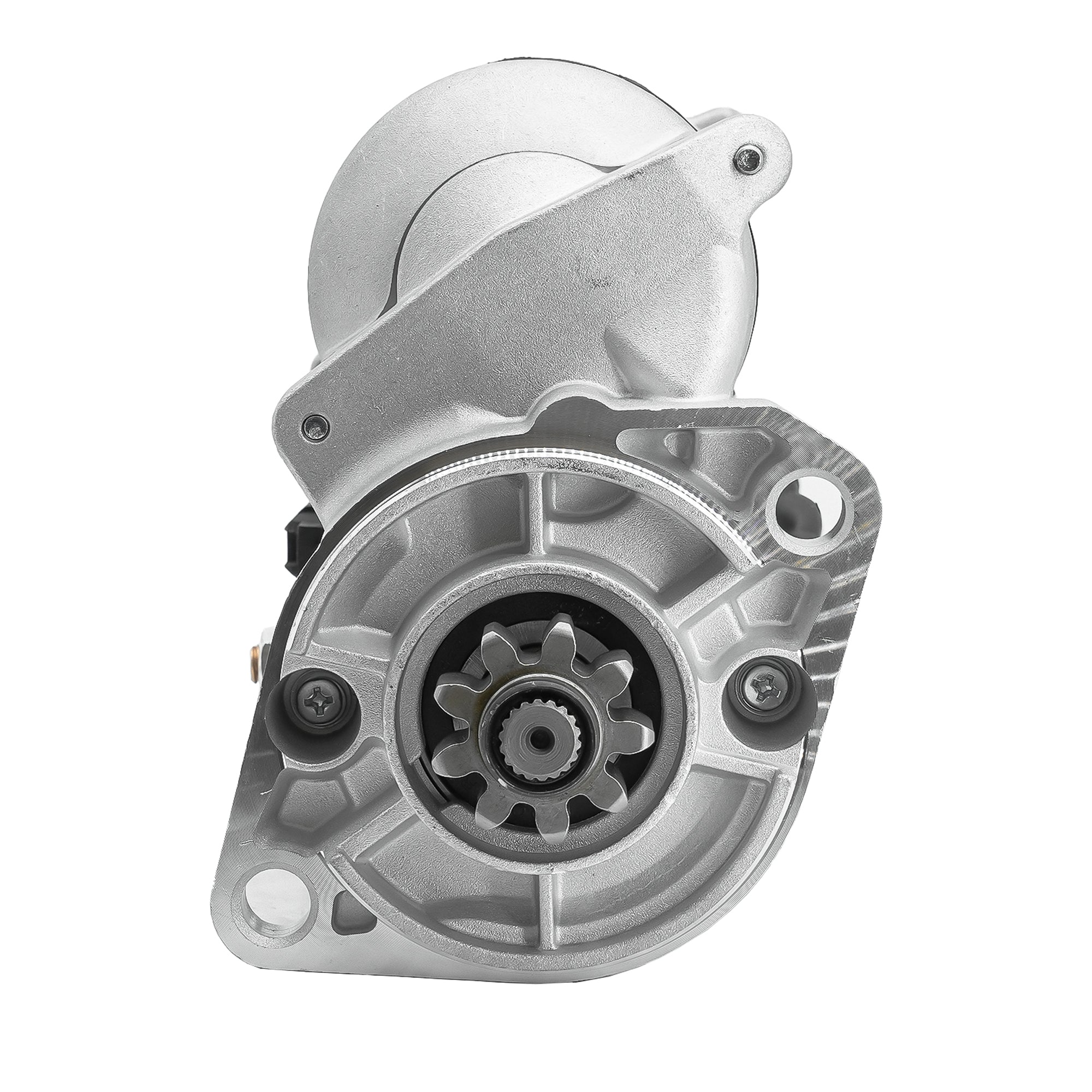

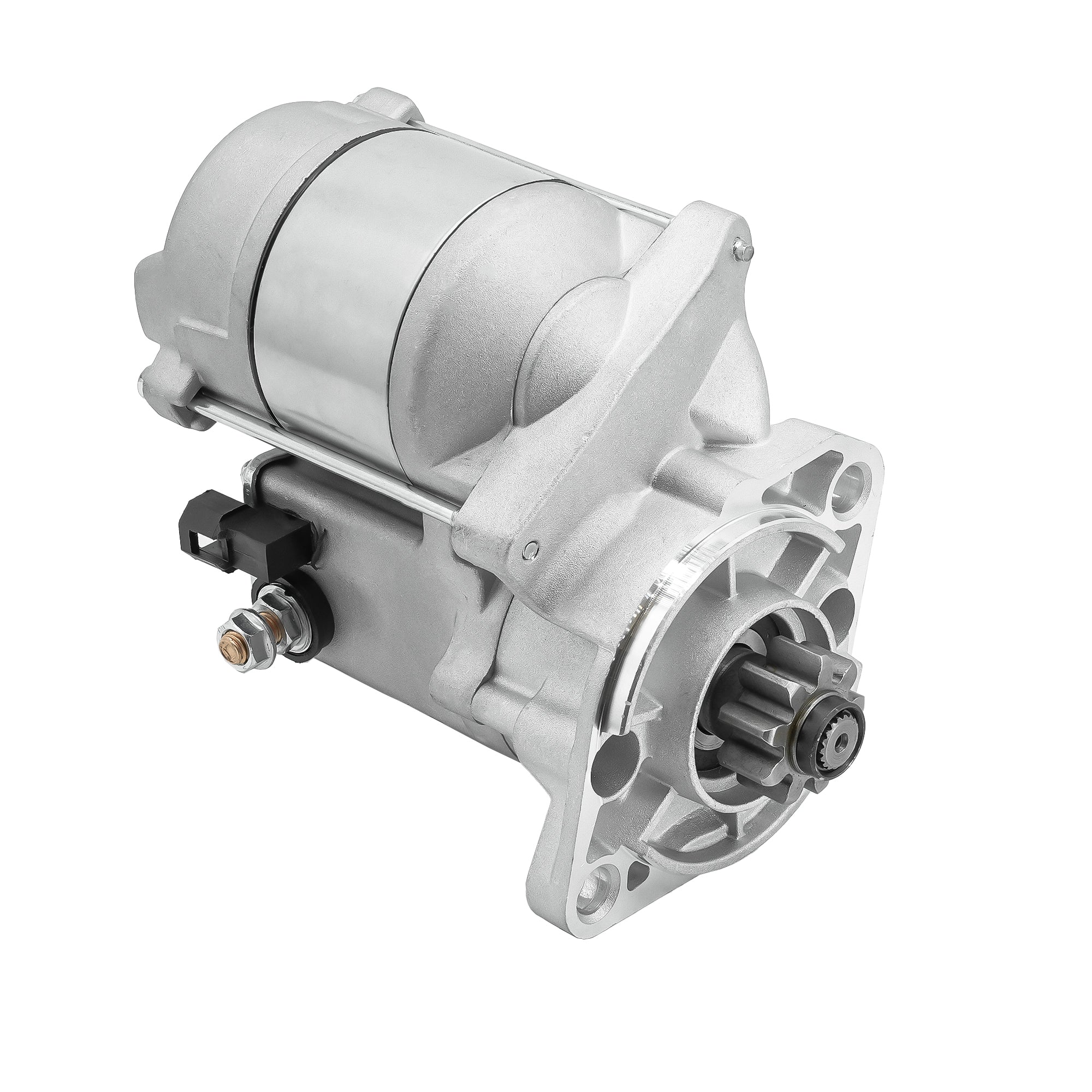

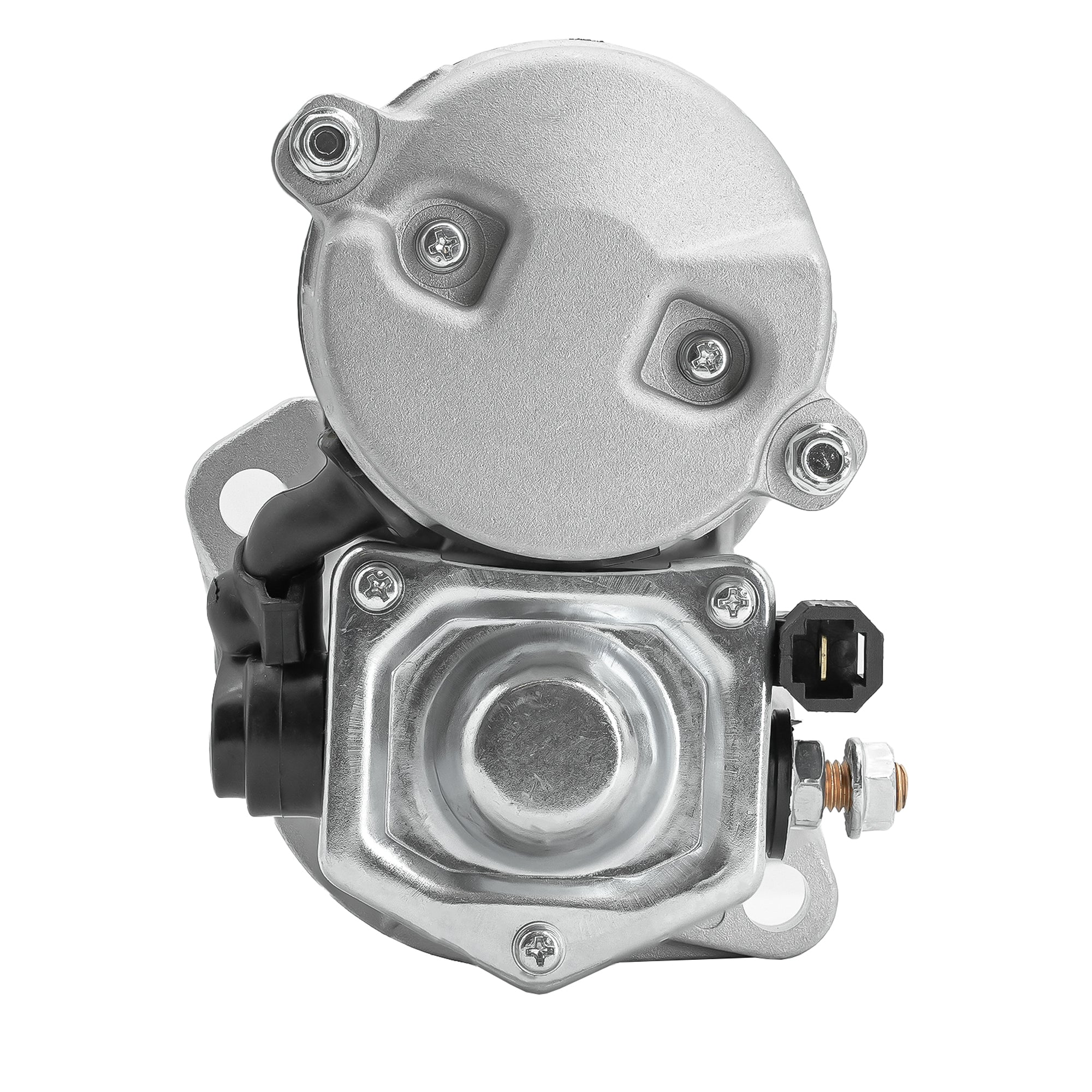

Starter Motor 19616-63010 for Kubota Excavator KX033-4 U35 U35-4 Engine V1902 V1902B is a Starter Motor replacement part indexed for Kubota KX033-4 and Kubota U35, with 3 application records on file. Match OEM part number 410-52349 and confirm fitment for Kubota Engine Spare Parts before ordering.
This Starter Motor is indexed for Kubota KX033-4; Kubota U35; Kubota U35 Tier IV; Kubota U35-4. Compare reference number 410-52349 against the label on your existing Kubota component before ordering.
Additional cross references on file: ND9722809-105, ND128000-2131, 110356. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.
| Voltage | 12V |
|---|---|
| Power | 1.4KW / 1.88HP |
| Number Of Teeth | 9T |
| Unit Type | DENSO, KUBOTA |
| Family | DENSO RA |
| Rotation | CW |
| Starter Type | PMOSGR |
| Gear Od | 1.319IN / 33.5MM |
| Mtg Ear 1 Hole | 11.0MM UNTHREADED |
| Mtg Ear 2 Hole | 11.0MM UNTHREADED |
| Notes | BATTERY STUD M8-1.25 THREADED SWITCH BLADE TERMINAL |
| Part Number (ARROWHEAD) | 410-52349 |
| Part Number (ARROWHEAD (OEM)) | ND9722809-105 |
| Part Number (ARROWHEAD (OEM) (OLD)) | ND128000-2131 |
| Part Number (CARGO) | 110356 |
| Part Number (DENSO) | 128000-2130, 128000-2131, 228000-1050, 228000-1051, 228000-1052 |
| Part Number (DENSO REMAN) | 9722809-105 |
| Part Number (J&N) | 410-52349 |
| Part Number (KUBOTA) | 19616-63010, 19616-63011, 19616-63012, 19616-63013 |
| Part Number (LESTER) | 18146, 18147 |
| Part Number (WILSON (OLD)) | 91-29-5338 |
| Part Number | ARROWHEAD: 410-52349 ARROWHEAD (OEM): ND9722809-105 ARROWHEAD (OEM) (OLD): ND128000-2131 CARGO: 110356 DENSO: 128000-2130, 128000-2131, 228000-1050, 228000-1051, 228000-1052 DENSO REMAN: 9722809-105 J&N: 410-52349 KUBOTA: 19616-63010, 19616-63011, 19616-63012, 19616-63013 LESTER: 18146, 18147 WILSON (OLD): 91-29-5338 |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
