OEM / REF: 410-24079SKU: pilotpart426369

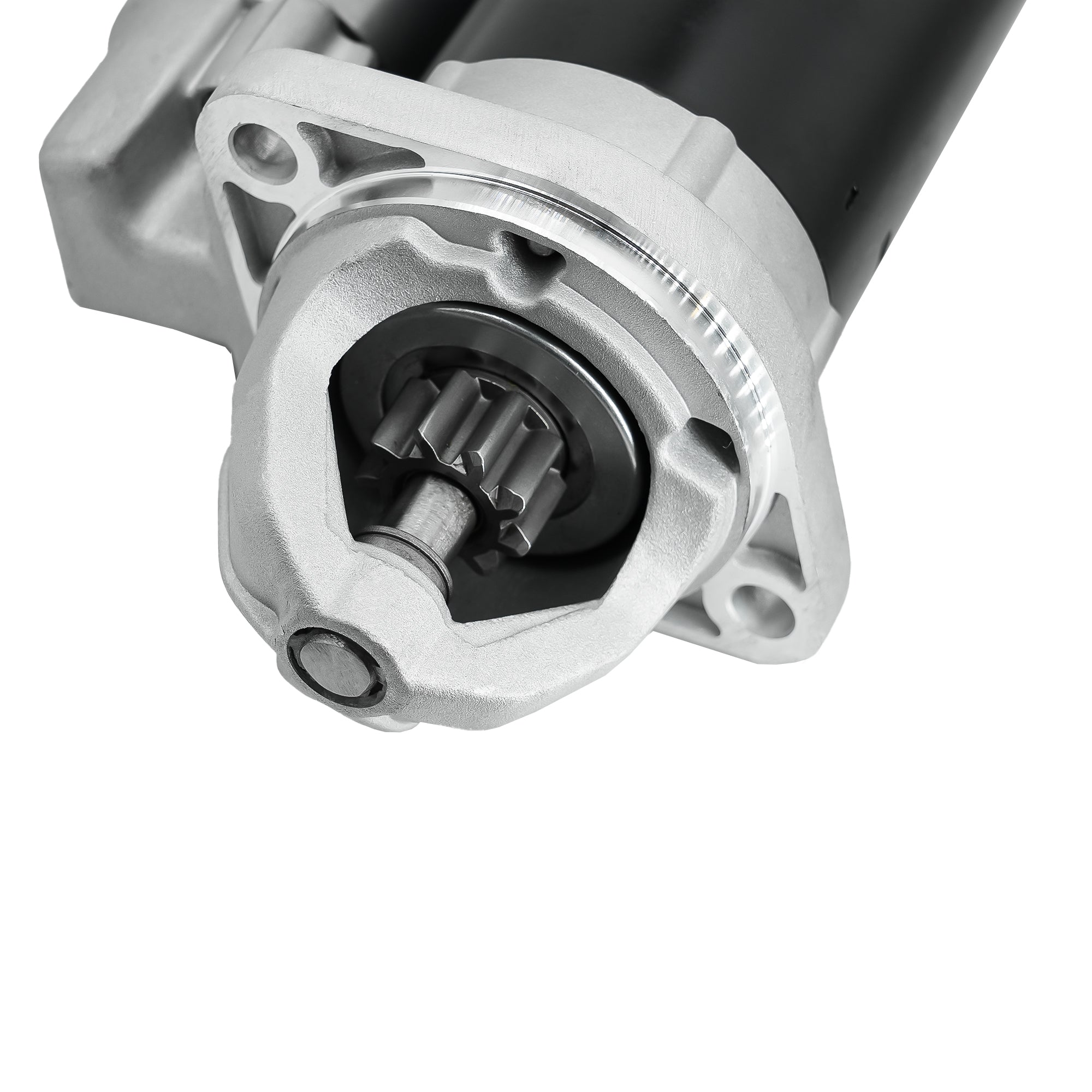

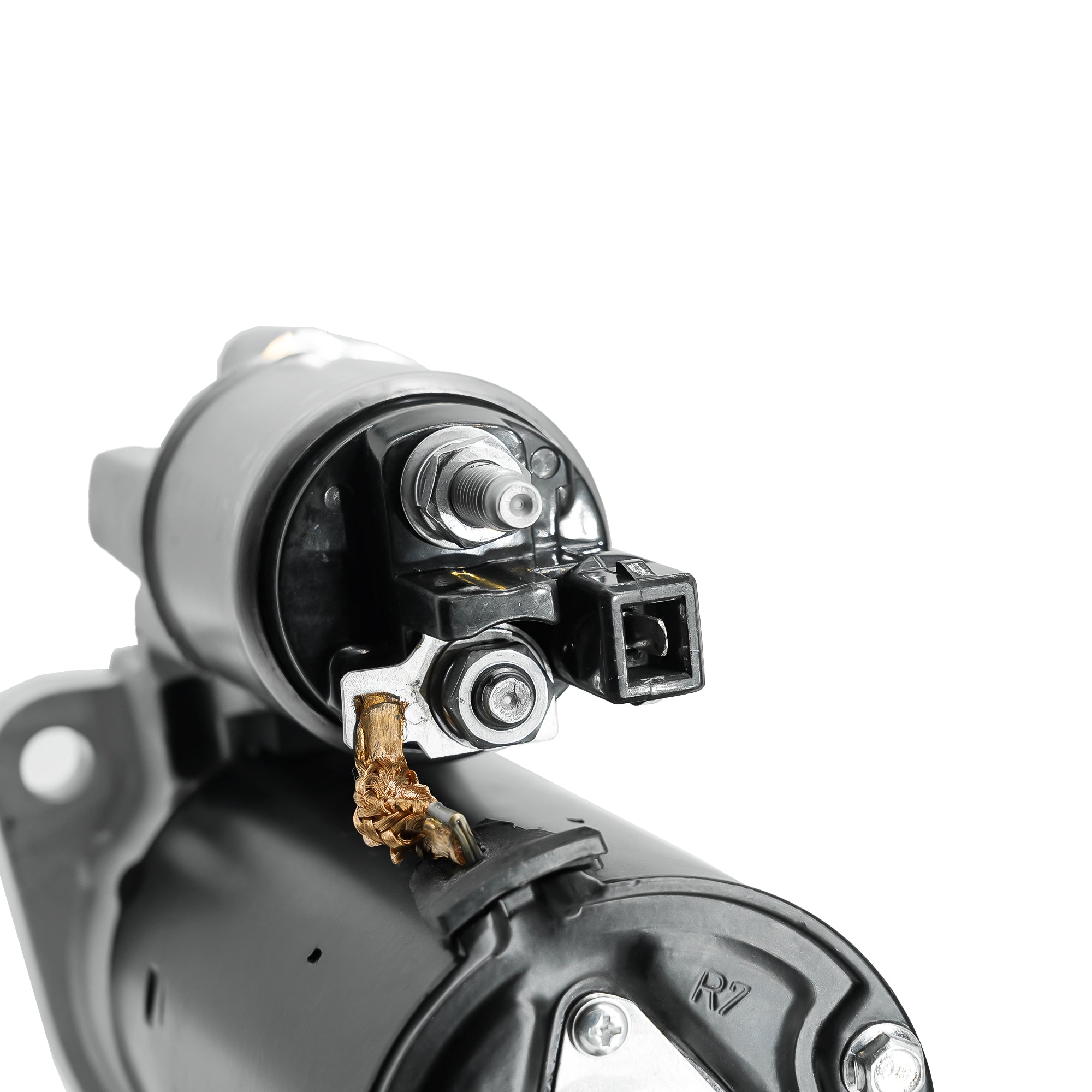

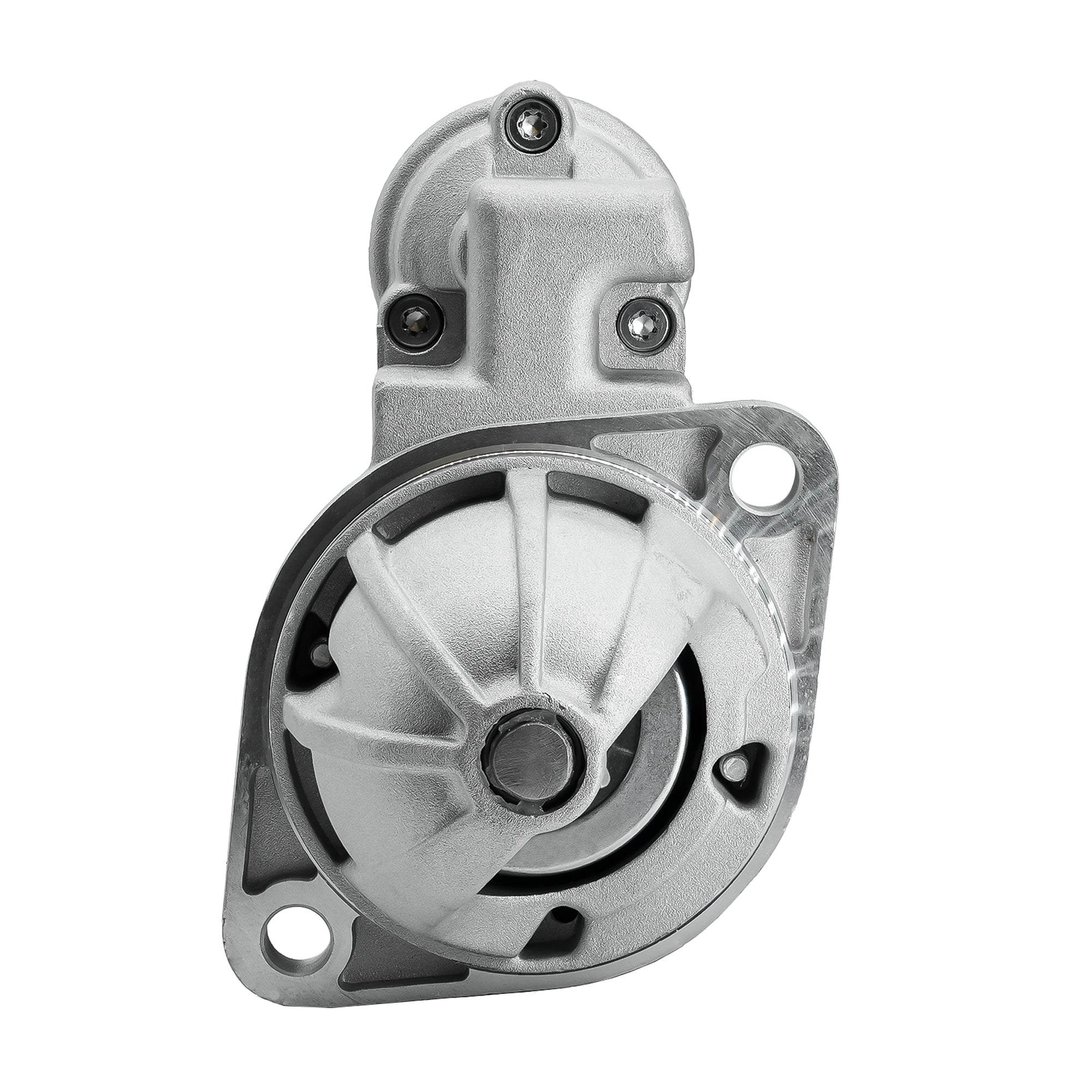

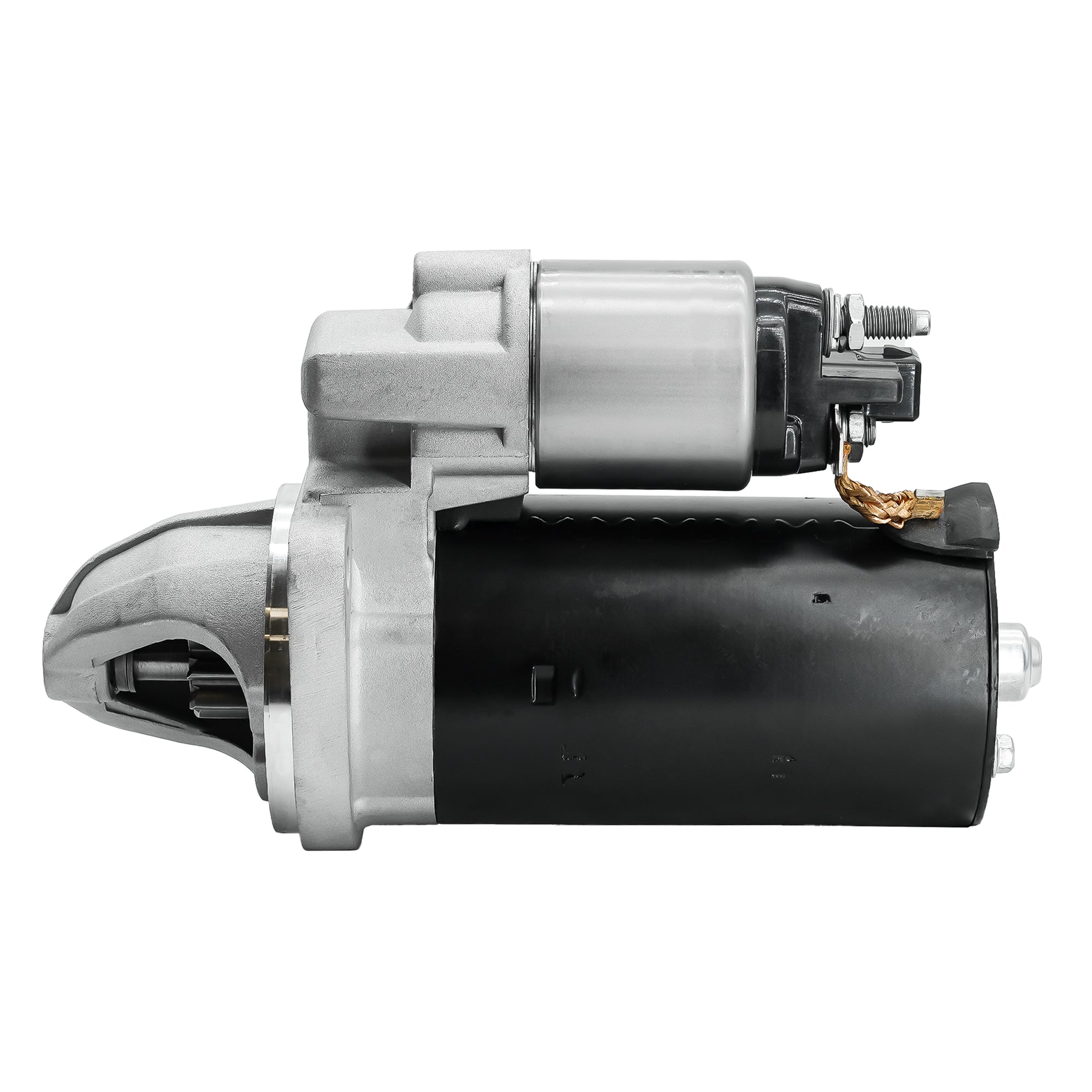

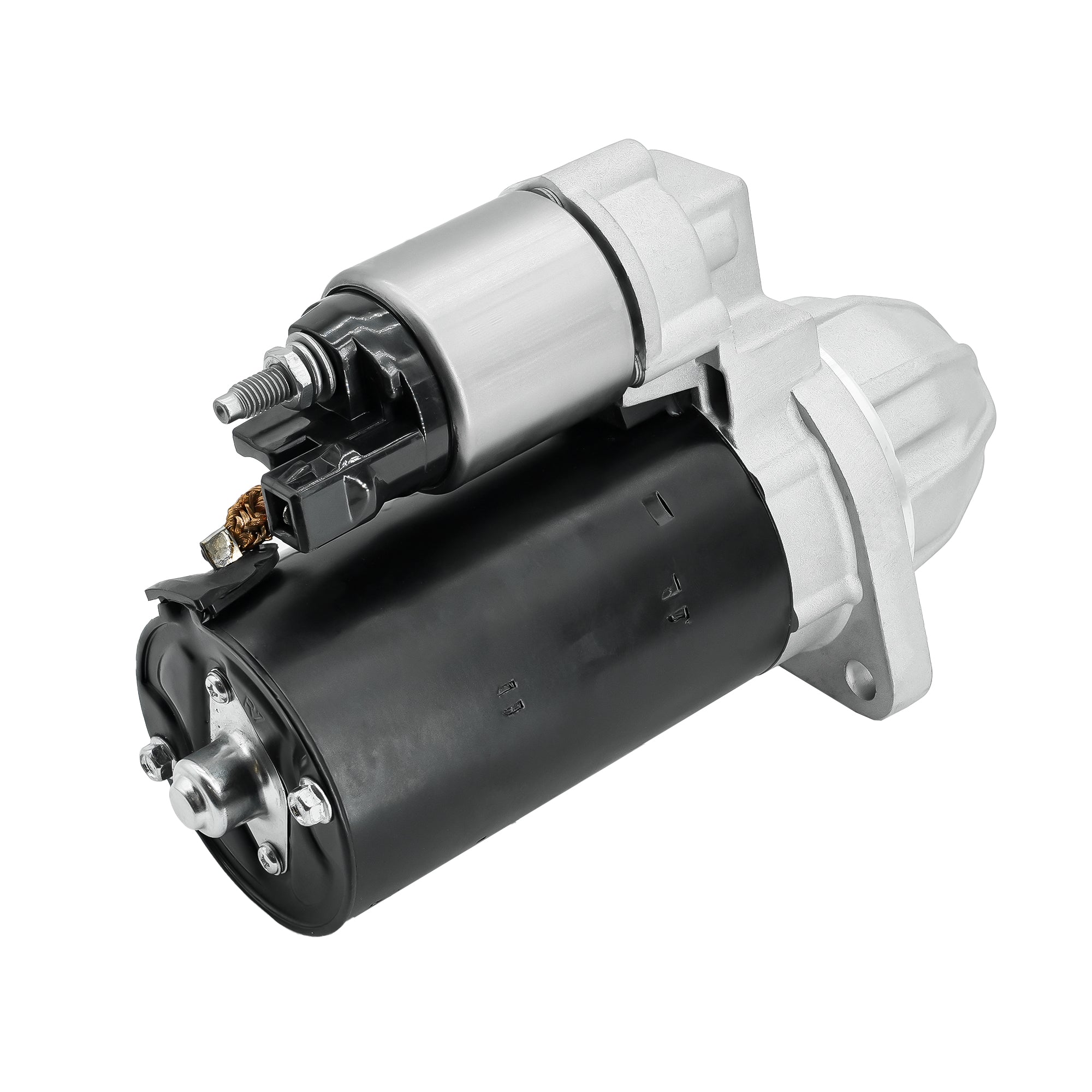

Starter RE540304 410-24079 for John Deere Tractor & Skid Steer Loader 315 320 325 326D 328 329D 332 4120 4320 4520 4720 5225 5325 is a Starter Motor replacement part indexed for John Deere 5225 · PowerTech 56HP and John Deere 5325 · PowerTech 67HP, with 3 application records on file. Match OEM part number 410-24079...
This Starter Motor is indexed for John Deere 5225 · PowerTech 56HP; John Deere 5325 · PowerTech 67HP; John Deere 5325N · PowerTech 67HP; John Deere 313 · 4024T 49HP. Compare reference number 410-24079 against the label on your existing John Deere component before ordering.
Additional cross references on file: B0001109330, IMI122-024, MS221. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.
| Voltage | 12 VOLTS |
|---|---|
| Power | 2.2 KW |
| Teeth/Splines | 9 TEETH/SPLINES |
| Rotation | CW |
| Type | PLGR |
| Pinion/Splines Od | 28.8MM / 1.134IN |
| Mounting Hole 1 | 10.6MM ID UNTHREADED |
| Mounting Hole 2 | 10.6MM ID UNTHREADED |
| Part Number (ARROWHEAD) | 410-24079 |
| Part Number (ARROWHEAD (OEM)) | B0001109330, IMI122-024, MS221 |
| Part Number (ARROWHEAD (OEM) (OLD)) | IS1154 |
| Part Number (JOHN DEERE) | RE508922, RE531243, RE540304, RM10034, SE501844 |
| Part Number (J & N) | 410-24079, 410-24204 |
| Part Number (BOSCH) | 0001109330, 0-001-109-330, 0-001-109-331, 6-004-AA3-014, F-000-AL0-115, 6004AA3014, F000AL0115, 0001109330, 0001109331 |
| Part Number (BOSCH REMAN) | SR5010X |
| Part Number (CARGO) | 113900 |
| Part Number (LESTER) | 18954 |
| Part Number (LETRIKA (ISKRA) AFTERMARKET) | IS 1154 |
| Part Number (LETRIKA (ISKRA) DESCRIPTION) | AZE6505, AZE6524, AZE6544 |
| Part Number (LETRIKA (ISKRA) OEM) | 11.131.402, 11.131.556, 11.131.750 |
| Part Number (MAHLE) | MS221 |
| Part Number (WAI) | 18954N |
| Part Number | ARROWHEAD: 410-24079 ARROWHEAD (OEM): B0001109330, IMI122-024, MS221 ARROWHEAD (OEM) (OLD): IS1154 JOHN DEERE: RE508922, RE531243, RE540304, RM10034, SE501844 J & N: 410-24079, 410-24204 BOSCH: 0001109330, 0-001-109-330, 0-001-109-331, 6-004-AA3-014, F-000-AL0-115, 6004AA3014, F000AL0115, 0001109330, 0001109331 BOSCH REMAN: SR5010X CARGO: 113900 LESTER: 18954 LETRIKA (ISKRA) AFTERMARKET: IS 1154 LETRIKA (ISKRA) DESCRIPTION: AZE6505, AZE6524, AZE6544 LETRIKA (ISKRA) OEM: 11.131.402, 11.131.556, 11.131.750 MAHLE: MS221 WAI: 18954N |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
