OEM / REF: 317008A3SKU: pilotpart125292

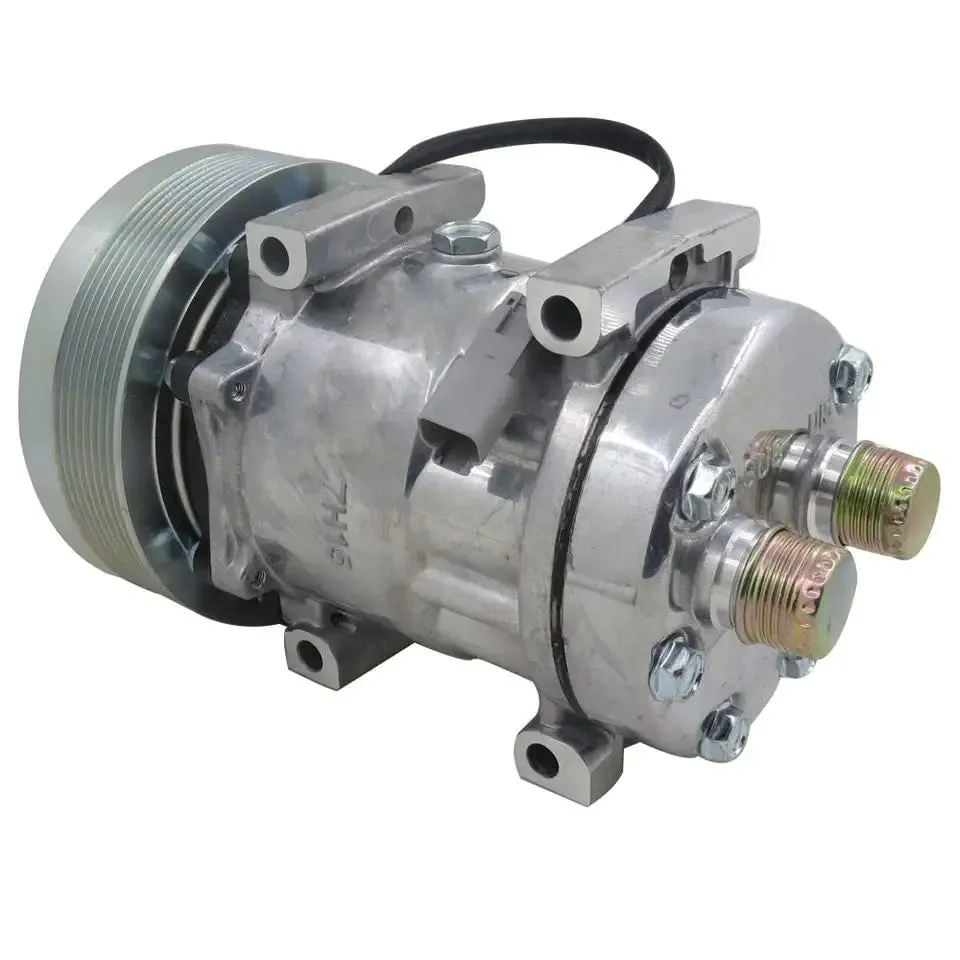

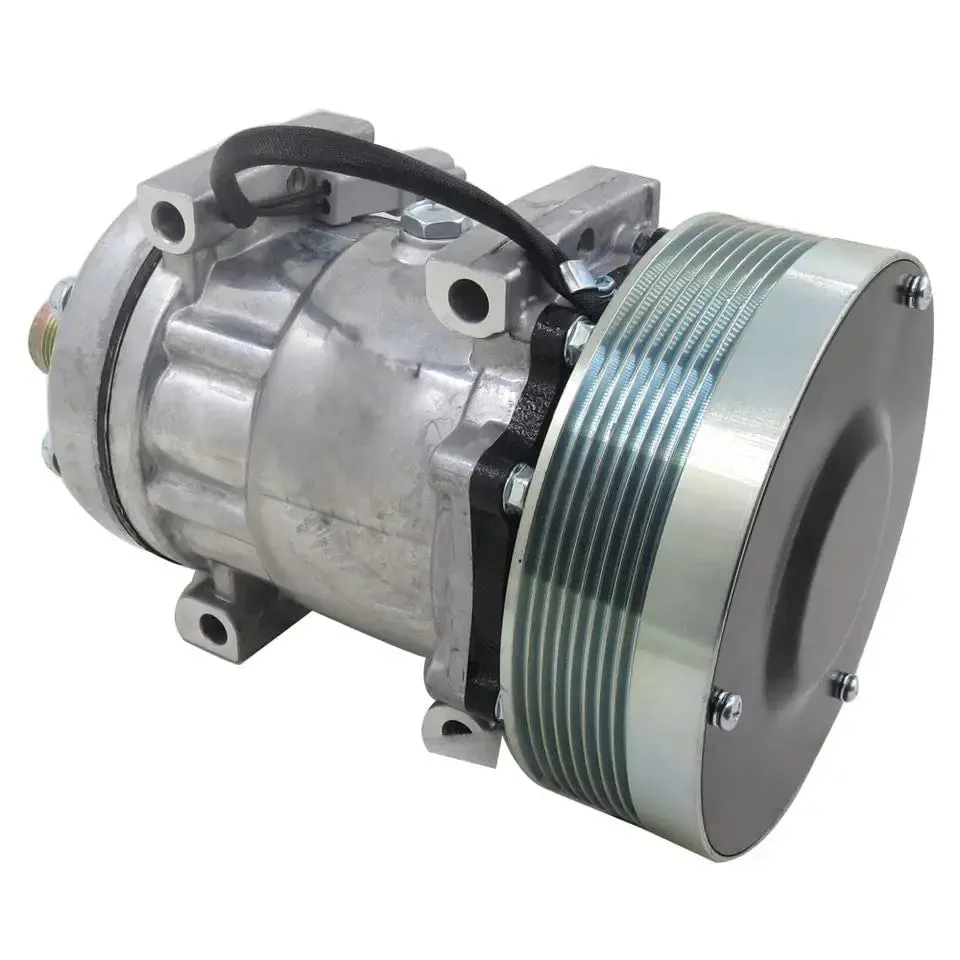

A/C Compressor 317008A3 for CASE Tractor MX230 MX285 STX440 MX210 MX255 STX375 is a Air Conditioning Compressor replacement part indexed for Case MX210 and Case MX230, with 3 application records on file. Match OEM part number 317008A3 and confirm fitment for CASE HVAC Parts before ordering.
This Air Conditioning Compressor is indexed for Case MX210; Case MX230; Case MX255; Case MX285. Compare reference number 317008A3 against the label on your existing CASE component before ordering.
Additional cross references on file: 4768, ABP-N83-304364, 75R-81412. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.
| Sanden Number | 4768 |
|---|---|
| Compressor Family | SD7H15 |
| Style | Heavy Duty |
| Compressor Mount Type | Direct |
| Rotation Direction | CW |

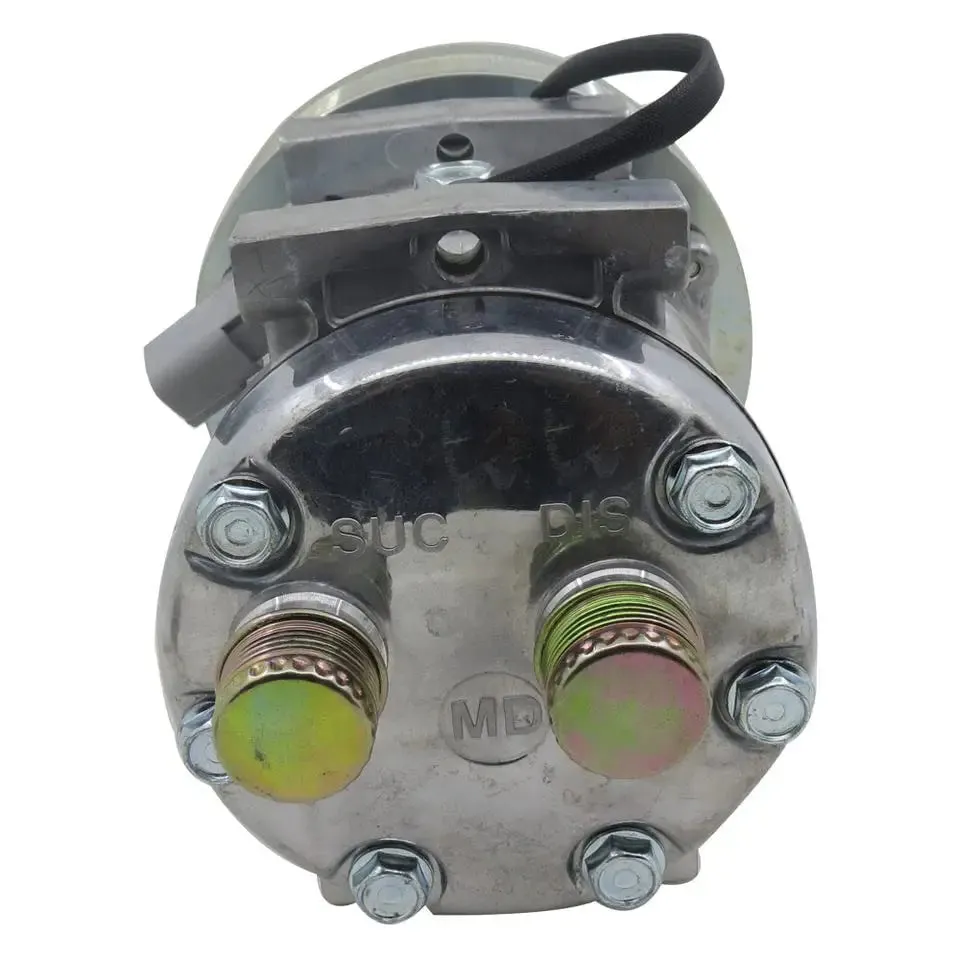

| Cylinder Head | MD |
| Port Angle | Horizontal |
| Head Port Style | 1 X 14 |

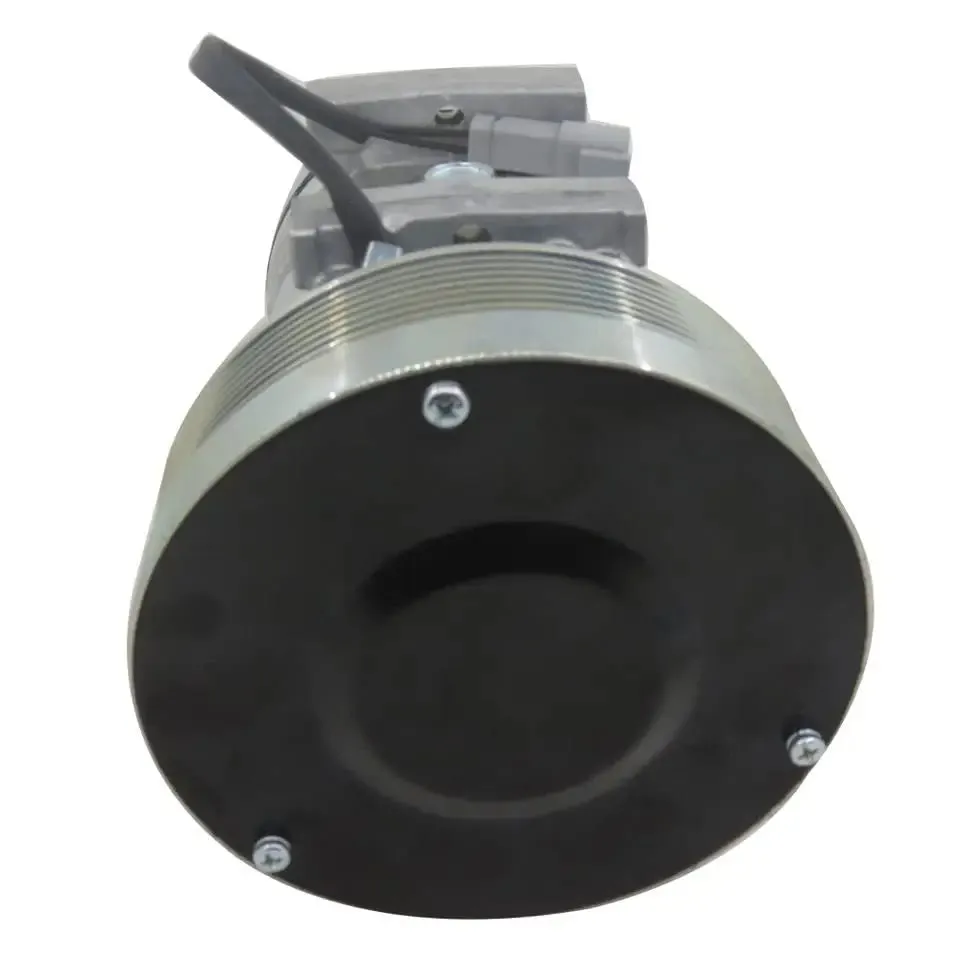

| Clutch Diameter | 152 mm ~ 6 inch |
| Clutch Style | With Dust Cover |
| Belt Type | Serpentine |
| Number of Grooves | 8 |
| Voltage | 12V |
| Coil Connector | 1 Wire Female Packard 12010996 |
| Coil Position | 12 O'clock |
| Oil Type | SP15 or PAG 100 |
| Oil Qty | 285cc |
| Part Number | 317008A3, 4768, 317008-A3, ABP-N83-304364, 75R-81412, RD5-11310-0, ABPN83304364, 75R81412, RD5113100, 4499, 86993463, 86992688, 86993463 |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
