OEM / REF: 3034572SKU: pilotpart097439-02

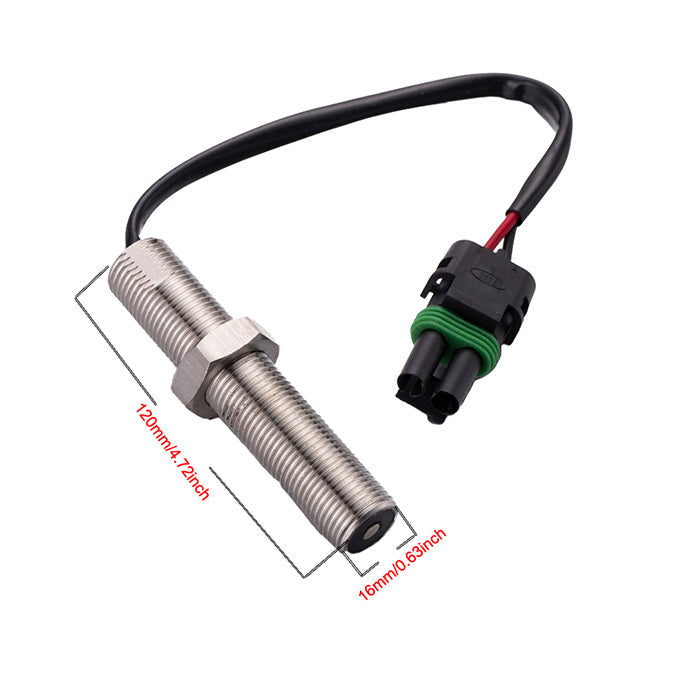

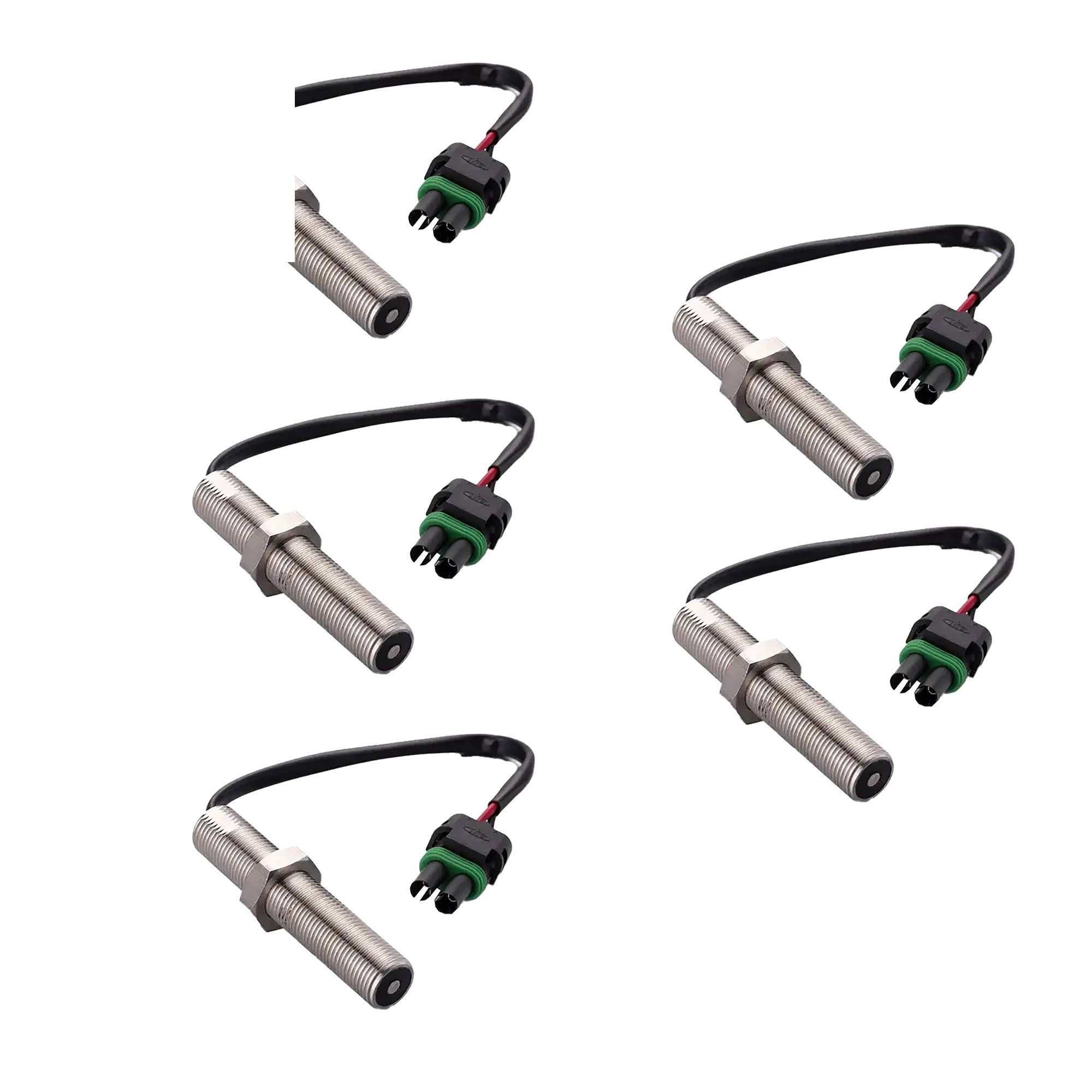

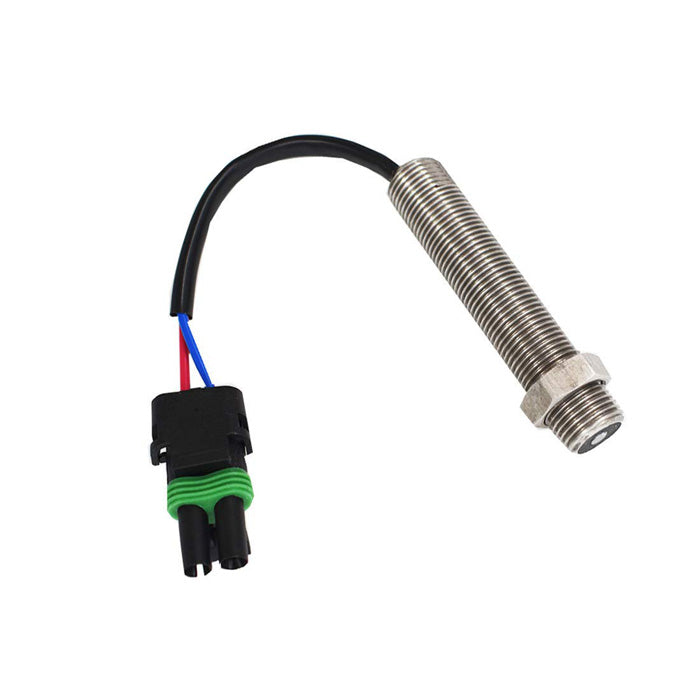

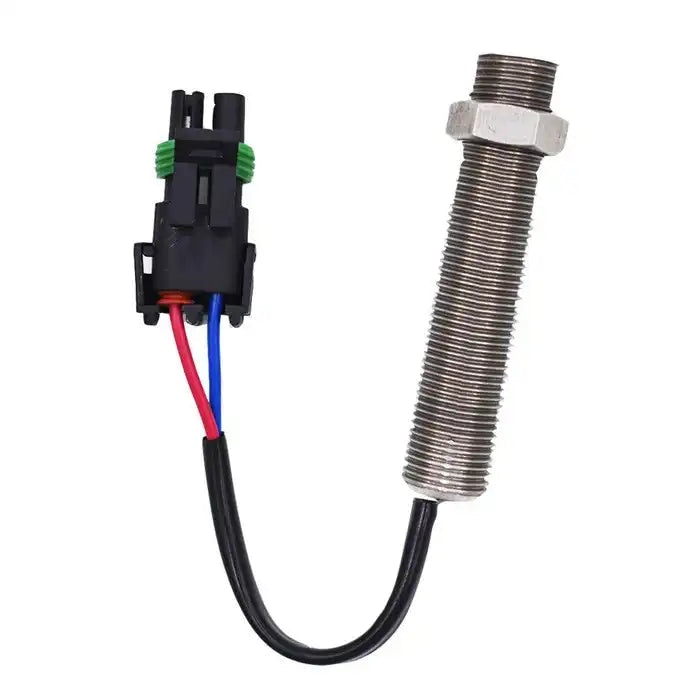

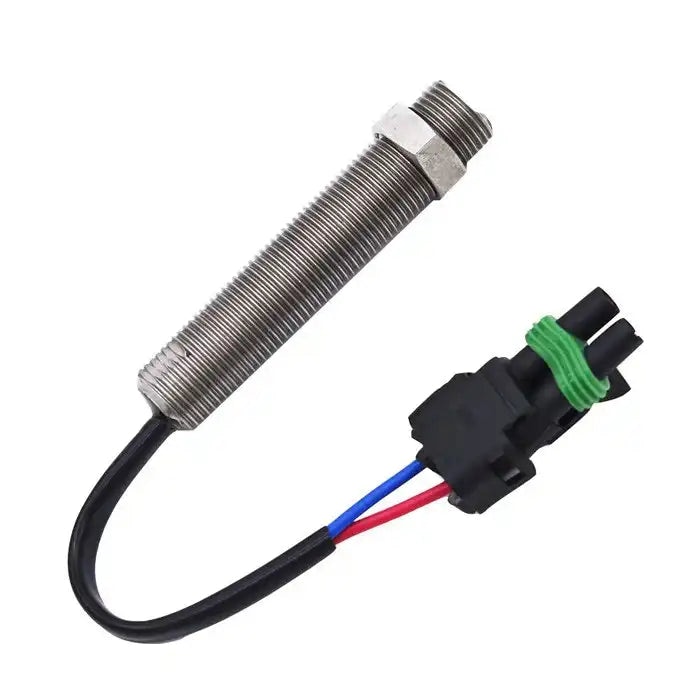

Magnetic Pickup Speed Sensor 3034572 for Cummins Engine K38 G38 QSK38 KTA38GC K106 is a Speed Sensors replacement part indexed for BRAND and Cummins, with 3 application records on file. Match OEM part number 3034572 and confirm fitment for Cummins Electrical Parts before ordering.
This Speed Sensors is indexed for BRAND; Cummins; Cummins; Cummins. Compare reference number 3034572 against the label on your existing Cummins component before ordering.
Additional cross references on file: 3251812, KTA19GC, QSK19G. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.
| Measure range | 50-5000Hz |
|---|---|
| Inductance | 142MH+25% |
| Thread Size | 5/8-18 UNF-2A |
| Tap Drill Size | 37/64" |
| Proximity to Gear Teeth | .028 in min. - .042 in max. (Approximately 1/2 to 3/4 turn) |
| Temperature Range | -55 deg C to 105 deg C |
| Output at Cranking Speed | 1.5 volts AC minimum |
| Maximum Output | 30V AC |
| Coil Resistance | 300 ohms maximum |
| Part Number | 3034572, 3251812 |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
