How do I confirm pilotpart105013 fits my machine?

Compare the OEM or reference part number, machine model, engine model, and serial number. You can also submit a fitment inquiry before ordering.

In Stock

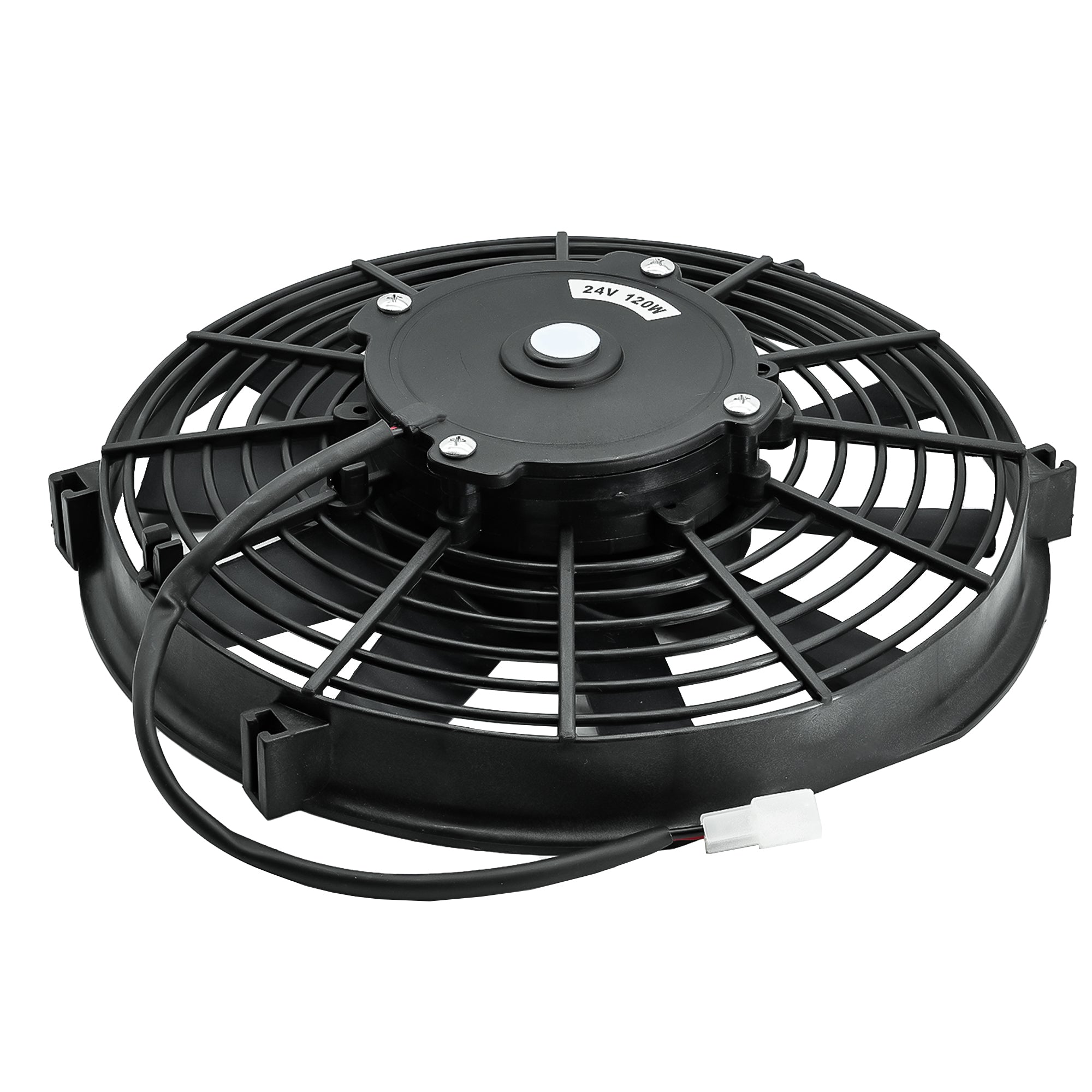

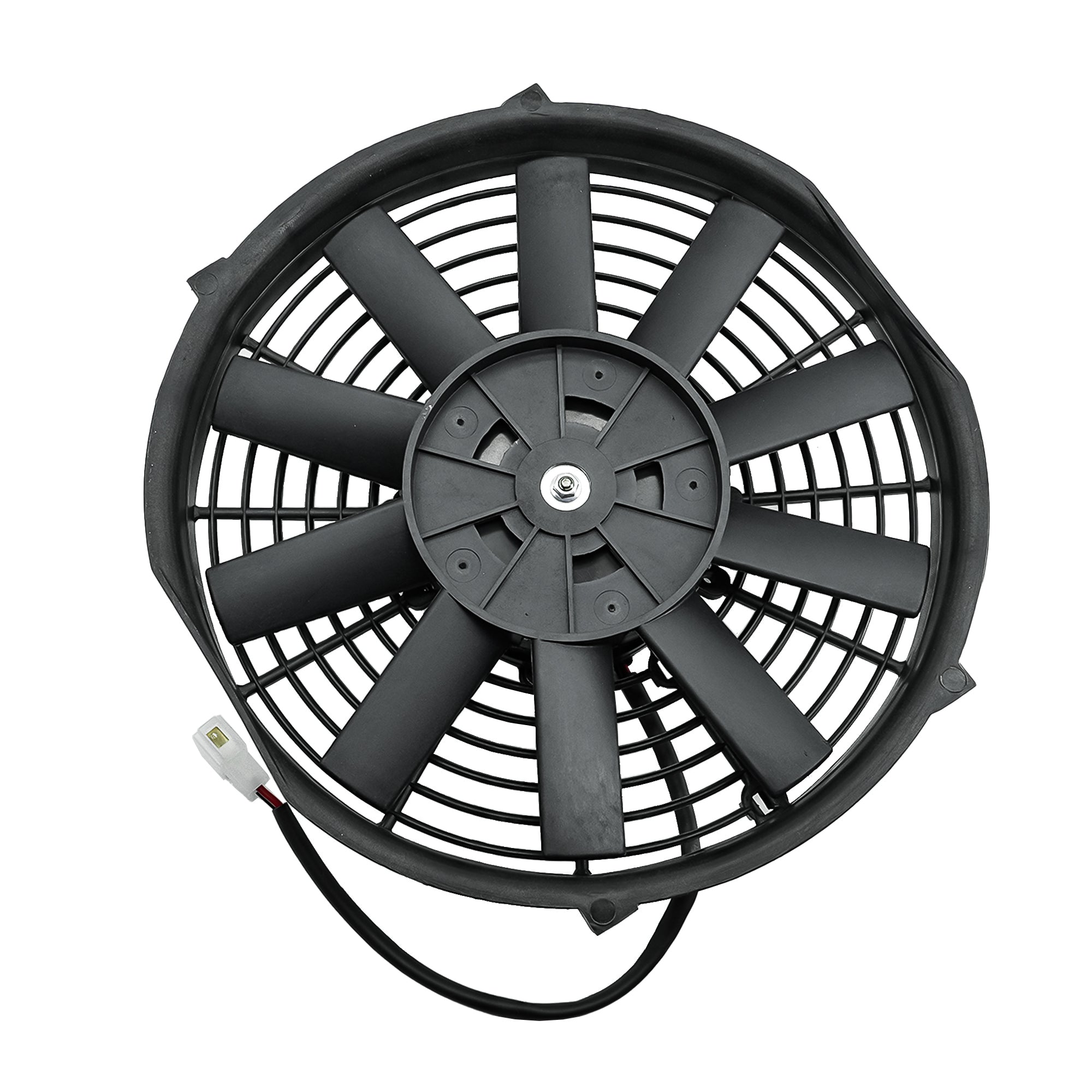

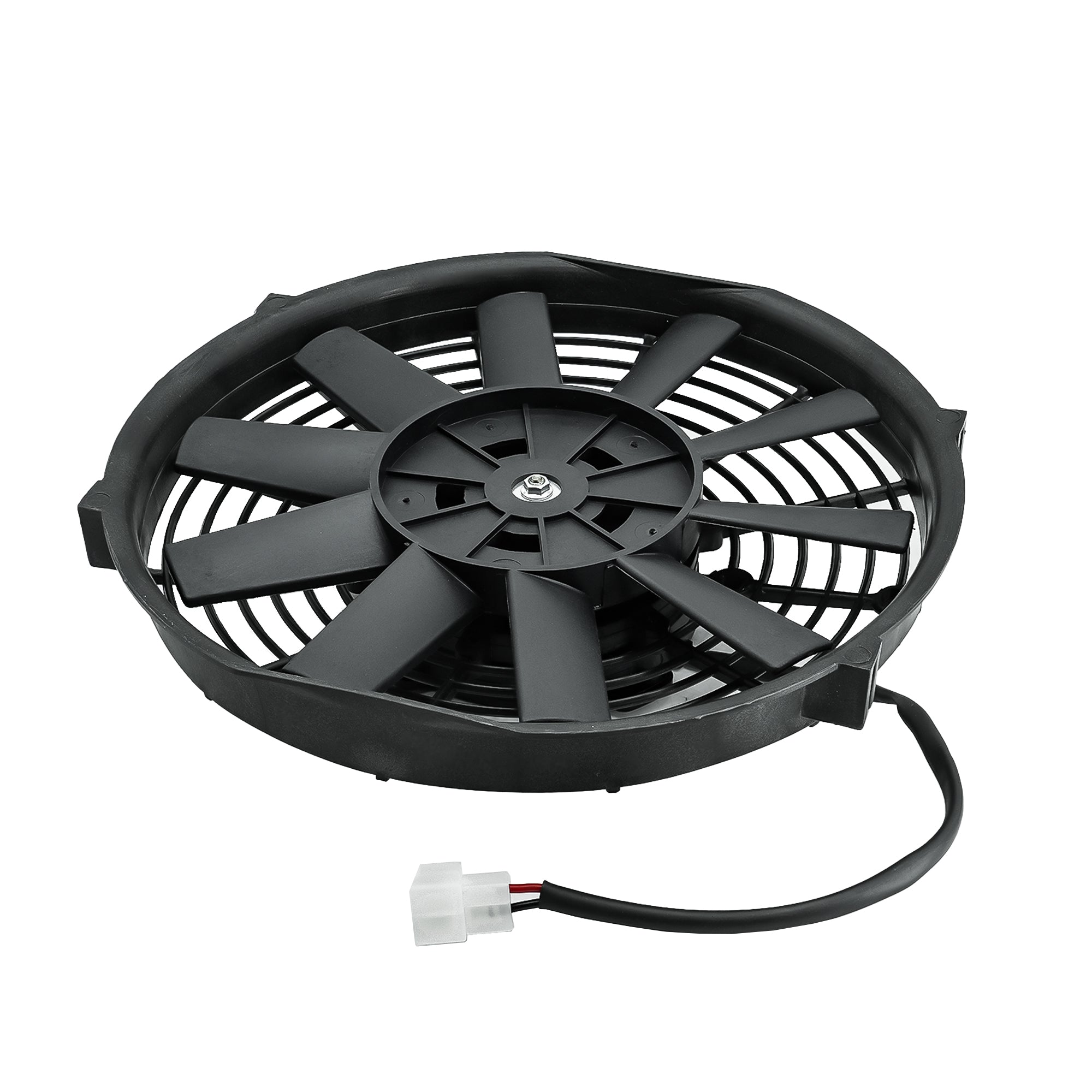

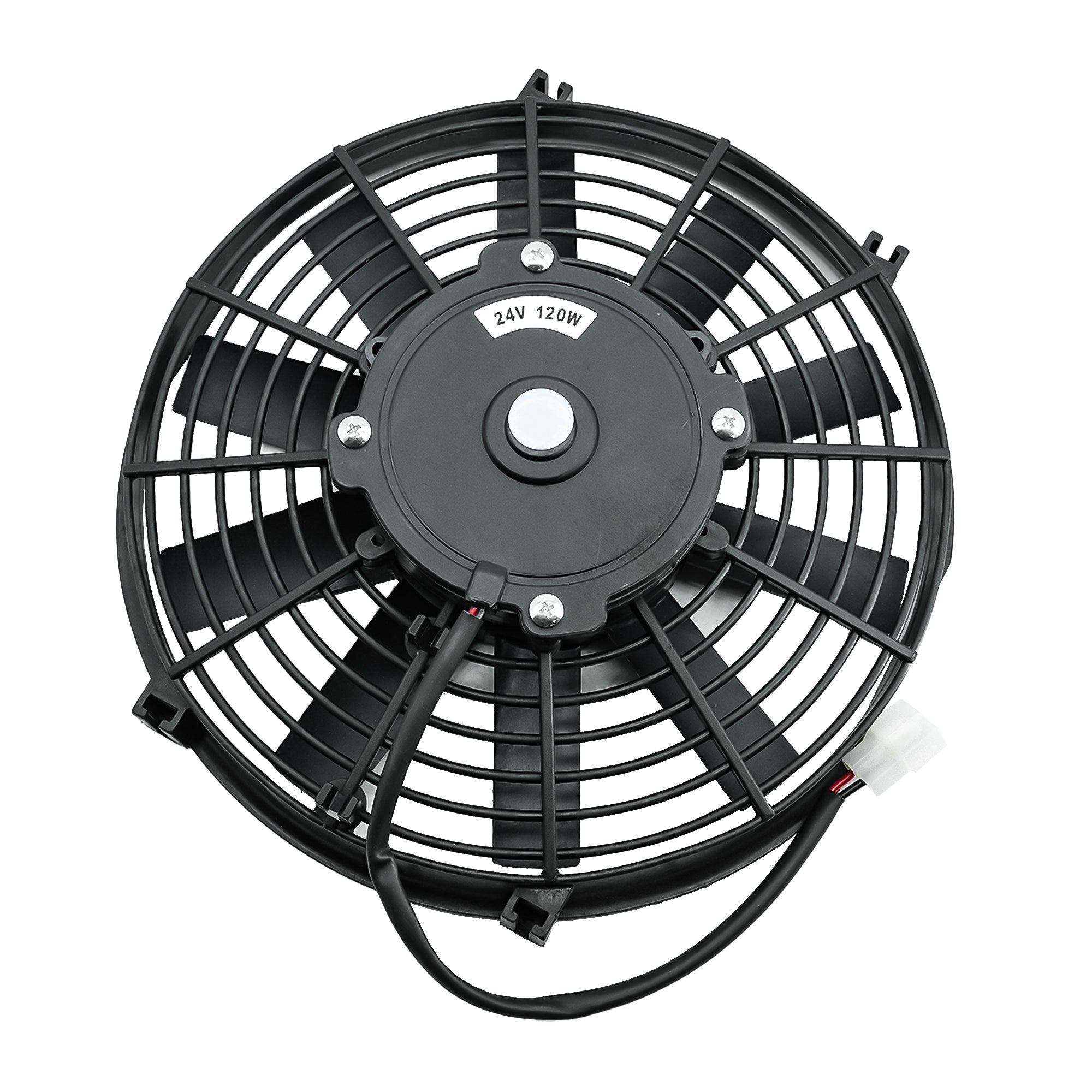

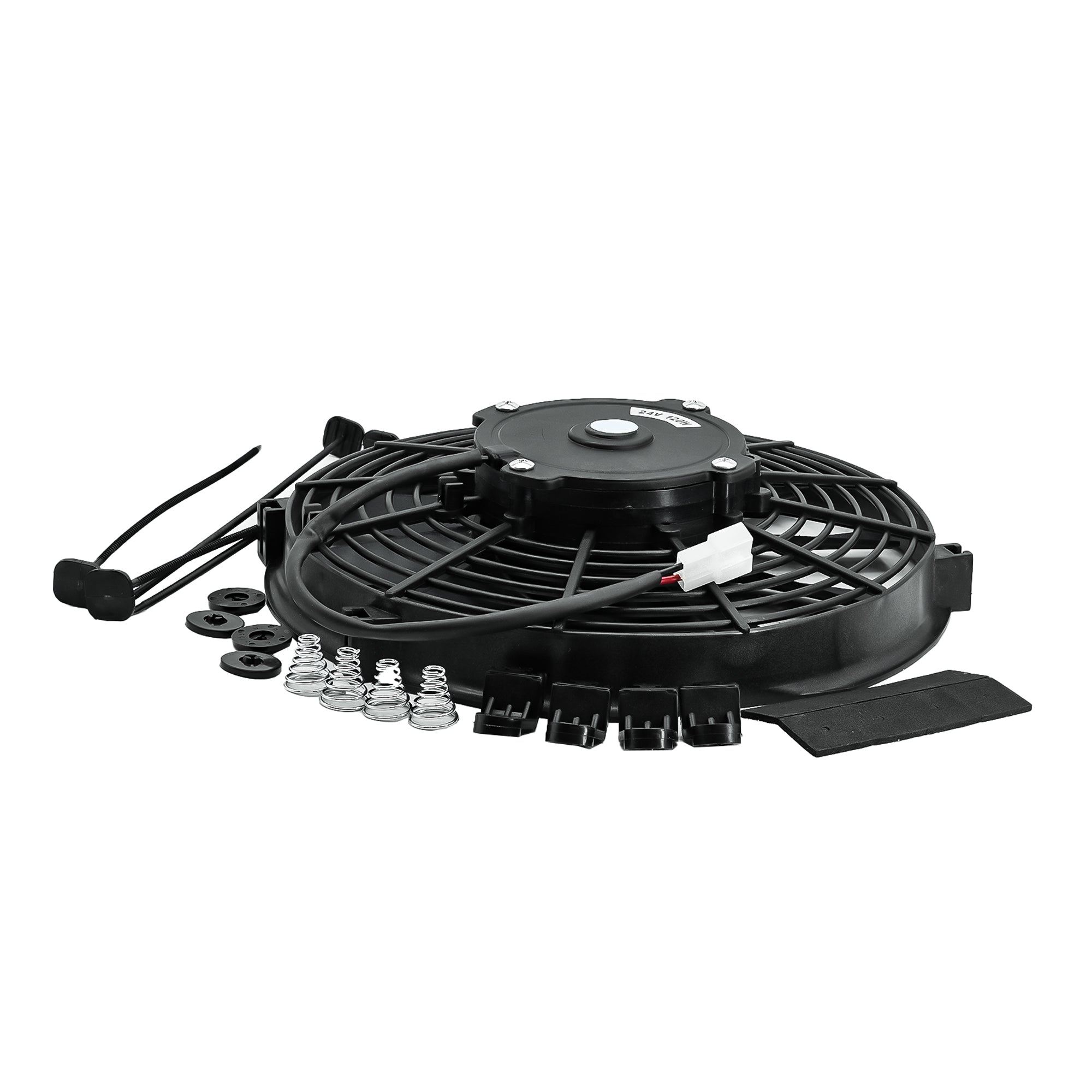

24V 120W VA11-BP12 / C-57S Universal Blow Engine Cooling Fan 280mm/10 Inch for Spal

For Carrier Fan

Fan 30-3152-38 for Carrier MZL-850

Q: What part numbers are associated with this Fan?

30-3152-38, 54-00598-10, 3010.0456, 3010, 0456, 41-3138, 3MTV094, VA11-BP12, C-57S, VA11BP12C57S, C-57S-LNF2210, 78-1188

OEM / REF: 30-3152-38SKU: pilotpart105013

24V 120W VA11-BP12 / C-57S Universal Blow Engine Cooling Fan 280mm/10 Inch for Spal is a Fan replacement part indexed for Carrier MZL-850 and Carrier MZL-1100, with 3 application records on file. Match OEM part number 30-3152-38 and confirm fitment for Carrier HVAC Parts before ordering.

Stock: In stock
Condition: New
Fitment: Carrier HVAC Parts
Category: Fan

Fitment support before you order
Worldwide delivery options

In stock — ready to order

$124.99USD/EA

~~$15,599.00~~Save 99%

Estimated delivery by quantity

Estimated delivery windows
Qty	Estimated delivery
1	Oct 23 – Oct 30
10	Oct 21 – Oct 28
50	Oct 19 – Oct 26

Estimates from today; confirm exact lead time before payment.

Quantity

Buy online now or add to your quote list for bulk pricing and fitment confirmation.

Confirm fitment before ordering →

Lead times can vary by freight route and customs. Contact support for expedited shipping.

Fan Description

This Fan is indexed for Carrier MZL-850; Carrier MZL-1100; Carrier MZS-850; Carrier MZS-1100. Compare reference number 30-3152-38 against the label on your existing Carrier component before ordering.

Additional cross references on file: 54-00598-10, 3010.0456, 3010. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.

Part Numbers and Cross References

30-3152-38 54-00598-10 3010.04563010045641-3138 3MTV094 VA11-BP12C-57SVA11BP12C57S C-57S-LNF2210 78-1188

Applications

Carrier MZL-850
Carrier MZL-1100
Carrier MZS-850
Carrier MZS-1100
Carrier Viento 300
Carrier Viento 350
Thermo King VM-400
Thermo King VM-400 Max
Thermo King VM-405 Max

Specifications

Type	Blowing (S)
Consumption of current max.	I = 4,1A
Efficiency	1450 m3/h
Voltage	24V
Diameter 1	284mm / 11.18"
Diameter 2	268mm / 10.55"
Hole distance 1	246mm / 9.68"
Hole distance 2	142mm / 5.59"
Height	52mm / 2.05"
Part Number (Autoclima)	30-3152-38, 30315238, 30-315238
Part Number (Carrier)	54-00598-10, 54-0059810, 540059810
Part Number (OE)	3010.0456, 3010 0456, 30100456, 41-3138, 413138, 413-138, 3MTV094
Part Number (Spal)	VA11-BP12/C-57S, VA11BP12/C57S, VA11BP12C57S, VA11-BP12 / C-57S-LNF2210
Part Number (Thermo King)	78-1188, 781188, 781-188
Part Number	Autoclima: 30-3152-38, 30315238, 30-315238 Carrier: 54-00598-10, 54-0059810, 540059810 OE: 3010.0456, 3010 0456, 30100456, 41-3138, 413138, 413-138, 3MTV094 Spal: VA11-BP12/C-57S, VA11BP12/C57S, VA11BP12C57S, VA11-BP12 / C-57S-LNF2210 Thermo King: 78-1188, 781188, 781-188

Fitment Notes

Brand or application signal: Carrier HVAC Parts
Product family: Fan
System category: HVAC Parts > Cooling System Components > Fan
Recommended verification: OEM number, engine model, serial number, old part photos, and dimensions.

Shipping & Returns

Availability: InStock
Shipping: Shipping quotes can be confirmed before payment for heavy or urgent orders.
Returns: Returns are easier when fitment is confirmed before ordering.
B2B support: Bulk, fleet, and repair-shop requests can be handled through the inquiry form.

Frequently Asked Questions

How do I confirm this part fits my machine?

Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.

Can I order if my part number is not listed?

Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.

Is this an OEM part?

Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
