OEM / REF: 24512-10SKU: pilotpart718045

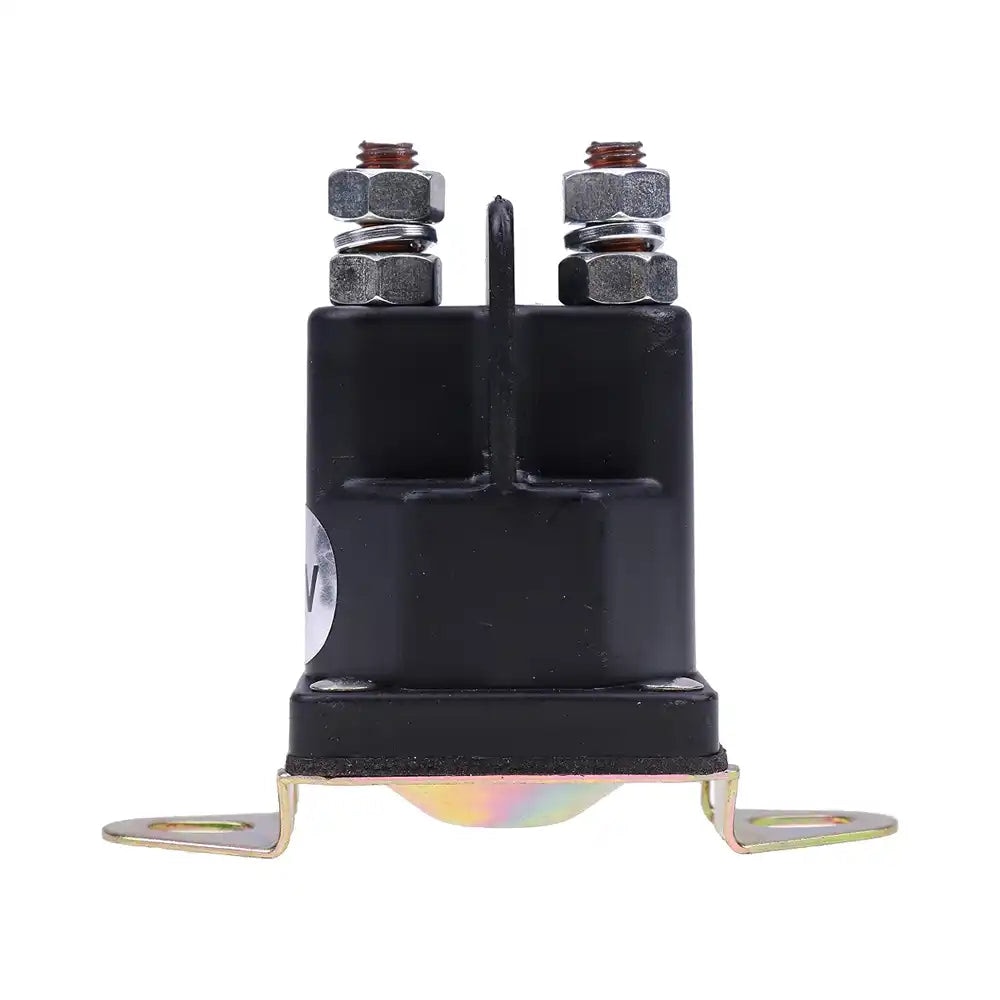

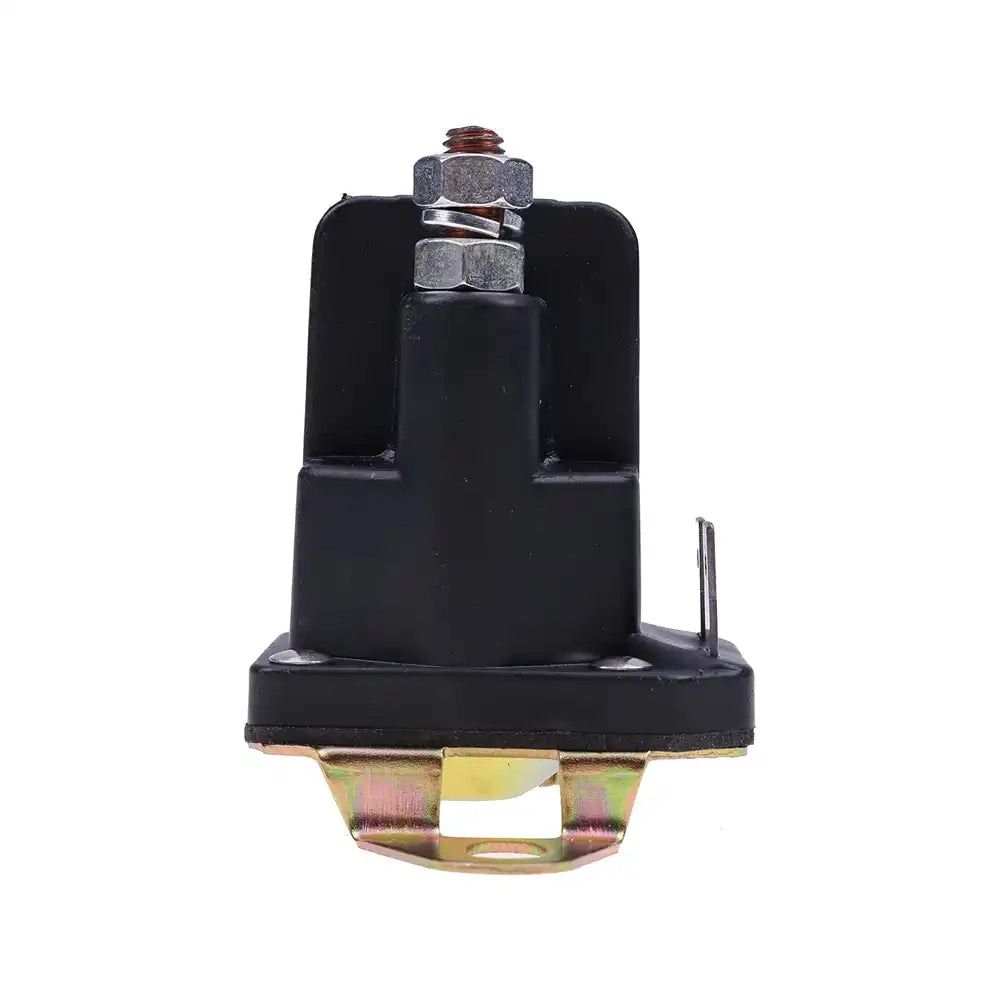

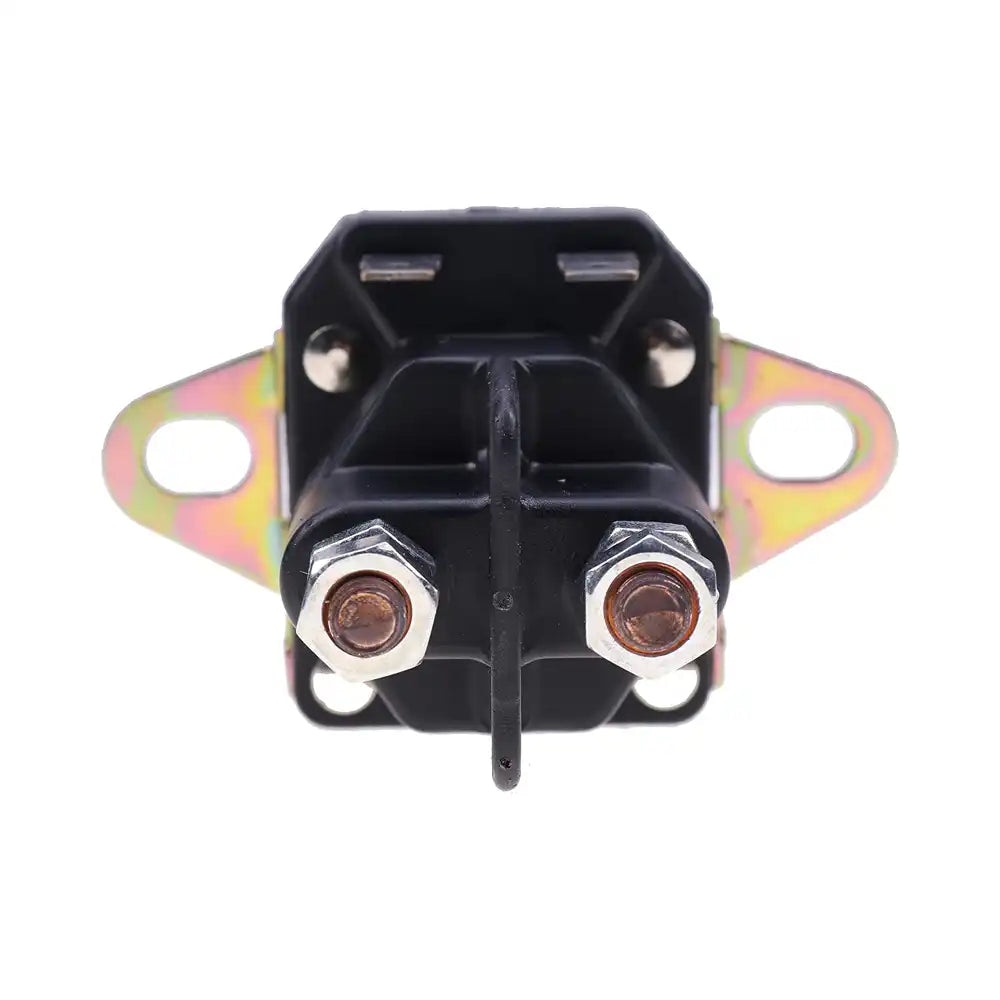

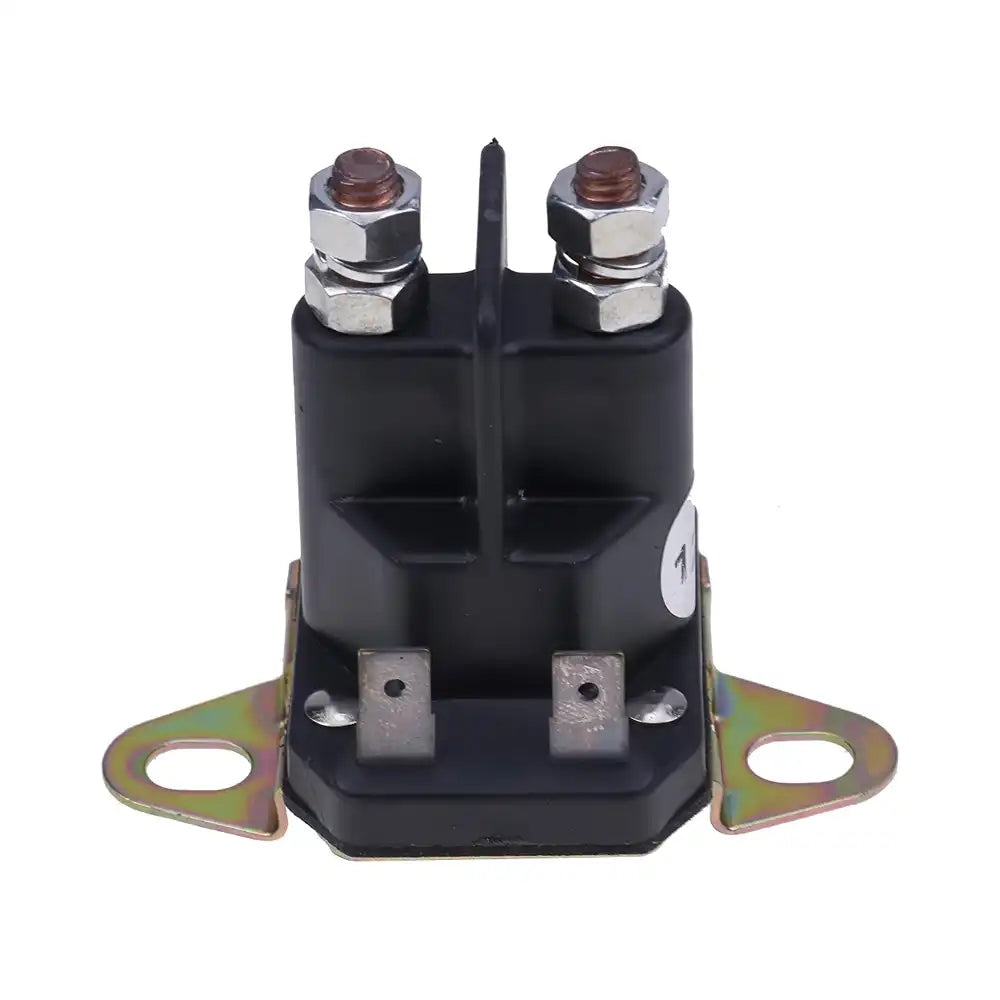

12V Solenoid Relay Switch M008842-00 M00884200 for John Deere L100 L105 L108 LA100 LA105 LA110 X110 X120 X140 Z225 Z425 Z445 Lawn and Garden Tractors is a Relay replacement part indexed for John Deere L100 and John Deere L105, with 3 application records on file. Match OEM part number 24512-10 and confirm fitment for...
This Relay is indexed for John Deere L100; John Deere L105; John Deere L108; John Deere L110. Compare reference number 24512-10 against the label on your existing John Deere component before ordering.
Additional cross references on file: 24512-10BX, 862-1221-211, 862-1221-211-20. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.
| Voltage | 12V |
|---|---|
| Part Number (Cole Hersee) | 24512-10, 2451210, 24512-10BX |
| Part Number (Trombetta) | 862-1221-211, 862-1221-211-20, 862-1221-211-12, 862122121120, 862 1221 211 20, 862-1241-211-12, 862124121112, 93265-19, 93265-1WR, 9326519, 932651WR |
| Part Number (John Deere) | M008842-00, M00884200, M008842 00 |
| Part Number (Stens) | 435-0100, 435010 |
| Part Number (Replaces) | 686696200940 |
| Part Number | Cole Hersee: 24512-10, 2451210, 24512-10BX Trombetta: 862-1221-211, 862-1221-211-20, 862-1221-211-12, 862122121120, 862 1221 211 20, 862-1241-211-12, 862124121112, 93265-19, 93265-1WR, 9326519, 932651WR John Deere: M008842-00, M00884200, M008842 00 Stens: 435-0100, 435010 Replaces: 686696200940 |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
