How do I confirm pilotpart117193 fits my machine?

Compare the OEM or reference part number, machine model, engine model, and serial number. You can also submit a fitment inquiry before ordering.

In Stock

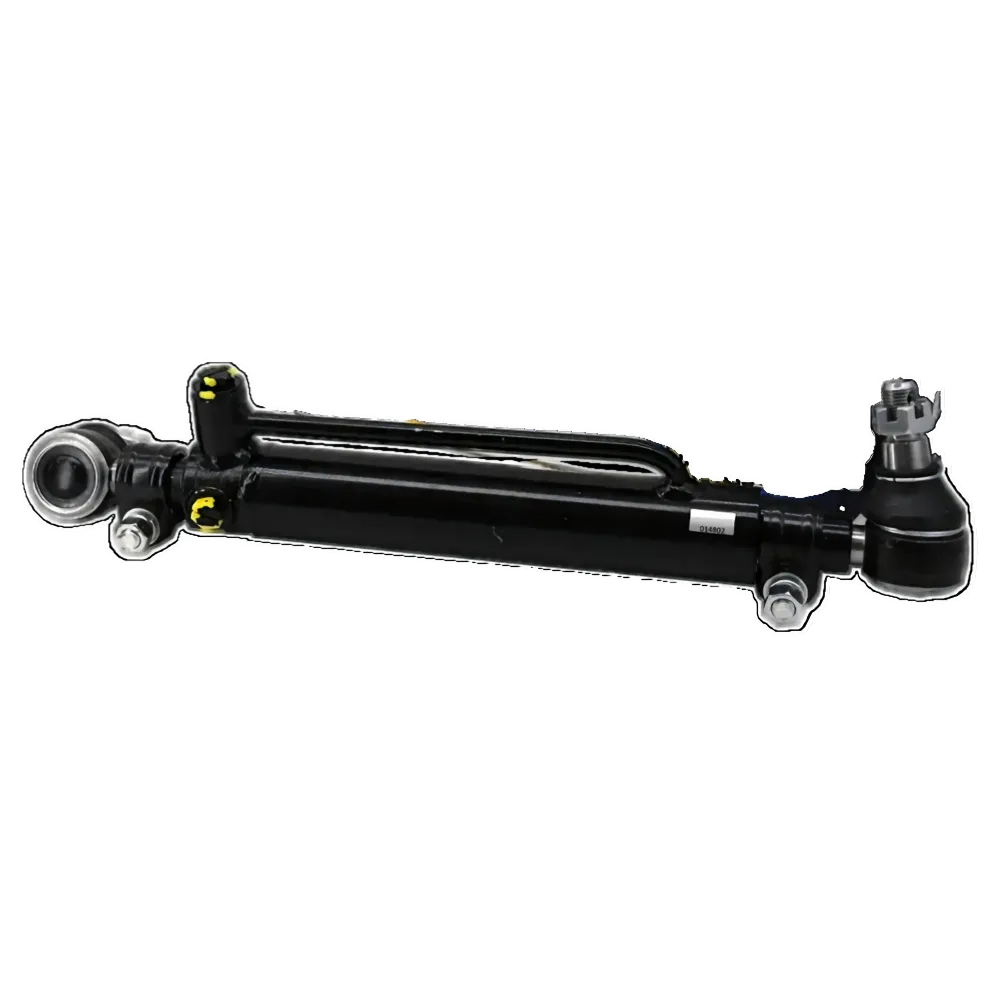

Power Steering Cylinder 234447A1 for CASE 586 586E 584E 585E 580CK 530 530CK

For CASE Hydraulic Cylinder

Hydraulic Cylinder 234447A1 for CASE 480C

OEM / REF: 234447A1SKU: pilotpart117193

Power Steering Cylinder 234447A1 for CASE 586 586E 584E 585E 580CK 530 530CK is a Hydraulic Cylinder replacement part indexed for Case 480C and Case 480D, with 3 application records on file. Match OEM part number 234447A1 and confirm fitment for CASE Hydraulic & Pneumatic Parts before ordering.

Stock: In stock
Condition: New
Fitment: CASE Hydraulic & Pneumatic Parts
Category: Hydraulic Cylinder

Fitment support before you order
Worldwide delivery options

In stock — ready to order

$439.99USD/EA

~~$55,199.00~~Save 99%

Estimated delivery by quantity

Estimated delivery windows
Qty	Estimated delivery
1	Oct 22 – Oct 29
10	Oct 20 – Oct 27
50	Oct 18 – Oct 25

Estimates from today; confirm exact lead time before payment.

Quantity

Buy online now or add to your quote list for bulk pricing and fitment confirmation.

Confirm fitment before ordering →

Lead times can vary by freight route and customs. Contact support for expedited shipping.

Hydraulic Cylinder Description

This Hydraulic Cylinder is indexed for Case 480C; Case 480D; Case 480E; Case 480E LL. Compare reference number 234447A1 against the label on your existing CASE component before ordering.

Additional cross references on file: 234466A1, A37509, A135366. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.

Part Numbers and Cross References

234447A1 234466A1 A37509 A135366 A137503 A137859 A36393 A37859 A51731 D128454 D147753 D65385

Applications

Case 480C
Case 480D
Case 480E
Case 480E LL
Case 480F
Case 480F LL
Case 480 LL
Case 580B
Case 580C
Case 580D
Case 580SD
Case 580SE
Case 580F
Case 580G
Case 584C
Case 584D
Case 584E
Case 585C
Case 585D
Case 585E
Case 586C
Case 586D
Case 586E
Case 480B
Case 480CK
Case 530CK
Case 580
Case Case Backhoe Loader Harvester 480B 480C 480D 480E 480F 480LL 480ELL 480FLL 580C 580D 580SD 580SE 584D 584E 585D 585E 586D 586E(all with 2WD)

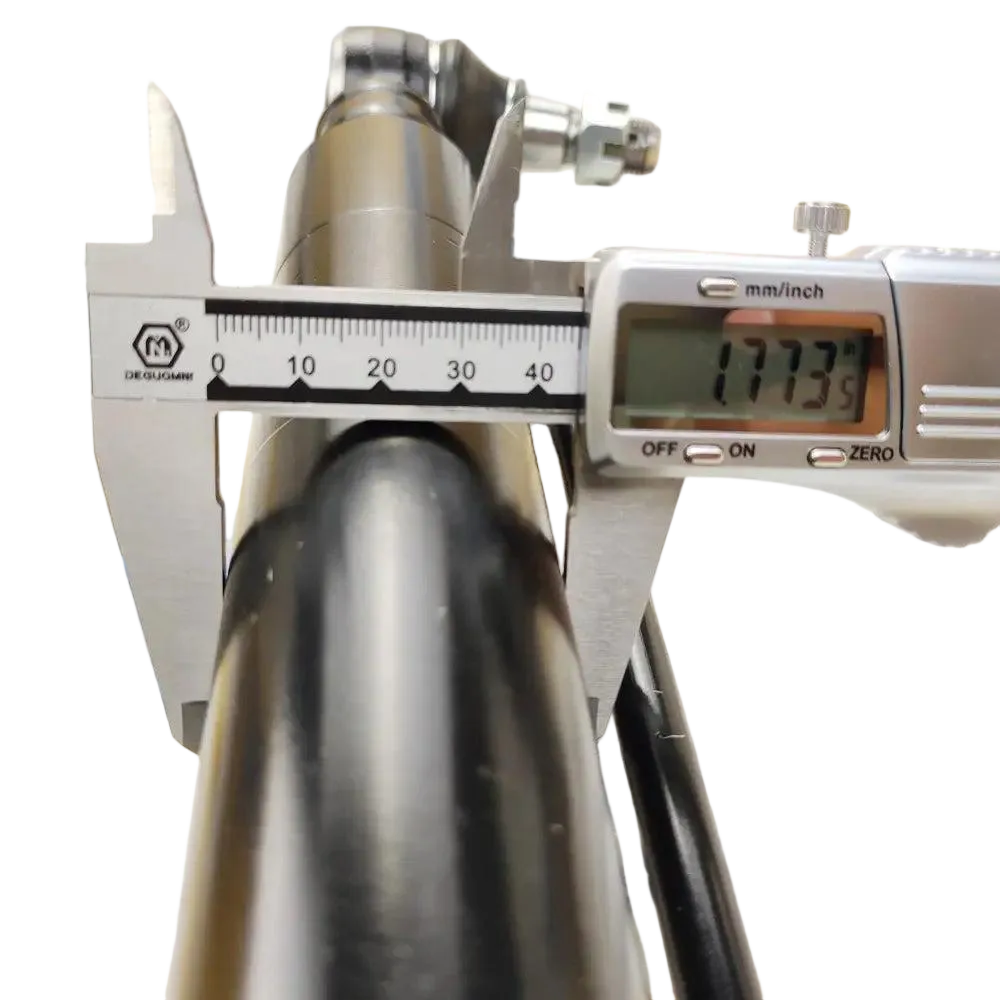

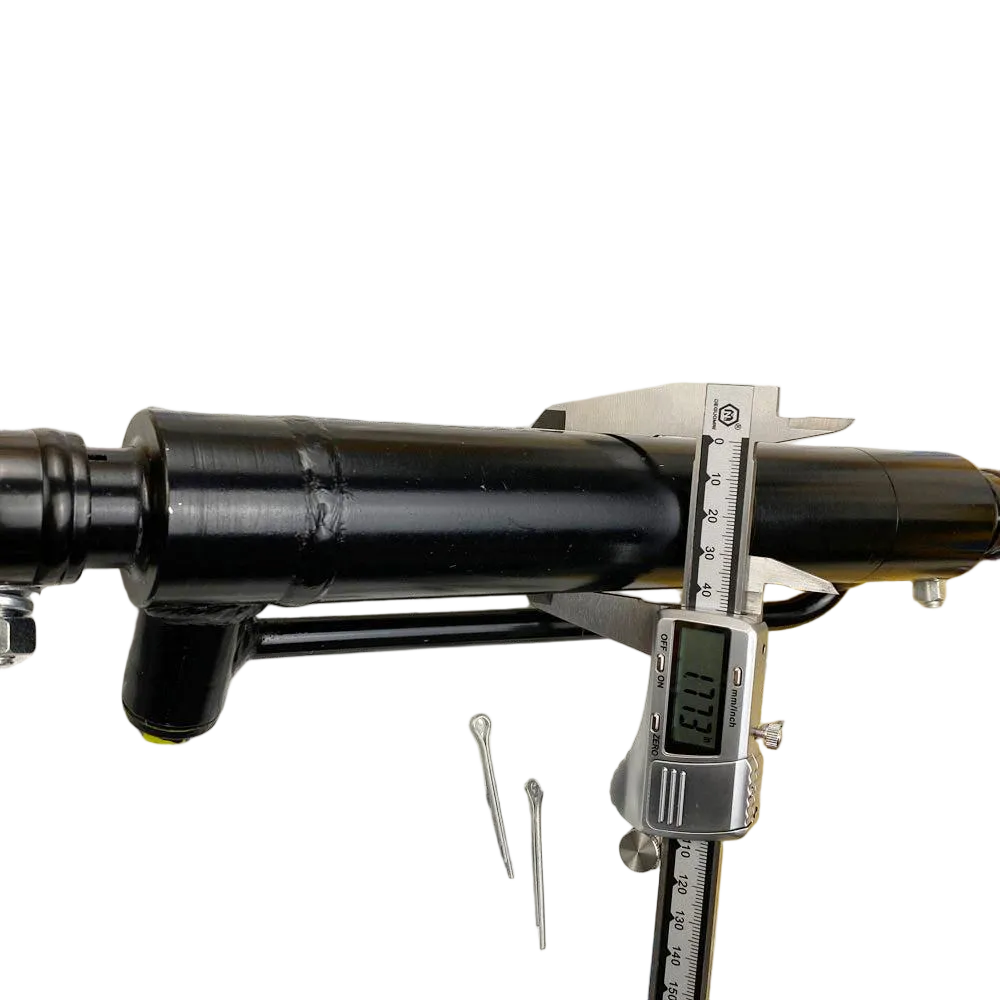

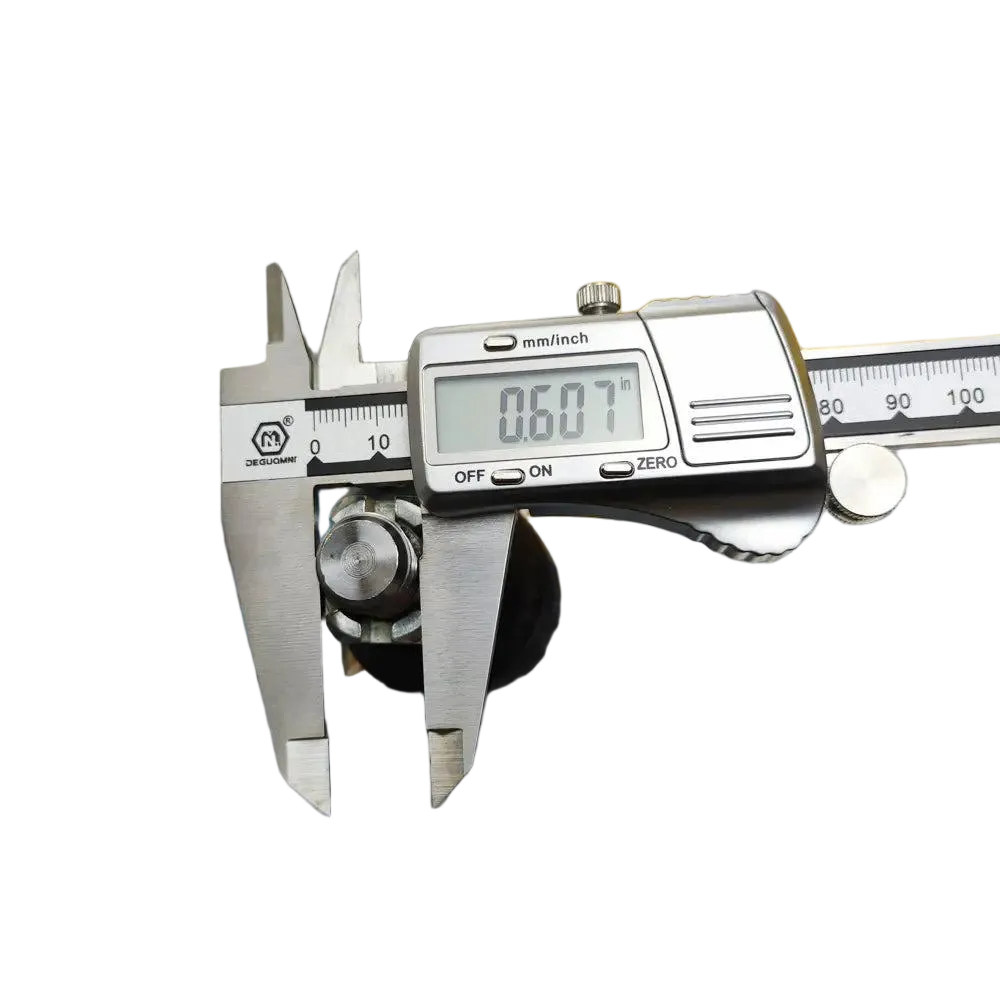

Specifications

Rod	19.05mm
Stroke	165.1mm
Part Number	234447A1, 234466A1, A37509, A135366, A137503, A137859, A36393, A37859, A51731, D128454, D147753, D65385, D84800, E41879, E41880, E46346, QR6882184

Fitment Notes

Brand or application signal: CASE Hydraulic & Pneumatic Parts
Product family: Hydraulic Cylinder
System category: Hydraulic & Pneumatic Parts > Hydraulic Cylinders & Components > Hydraulic Cylinder
Recommended verification: OEM number, engine model, serial number, old part photos, and dimensions.

Shipping & Returns

Availability: InStock
Shipping: Shipping quotes can be confirmed before payment for heavy or urgent orders.
Returns: Returns are easier when fitment is confirmed before ordering.
B2B support: Bulk, fleet, and repair-shop requests can be handled through the inquiry form.

Frequently Asked Questions

How do I confirm this part fits my machine?

Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.

Can I order if my part number is not listed?

Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.

Is this an OEM part?

Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
