OEM / REF: 183-5106SKU: pilotpart125250-01

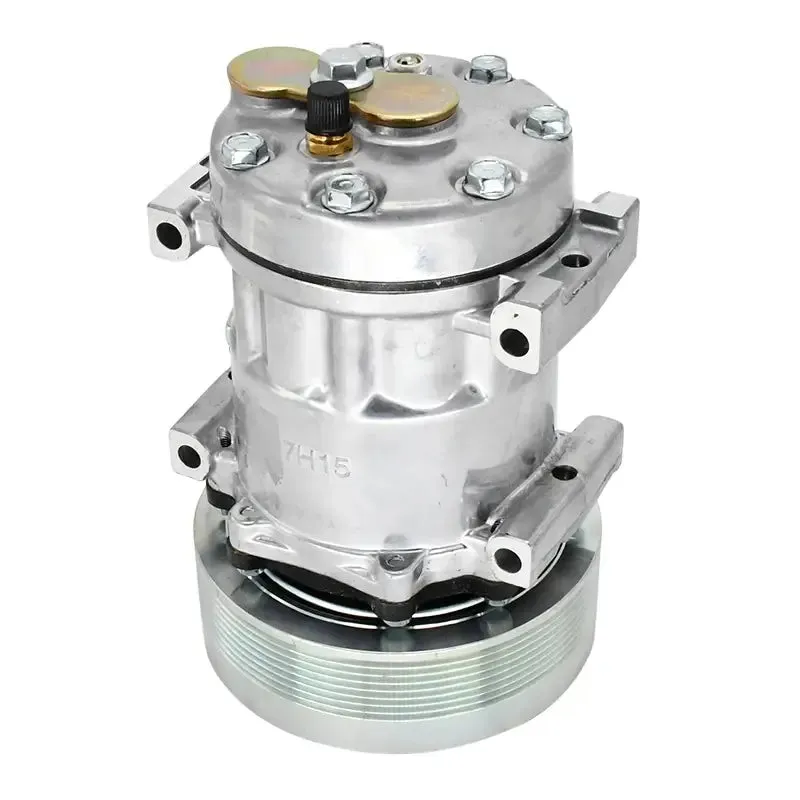

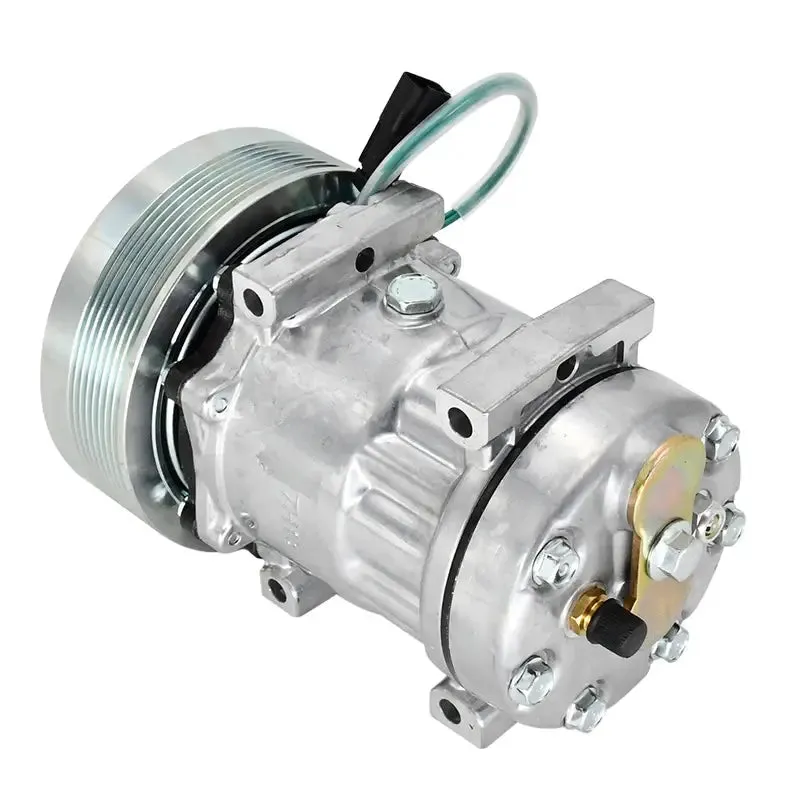

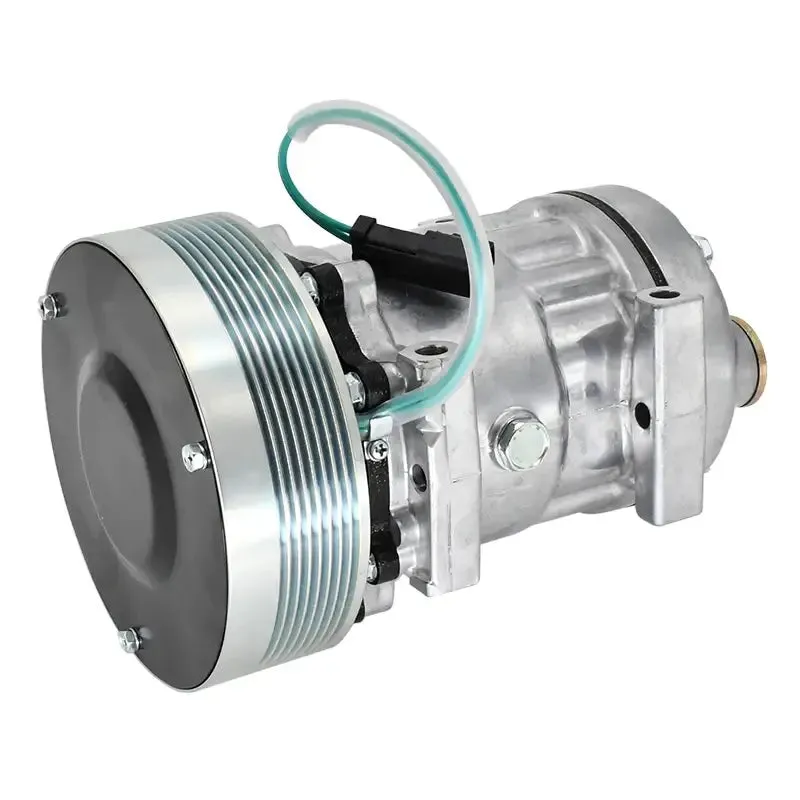

Air Conditioning Compressor 183-5106 4840 4302 for Caterpillar CAT 953C 963D 930H 924H 844H 928H 938H 930H 990H is a Air Conditioning Compressor replacement part indexed for Caterpillar 6030 and Caterpillar 6040, with 3 application records on file. Match OEM part number 183-5106 and confirm fitment for Caterpillar H...
This Air Conditioning Compressor is indexed for Caterpillar 6030; Caterpillar 6040; Caterpillar 6040 FS; Caterpillar C27. Compare reference number 183-5106 against the label on your existing Caterpillar component before ordering.
Additional cross references on file: 4302, SD7H154250, 4250. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.
| Type | A/C Compressor, Air Conditioner Compressor, Air Conditioning Compressor |
|---|---|
| Compressor Family | SD7H15 |
| Style | Sealed Heavy Duty |
| Compressor Mount Type | Direct |
| Rotation Direction | CW |
| Cylinder Head | GK |
| Port Angle | Horizontal |
| Head Port Style | Pad |
| Clutch Type | Dust Cover |
| Clutch Diameter | 152 mm ~ 6 inches |
| Belt Type | Serpentine |
| Number of Grooves | 8 |
| Voltage | 24V |
| Part Number (Caterpillar CAT) | CA1835106, 183-5106, 1835106 |
| Part Number (ELECTRO AUTO) | 20A4840 |
| Part Number (SANDEN) | 4840, 4302, SD7H154250, 4250 |
| Part Number (Other) | 75R81134, RD5112360, 8645644, TSP0155886, 32885, 8645639, 270124760, 509697, 5096973 |
| Part Number | Caterpillar CAT: CA1835106, 183-5106, 1835106 ELECTRO AUTO: 20A4840 SANDEN: 4840, 4302, SD7H154250, 4250 Other: 75R81134, RD5112360, 8645644, TSP0155886, 32885, 8645639, 270124760, 509697, 5096973 |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
