OEM / REF: 15531-64010SKU: pilotpart100344-01

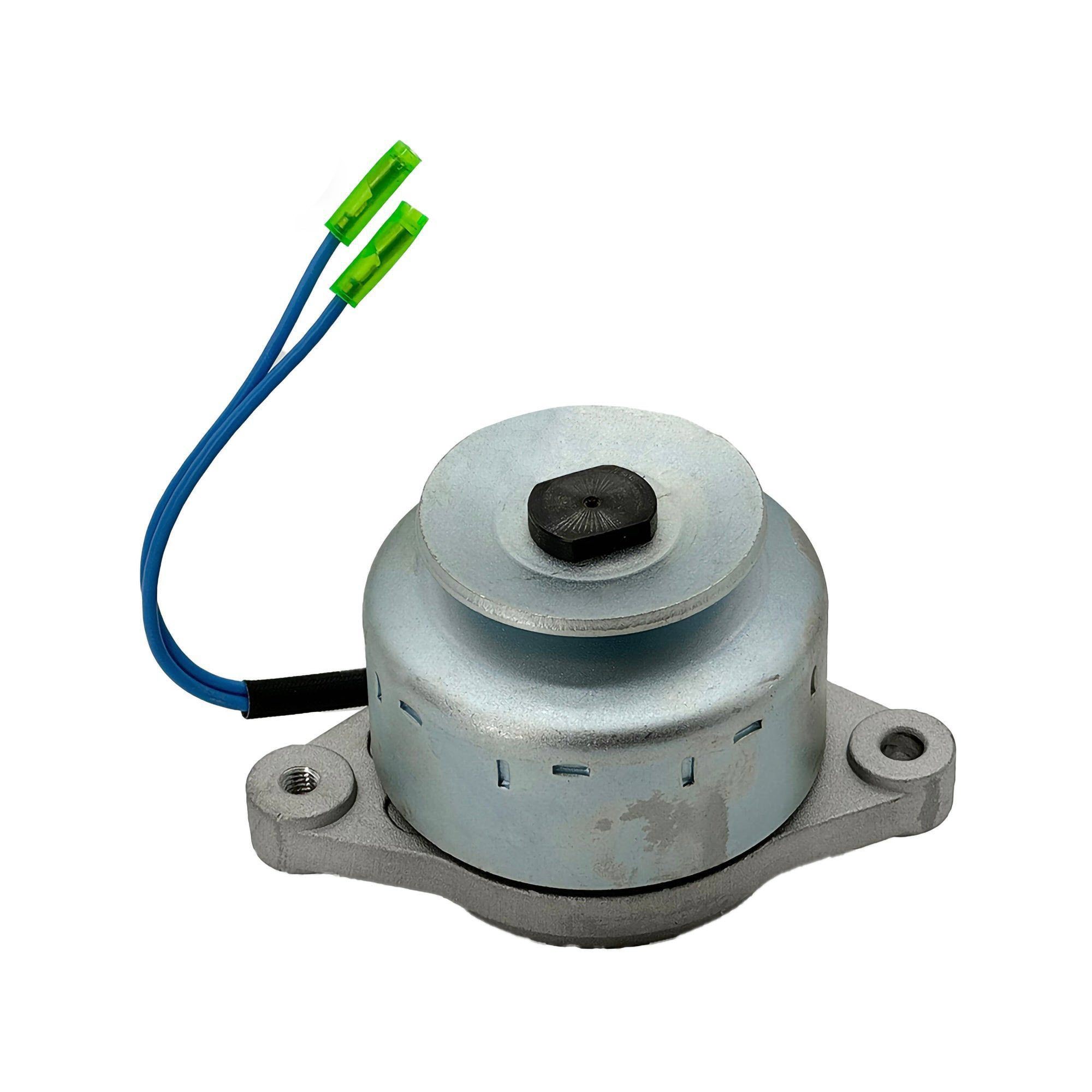

12V 14A Alternator 15531-64016 15531-64017 6A830-59250 with Rectifier Regulator 15531-64601 RS5101 for KUBOTA K008-3 K008-5 U10-5 B2400 B2601 B2650 B2710 B6200 Bx2200 ZD1211 is a Alternator replacement part indexed for Kubota B1550D · 17HPDiesel · 1988-1996 and Kubota B1550E · 17HPDiesel · 1988-1996, with 3 applicat...
This Alternator is indexed for Kubota B1550D · 17HPDiesel · 1988-1996; Kubota B1550E · 17HPDiesel · 1988-1996; Kubota B1700DT · 17HPDiesel · 1995-1998; Kubota B1700E · 17HPDiesel · 1995-1998. Compare reference number 15531-64010 against the label on your existing Kubota component before ordering.
Additional cross references on file: 15531-64012, 15531-64013, 15531-54013. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.
| Voltage | 12V |
|---|---|
| Ampere | 14A |
| Unit Type | PM Alternator |
| Mtg Ear 1 Hole | M8-1.25 Threaded |
| Mtg Ear 2 Hole | 8.5mm Unthreaded |
| Mtg Ear 1 Thickness | 0.61in / 15.5mm |
| Mtg Ear 2 Thickness | 0.61in / 15.5mm |
| Regulator Location | External |
| Pulley Grooves | 1 |
| Pulley Class | V1 |
| Pulley Type | Solid |
| Pulley OD | 2.598in / 66mm |
| Description | Regulator, Electronic & Rectifier |
| Set Point | 14.7 |
| Connector | 6 pins |
| Terminal ID | AC, B-, AC, L, I, B+ |
| Polarity | Negative |
| Includes Brush Holder | No |
| Adjustable | No |
| Includes Rectifier | Yes |
| Includes Tolerance Ring | No |
| Packing | 1pc Regualtor + 1pc Alternator |
| Note 1 | Used with GH5530 Regulator/Rectifier |
| Feature 1 | 100% Top-rated Transpo |
| Feature 2 | Ceramic hybrid construction |
| Feature 3 | Black finish |
| Feature 4 | Accommodates charge indicator light |
| Feature 5 | Active Lamp Output |
| Part Number (Kubota) | 15531-64010, 15531-64012, 1553164012, 15531-64013, 1553164013, 15531-54013, 1553154013, 15531-64015, 1553164015, 15531-64016, 1553164016, 15531-64017, 1553164017, 17531-64010, 1753164010, 17531-64012, 1753164012, 6A830-59250, 6A83059250, 6C040-59250, 6C04059250, 6C040-59252, 6C04059252, EG673-64010, EG673-64012, EG67364010, EG67364012, KEARA15531 |
| Part Number (ATLANTIC) | 1900-0507 |
| Part Number (J & N) | 400-58002, 40058002, 400-58015, 40058015, 400-58019, 40058019 |
| Part Number (Kioti) | E5700-64013, E5700-64014 |
| Part Number (Lester) | 10932, 10932N, 10935, 10938, 10942, 10942N |
| Part Number (Arrowhead) | APM0001, APM0003, APM0012 |
| Part Number (Cummins) | 0185-5431 |
| Part Number (Bomag) | 05740466 |
| Part Number (PIC) | 299-156 |
| Part Number (Other) | 1002114610, 1642764011, 1642764012 |
| Part Number (Cub Cadet) | KB-19267-64600, KB-RP201-53710, 19267-64600, 1926764600, 19267-64601, 19267-64602, RP201-53710, 1926764601, 1926764602, 1926764603 |
| Part Number (Grasshopper) | 185530, RS5155 |
| Part Number (Kokusan Denski) | RS5101, RS5102, RS5102A, RS5155 |
| Part Number (Perkins) | 1855516060, 185516060 |
| Part Number | Alternator OEM NO. Kubota: 15531-64010, 15531-64012, 1553164012, 15531-64013, 1553164013, 15531-54013, 1553154013, 15531-64015, 1553164015, 15531-64016, 1553164016, 15531-64017, 1553164017, 17531-64010, 1753164010, 17531-64012, 1753164012, 6A830-59250, 6A83059250, 6C040-59250, 6C04059250, 6C040-59252, 6C04059252, EG673-64010, EG673-64012, EG67364010, EG67364012, KEARA15531 ATLANTIC: 1900-0507 J & N: 400-58002, 40058002, 400-58015, 40058015, 400-58019, 40058019 Kioti: E5700-64013, E5700-64014 Lester: 10932, 10932N, 10935, 10938, 10942, 10942N Arrowhead: APM0001, APM0003, APM0012 Cummins: 0185-5431 Bomag: 05740466 PIC: 299-156 Other: 1002114610, 1642764011, 1642764012 Regulator OEM NO. Kubota: 15531-64603, 15531-64601, 15351-64600, 15351-64601, 1535164600, 1535164601, 1553164601, 1553164603 Cub Cadet: KB-19267-64600, KB-RP201-53710, 19267-64600, 1926764600, 19267-64601, 19267-64602, RP201-53710, 1926764601, 1926764602, 1926764603 Grasshopper: 185530, RS5155 Kokusan Denski: RS5101, RS5102, RS5102A, RS5155 Perkins: 1855516060, 185516060 Arrowhead: APM6000 Other: 18270169, RP20153710, 19267-64603, 15844-6460-3, 15844-6460-0, 1584464603, 1584464600, 926-003, 926003 |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
