OEM / REF: 1138000SKU: pilotpart123801

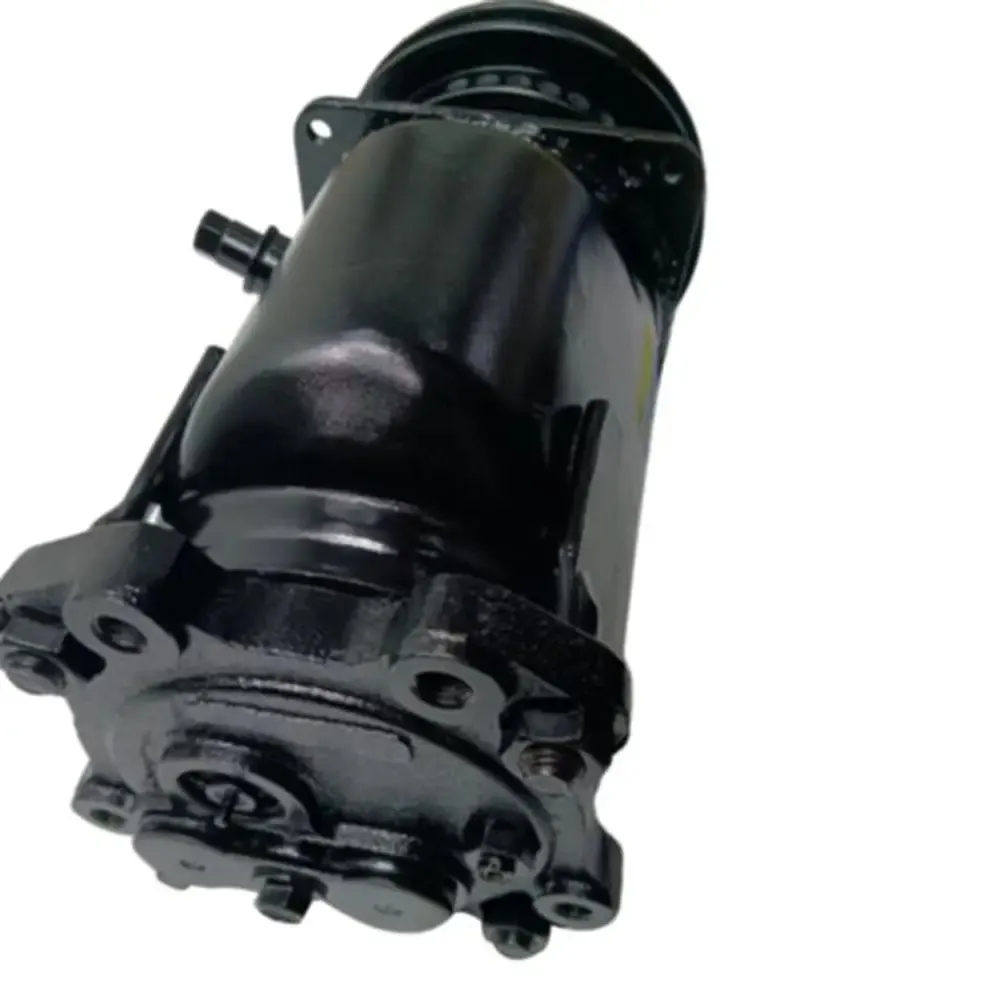

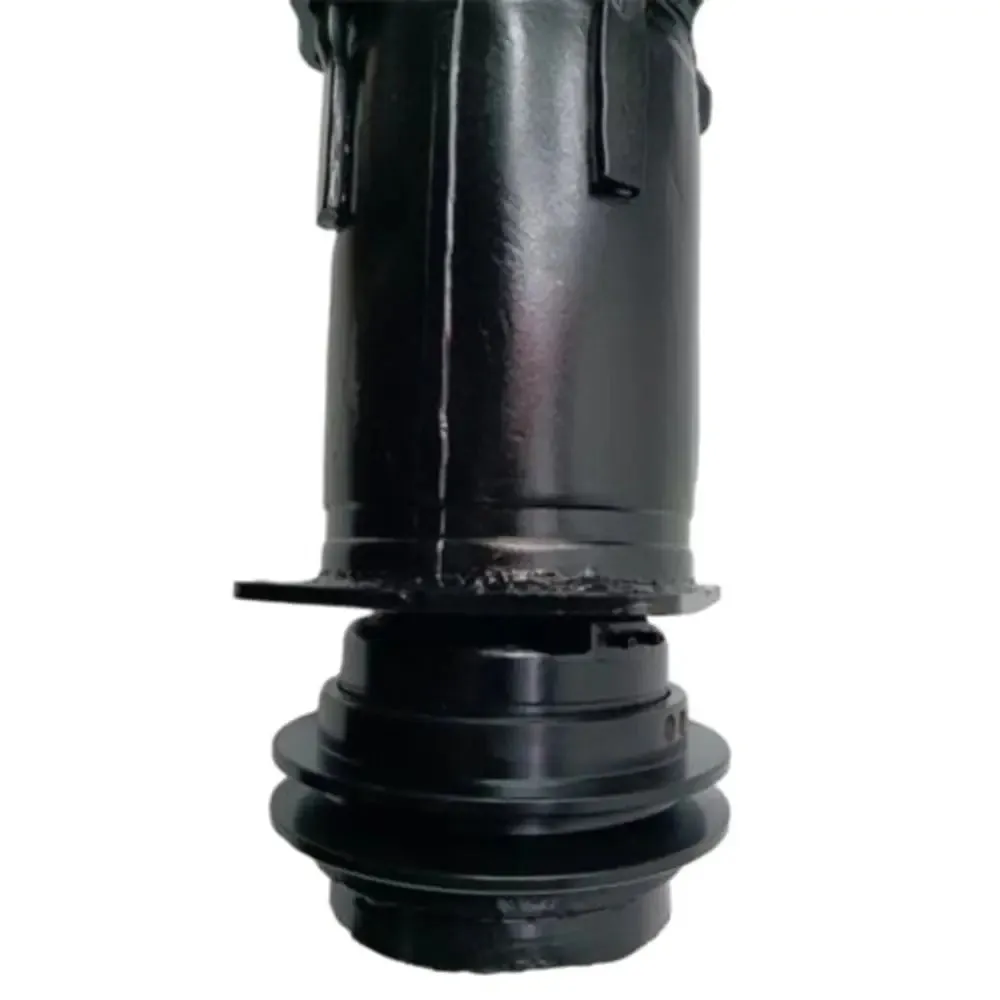

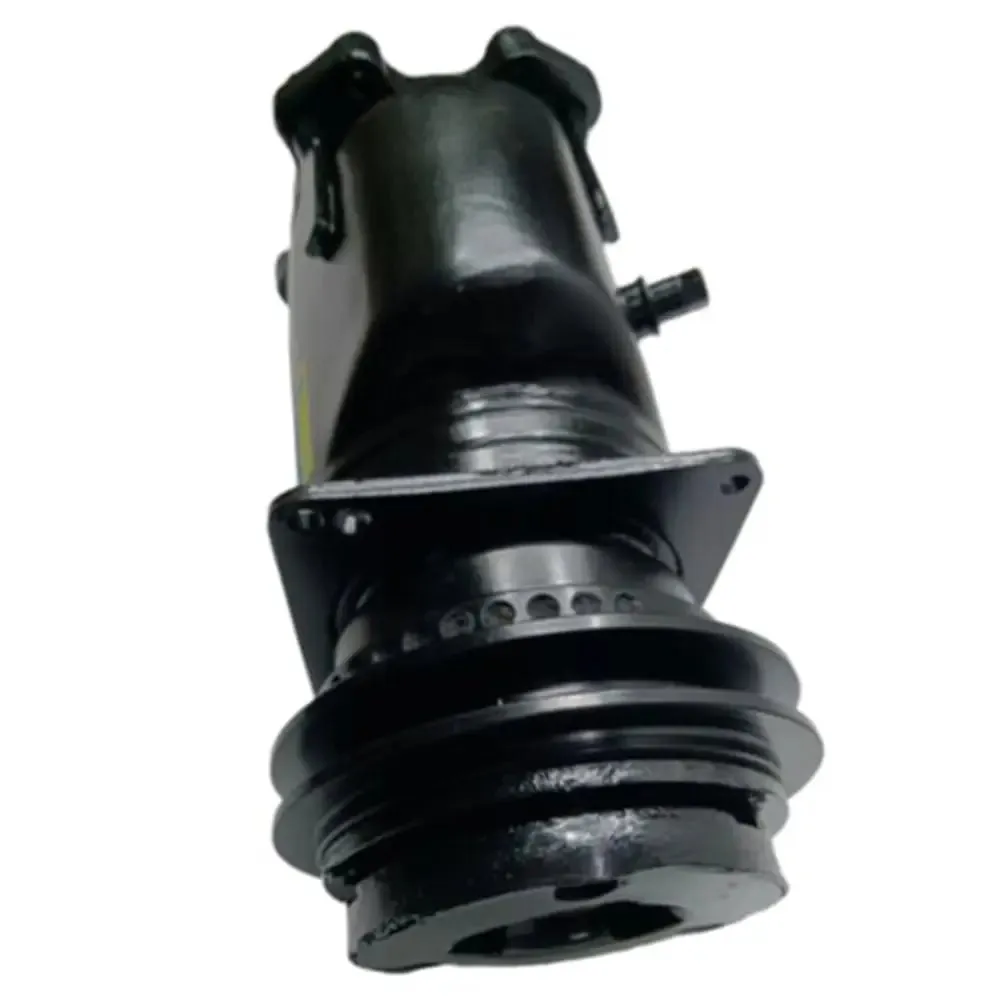

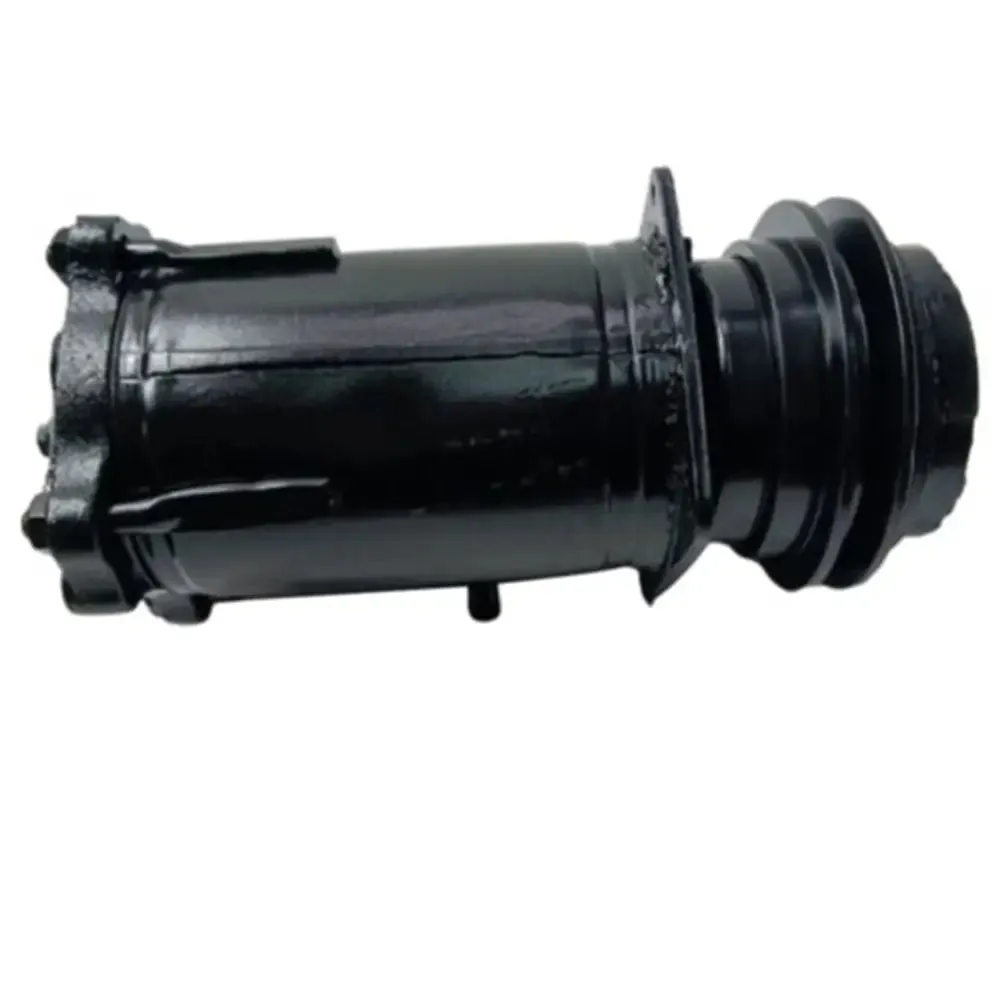

GM A6 A/C Compressor 7N4296 for Caterpillar CAT Excavator 215 225 229 231D 245 Loader 943 953 963 973 983 is a Air Conditioning Compressor replacement part indexed for Caterpillar 215 and Caterpillar 215B, with 3 application records on file. Match OEM part number 1138000 and confirm fitment for Caterpillar HVAC Part...
This Air Conditioning Compressor is indexed for Caterpillar 215; Caterpillar 215B; Caterpillar 225; Caterpillar 225D. Compare reference number 1138000 against the label on your existing Caterpillar component before ordering.
Additional cross references on file: CA1138000, CA7N4296, 7N-4296. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.
| Voltage | 24V |
|---|---|
| Clutch Diameter | 5-1/2" |
| No. of Grooves | 1 groove |
| Belt Type | 1/2" Belt |
| No. Comp. Cylinders | 6 cyl |
| Comp. Displacement (ci) | 12.6 cu.in. |
| Factory Oil Charge | Check label instructions |
| Fitting Port Position | Rear |
| Fitting Style | GM O-Ring Pad |
| Head Type | Superheat Switch Port |
| Wire Type | 10: 00 (LH) Plug |
| Model | A6 |
| Mounting Type | Standard thread |
| Oil Type | Mineral |
| Product Name | Compressor |
| Refrigerant Type | R12 |
| Rotation | CW |
| Shaft Type | Keyed shaft |
| Diode Protection | None |
| Make | Delphi GM |
| Part Number | 1138000, CA1138000, 113-8000, CA7N4296, 7N-4296, 7N4296 |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
