How do I confirm pilotpart269863-A fits my machine?

Compare the OEM or reference part number, machine model, engine model, and serial number. You can also submit a fitment inquiry before ordering.

In Stock

12V 2KW 9T Starter Motor 057 260 01 05710924 05728551 058 212 75 5726001 5726003R For BOMAG Compactors BPR 50/52D-3 Vibratory Plates BPH 80/65 S BPR 100/80 D BPR 70/70 D

For Bomag Starter Motor

Starter Motor 05710924 for Bomag Hatz 1D41S; 1D415 Engine

Q: What part numbers are associated with this Starter Motor?

05710924, 05728551, 5726001, 5726003R, 057 260 01, 058 212 75

OEM / REF: 05710924SKU: pilotpart269863-A

12V 2KW 9T Starter Motor 057 260 01 05710924 05728551 058 212 75 5726001 5726003R For BOMAG Compactors BPR 50/52D-3 Vibratory Plates BPH 80/65 S BPR 100/80 D BPR 70/70 D is a Starter Motor replacement part indexed for Bomag BPR 50/52D-3 · Hatz 1D41S; 1D415 and Bomag BPH 80/65 S · 1D 90; 11,5kW; Tier 4, with 3 applic...

Stock: In stock
Condition: New
Fitment: Bomag Engine Spare Parts
Category: Starter Motor

Fitment support before you order
Worldwide delivery options

In stock — ready to order

$185.17USD/EA

~~$19,081.00~~Save 99%

Estimated delivery by quantity

Estimated delivery windows
Qty	Estimated delivery
1	Oct 23 – Oct 30
10	Oct 21 – Oct 28
50	Oct 19 – Oct 26

Estimates from today; confirm exact lead time before payment.

Quantity

Confirm fitment before ordering →

Lead times can vary by freight route and customs. Contact support for expedited shipping.

Starter Motor Description

This Starter Motor is indexed for Bomag BPR 50/52D-3 · Hatz 1D41S; 1D415; Bomag BPH 80/65 S · 1D 90; 11,5kW; Tier 4; Bomag BPR 100/80 D · 1D 90; 11,0kW; Tier 4; Bomag BPR 70/70 D · 1D 81; 9,8kW; Tier 4. Compare reference number 05710924 against the label on your existing Bomag component before ordering.

Additional cross references on file: 05728551, 5726001, 5726003R. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.

Part Numbers and Cross References

05710924 05728551 5726001 5726003R 057 260 01 058 212 75

Applications

Bomag BPR 50/52D-3 · Hatz 1D41S; 1D415
Bomag BPH 80/65 S · 1D 90; 11,5kW; Tier 4
Bomag BPR 100/80 D · 1D 90; 11,0kW; Tier 4
Bomag BPR 70/70 D · 1D 81; 9,8kW; Tier 4

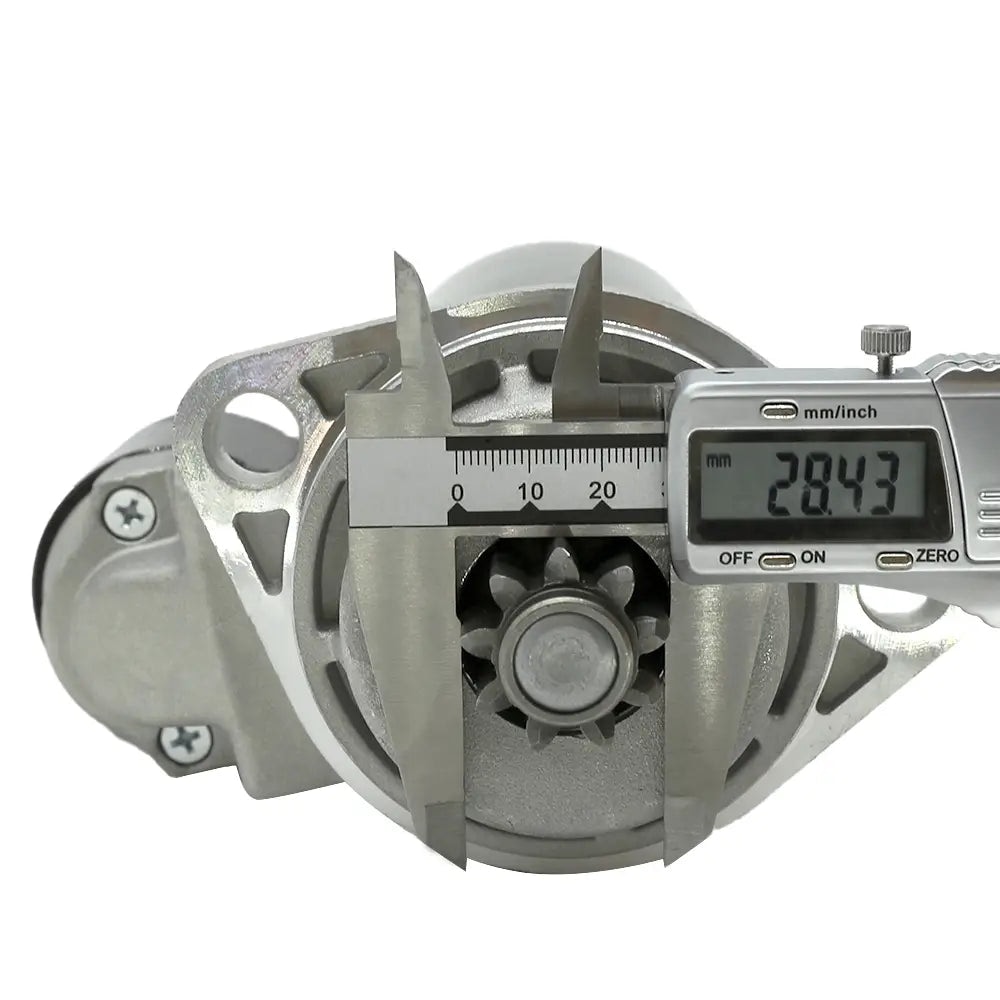

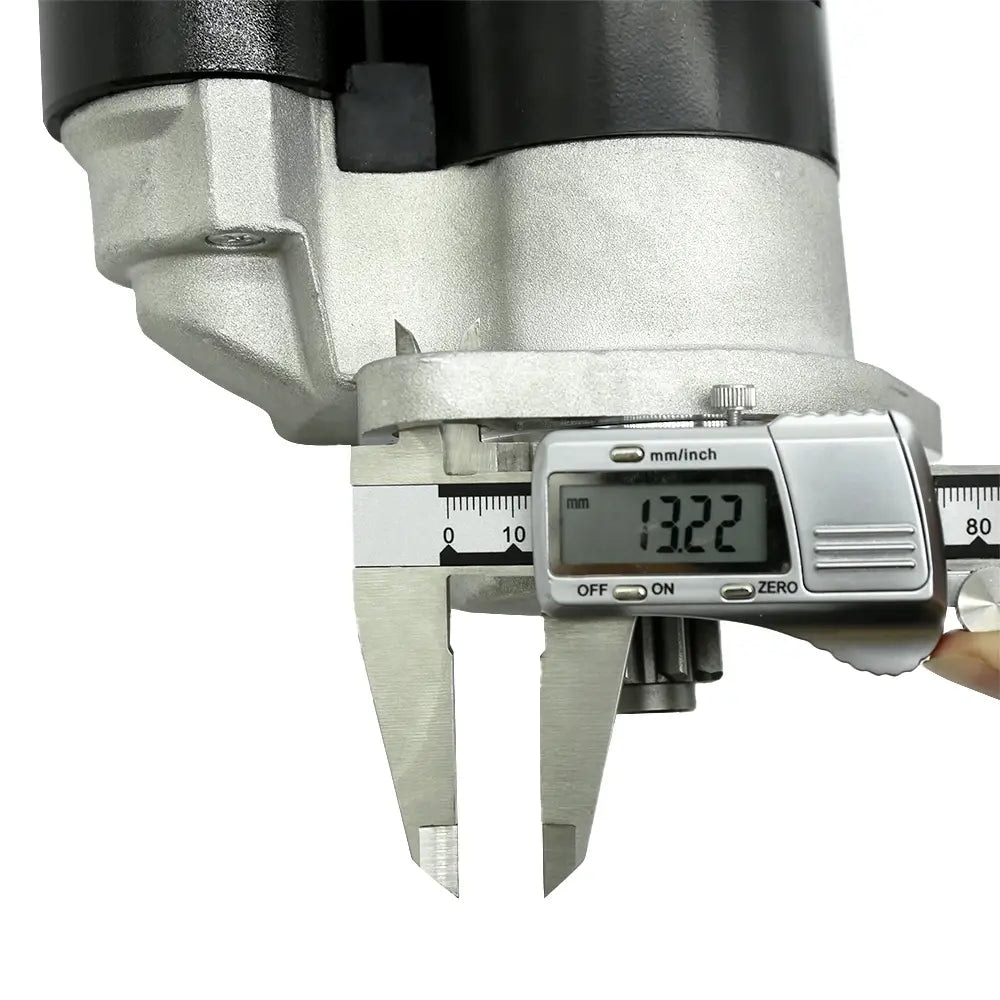

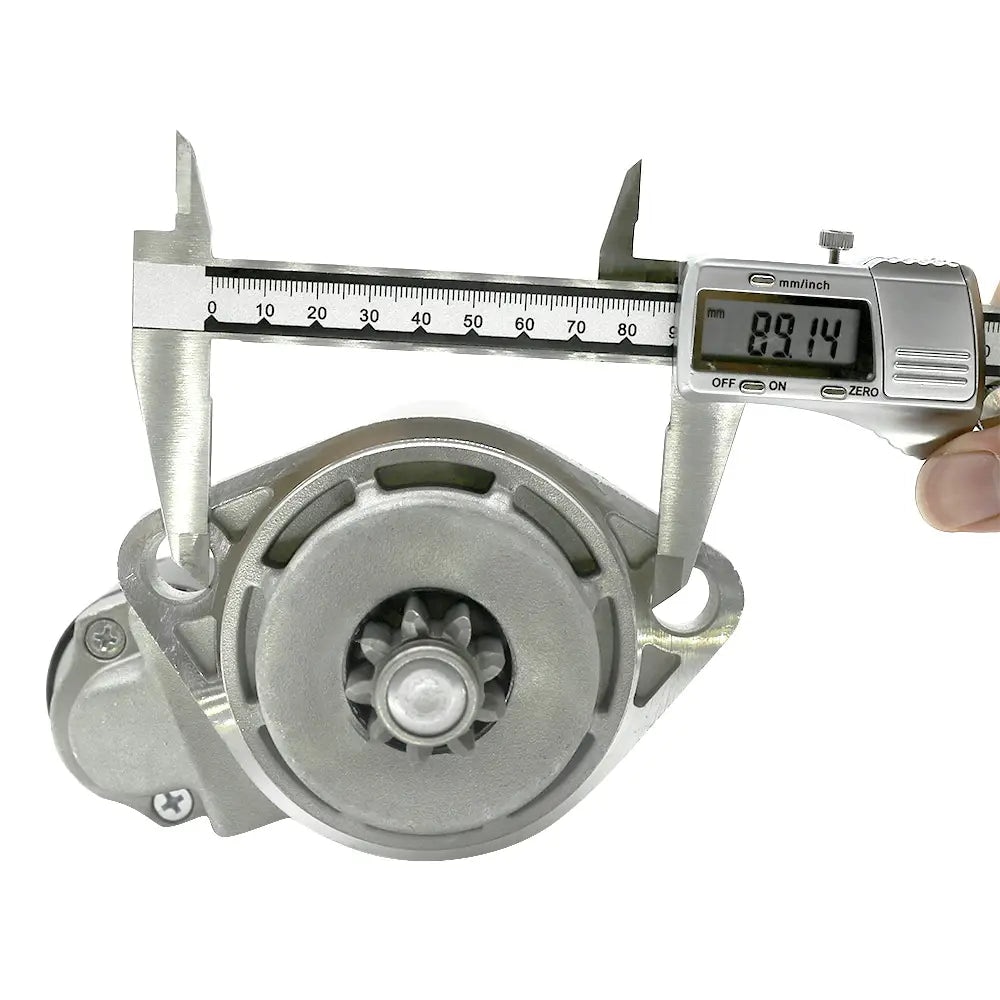

Specifications

Voltage	12V
Power	2.0KW
Teeth	9T
Outside Diameter of Pinion	30
Distance over Two Teeth	12.35
Module	2.5
Part Number (Bomag)	057 260 01, 05710924, 05728551, 058 212 75, 5726001, 5726003R
Part Number	Bomag: 057 260 01, 05710924, 05728551, 058 212 75, 5726001, 5726003R

Fitment Notes

Brand or application signal: Bomag Engine Spare Parts
Product family: Starter Motor
System category: Engine Spare Parts > Engine Auxiliary Components > Starter Motor
Recommended verification: OEM number, engine model, serial number, old part photos, and dimensions.

Shipping & Returns

Availability: InStock
Shipping: Shipping quotes can be confirmed before payment for heavy or urgent orders.
Returns: Returns are easier when fitment is confirmed before ordering.
B2B support: Bulk, fleet, and repair-shop requests can be handled through the inquiry form.

Frequently Asked Questions

How do I confirm this part fits my machine?

Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.

Can I order if my part number is not listed?

Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.

Is this an OEM part?

Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
