OEM / REF: 014901SKU: pilotpart713838

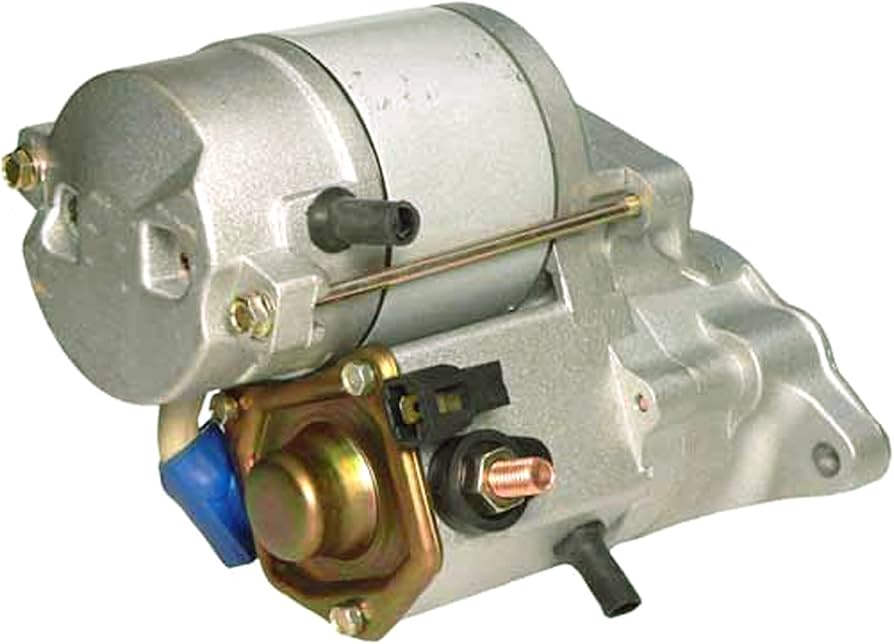

Starter 410-52020 16695-63011 128000-0050 For Case IH 1818 1825 Uni-Loaders is a Starter Motor replacement part indexed for Case IH 1818 and Case IH 1825. Match OEM part number 014901 and confirm fitment for CASE Engine Spare Parts before ordering.
This Starter Motor is indexed for Case IH 1818; Case IH 1825. Compare reference number 014901 against the label on your existing CASE component before ordering.
Additional cross references on file: 019269, ND9722809-097, ND9722809-099. If your machine plate shows a different number, submit a fitment inquiry with photos before checkout.
| Voltage | 12V |
|---|---|
| Power | 1.2KW |
| Teeth | 9T |
| Rotation | CW |
| Starter Type | OSGR |
| Part Number (ANDRE NIERMANN) | 014901, 019269 |
| Part Number (ARROWHEAD) | ND9722809-097, ND9722809-099, ND9722809-366, SND0264, SND0345, 410-52020 |
| Part Number (ATLANTIC QUALITY PARTS) | 1700-0118 |
| Part Number (BARSANCO) | 610-17098 |
| Part Number (BOMAG) | 5740325 |
| Part Number (CARGO) | 110447, 111021 |
| Part Number (CARRIER TRANSICOLD) | 25-15370-00, 25-15520-00, 25-39680-00RB, 945634 |
| Part Number (DENSO) | 128000-0050, 228000-0970, 228000-0971, 228000-0990, 228000-0991, 228000-3660 |
| Part Number (DENSO REMAN) | 9722809-097, 9722809-099 |
| Part Number (DIXIE) | S-8524 |
| Part Number (DIXIE NEW) | 246-14119 |
| Part Number (EMS) | 17098N |
| Part Number (HELLA) | 8EA 012 527-111, 8EA 730 270-001, 8EA 732 851-001 |
| Part Number (INTL HARVESTER) | 1959380C1 |
| Part Number (J&N) | 410-52020, 410-52020R |
| Part Number (KUBOTA) | 16695-63011, 16695-63012, 16695-63013, 19090-17861, 19269-63010, 19269-63011, 19269-63012, 19269-63013 |
| Part Number (LESTER) | 17098 |
| Part Number (LUCAS) | LRS01251, LRS01629 |
| Part Number (MINNPAR) | 57-1310, 57-1725, 57-3230 |
| Part Number (PIC) | 190-432, 190-560, 190-560A, 190-560B |
| Part Number (WILSON) | 91-29-5193, 91-29-5619 |
| Part Number (WILSON SMALL ENGINE) | 71-29-17098 |
| Part Number (WOOD AUTO) | STR8090 |
| Part Number | ANDRE NIERMANN: 014901, 019269 ARROWHEAD: ND9722809-097, ND9722809-099, ND9722809-366, SND0264, SND0345, 410-52020 ATLANTIC QUALITY PARTS: 1700-0118 BARSANCO: 610-17098 BOMAG: 5740325 CARGO: 110447, 111021 CARRIER TRANSICOLD: 25-15370-00, 25-15520-00, 25-39680-00RB, 945634 DENSO: 128000-0050, 228000-0970, 228000-0971, 228000-0990, 228000-0991, 228000-3660 DENSO REMAN: 9722809-097, 9722809-099 DIXIE: S-8524 DIXIE NEW: 246-14119 EMS: 17098N HELLA: 8EA 012 527-111, 8EA 730 270-001, 8EA 732 851-001 INTL HARVESTER: 1959380C1 J&N: 410-52020, 410-52020R KUBOTA: 16695-63011, 16695-63012, 16695-63013, 19090-17861, 19269-63010, 19269-63011, 19269-63012, 19269-63013 LESTER: 17098 LUCAS: LRS01251, LRS01629 MINNPAR: 57-1310, 57-1725, 57-3230 PIC: 190-432, 190-560, 190-560A, 190-560B WILSON: 91-29-5193, 91-29-5619 WILSON SMALL ENGINE: 71-29-17098 WOOD AUTO: STR8090 |
Match the OEM or reference number first, then verify machine model, engine model, serial number, connector layout, mounting points, and old part photos.
Yes. Send the old part number, machine plate, and photos through the fitment inquiry form. Support can review possible replacements or alternatives.
Products are indexed as replacement parts unless explicitly marked otherwise. Always compare reference numbers and confirm fitment before purchase.
